31210191: DescriptionCombination Line Connector, 6 Contact(s), Female; CategoryThe connector The connector; File Size213KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

31210191 Overview

Combination Line Connector, 6 Contact(s), Female

31210191 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Other features	POLARIZED
body length	0.905 inch
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	2
Options	GENERAL PURPOSE
Shell material	POLYBUTYLENE TEREPHTHALATE
Total number of contacts	6
Base Number Matches	1

Preview

Download Datasheet

View All

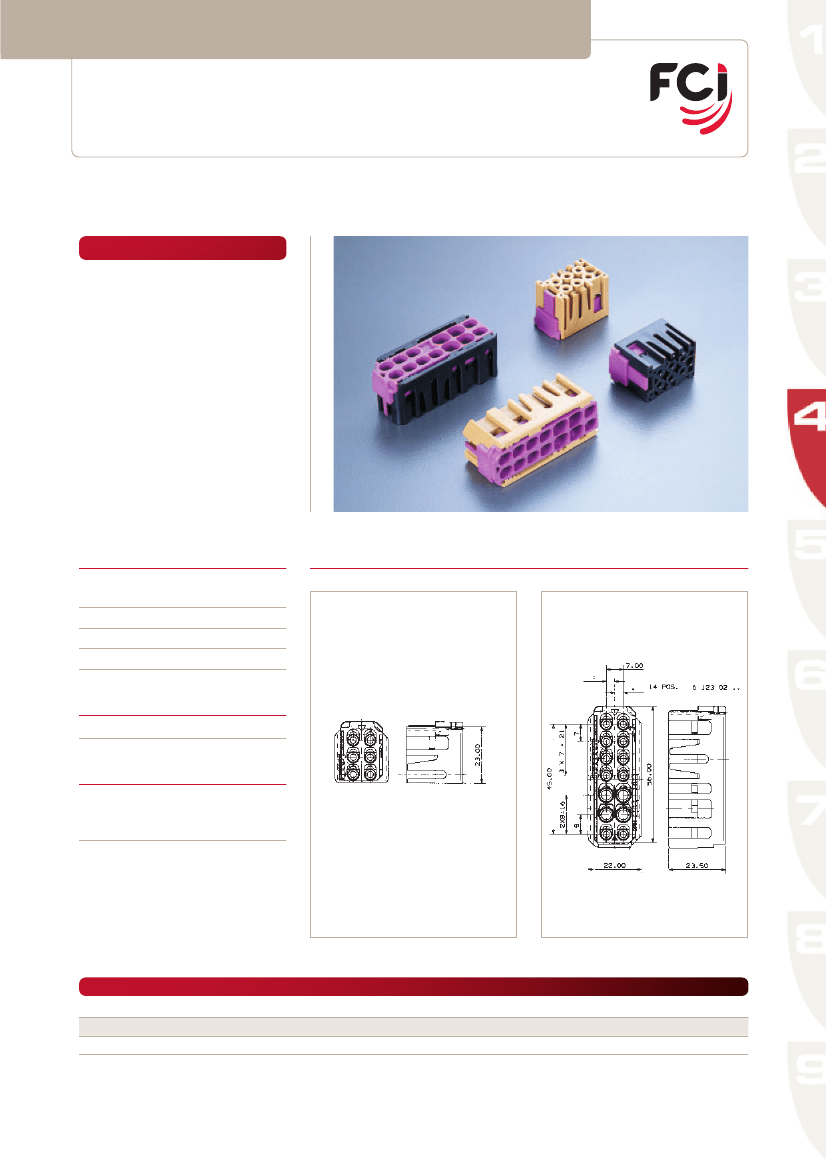

Instrument panel and cockpit connectors

Component-to-wire connectors

RCS

6/13 & 14 female housings for Ø 2.5 + Ø 4.0 mm terminals

Features

•

6-13-14 position housings available

Lateral secondary lock

Terminal position assurance (T.P.A.)

GO-NO-GO housing locking

principle

•

Mechanical polarization

Performance characteristics

•

Temperature range:

from -40°C to +120°C

Dimensional characteristics

6 way housing

> 60 N

< 15 N

< 150 N

13/14 way housing

•

Contact retention force:

•

Contact insertion force:

•

Connector mating force:

Construction

•

Housing material:

PBT

Connector compatibility

•

Usable terminals:

- RCS Ø 2.5 mm female terminals

- RCS Ø 4.0 mm female terminals

Part Numbers

3 121 01 91

3 123 01 21

3 123 02 91

No. of position

6

13

14

Terminal size

Ø 2.5 mm

4 x [Ø 4.0 mm] + 9 x [Ø 2.5 mm]

4 x [Ø 4.0 mm] + 10 x [Ø 2.5 mm]

Colour

Black

Rev 06/04

4.45

31210191 Related Products

	31210191	31230121	31230291
Description	Combination Line Connector, 6 Contact(s), Female	Combination Line Connector, 13 Contact(s), Female	Combination Line Connector, 14 Contact(s), Female
Reach Compliance Code	compliant	compliant	compliant
Other features	POLARIZED	POLARIZED	POLARIZED
Connector type	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO
empty shell	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Mixed contacts	NO	NO	NO
Installation type	CABLE	CABLE	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Total number of contacts	6	13	14
Base Number Matches	1	1	1
Maker	Amphenol	-	Amphenol
Manufacturer's serial number	-	31230121	31230291
