CT100F22-18-C

Description
Board Connector, 18 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking, Red Insulator
CategoryThe connector    The connector
File Size113KB,2 Pages
ManufacturerPANCON CONNECTORS
Download Datasheet Parametric View All

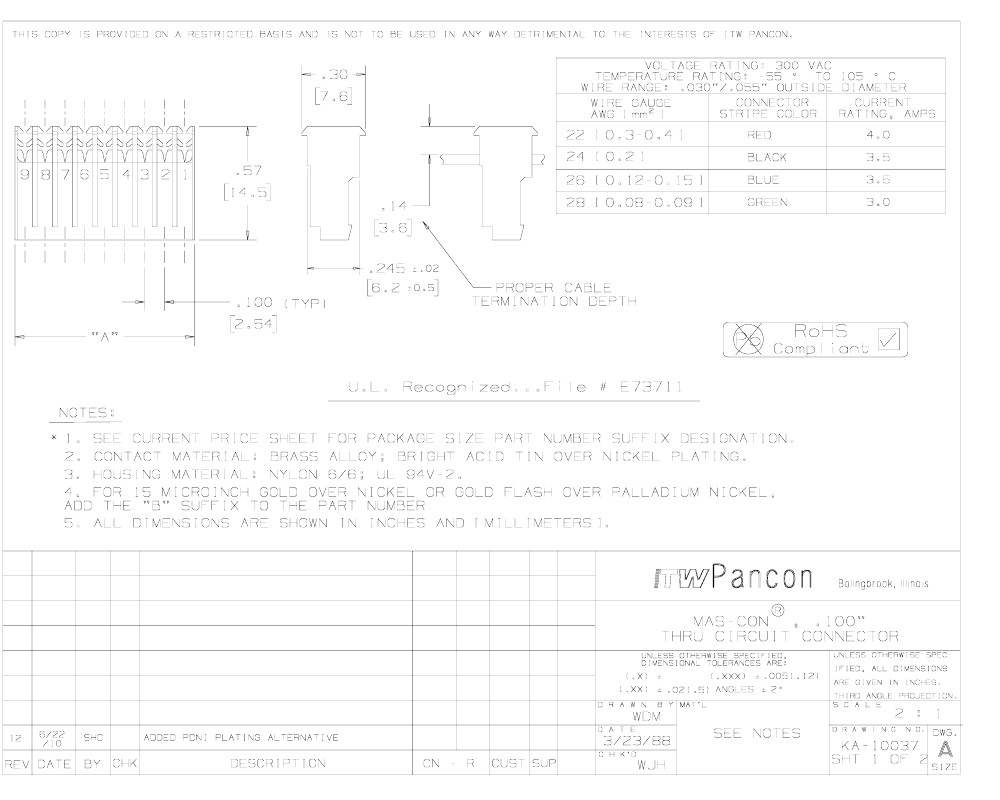

CT100F22-18-C Overview

Board Connector, 18 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking, Red Insulator

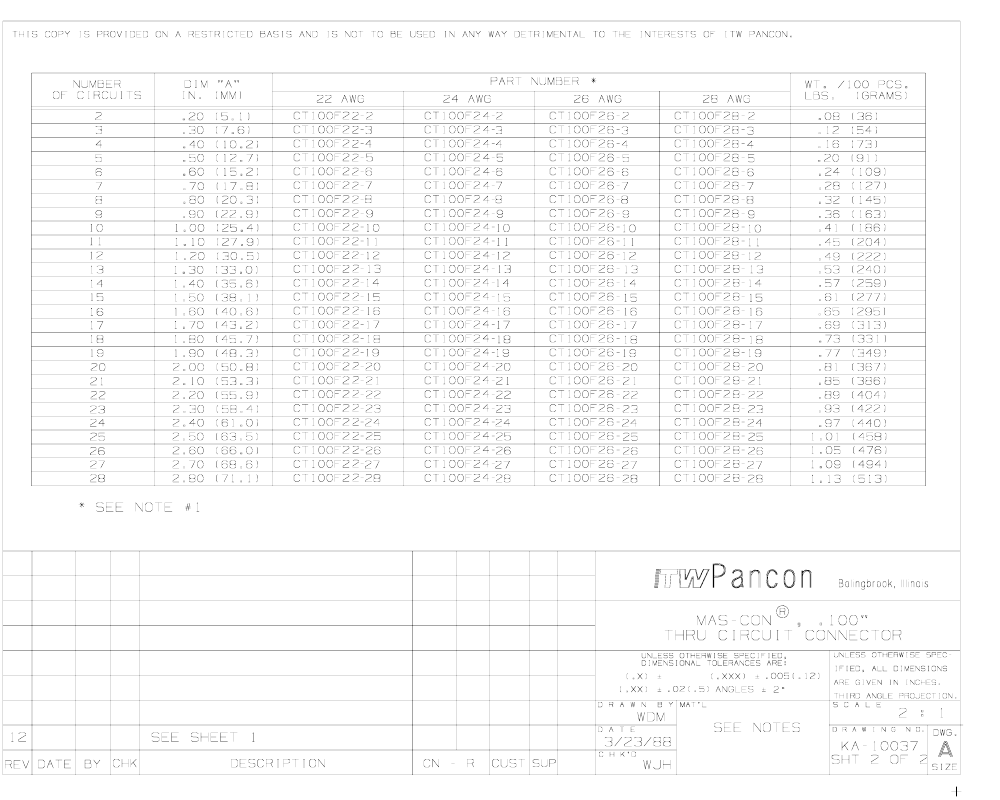

CT100F22-18-C Parametric

Parameter NameAttribute value
MakerPANCON CONNECTORS
Reach Compliance Codeunknown
body width0.3 inch
subject depth0.57 inch
body length1.8 inch
Connector typeBOARD CONNECTOR
Contactor designPREASSEM CONN
Contact to complete cooperationSN ON NI
Contact point genderFEMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Dielectric withstand voltage2000VAC V
maximum insertion force8.0064 N
Insulation resistance5000000000 Ω
Insulator colorRED
insulator materialNYLON
Manufacturer's serial numberCT100F
Plug contact pitch0.1 inch
Installation option 1LOCKING
Installation typeCABLE
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
Rated current (signal)4 A
GuidelineUL
reliabilityCOMMERCIAL
Termination typeIDC
Total number of contacts18
Maximum wire diameter22 AWG
Minimum wire diameter22 AWG
Evacuation force-minimum value1.3344 N
Base Number Matches1
