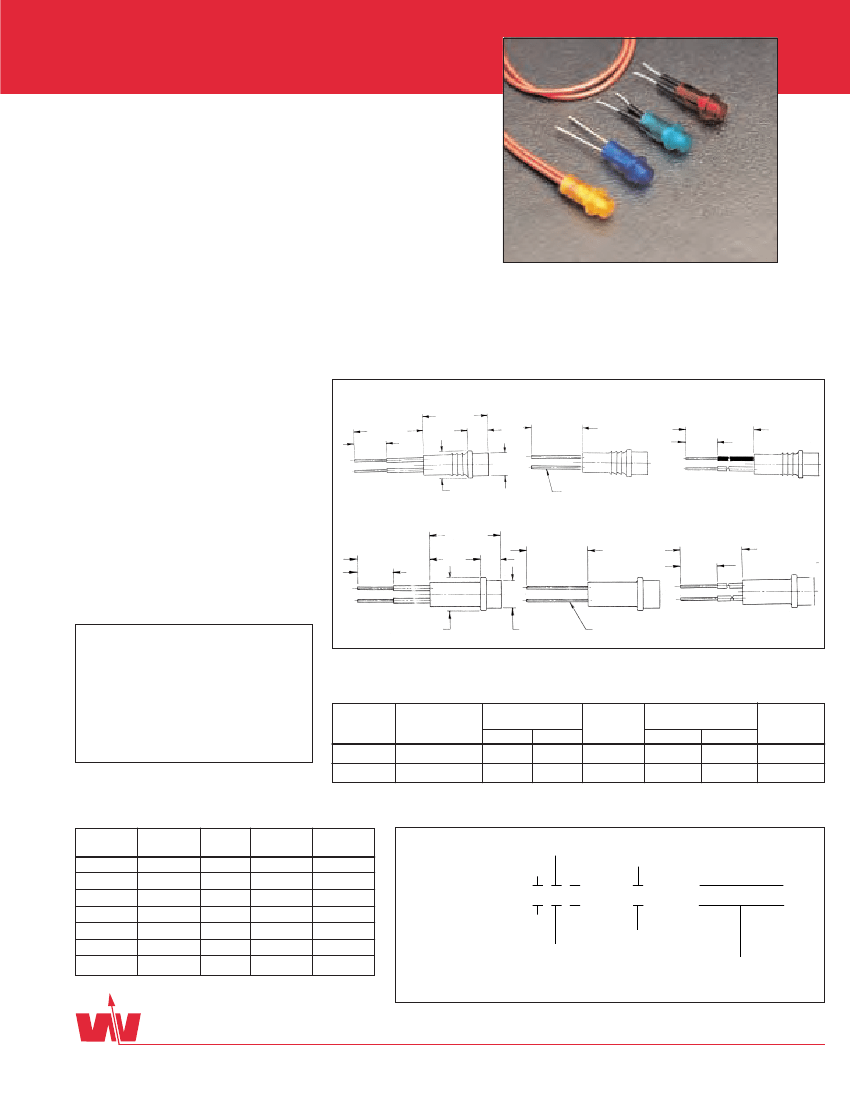

400/300 Series Incandescent and
Special Features
Neon Panel Mount Indicators
-
RoHS Compliant
• Ultra-miniature size
• Explosion proof incandescent—meets requirements of MIL-E-5400
• One-piece body and lens construction—available in red, green,
amber, clear, blue, yellow and white transparent or translucent
butyrate plastic
• Front mounting ribbed body “snaps into” panel—no mounting
hardware required
Panel Mount Incandescent/Neon Indicators
• Available in smooth body for thinner panel—mounts with
non-corrosive tinnerman speed nut (furnished)
• Optically engineered lens provides full 180° visibility
• Sealed against moisture and dust—
water resistant
Package Dimensions
Specifications
• Mounting Hole: .187˝ (4.75)
• Termination: 26 AWG 1/2˝ (nominal)
solid insulated wire leads, 28 AWG
8˝ stranded insulated leads or bi-
pins (other leads lengths available
on request)
• Hot stamping legends available:
Two 6 pt. (5/64˝) or one 8 pt. (3/32˝)
characters in black or white
400 Series
.50 (12.7)
.50 (12.7)
.25
(6.4)
.156
(3.96)
.185
(4.7)
.259
(6.6)
.020
(.5)
.400 (10.2)
8.0 (203.2)
.25
(6.4)
450 Series
490 Series
300 Series
.50 (12.7)
.50 (12.7)
.25
(6.4)
.156
(3.96)
350 Series
.400 (10.2)
390 Series
8.0 (203.2)
.25 (6.4)
Lens Color Code
1. Transparent Amber
2. Transparent Red
3. Transparent Blue*
4. Transparent Green*
5. Transparent Clear
6. Translucent Yellow
+
7. Translucent Red
+
8. Translucent Blue*
+
9. Translucent Green*
+
10. Translucent White
+
.262
(6.7)
.186
(4.7)
.020
(.5)
All Dimensions are in inches (mm)
Neon Lamps
Lamp
Type
N513
N517
Circuit Voltage
90-115/220
90-115/220
Starting V
Maxiumum
AC
DC
65
95
90
135
Current
mA
.3
1.0
Series Resistor
115V
220V
150KΩ
47KΩ
360KΩ
120KΩ
Life Hours
(Average)
15,000
15,000
Note:
* Blue and green lenses not recommended
for use with neon bulbs.
+
Translucent lenses not recommended for
use with neon bulbs and LEDs.
Incandescent Lamps
Operating
Lamp Type
HM605
HM609
HM619
HM628
HM630
HM631
HM642
Voltage
5.0
5.0
5.0
12.0
14.0
18.0
28.0
Amps
.021
.115
.060
.060
.065
.026
.024
MSCP
(Nominal)
.034
.150
.030
.150
.150
.150
.150
Life Hours
(Average)
10,000
40,000
100,000
16,000
16,000
16,000
16,000
How To Order
Termination
Lens Color
Lens Style
x x 0 —
Smooth Body = 3
Ribbed Body = 4
1/2" Solid Wire Leads = 0
Bipin = 5
8" Standard Wire Leads = 9
x
—
x x x x x
See Lens
Color Code
Lamp Type
(See Lamp Charts)
®
WILBRECHT
ELECTRONICS, INC.
LEDCO
DIVISION
19
1400 Energy Park Drive, Suite 18 • St. Paul, MN 55108-5248 • (651) 659-0919 • Toll free (888) 323-8751 • FAX (651) 659-9204 • www.wilbrecht.com
