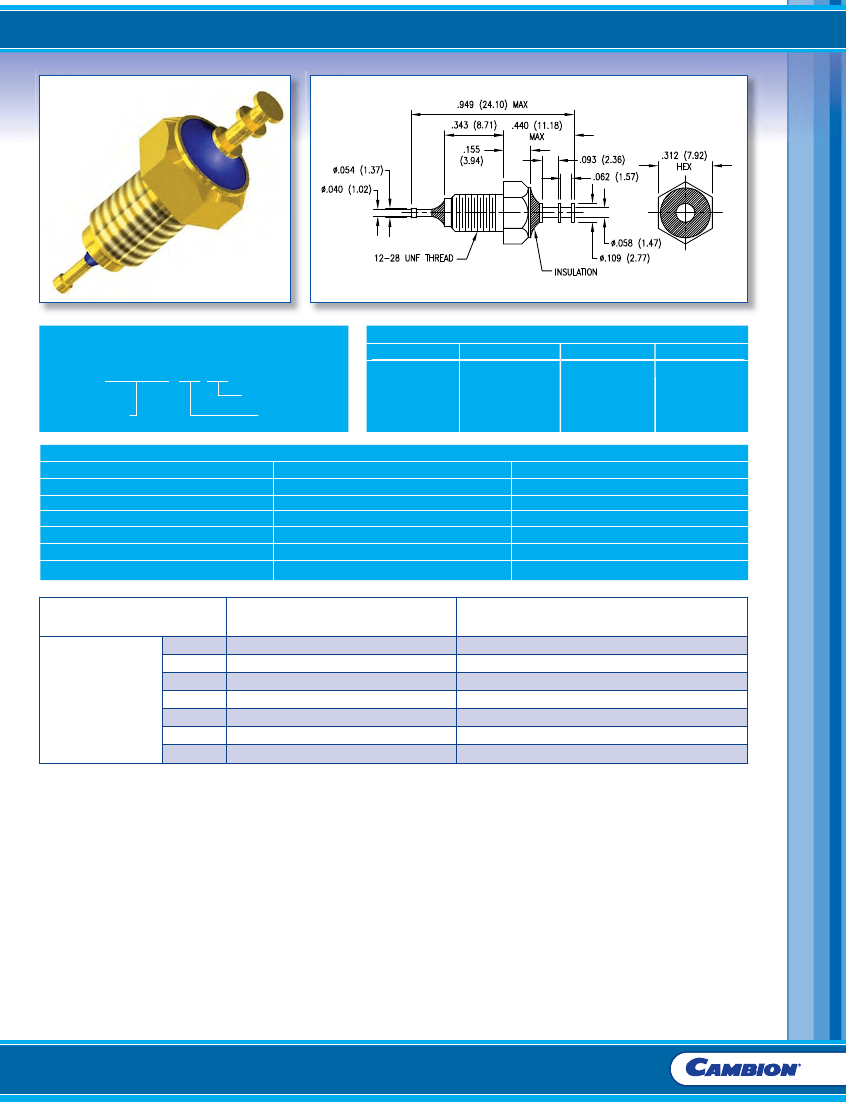

FILTER TERMINAL
Dimensions in inches (mm)
How to order code
560 - 8265 - XX - XX - 00
Capacitance Tolerance
Basic Part No.
Capacitance Code
Capacitance Tolerance Coded Dash Numbers
-01
-02
±10%
±20%
K
M
To Order
Standard
Material Code Table
Component
Mounting Stud
Terminal
Dielectric
Insulation
Lock washer
Mounting Hex Nut
Material
Brass
Brass
Ceramic
Epoxy
Phosphor Bronze
Brass
Finish
0.5µM over 1.25µM nickel plate
0.5µM over 1.25µM nickel plate
0.5µM over 7.5µM nickel plate
0.5µM over 7.5µM nickel plate
Basic Part No.
-27
-31
-33
560-8265
-35
-37
-39
-41
Capacitance (pF)
150.00
330.00
470.00
680.00
1000.00
1500.00
2200.00
Test Frequency (KHz)
1.00
1.00
1.00
1.00
1.00
1.00
1.00
Dielectric Strength: A potential of 250% of rated voltage may be applied for 5 seconds at 25˚C
Terminal strength: a force of 20 lbs. (9.1Kg) exerted in the direction of terminal exceeds the requirements
of MIL-C-11015C
Insulation Resistance: >1GΩ @500V DC measured at 25˚C
Working Voltage: 500V DC
Supplied with lock washer and hex nut unassembled
Suggested Mounting Torque: 4inch/lbs. (0.448Nm)
Devices are RoHS compliant
Temperature Coefficient: Maximum capacitance change from 25ºC. Value over the temperature range:
-40ºC to +85ºC is +22% -56%
Call our dedicated order line on
+44 (0) 1433 621555
or visit
www.cambion.com
