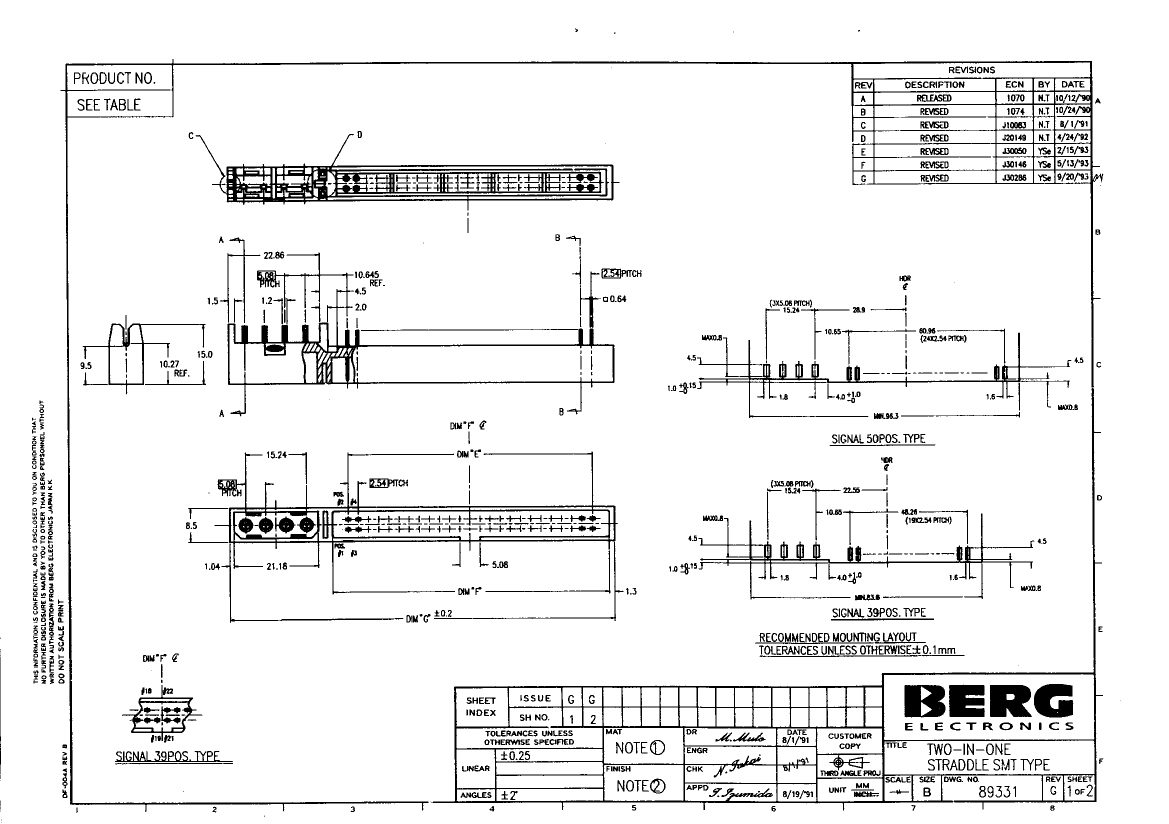

Board Connector, 54 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal

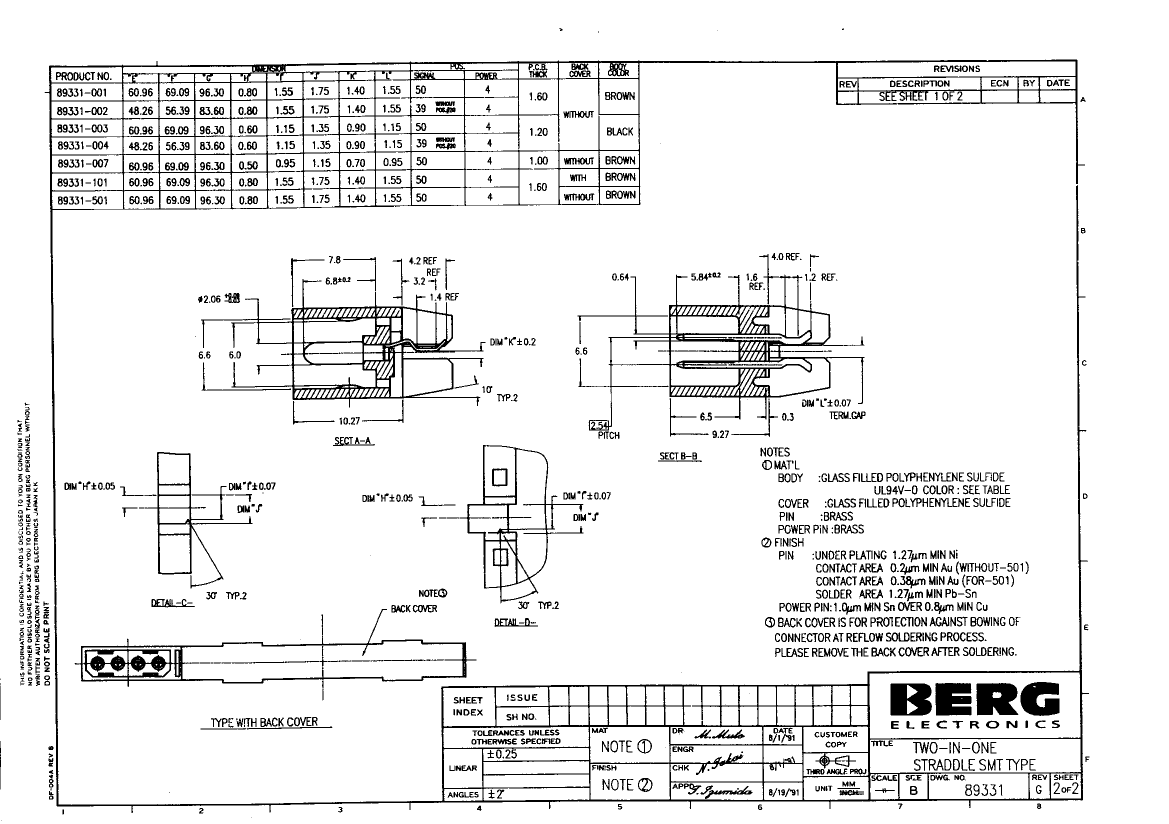

| Parameter Name | Attribute value |
| Maker | Amphenol |
| Reach Compliance Code | compliant |
| Other features | TERMINAL PITCH FOR POWER CONTACTS: 5.08 MM, STRADDLE MOUNT |
| Connector type | BOARD CONNECTOR |
| Contact point gender | MALE |
| DIN compliance | NO |
| Filter function | NO |
| IEC compliance | NO |
| MIL compliance | NO |
| Manufacturer's serial number | 89331 |
| Mixed contacts | YES |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of rows loaded | 2 |
| Options | GENERAL PURPOSE |
| Terminal pitch | 2.54 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 54 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
| 89331-101 | 89331-007 | 89331-002 | 89331-501 | 89331-004 | 89331-001 | 89331-003 | |
|---|---|---|---|---|---|---|---|
| Description | Board Connector, 54 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal | Board Connector, 54 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal | Board Connector, 43 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal, Guide Slot, Brown Insulator, Receptacle | Board Connector, 54 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal | Board Connector, 43 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal, Guide Slot, Brown Insulator, Receptacle | Board Connector, 54 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal, Guide Slot, Brown Insulator, Receptacle | Board Connector, 54 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal, Guide Slot, Brown Insulator, Receptacle |
| Maker | Amphenol | Amphenol | Amphenol | Amphenol | Amphenol | Amphenol | Amphenol |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant | compliant |
| Other features | TERMINAL PITCH FOR POWER CONTACTS: 5.08 MM, STRADDLE MOUNT | TERMINAL PITCH FOR POWER CONTACTS: 5.08 MM, STRADDLE MOUNT | TERMINAL PITCH FOR POWER CONTACTS: 5.08 MM, STRADDLE MOUNT | TERMINAL PITCH FOR POWER CONTACTS: 5.08 MM, STRADDLE MOUNT | TERMINAL PITCH FOR POWER CONTACTS: 5.08 MM, STRADDLE MOUNT | TERMINAL PITCH FOR POWER CONTACTS: 5.08 MM, STRADDLE MOUNT | TERMINAL PITCH FOR POWER CONTACTS: 5.08 MM, STRADDLE MOUNT |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact point gender | MALE | MALE | MALE | MALE | MALE | MALE | MALE |
| DIN compliance | NO | NO | NO | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO | NO |
| MIL compliance | NO | NO | NO | NO | NO | NO | NO |
| Manufacturer's serial number | 89331 | 89331 | 89331 | 89331 | 89331 | 89331 | 89331 |
| Mixed contacts | YES | YES | YES | YES | YES | YES | YES |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of rows loaded | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Termination type | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT |
| Total number of contacts | 54 | 54 | 43 | 54 | 43 | 54 | 54 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | - | - |
| ECCN code | - | - | EAR99 | - | EAR99 | EAR99 | EAR99 |
| Board mount options | - | - | EDGE MOUNT | - | EDGE MOUNT | EDGE MOUNT | EDGE MOUNT |
| body width | - | - | 0.335 inch | - | 0.335 inch | 0.335 inch | 0.335 inch |
| subject depth | - | - | 0.59 inch | - | 0.59 inch | 0.59 inch | 0.59 inch |
| body length | - | - | 3.29 inch | - | 3.29 inch | 3.79 inch | 3.79 inch |
| Body/casing type | - | - | RECEPTACLE | - | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Contact arrangement | - | - | S40P4 | - | S40P4 | S50P4 | S50P4 |
| Contact to complete cooperation | - | - | AU ON NI | - | AU ON NI | AU ON NI | AU ON NI |
| Contact completed and terminated | - | - | TIN OVER NICKEL | - | TIN OVER NICKEL | TIN OVER NICKEL | TIN OVER NICKEL |
| Contact material | - | - | BRASS | - | BRASS | BRASS | BRASS |
| Contact style | - | - | SQ PIN-SKT | - | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| Dielectric withstand voltage | - | - | 1000VAC V | - | 1000VAC V | 1000VAC V | 1000VAC V |
| Insulation resistance | - | - | 10000000000 Ω | - | 10000000000 Ω | 10000000000 Ω | 10000000000 Ω |
| Insulator color | - | - | BROWN | - | BROWN | BROWN | BROWN |
| insulator material | - | - | GLASS FILLED POLYPHENYLENE SULPHIDE | - | GLASS FILLED POLYPHENYLENE SULPHIDE | GLASS FILLED POLYPHENYLENE SULPHIDE | GLASS FILLED POLYPHENYLENE SULPHIDE |
| Installation option 1 | - | - | GUIDE SLOT | - | GUIDE SLOT | GUIDE SLOT | GUIDE SLOT |
| Number of connectors | - | - | ONE | - | ONE | ONE | ONE |
| Maximum operating temperature | - | - | 85 °C | - | 85 °C | 85 °C | 85 °C |
| Plating thickness | - | - | 8u inch | - | 8u inch | 8u inch | 8u inch |
| Rated current (signal) | - | - | 1 A | - | 1 A | 1 A | 1 A |
| Guideline | - | - | UL | - | UL | UL | UL |
| reliability | - | - | COMMERCIAL | - | COMMERCIAL | COMMERCIAL | COMMERCIAL |
