D-SUBMINIATURE
Adam Technologies, Inc.
INTRODUCTION:

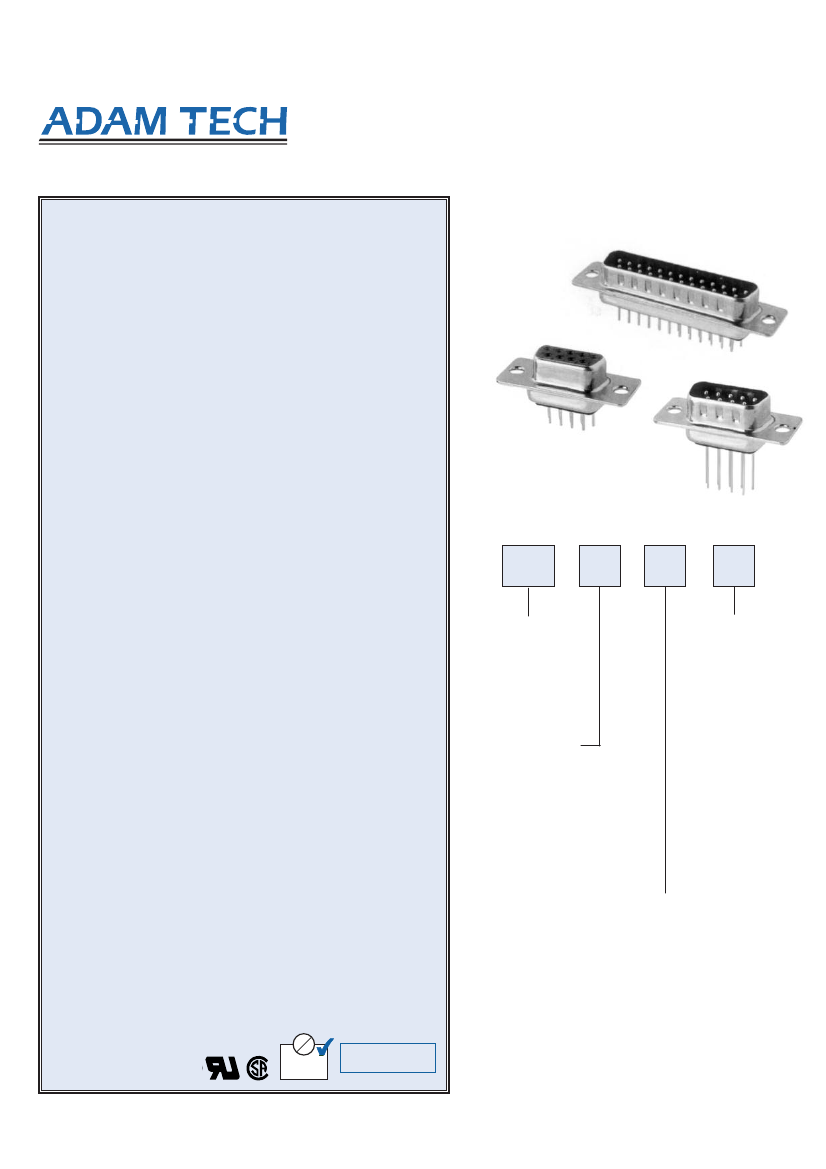

Adam Tech Straight PCB tail D-Sub connectors are a popular
interface for many I/O applications. Offered in 9, 15, 25, 37 and 50
positions they are an excellent choice for a low cost, sturdy, full metal
body industry standard connection. These connectors are
manufactured with precision stamped or machined turned contacts
offering a choice of contact plating and a wide selection of mating
and mounting options.
FEATURES:
Industry standard compatibility
Durable metal shell design
Precision formed contacts
Variety of Mating and mounting options
MATING CONNECTORS:
Adam Tech D-Subminiatures and all industry standard
D-Subminiature connectors.
SPECIFICATIONS:
Material:
Standard insulator: PBT, 30% glass reinforced, rated UL94V-0
Optional Hi-Temp insulator: Nylon 6T
Insulator Colors: Black (White optional)
Contacts: Phosphor Bronze
Shell: Steel, Tin or Zinc plated
Hardware: Brass, Nickel plated
Contact Plating:
Gold Flash (15 and 30
µin
Optional) over Nickel underplate overall
Electrical:
Operating voltage: 250V AC / DC max.
Current rating: 5 Amps max.
Contact resistance: 20 mΩ max. initial
Insulation resistance: 5000 MΩ min.
Dielectric withstanding voltage: 1000V AC for 1 minute
Mechanical:
Insertion force: 0.75 lbs max
Extraction force: 0.44 lbs min
Temperature Rating:
Operating temperature: -65°C to +125°C
Soldering process temperature:
Standard insulator: 235°C
Hi-Temp insulator: 260°C
PACKAGING:
Anti-ESD plastic trays
APPROVALS AND CERTIFICATIONS:
UL Recognized File No. E224053
CSA Certified File No. LR1578596

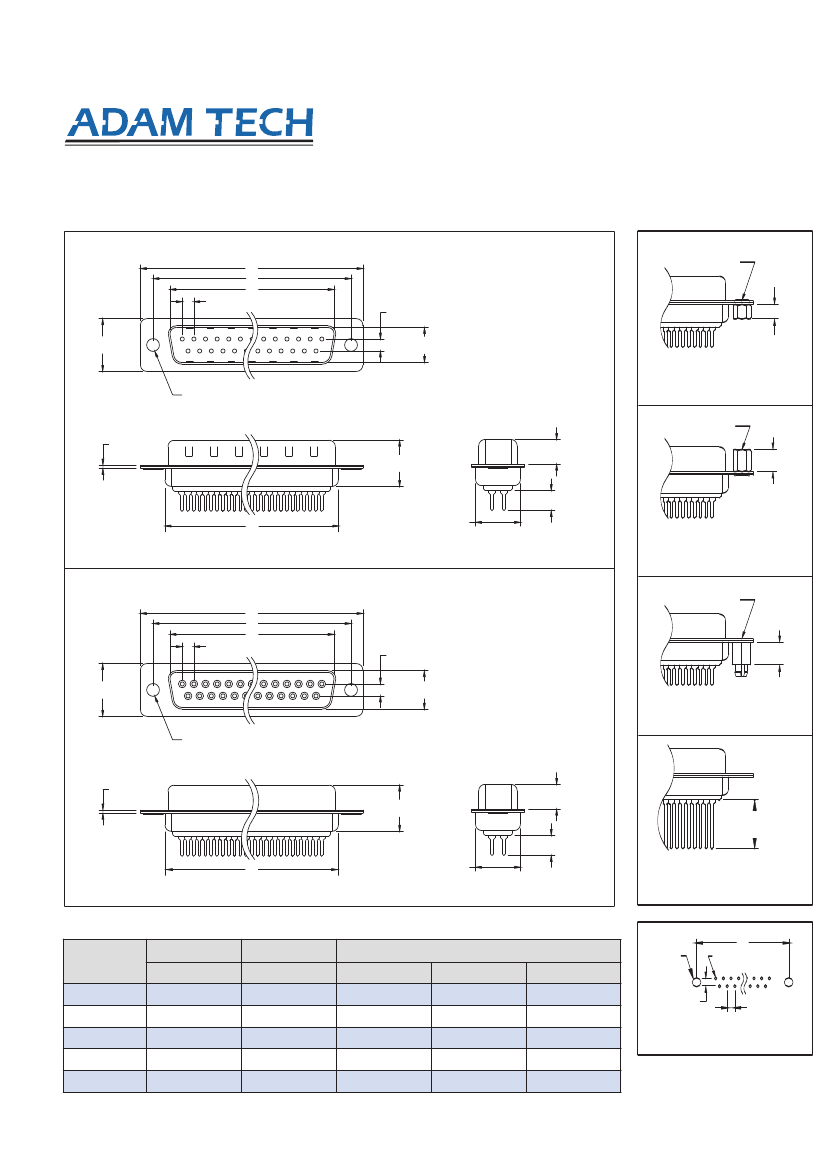

STRAIGHT & WIRE WRAP PCB TAIL
DPT, DST, DPE & DSE SERIES
ORDERING INFORMATION
DB25
ST
1
SL
MOUNTING OPTIONS
Blank
= .120"Mounting
Holes
SL
= Bottom side
riveted #4-40
Clinch Nuts
JS
= Top side
riveted #4-40
Jackscrews
CONTACT TYPE
BL
= Riveted #4-40
PT
= Plug, Straight PCB
Internal Threaded
Tail, Standard Profile
Standoffs with
ST
= Socket, Straight
Boardlocks
PCB Tail, Standard
R
= Riveted Round
Profile
Jack Screws
PE
= Plug, Straight PCB
JSL
= Bottom side
Tail, High Profile
riveted #4-40
SE
= Socket, Straight
Clinch Nuts with
PCB Tail, High
Jack Screws
Profile
installed
TERMINAL LENGTH
1
= Standard tail length for
.062" thru .125" PCB’s
(E
= .189”)
2
= Wire wrap tail
(E
= .512”)
SHELL SIZE/
POSITIONS
DE
09
= 9 Position
DA
15
= 15 Position
DB
25
= 25 Position
DC
37
= 37 Position
DD
50
= 50 Position
OPTIONS:
Add designator(s) to end of part number
15
= 15 µin gold plating in contact area
30
= 30 µin gold plating in contact area
EMI
= Ferrite filtered version for EMI / RFI
suppression (Page 72)
HT
= Hi-Temp insulator for hi-temp soldering
processes up to 260°C
Pb
UL
®
®
®
E
D
COMPLIANT
2002 / 95
/ EC
RoHS
V
HI-TEMP
INSULATOR
AVA I L A B L E
78
