RP
RP350 Series
RP350
3PHASE DELTA TO 100A
COMPACT CHASSIS
ROHS COMPLIANT
RADIUS POWER
Your Power Partner

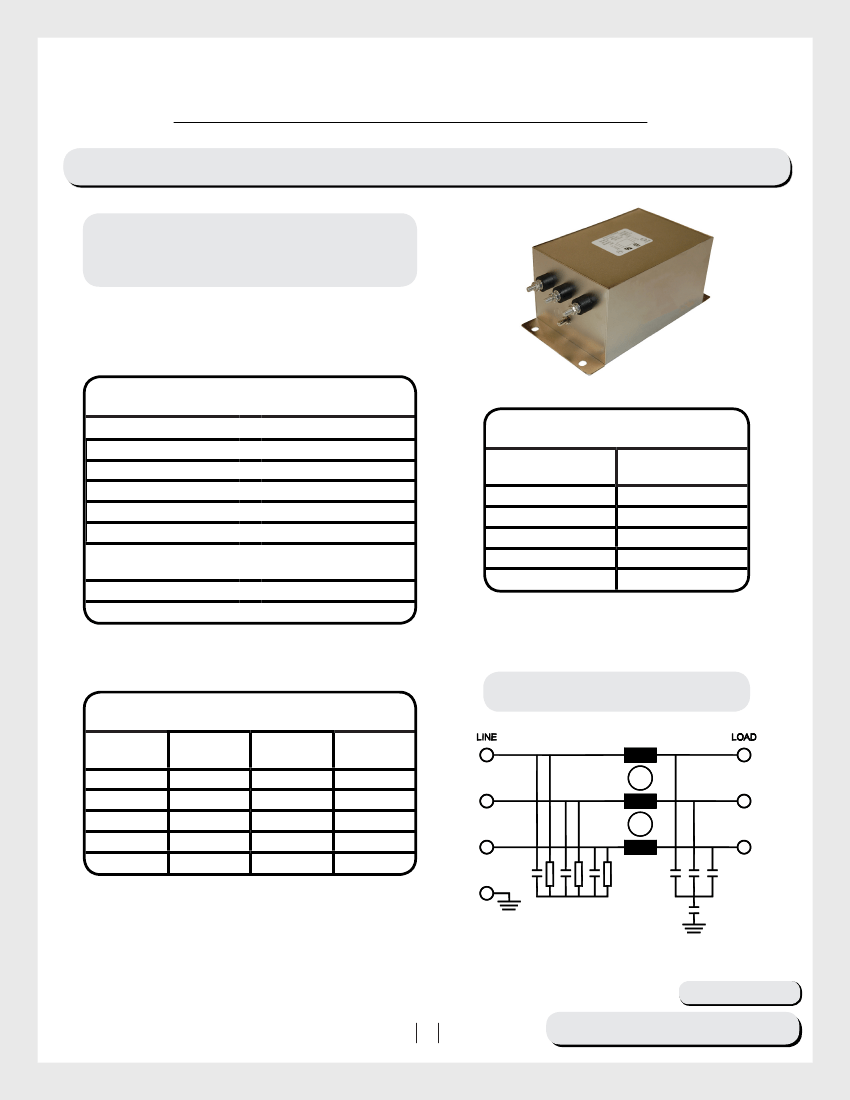

3-Phase Delta Single Stage Power Line Filter
SPECIFICATIONS
Operating Freq.
Usable Freq.
Max. Operating Voltage
Ambient Temperature
Climatic Category
Hipot Rating (L-G)
Terminals (-T)
Safety Approvals
Typ. Weight, LBS (KG)
:
:
:
:
:
:
:
:
:
50/60Hz
DC - 400Hz
480V +10%
-25 to 50C
25/100/21
3500VDC
S: 20/40/60A (M5)
80/100A (M6)
UR, CSA, EN60939
5.0 (2.3)
LEAKAGE CURRENT
Y-cap, nF
0
10
100
1000
2000
mA,
480V/60Hz
0
0.1
1
10
20
PART NUMBER/ ORDERING
RP350
-X
(Amps)
20
40
60
80
100
-Y
(Ycap, nF)
0
10
100
1000
2000
-T
S
SCHEMATIC
Note:
Use any combination of -Y with any -X (Amps) rating
e.g. RP350-40-10-S (40 Amps with 10nF Ycap)
www.radiuspower.com
Reference purposes only.
Specifications are subject to change.
Consult factory to verify specifications.
Engineering Assistance: engg@radiuspower.com
Sales:sales@radiuspower.com
74
RP
RP350

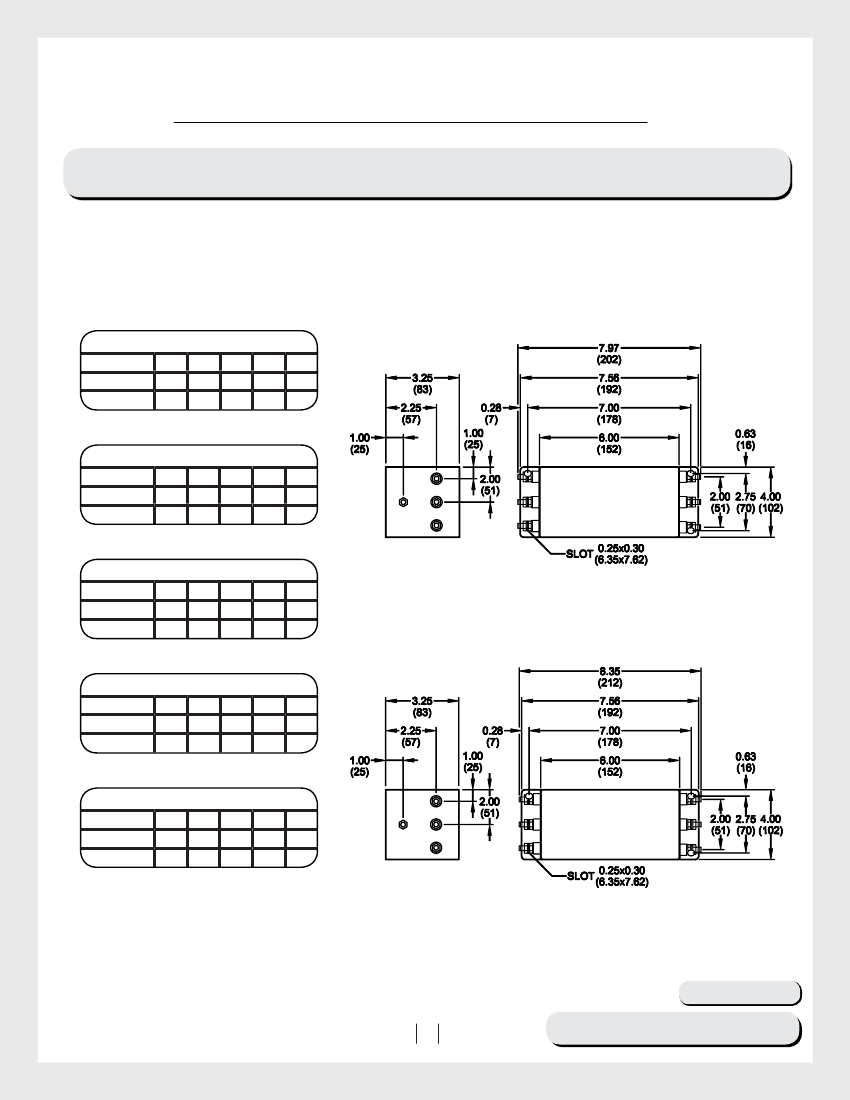

Typical Insertion Loss, dB (50/50ohm) Mechanical Dimensions
RADIUS POWER
Your Power Partner
20 Amp
FREQ (MHz)
CM (dB)
DM (dB)
.15
60
55
.5
70
70
1
65
70
10
60
70
30
40
60
20/40/60Amp
40 Amp
FREQ (MHz)
CM (dB)
DM (dB)
.15
45
46
.5
55
65
1
55
70
10
50
70
30
40
60
60 Amp
FREQ (MHz)
CM (dB)
DM (dB)
.15
42
40
.5
52
60
1
55
65
10
50
65
30
40
60
80/100Amp
80 Amp
FREQ (MHz)
CM (dB)
DM (dB)
.15
36
36
.5
50
55
1
50
55
10
48
58
30
40
50
100 Amp
FREQ (MHz)
CM (dB)
DM (dB)
.15
30
30
.5
48
50
1
50
50
10
46
45
30
35
45
TYPICAL TOLERANCE: +/-0.02 (0.50)
www.radiuspower.com
Reference purposes only.
Specifications are subject to change.
Consult factory to verify specifications.
Engineering Assistance: engg@radiuspower.com
Sales:sales@radiuspower.com
75
