DE09PL44 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DE09PL44

DE09PL44: DescriptionCONNECTOR,D-SHELL,PCB MNT,PLUG,9 CONTACTS,SKT,0.109 PITCH,PC TAIL TERMINAL,#4-40; CategoryThe connector The connector; File Size130KB，1 Pages; ManufacturerAdam Tech

Download Datasheet Parametric View All

DE09PL44 Overview

CONNECTOR,D-SHELL,PCB MNT,PLUG,9 CONTACTS,SKT,0.109 PITCH,PC TAIL TERMINAL,#4-40

DE09PL44 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	ROHS COMPLIANT
body width	0.494 inch
subject depth	0.488 inch
body length	1.213 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	D
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	INSERT
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	FLASH inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.125 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	9
Base Number Matches	1

Preview

Download Datasheet

View All

D-SUBMINIATURE

Adam Technologies, Inc.

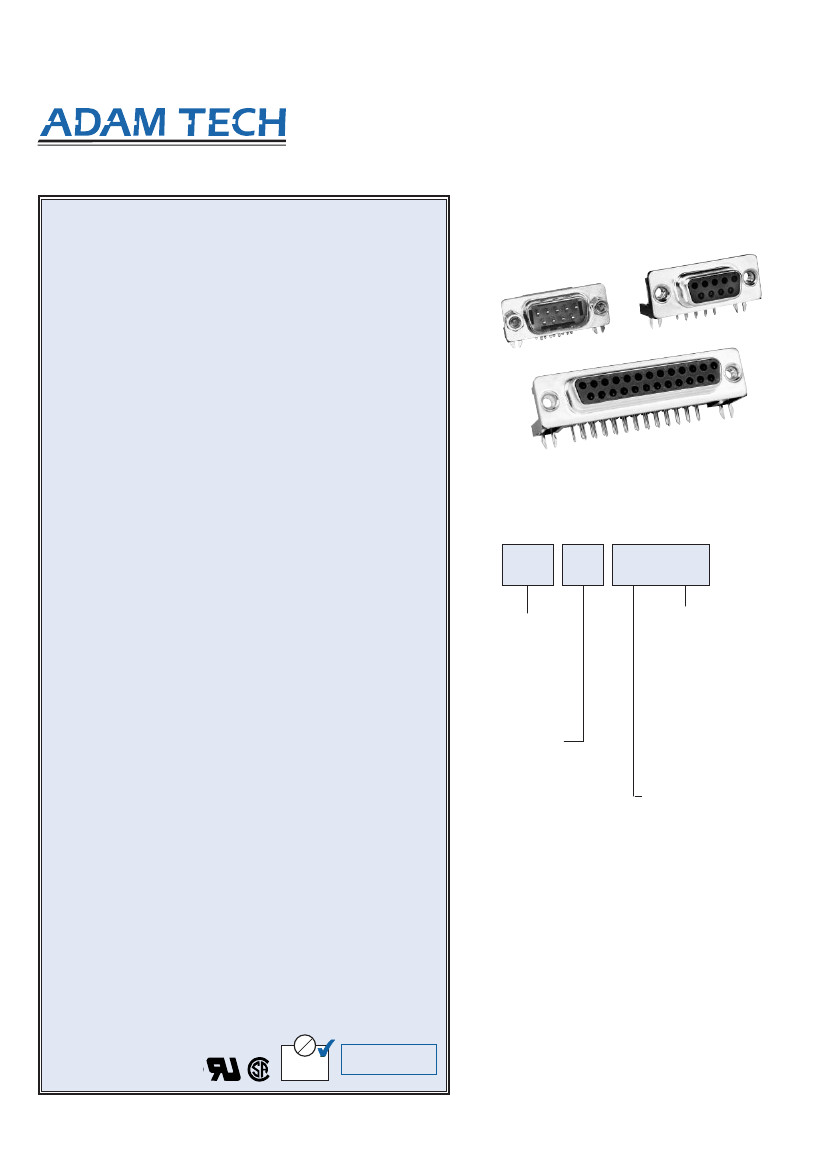

INTRODUCTION:

Adam Tech Right Angle .318” footprint PCB D-Sub connectors are a

popular interface for many I/O applications. Offered in 9, 15, 25 and

37 positions they are a good choice for a low cost industry standard

connection. These connectors are manufactured with precision

stamped contacts offering a choice of contact plating and a wide

selection of mating and mounting options.

FEATURES:

Industry standard compatibility

Durable metal shell design

Precision formed contacts

Variety of Mating and mounting options

MATING CONNECTORS:

Adam Tech D-Subminiatures and all industry standard D-Subminiature

connectors.

SPECIFICATIONS:

Material:

Standard insulator: PBT, 30% glass reinforced, rated UL94V-0

Optional Hi-Temp insulator: Nylon 6T

Insulator color: Black

Contacts: Phosphor Bronze

Shell: Steel, Tin or Zinc plated

Hardware: Brass, Nickel plated

Contact Plating:

Gold Flash (15 and 30

µin

Optional) over Nickel underplate on mating

area. Tin over copper underplate on PCB tails.

Electrical:

Operating voltage: 250V AC / DC max.

Current rating: 5 Amps max.

Contact resistance: 20 mΩ max. initial

Insulation resistance: 5000 MΩ min.

Dielectric withstanding voltage: 1000V AC for 1 minute

Mechanical:

Insertion force: 0.75 lbs max

Extraction force: 0.44 lbs min

Temperature Rating:

Operating temperature: -65°C to +125°C

Soldering process temperature:

Standard insulator: 235°C

Hi-Temp insulator: 260°C

PACKAGING:

Anti-ESD plastic trays

APPROVALS AND CERTIFICATIONS:

UL Recognized File No. E224053

CSA Certified File No. LR1578596

RIGHT ANGLE .318" [8.08] MOUNT

DPL & DSL SERIES

ORDERING INFORMATION

DB25

MATING FACE

MOUNTING OPTIONS

= #4-40 fixed jackscrews

= #4-40 flush threaded

inserts

= #4-40 flush threaded

inserts with removable

jackscrews installed

= .120" non-threaded

mounting holes

SHELL SIZE/

POSITIONS

= 9 Position

= 15 Position

= 25 Position

= 37 Position

CONTACT TYPE

= Plug, .318" Footprint

= Socket, .318" Footprint

See Mounting Option

diagrams pg. 74

PCB MOUNTING OPTIONS

= Wrap around ground

straps with thru holes

= Forked board locks

= Top side only ground

straps with thru holes

= Top side only ground

straps with #4-40

threaded screw holes

See Mounting Option

OPTIONS:

Add designator(s) to end of part number

= 15 µin gold plating in contact area

= 30 µin gold plating in contact area

EMI

= Ferrite filtered version for EMI/RFI suppression

LPJ

= Loose packed jackscrews

= Superior retention 4 prong boardlocks

= Hi-Temp insulator for Hi-Temp soldering processes

up to 260°C

= Round jackscrews

= Press fit pins

diagrams pg. 74

COMPLIANT

2002

/ 95

/ EC

RoHS

HI-TEMP

INSULATOR

AVA I L A B L E

909 Rahway Avenue

•

Union, New Jersey 07083

•

T: 908-687-5000

•

F: 908-687-5710

•

WWW.ADAM-TECH.COM

RoHS

COMPLIANT
