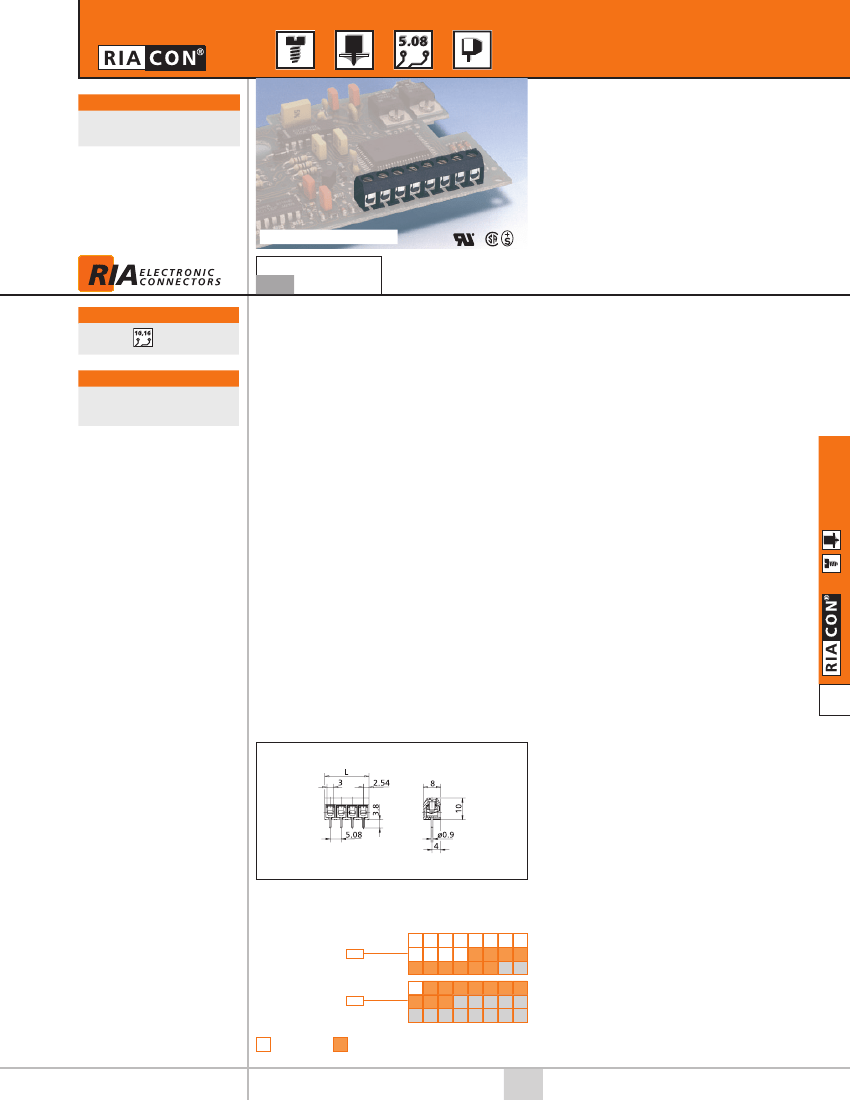

mm to inch
1 inch = 25.4 mm
1 mm = .040 inches
Designed to IEC 60664-1
Type
101
Additional Centerline
Type 101
Voltage
with wire protection
Electrical Data
300 V - centerline 5.08 mm
600 V - centerline 10.16 mm
15 A
14 - 28 AWG
7 lbs. - in
.9 mm
1.3 mm
6 mm
Modular Types
similar to
Type 101
Type 57
Page DA-26
Current
Wire Range
Screw torque
Pin diameter
PCB hole diameter
Wire strip length
Mechanical Data
Housing
UL 94V-0
-40 °F to 189 °F
(-40 °C to 105 °C)
black
brass, tin over nickel plating
tin bronze, tin plated
M3, steel
nickel over copper plating
optional: brass, nickel plated
- consult factory
2 to 22 - centerline 5.08 mm
2 to 11 - centerline 10.16 mm
Color
Terminal
Wire protector
Screw
Pole sizes
Additional material data - pages DA-3 to DA-5
Dimensions (mm)
L = (circuits - 1) x centerline + 5.08
Part Numbers
Type 101
Complete the part number
by adding the pole size.
centerline 5.08 mm
Part No.
311011
Type 101
centerline 10.16 mm
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22
02 03 04 05 06 07 08
09 10 11
Part No.
311012
01 standard
08 Available on demand. Minimum order
quantity 3000 poles per item.
RIA electronic, Inc.
430 Industrial Way West, Eatontown, NJ 07724
phone 1-888-722-5625
•
fax 732-389-9066
•
www.riaelectronic.com
DA-25
Subject to technical changes and printing errors.
D
