LESHAN RADIO COMPANY, LTD.
SCHOTTKY BARRIER DIODE
Applications
Low current rectification
Features
Extremelysmall surface mounting type. (SOD882)
Low I
R.
High reliability.
We declare that the material of product
compliance with RoHS requirements.
S- Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC-Q101
Qualified and PPAP Capable.
LRB520BS-30T5G
S-LRB520BS-30T5G
1
2
SOD882
Construction
Silicon epitaxial planar
1
Cathode
2
Anode
Device Marking And Ordering Inf ormation
Device
LRB520BS-30T1G
S-LRB520BS-30T1G
LRB520BS-30T3G
S-LRB520BS-30T3G
LRB520BS-30T5G
S-LRB520BS-30T5G
Marking
L
L
L
Shipping
5000/Tape&Reel
8000/Tape&Reel
10000/Tape&Reel
Maximum Ratings
(T
A
= 25
°
C)
Parameter
DC reverse voltage
Mean rectifying current
Peak forward surge current
Junction temperature
Storage temperature
Symbol
V
R
I
O
I
FSM
T
j
T
s t g
Limits
30
200
500
125
-40~+125
Unit
V
mA
mA
°C
°C
Electrical Characteristics
(
T
A
= 25
°C
)
Parameter
Forward voltage
Reverse current
Symbol
V
F
I
R
Min.
-
-
Typ
-
-
Max.
0.6
1.0
Unit
V
µA
Conditions
I
F
=200mA
V
R
=10V
Rev.B 1/3
LESHAN RADIO COMPANY, LTD.
LRB520BS-30T5G , S-LRB520BS-30T5G

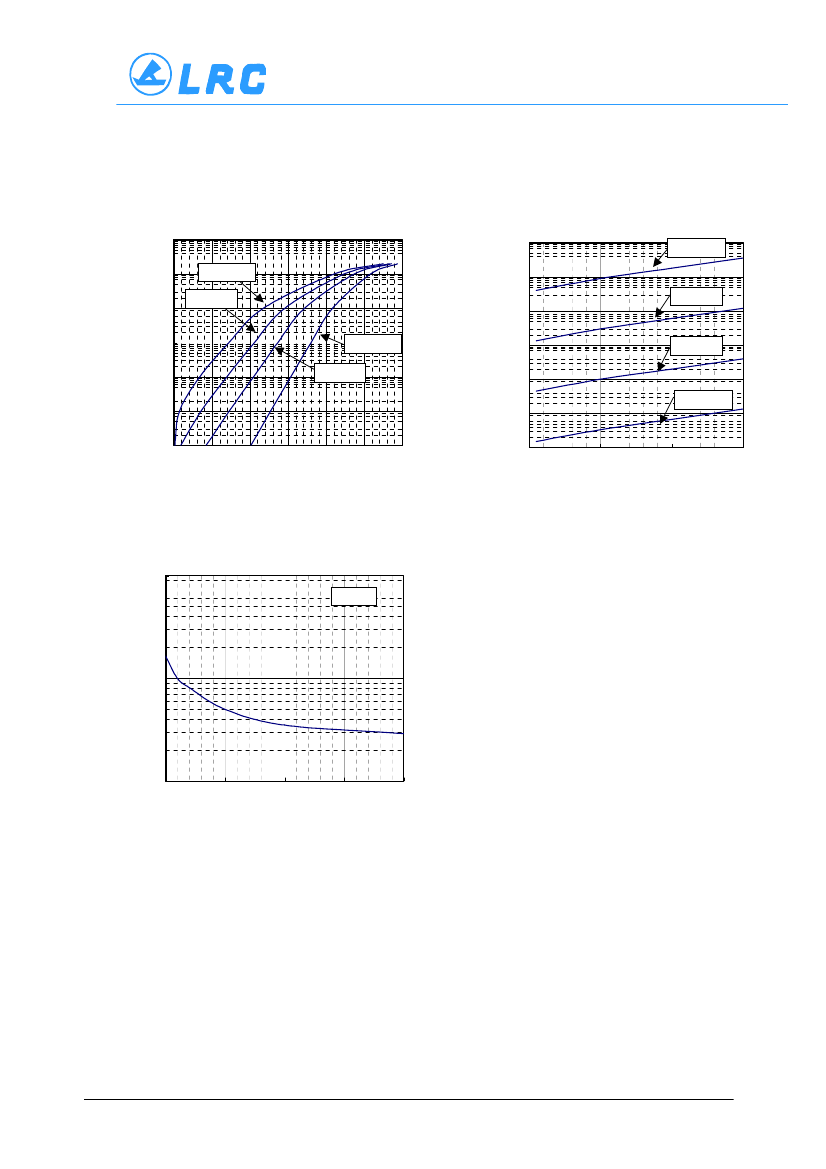

Electrical characteristic curves
(Ta=25
O
C)
1000
1000000
REVERSE CURRENT:IR(nA)
Ta=125℃
Ta=75℃
100000
Ta=125℃
FORWARD CURRENT:IF(mA)
100
10
1
0.1
0.01
0.001
0
Ta=75℃
10000
1000
100
Ta=-25℃
10
1
Ta=25℃
Ta=-25℃
Ta=25℃
100
200
300
400
500
600
0
10
20
30
FORWARD VOLTAGE：VF(mV)
VF-IF CHARACTERISTICS
REVERSE VOLTAGE：VR(V)
VR-IR CHARACTERISTICS
100
f=1MH½
CAPACITANCE BETWEEN
TERMINALS:Ct(pF)
10
1
0
5
10
15
REVERSE VOLTAGE:VR(V)
VR-Ct CHARACTERISTICS
20
Rev.B 2/3
LESHAN RADIO COMPANY, LTD.
LRB520BS-30T5G , S-LRB520BS-30T5G

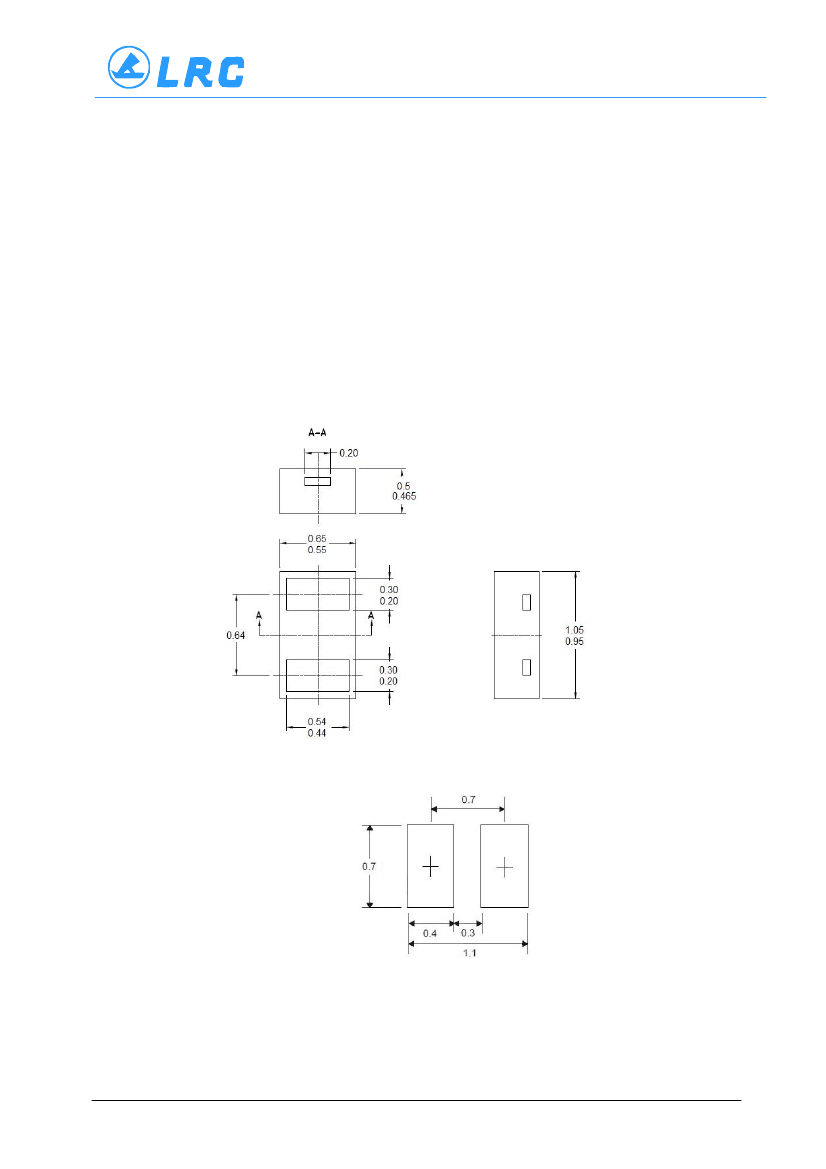

SOD882
DIMENSION OUTLINE:
Unit:mm
Rev.B 3/3
