DCS2143-1500-G

Description
Chip Directional Couplers 3W & 5W
File Size114KB，2 Pages
ManufacturerAAC [American Accurate Components]
Websitehttp://www.aacix.com/
Download Datasheet View All

DCS2143-1500-G Overview

Chip Directional Couplers 3W & 5W

Preview

Download Datasheet
Chip Directional Couplers 3W & 5W
The content of this specification may change without notification 7/01/09
EIA Size 0805 Termination Resistor Designed-In Chip Directional Couplers
Features
1: I de al a pp li cati on s i n m ob il e ph on es, an d sm al l est chi ps a vai lab le .
2: A 2 00 mW t e rmi na t i on resi st or i s de sig ne d in . Of f e r com pe t it ive pr i cin g.
3: Cou pl i ng an d in ser t i o n lo ss ar e pr o vid ed acco rdi ng t o a cust o me r s spe cif ica t i on .

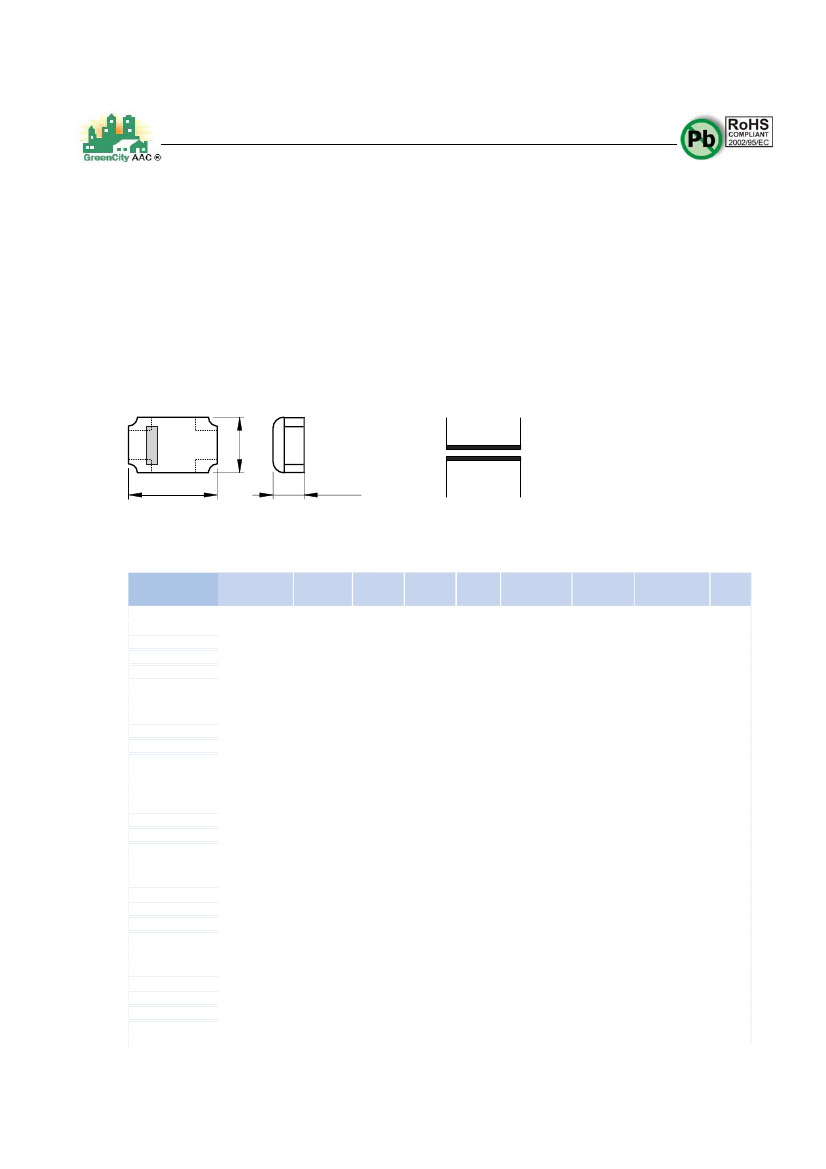

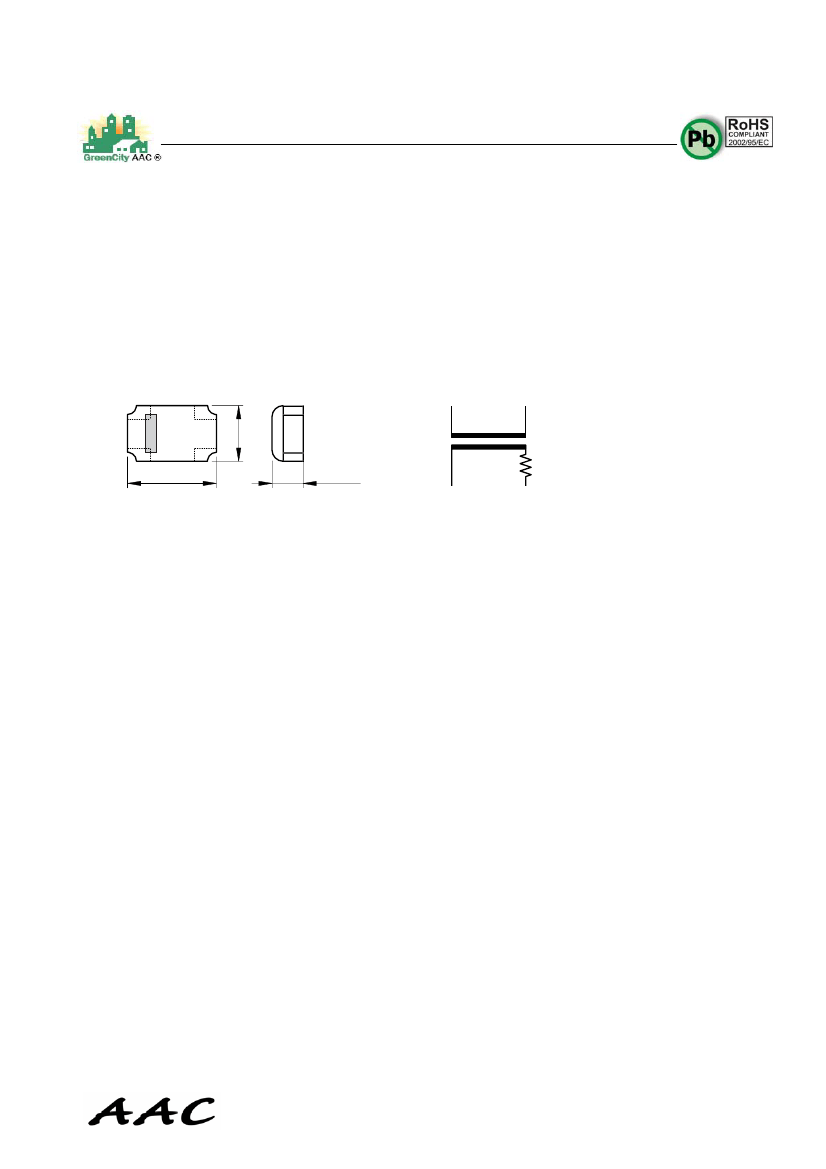

Dimensions, Schematics
(4)
(4)
(3)
(1) Coupled Output Port
(2) Coupled Termination
(3) Output Port
(4) Input Port
Unit : mm
(1)
(2)
(3)
(1)
2.0
(2)
0.7 max.
Characteristics
Style No.
DCS214A-0900-G
DCS214C-0900-G
DCS214E-0900-G
DCS214G-0900-G
DCS214K-0900-G
DCS214M-0900-G
DCS214S-0900-G
DCS214A-1500-G
DCS214C-1500-G
DCS214E-1500-G
DCS214G-1500-G
DCS214K-1500-G
DCS214M-1500-G
DCS214S-1500-G
DCS214A-1700-G
DCS214C-1700-G
DCS214E-1700-G
DCS214G-1700-G
DCS214K-1700-G
DCS214M-1700-G
DCS214S-1700-G
DCS214A-1900-G
DCS214C-1900-G
DCS214E-1900-G
DCS214G-1900-G
DCS214K-1900-G
DCS214M-1900-G
DCS214S-1900-G
DCS214A-2100-G
DCS214C-2100-G
DCS214E-2100-G
DCS214G-2100-G
DCS214K-2100-G
DCS214M-2100-G
DCS214S-2100-G
DCS214A-2400-G
DCS214C-2400-G
DCS214E-2400-G
DCS214G-2400-G
DCS214K-2400-G
DCS214M-2400-G
DCS214S-2400-G
Frequency Range
[ MHz ]
800~1000
800~1000
800~1000
800~1000
800~1000
800~1000
800~1000
1400~1600
1400~1600
1400~1600
1400~1600
1400~1600
1400~1600
1400~1600
1600~1800
1600~1800
1600~1800
1600~1800
1600~1800
1600~1800
1600~1800
1800~2000
1800~2000
1800~2000
1800~2000
1800~2000
1800~2000
1800~2000
2000~2200
2000~2200
2000~2200
2000~2200
2000~2200
2000~2200
2000~2200
2300~2500
2300~2500
2300~2500
2300~2500
2300~2500
2300~2500
2300~2500
Insertion Loss
[ dB ]
0.3 max.
0.3 max.
0.3 max.
0.4 max.
0.3 max.
0.3 max.
0.3 max.
0.3 max.
0.6 max.
0.3 max.
0.8 max.
0.6 max.
0.4 max.
0.3 max.
0.3 max.
0.8 max.
0.3 max.
1.0 max.
0.8 max.
0.6 max.
0.3 max.
0.3 max.
0.9 max.
0.4 max.
1.2 max.
1.0 max.
0.7 max.
0.3 max.
0.3 max.
1.0 max.
0.5 max.
1.5 max.
0.3 max.
0.3 max.
0.3 max.
0.4 max.
1.2 max.
0.6 max.
1.8 max.
0.4 max.
0.4 max.
0.4 max.
Coupling
[ dB ]
21.0±2
17.0±2
20.0±2
15.5±2
27.0±2
24.0±2
22.0±2
17.0±2
12.5±2
15.5±2
11.0±2
23.0±2
20.0±2
18.0±2
16.0±2
11.5±2
14.5±2
10.0±2
22.0±2
19.0±2
17.0±2
15.0±2
10.5±2
13.5±2
9.0±2
21.0±2
18.0±2
16.0±2
14.0±2
10.0±2
12.5±2
8.0±2
20.0±2
17.0±2
15.0±2
13.0±2
8.5±2
11.5±2
7.0±2
19.0±2
16.0±2
14.0±2
Directivity
[ dB ]
15 min.
13 min.
15 min.
10 min.
15 min.
15 min.
15 min.
11 min.
10 min.
13 min.
8 min.
13 min.
13 min.
13 min.
10 min.
9 min.
12 min.
7 min.
12 min.
12 min.
12 min.
8 min.
9 min.
10 min.
7 min.
12 min.
12 min.
12 min.
8 min.
8 min.
10 min.
6 min.
12 min.
12 min.
10 min.
8 min.
8 min.
10 min.
6 min.
12 min.
11 min.
11 min.
VSWR
(max.)
1.35
1.20
1.20
1.20
1.30
1.35
1.30
1.35
1.20
1.20
1.20
1.40
1.40
1.35
1.35
1.20
1.20
1.30
1.40
1.40
1.35
1.35
1.20
1.20
1.35
1.40
1.40
1.35
1.35
1.20
1.20
1.35
1.40
1.40
1.35
1.35
1.20
1.20
1.40
1.40
1.40
1.35
RF Impedance
[
Ω
]
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
Max.Input Power
[W]
3 max.
3 max.
3 max.
3 max.
3 max.
3 max.
3 max.
3 max.
2 max.
2 max.
2 max.
3 max.
3 max.
3 max.
2 max.
2 max.
2 max.
2 max.
3 max.
3 max.
3 max.
2 max.
2 max.
2 max.
2 max.
3 max.
3 max.
2 max.
2 max.
2 max.
2 max.
2 max.
3 max.
3 max.
2 max.
2 max.
2 max.
2 max.
2 max.
3 max.
2 max.
2 max.
Operating Temperature Range :
−30~+85
C
American Accurate Components, Inc.
188 Technology Drive, Unit H, Irvine, CA 92618
Tel: 949-453-9888 Fax: 949-453-8889 Email: sales@aacix.com
