DCO615712-5 Overview

VOLTAGE CONTROLLED OSCILLATOR

DCO615712-5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SYNERGY
Objectid	1784015790
package instruction	ROHS COMPLIANT, MINIATURE PACKAGE-12
Reach Compliance Code	compli
compound_id	68871631
Maximum control voltage	12 V
Minimum control voltage	0.5 V
Modulation sensitivity	170 MHz/V
Installation features	SURFACE MOUNT
offset frequency	10 kHz
Maximum operating frequency	7120 MHz
Minimum operating frequency	6150 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR
Output Power	-4 dBm
phase noise	-85 dBc/Hz
physical size	7.62mm x 7.62mm x 2.03mm
Maximum slew rate	22 mA
Nominal supply voltage	5 V
surface mount	YES

Preview

Download Datasheet

View All

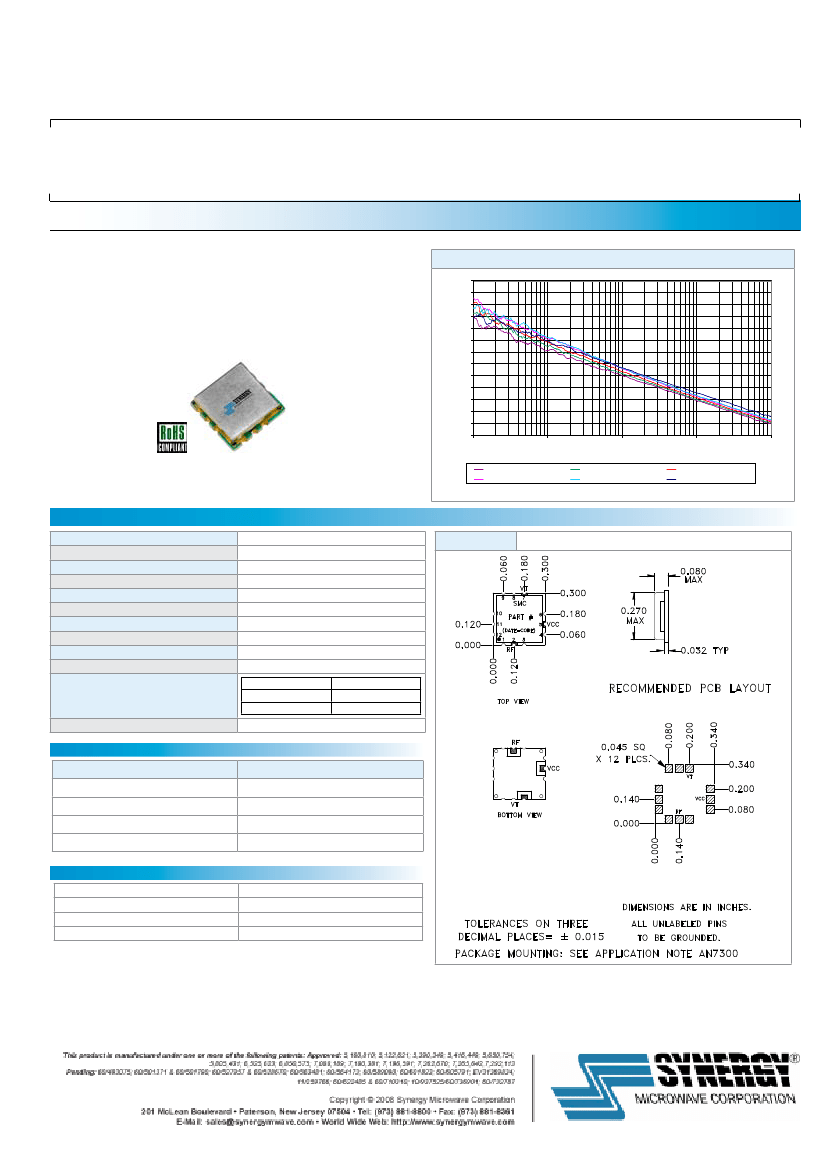

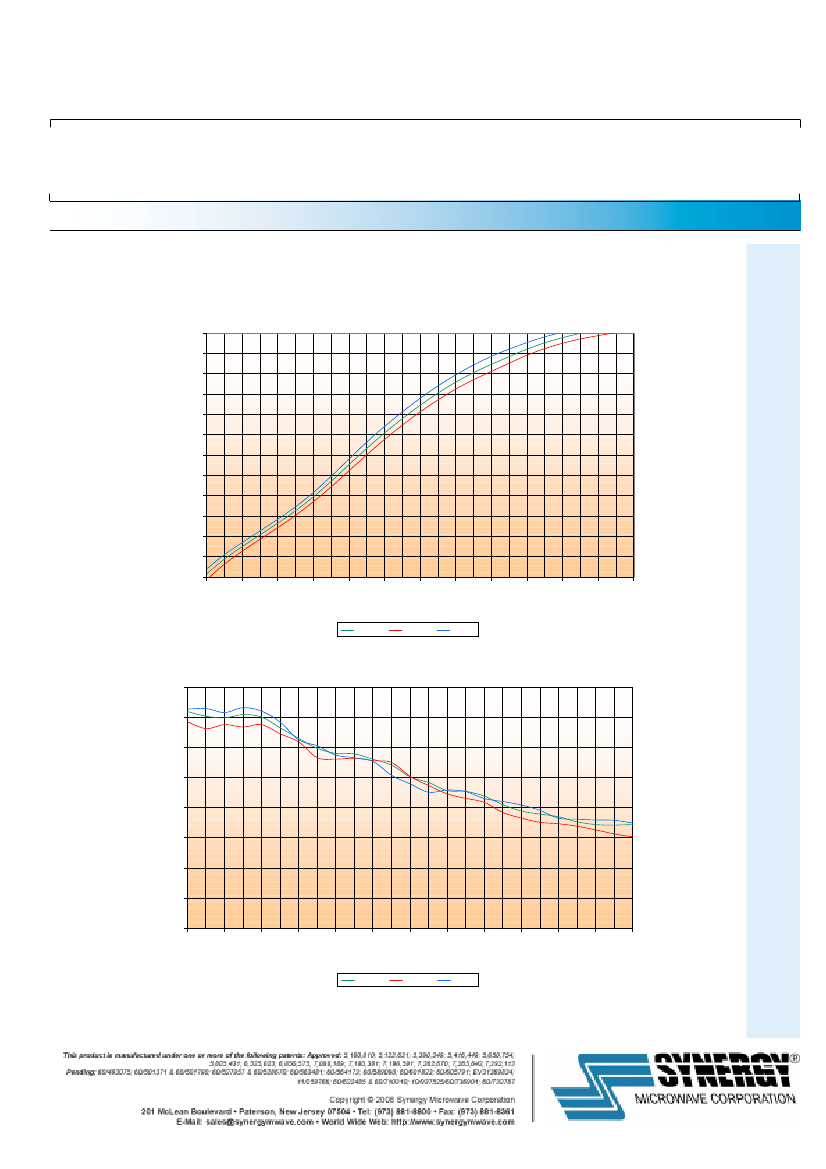

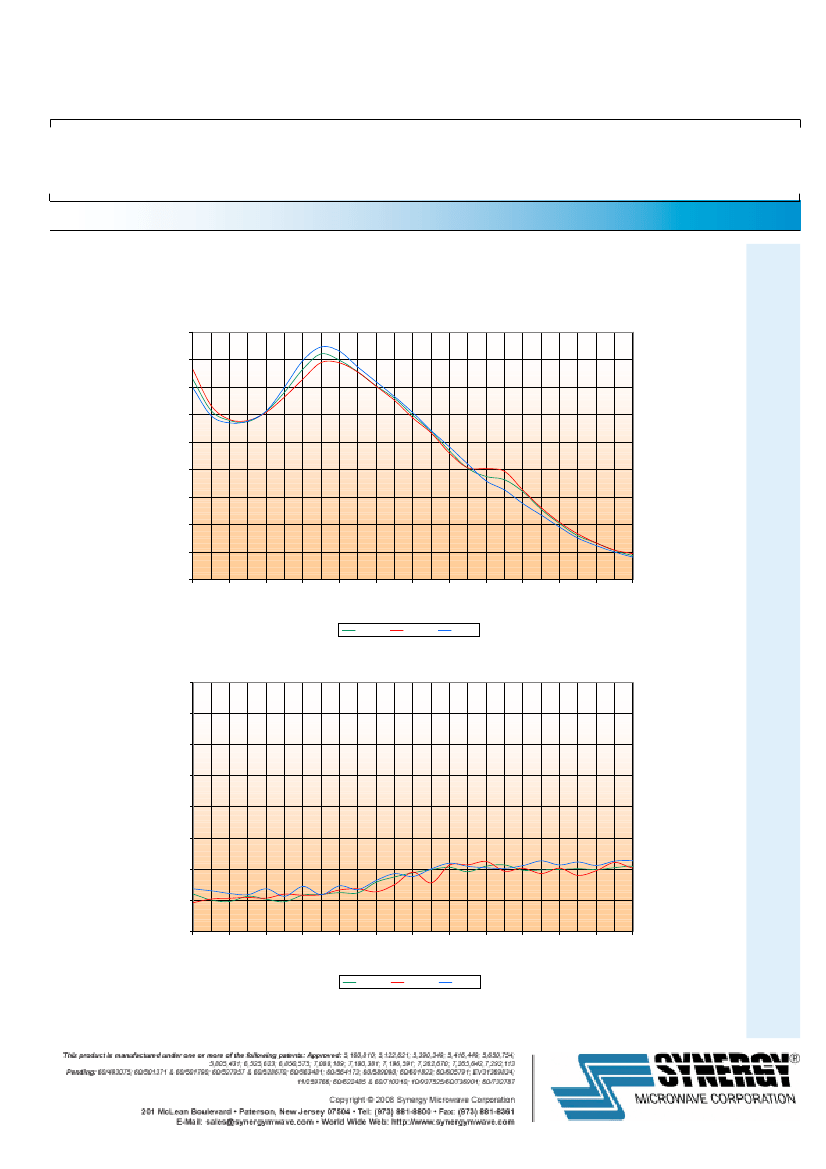

VOLTAGE CONTROLLED OSCILLATOR

SURFACE MOUNT MODEL:

DCO615712-5

optimized BANdWidtH

FEATURES:

►

exceptional phase Noise performance

►

Fast tuning

►

Small Size, Surface mount

►

Lead Free ReL-pRo

®

technology

phase Noise

-30

-40

-50

-60

6150 - 7120 MHz

Phase Noise (dBc/Hz)

-70

-80

-90

-100

-110

-120

-130

-140

-150

-160

1000

10000

100000

Offset Frequency (Hz)

6071.20 MHz / -0.3 dBm

6776.29 MHz / -2.3 dBm

6254.40 MHz / -1.3 dBm

6995.06 MHz / -2.5 dBm

6440.50 MHz / -2.0 dBm

7297.60 MHz / -3.6 dBm

1000000

10000000

SPECIFICATIONS

Frequency

tuning Voltage

Bias Voltage

output power

tuning Sensitivity

output impedance

Harmonic Suppression

Frequency pulling

Frequency pushing

tuning port Capacitance

typical phase Noise

operating temperature Range

Guaranteed Tuning Specifications

tuning Voltage ( V )

0.5

5

8

12

Absolute Maximum Ratings

Storage temp. Range

Bias Voltage

tuning Voltage

dC Voltage Applied to RF out

-55 to +125 ºC

+5.5 V

+20 V

± 25 V

Frequency ( mHz )

6150 (Max.)

6230 (Min.)

6500 (Min.)

6650 (Min.)

6150 - 7120 MHz

See table below.

+5 VDC @ 22 mA (Max.)

-5 dBm (Min.)

50 - 110 MHz/V (Typ.)

50 Ohms (Nom.)

25 dB (Typ.)

12 MHz (Typ. @ 1.75:1 VSWR)

12 MHz/V (Typ.)

10 pF (Typ.)

offset

10 kHz

100 kHz

-40 to +85 °C

dBc/Hz

-85

-106

package #

343
