DCO200400-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> DCO200400-5

DCO200400-5: DescriptionVOLTAGE CONTROLLED OSCILLATOR; CategoryPassive components oscillator; File Size392KB，3 Pages; ManufacturerSYNERGY; Websitehttp://www.synergymwave.com/

Download Datasheet Parametric View All

DCO200400-5 Overview

VOLTAGE CONTROLLED OSCILLATOR

DCO200400-5 Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT MINIATURE PACKAGE-12
Reach Compliance Code	compli
Maximum control voltage	18 V
Minimum control voltage	0.5 V
Modulation sensitivity	270 MHz/V
Installation features	SURFACE MOUNT
offset frequency	10 kHz
Maximum operating frequency	4000 MHz
Minimum operating frequency	2000 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR
Output Power	-2 dBm
phase noise	-90 dBc/Hz
physical size	7.62mm x 7.62mm x 2.03mm
Maximum slew rate	46 mA
Nominal supply voltage	5 V
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

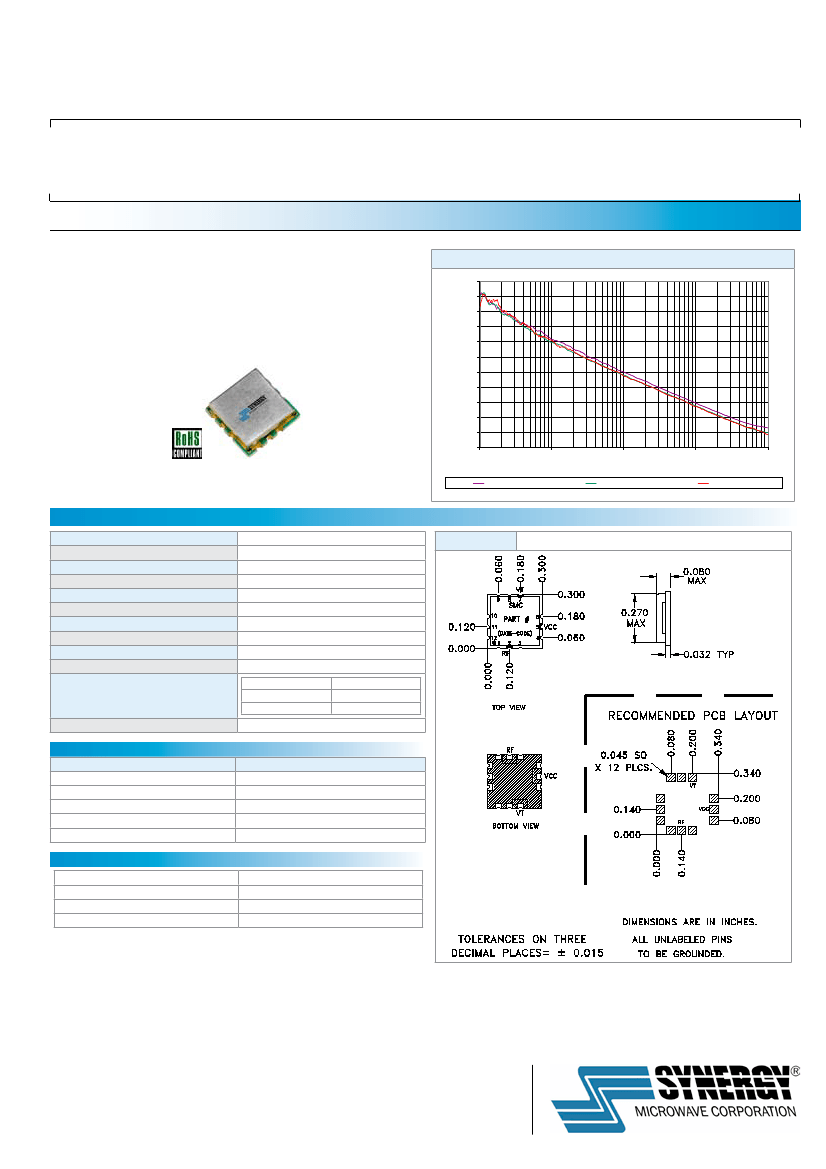

VOLTAGE CONTROLLED OSCILLATOR

SURFACE MOUNT MODEL:

DCO200400-5

optimized BANdWidtH

FEATURES:

►

Miniature Size, Surface Mount (0.3" x 0.3")

►

Exceptional Phase Noise Performance

►

Fast Tuning

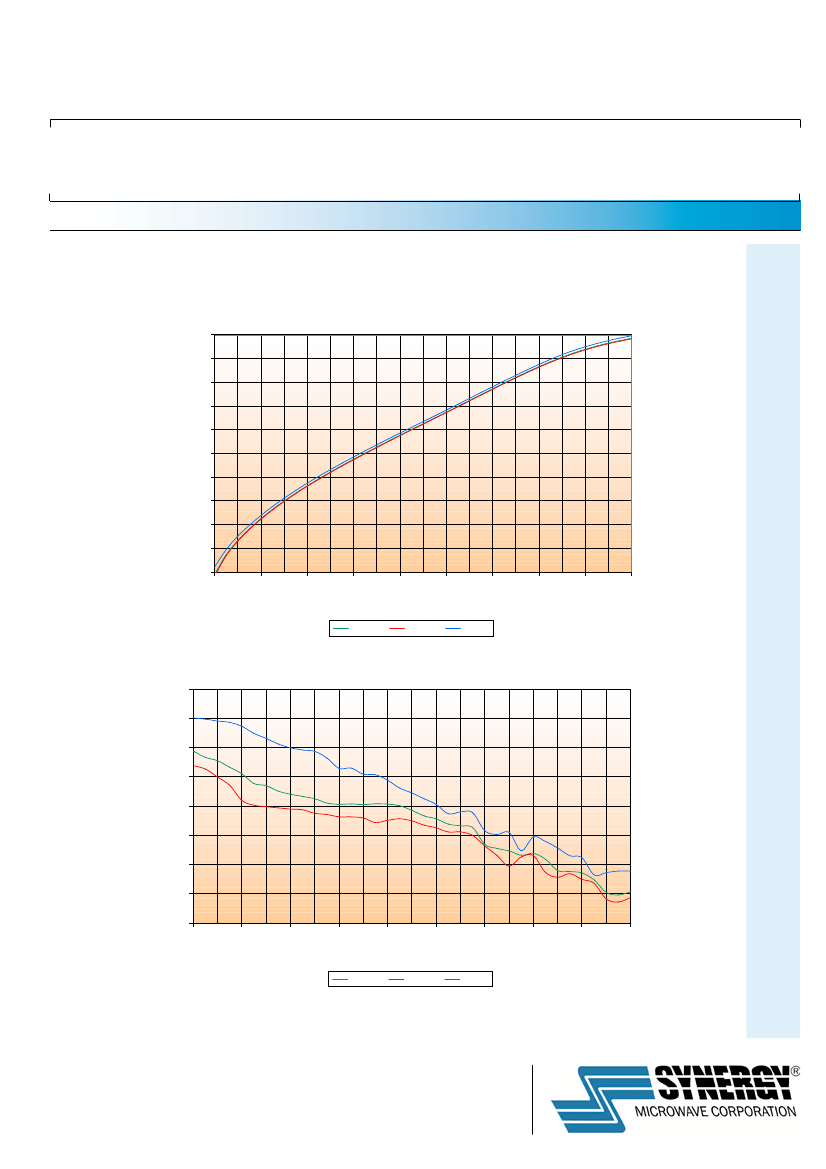

Phase Noise

-50

-60

-70

2000 - 4000 MHz

Phase Noise (dBc/Hz)

-80

-90

-100

-110

-120

-130

-140

-150

-160

1000

10000

100000

Offset Frequency (Hz)

2005.69 MHz

3000.12 MHz

4002.02 MHz

1000000

10000000

SPECIFICATIONS (Rev. A 07/20/09 - Preliminary)

Frequency

Tuning Voltage

Bias Voltage

Output Power

Tuning Sensitivity

Output Impedance

Harmonic Suppression

Frequency Pulling

Frequency Pushing

Tuning Port Capacitance

Typical Phase Noise

Operating Temperature Range

Guaranteed Tuning Specifications

Tuning Voltage ( V )

0.5

Absolute Maximum Ratings

Storage Temp. Range

Bias Voltage

Tuning Voltage

DC Voltage Applied to RF Out

-55 to +125 ºC

+5.5 V

+19 V

± 25 V

2000 - 4000 MHz

0.5 - 18 V

+5 VDC @ 40 mA (Max.)

+3 dBm (Min.)

100 - 270 MHz/V (Typ.)

50 Ohms (Nom.)

12 dB (Typ.)

15 MHz (Typ. @ 1.75:1 VSWR)

8 MHz/V (Typ.)

72 pF (Typ.)

Offset

10 kHz

100 kHz

-40 to +85 °C

dBc/Hz

-90

-110

Package #

343

Frequency ( MHz )

2000 (Max.)

2500 (Min.)

2850 (Min.)

3250 (Min.)

4000 (Min.)

This product is manufactured under one or more of the following patents. Approved: 5,160,810; 5,122,621; 5,390,349; 5,416,449; 5,650,754; 5,805,431; 6,525,623; 6,850,575;

7,088,189; 7,180,381; 7,196,591; 7,262,670; 7,265,642; 7,292,113; 7,365,612; 7,495,525; 2,548,311; 2,548,317; 7,545,229; 7,580,693; 7,586,381 | Pending: 60/493075; 60/501371 &

60/501790; 60/527957 & 60/528670; 60/563481; 60/564173; 60/589090; 60/601823; 60/605791; EV31369834; 11/259766; 60/622485 & 60/710310; 10/937525/60/736901; 60/732787;

7,495,525; 2,548,311; 2,548,317; 7,545,229; 2,563,174; 7,580,693

201 McLean Boulevard • Paterson, New Jersey 07504 USA • Tel: (973) 881-8800 • Fax: (973) 881-8361

E-Mail: sales@synergymwave.com • World Wide Web: http://www.synergymwave.com

[ 1 of 3]
