DCMC613U025AD2B datasheet, PDF

Datasheet> All Categories > Passive components> DCMC613U025AD2B

DCMC613U025AD2B: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 16 V, 110000 uF, CHASSIS MOUNT; CategoryPassive components; File Size626KB，14 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]

Download Datasheet Parametric View All

DCMC613U025AD2B Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 16 V, 110000 uF, CHASSIS MOUNT

DCMC613U025AD2B Parametric

Parameter Name	Attribute value
negative deviation	10 %
Minimum operating temperature	-40 Cel
Maximum operating temperature	85 Cel
positive deviation	75 %
Rated DC voltage urdc	16 V
Processing package description	CAN, ROHS COMPLIANT
each_compli	Yes
EU RoHS regulations	Yes
state	Active
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
capacitance	110000 µF
dielectric materials	ALUMINUM
esr__mohm_	13.4
leakage_current__ma_	7.96
Manufacturer Series	DCMC
Installation features	CHASSIS MOUNT
packaging shape	CYLINDRICAL PACKAGE
Package Size	Screw Ends
polarity	POLARIZED
ipple_current__ma_	12000
series	DCMC
terminal coating	NOT SPECIFIED
Terminal spacing	22.23 mm
Terminal shape	BINDING POST
diameter	51.41 mm
length	67.44 mm

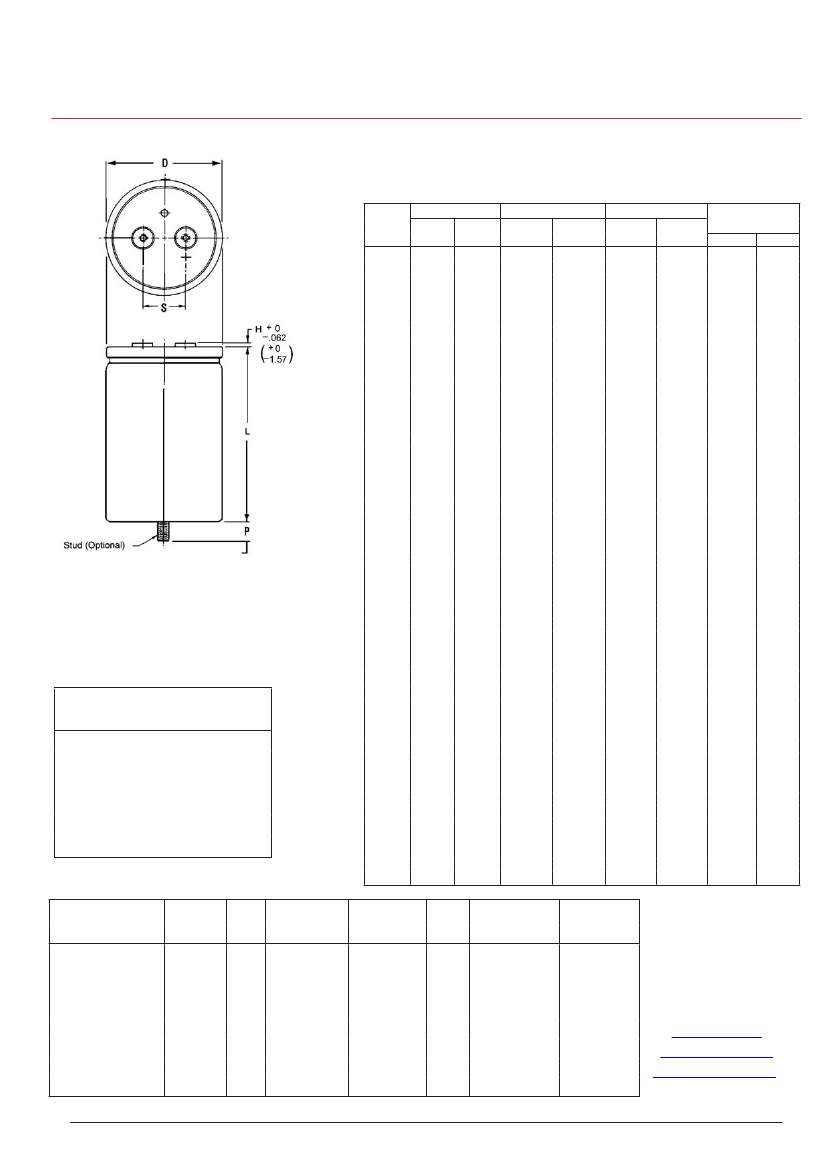

Preview

Download Datasheet

View All

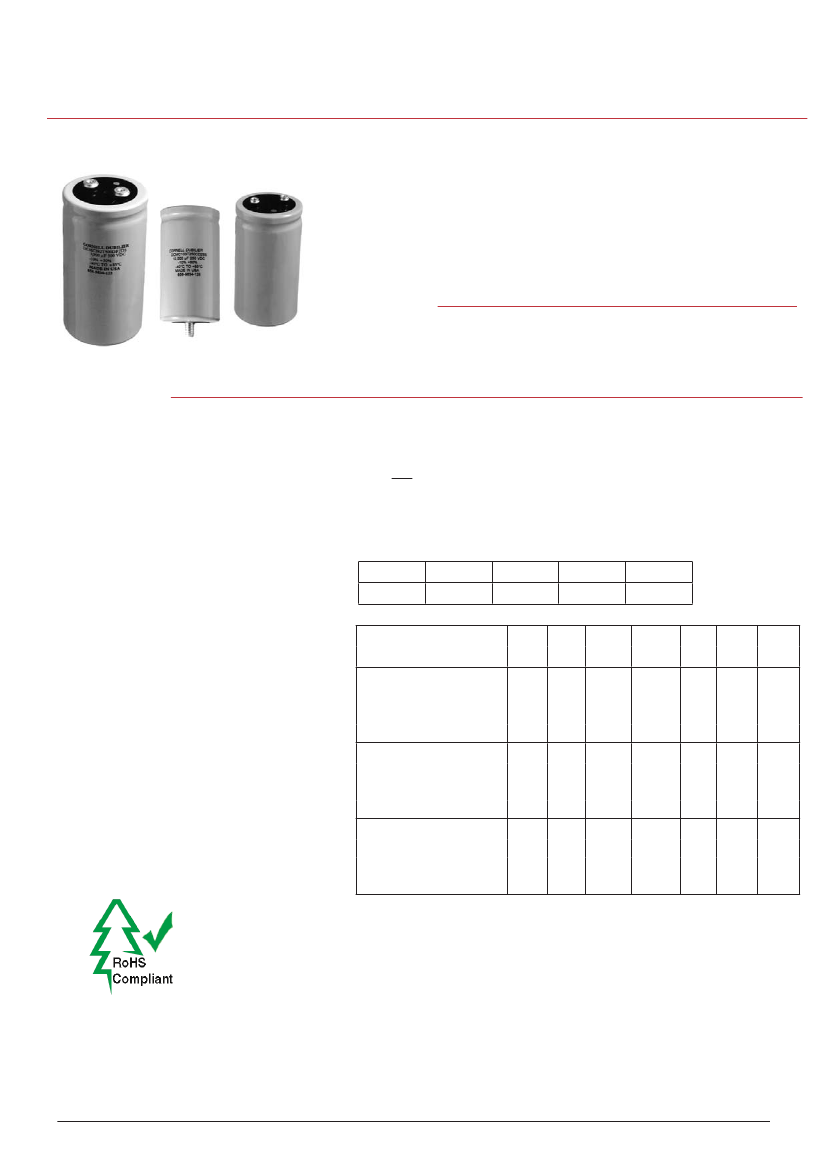

–40 °C to +85 °C, High Capacitance

Type DCMC

85 ºC High Capacitance, Screw Terminal, Aluminum

Highest Capacitance Screw Terminal Type

With more capacitance and often more ripple-current capabilty

than the best-value Type 3186 capacitor, the Type DCMC capaci-

tor is the better choice for high-capacitance, power supply ﬁlters

and energy storage applications such as welding equipment,UPS

systems and computer hold-up power. The extended cathode foil

of the DCMC assures cool operation with heatﬂow from the ca-

pacitor element to the can.

Highlights

•

Operating Temperature:

Rated Voltage:

Capacitance:

Capacitance Tolerance:

DC Leakage Current:

Cold Impedence:

Highest capacitance value

Right for Power Supply and UPS systems

Thermal-Pak™ extended cathode construction

–40 °C to +85 °C

6.3 to 550 Vdc

110 µF to 2.7 F

–10% +75% up to 100 Vdc, –10 + 50% 160 Vdc & up

≤6√CV µA (6 mA max.) at 5 minutes

–20 °C multiple of 25 °C Z ≤ 20 for 6.3–10V, 8 for 16–50V,

4 for 63–100V, 3 for 150V and up.

Ambient Temperature

45 °C

2.24

55 °C

2.00

65 °C

1.73

75 °C

1.41

85 °C

1.00

10 kHz

50 Hz 60 Hz 120 Hz 360 Hz 1 kHz 5 kHz

1 3/8” & 1 3/4” Diameters

6.3 to 160 V

200 to 350 V

400 to 550 V

2” & 2 1/2” Diameters

6.3 to 160 V

200 to 350 V

400 to 550 V

3” & 3 1/2” Diameters

6.3 to 160 V

200 to 350 V

400 to 550 V

0.95

0.85

0.82

0.96

0.88

0.84

1.00

1.02

1.08

1.13

1.04

1.12

1.20

1.05

1.14

1.24

1.05

1.17

1.27

0.93

0.81

0.79

0.95

0.87

0.83

1.00

1.04

1.13

1.17

1.07

1.20

1.26

1.11

1.24

1.30

1.12

1.26

1.34

0.92

0.80

0.78

0.94

0.85

0.83

1.00

1.05

1.17

1.20

1.10

1.30

1.35

1.10

1.30

1.36

1.12

1.32

1.40

& up

Speciﬁcations

Ripple Current Multipliers:

Frequency

2,000 h at full load @ +85 °C per EIA IS-749

∆Capacitance ±20%

ESR 200% of limit

DCL 100% of limit

Life Test:

4,000 h at 85 °C and rated voltage

Complies with the EU Directive

∆Capacitance

±20%

2002/95/EC requirement

ESR 200% of limit

restricting the use of Lead (Pb),

Mercury (Hg), Cadmium (Cd),

DCL 100% of limit

Hexavalent chromium (Cr(VI)),

Shelf Life:

500 h @ 85 °C, capacitance, ESR and DCL, initial

PolyBrominated Biphenyls (PBB)

and PolyBrominated Diphenyl

requirements.

Ethers (PBDE).

Vibration:

10 to 55 Hz, 0.06” and 10g max, 1.5 h ea. of 2 axis

CDM Cornell Dubilier

•

140 Technology Place

•

Liberty, SC 29657

•

Phone: (864)843-2277

•

Fax: (864)843-3800

•

www.cde.com

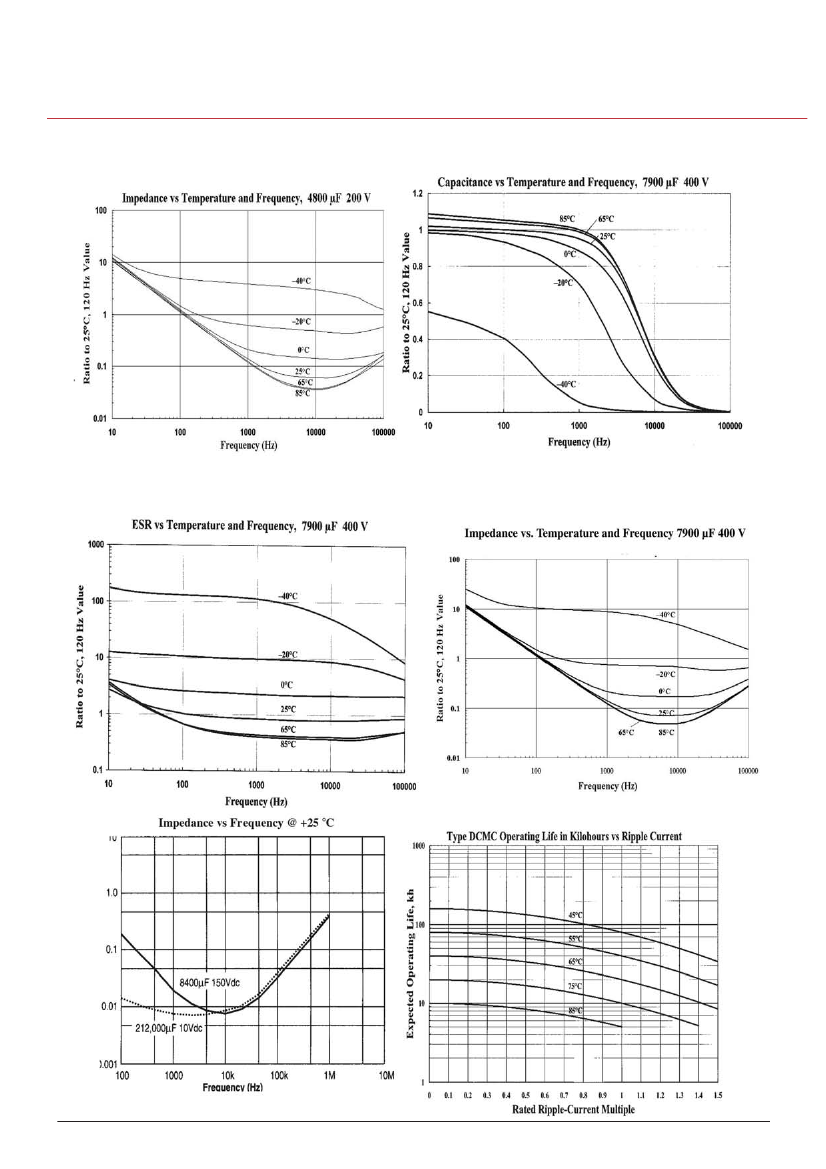

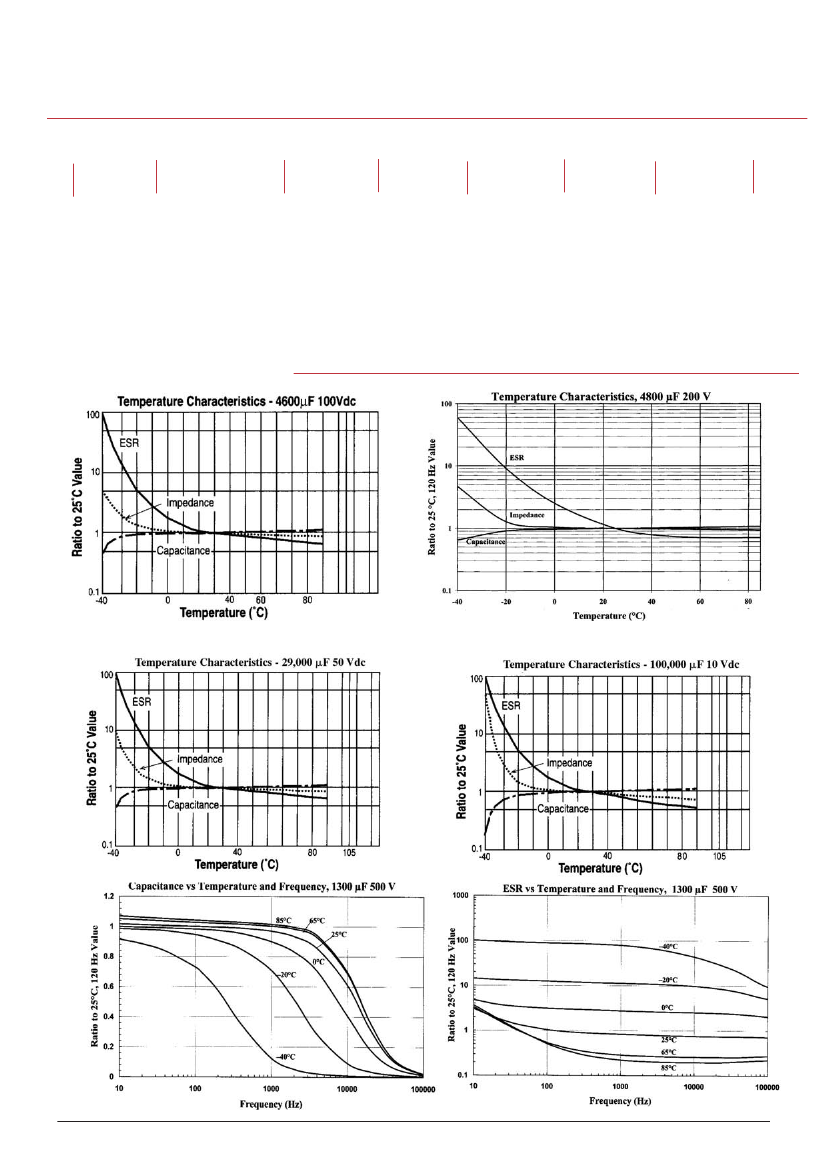

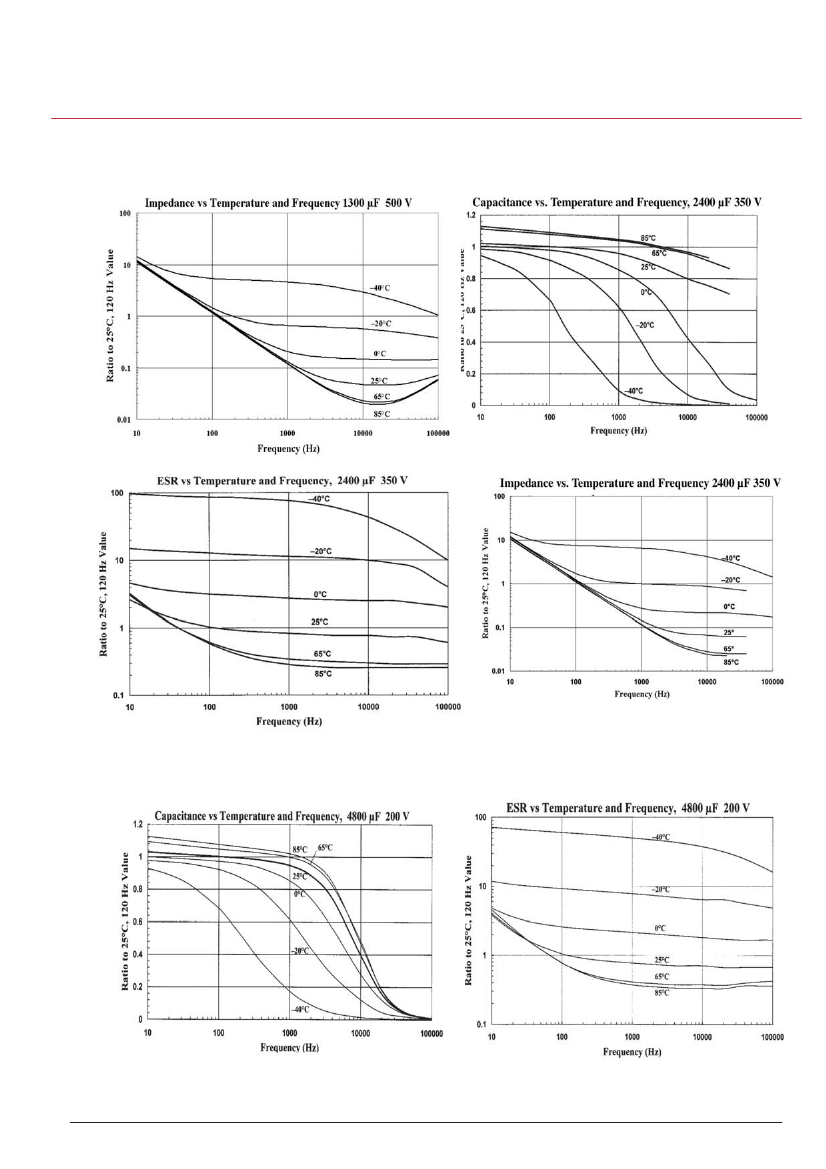

EIA Ripple Life:
