DCFO35105-5 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> DCFO35105-5

Preview

DCFO35105-5: DescriptionVOLTAGE CONTROLLED OSCILLATOR; CategoryPassive components oscillator; File Size242KB，3 Pages; ManufacturerSYNERGY; Websitehttp://www.synergymwave.com/; Environmental Compliance

Download Datasheet Parametric View All

DCFO35105-5 Overview

VOLTAGE CONTROLLED OSCILLATOR

DCFO35105-5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SYNERGY
package instruction	ROHS COMPLIANT PACKAGE-16
Reach Compliance Code	compli
Maximum control voltage	25 V
Minimum control voltage
Modulation sensitivity	54 MHz/V
Installation features	SURFACE MOUNT
offset frequency	10 kHz
Maximum operating frequency	1050 MHz
Minimum operating frequency	350 MHz
Maximum operating temperature	75 °C
Minimum operating temperature	-30 °C
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR
Output Power	7 dBm
phase noise	-112 dBc/Hz
physical size	23.11mm x 23.11mm x 7.87mm
Maximum slew rate	60 mA
Nominal supply voltage	5 V
surface mount	YES

Preview

Download Datasheet

View All

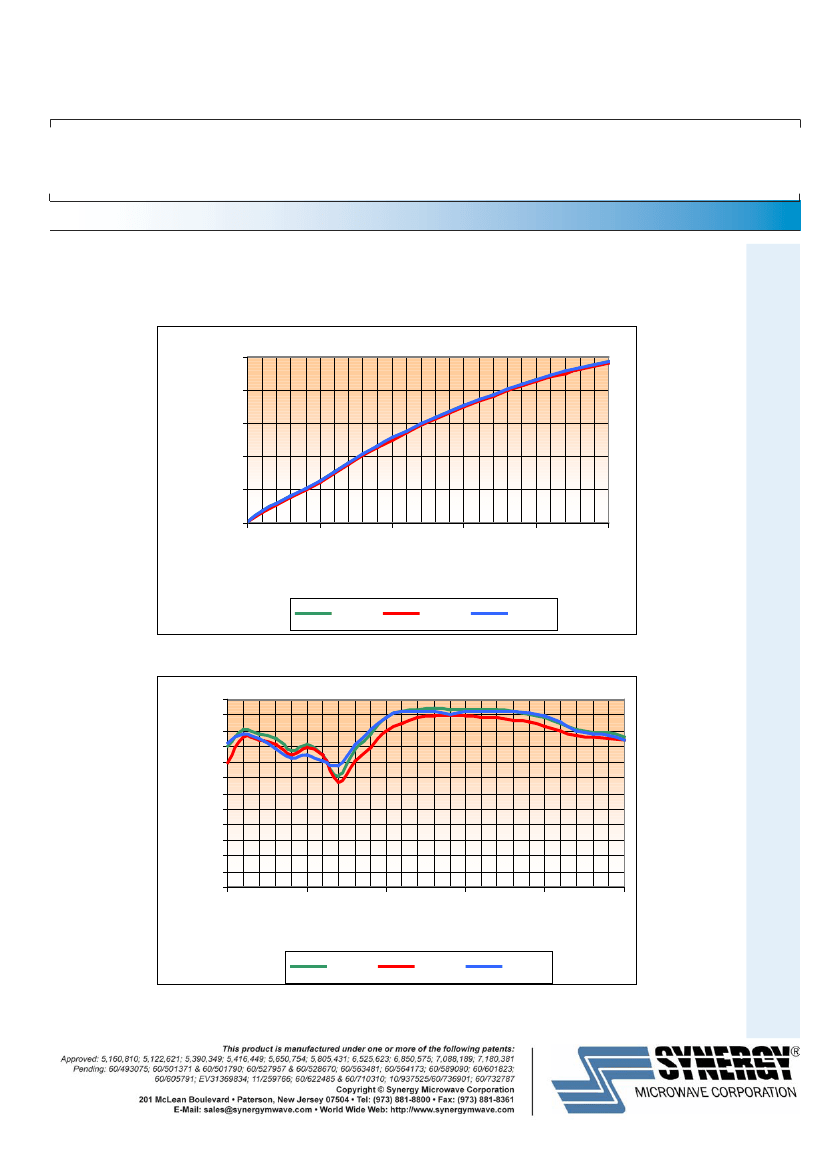

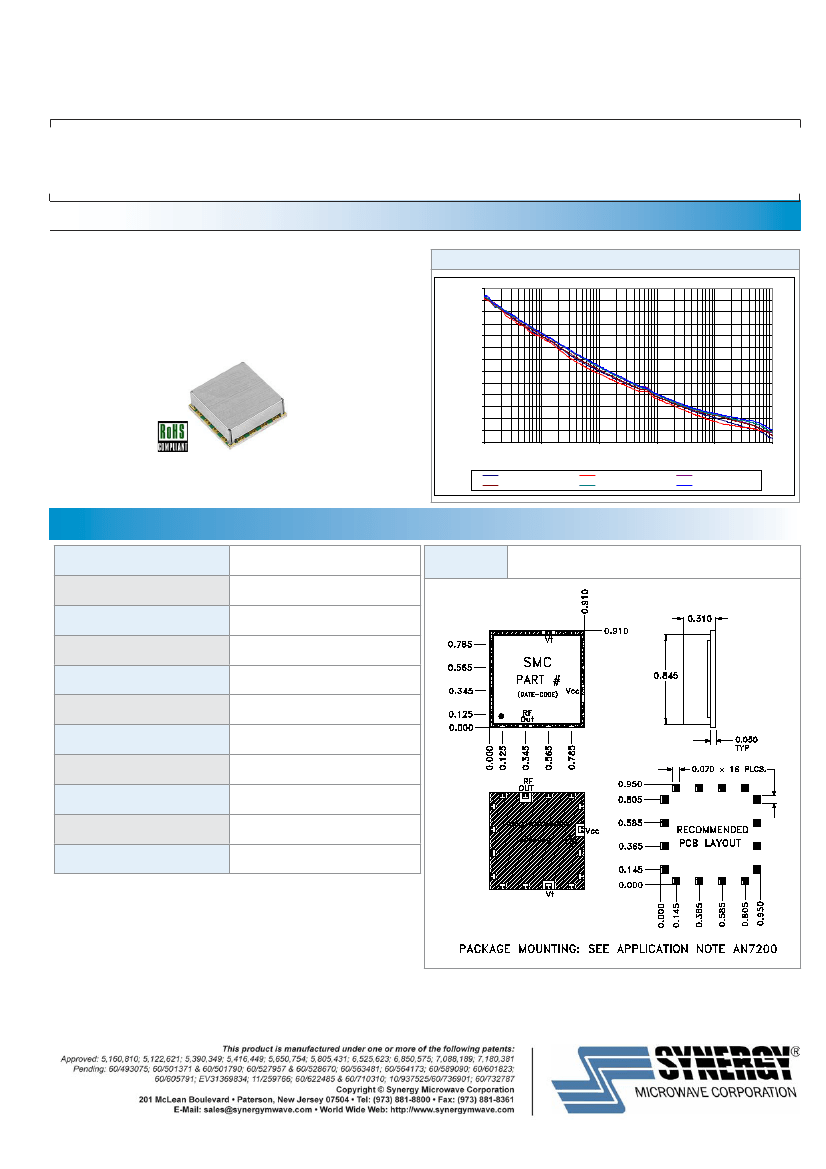

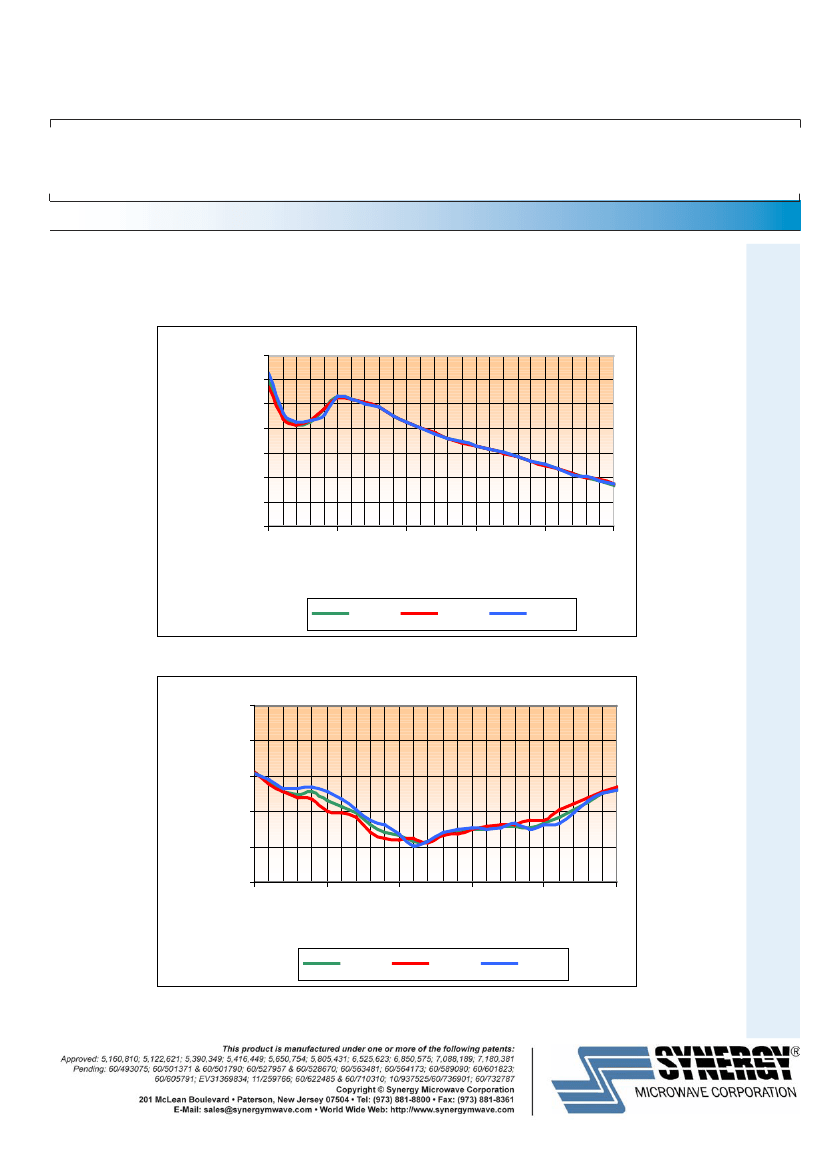

VOLTAGE CONTROLLED OSCILLATOR

SURFACE MOUNT MODEL:

DCFO35105-5

WIDE BANDWIDTH

FEATURES:

►

Exceptional Phase Noise Performance

►

Small Size, Surface Mount

►

Lead Free REL-PRO

®

Technology

Phase Noise

-40

-50

-60

-70

350-1050 MHz

Phase Noise (dBc/Hz)

-80

-90

-100

-110

-120

-130

-140

-150

-160

-170

100

1000

10000

100000

1000000

10000000

Of f set Frequency (Hz)

350.9MHz/1.2V

800.5MHz/11V

470.6MHz/4V

978.9MHz/16V

618.9MHz/7V

1050.2MHz/18.35V

SPECIFICATIONS (Rev. E 07/13/06)

Frequency

Tuning Voltage (Full Band)

Bias Voltage

Output Power

Tuning Sensitivity

Output Impedance

Harmonic Suppression

Frequency Pulling

Frequency Pushing

Phase Noise @ 10 kHz

Operating Temperature Range

350 - 1050 MHz

0 - 25 VDC (Nom)

+5 VDC @ 60 mA (Max)

+7 dBm (Min)

27 - 54 MHz/V (Typ)

50 Ohms (Nom)

25 dBc (Typ)

4 MHz (Max @ 1.75:1 VSWR)

2 MHz/V (Max)

-112 dBc/Hz (Typ)

-30 to +75 °C

Package #

277
