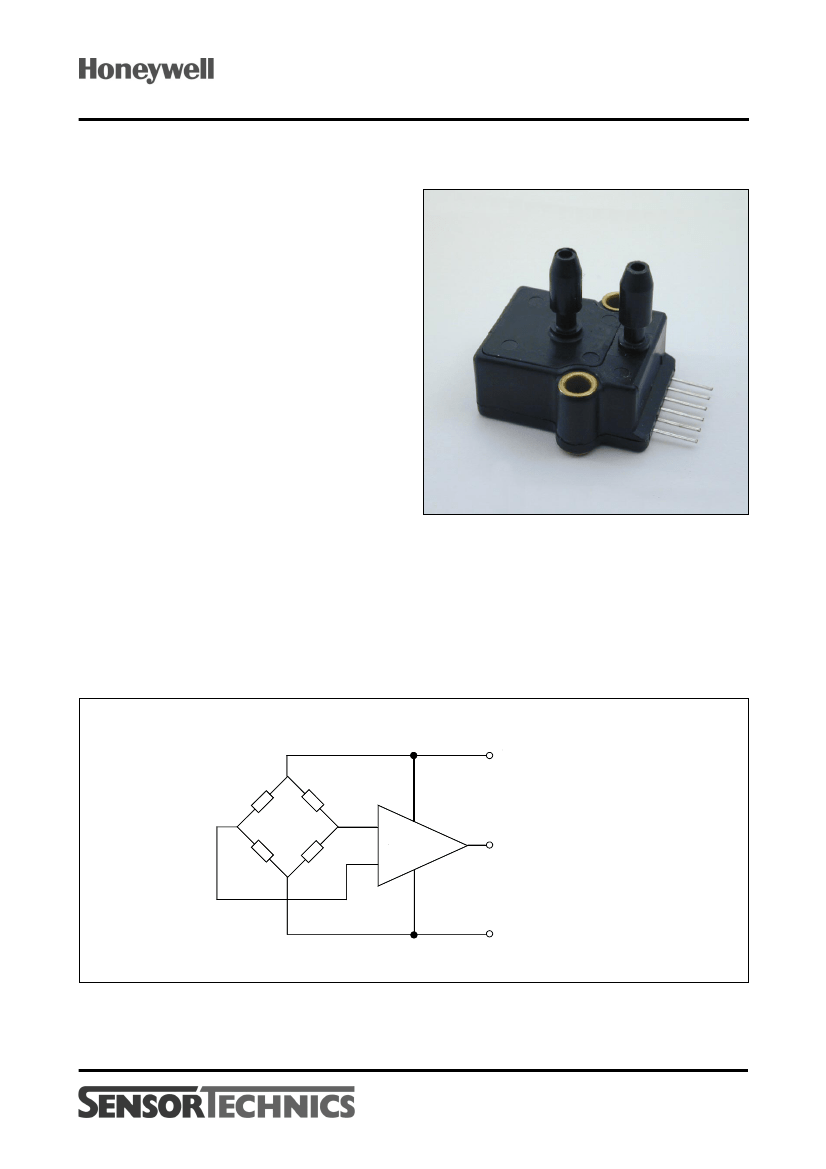

DC Series
SURSENSE
TM
precision very low pressure sensors /
V-output
FEATURES
· Ranges from 1 to 30 "H
2
O and
2.5 to 75 mbar differential or gage
· Precision temperature compensated
· Calibrated offset and span
· Extremely low position sensitivity
· Excellent long term stability
· Ratiometric output or
internal supply regulation
SERVICE
Non-corrosive, non-ionic working fluids such as
clean dry air, dry gases and the like.
The media wetted materials are:
- silicon diaphragm
- glass filled nylon
- RTV
- ceramic (Al
2
O
3
)
EQUIVALENT CIRCUIT
+Vs (1)
-
Vout (3)
+
GND (2)
January 2008 / 564
1/6
www.sensortechnics.com
DC Series
SURSENSE
TM
precision very low pressure sensors /
V-output
SPECIFICATIONS
Maximum ratings
(for all devices)
4.9 to 5.1 V (DC...C4)
7 to 30 V (DC...R4, DC...R5)
Lead temperature (soldering 5 sec.)
315 °C
Maximum load current
Source
2 mA
Sink
20 µA
Supply voltage V
S
Environmental specifications
(for all devices)
Temperature range
Compensated
Operating
Storage
Humidity limits (non-condensing)
0 to 50°C
-25 to +85°C
-40 to +125°C
0 to 95 %RH
CAUTION
Applications requiring supply voltages greater than 20 V on power-up must have a 10 Ohm resistor installed
between pin 1 of the sensor and the positiv (+) lead of the power supply.
If the sensor is subjected to a supply voltage of >20 V without ramp up, a current spike may occur causing the
operational amplifier and/or the ASIC to fail.
Do not operate above 30 V max. Due to internal component ratings, the maximum safe operating voltage
specification is 30 V.
PRESSURE SENSOR CHARACTERISTICS
Part no.
DC001N...
DC002N...
DC2R5N...
DC005N...
DC010N...
DC020N...
DC030N...
DC2R5B...
DC005B...
DC010B...
DC025B...
DC050B...
DC075B...
Pressure ranges
1 "H
2
O
2 "H
2
O
2.5 "H
2
O
5 "H
2
O
10 "H
2
O
20 "H
2
O
30 "H
2
O
2.5 mbar
5 mbar
10 mbar
25 mbar
50 mbar
75 mbar
Proof pressure
1
100 "H
2
O
100 "H
2
O
100 "H
2
O
150 "H
2
O
150 "H
2
O
300 "H
2
O
450 "H
2
O
250 mbar
250 mbar
375 mbar
375 mbar
750 mbar
1125 mbar
Burst pressure
2
200 "H
2
O
200 "H
2
O
200 "H
2
O
300 "H
2
O
300 "H
2
O
450 "H
2
O
600 "H
2
O
500 mbar
500 mbar
750 mbar
750 mbar
1125 mbar
1500 mbar
Notes
1
Proof pressure is the maximum pressure which may be applied without causing durable shifts of the electrical parameters of the sensing element.
2
Burst pressure is the maximum pressure which may be applied without causing damage to the sensing element or leaks from the housing.
2/6
January 2008 / 564
www.sensortechnics.com
DC Series
SURSENSE
TM
precision very low pressure sensors /
V-output
PERFORMANCE CHARACTERISTICS
0.25...4.25 V ratiometric
output version
(
V
S
= 5.0 V, T
A
= 25°C, pressure applied to port 2)
Characteristics
Zero pressure offset
Full scale span
3
Total accuracy (0 - 50 °C)
4
DC...G...
DC...D...
DC...G...
DC...D...
DC001N...
DC2R5B...
DC002N..., DC2R5N...
DC005B...
all others
DC001N... to DC2R5N...
DC2R5B..., DC005B...
DC005N...
DC010B...
all others
DC...C4
Min.
Typ.
0.25
2.25
4.0
±2.0
±2.0
±1.5
±1.0
Max.
Unit
V
±3.0
±2.5
±2.0
±10
±5
±1
mV
%FSO
Offset position sensitivity (±1 g)
PERFORMANCE CHARACTERISTICS
0.25...4.25 V regulated
output version
(
V
S
= 15.0 V, T
A
= 25°C, pressure applied to port 2)
Characteristics
Zero pressure offset
Full scale span
3
Total accuracy (0 - 50 °C)
4
DC...G...
DC...D...
DC...G...
DC...D...
DC001N...
DC2R5B...
DC002N..., DC2R5N...
DC005B...
all others
DC001N... to DC2R5N...
DC2R5B..., DC005B...
DC005N...
DC010B...
all others
DC...R4
Min.
Typ.
0.25
2.25
4.0
±2.0
±2.0
±1.5
±1.0
Max.
Unit
V
±3.0
±2.5
±2.0
±10
±5
±1
mV
%FSO
Offset position sensitivity (±1 g)
Notes:
3
Full scale span is the algebraic difference between the output voltage at full-scale pressure and the output at zero pressure.
4
Total accuracy includes non-linearity, hysteresis, repeatability, zero offset and span error, thermal effect on zero offset and span.
Non-linearity refers to the
Best Straight Line
fit measured for offset pressure, full-scale pressure and ½ full-scale pressure.
January 2008 / 564
3/6
www.sensortechnics.com
DC Series
SURSENSE
TM
precision very low pressure sensors /
V-output
DC...R5
PERFORMANCE CHARACTERISTICS
1...6 V regulated
output version
(
V
S
= 15.0 V, T
A
= 25°C, pressure applied to port 2)
Characteristics
Zero pressure offset
Full scale span
3
Total accuracy (0 - 50 °C)
4
DC...G...
DC...D...
DC...G...
DC...D...
DC001N...
DC2R5B...
DC002N..., DC2R5N...
DC005B...
all others
DC001N... to DC2R5N...
DC2R5B..., DC005B...
DC005N...
DC010B...
all others
Min.
Typ.
1
3.5
5.0
±2.5
±2.0
±1.5
±1.0
Max.
Unit
V
±3.0
±2.5
±2.0
±10
±5
±1
mV
%FSO
Offset position sensitivity (±1 g)
Notes:
3
Full scale span is the algebraic difference between the output voltage at full-scale pressure and the output at zero pressure.
4
Total accuracy includes non-linearity, hysteresis, repeatability, zero offset and span error, thermal effect on zero offset and span.
Non-linearity refers to the
Best Straight Line
fit measured for offset pressure, full-scale pressure and ½ full-scale pressure.
ELECTRICAL CONNECTION
5 4 3 2 1 0
Pin 0
marked by dot
Pin no.
Output version
DC...
C4
(4 Pin)
0.25...4.25 V
ratiometric
no pin
+Vs
GND
Vout
I / C*
no pin
DC...
R4
(6 Pin)
0.25...4.25 V
regulated
N/C
+Vs
GND
Vout
I / C*
N/C
DC...
R5
(6 Pin)
1...6 V
regulated
N/C
+Vs
GND
Vout
I / C*
N/C
0
1
2
3
4
5
* Do not use for any reason
Note:
The polarity indicated is for pressure applied to port 2
4/6
January 2008 / 564
www.sensortechnics.com
DC Series
SURSENSE
TM
precision very low pressure sensors /
V-output

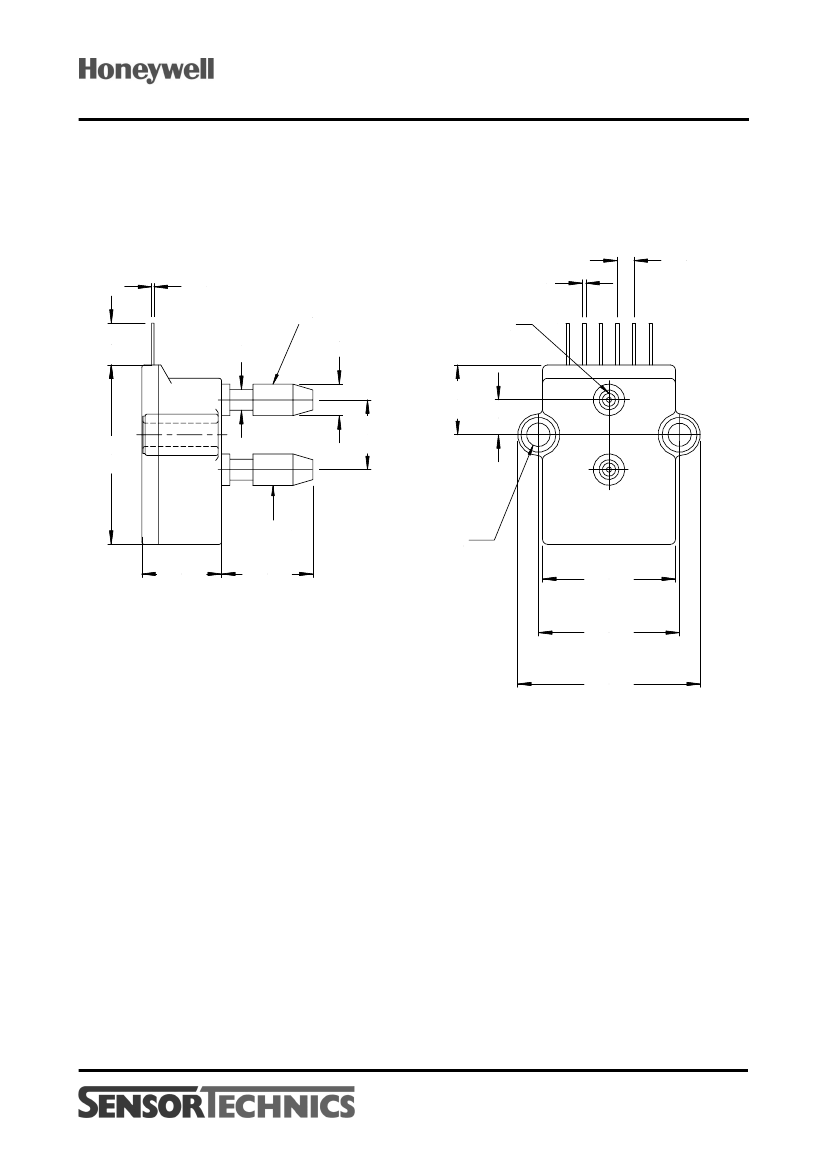

OUTLINE DRAWING
0,4
(0.01)
Port 1
6,4
(0.25)
Ø 3,2
(0.13)
Ø 4,8
(0.19)
DIA 2,0
(0.08)
0,5
(0.02)
0 1 2 3 4 5
2,5
(0.10)
10,7
(0.42)
27,4
(1.08)
10,7
(0.42)
5,3
(0.21)
Port 2
12,2
(0.48)
14,0
(0.55)
Ø 3,6
(0.14)
20,3
(0.80)
21,6
(0.85)
27,9
(1.10)
mass:
approx. 10 g
dimensions mm (inches)
January 2008 / 564
5/6
www.sensortechnics.com
