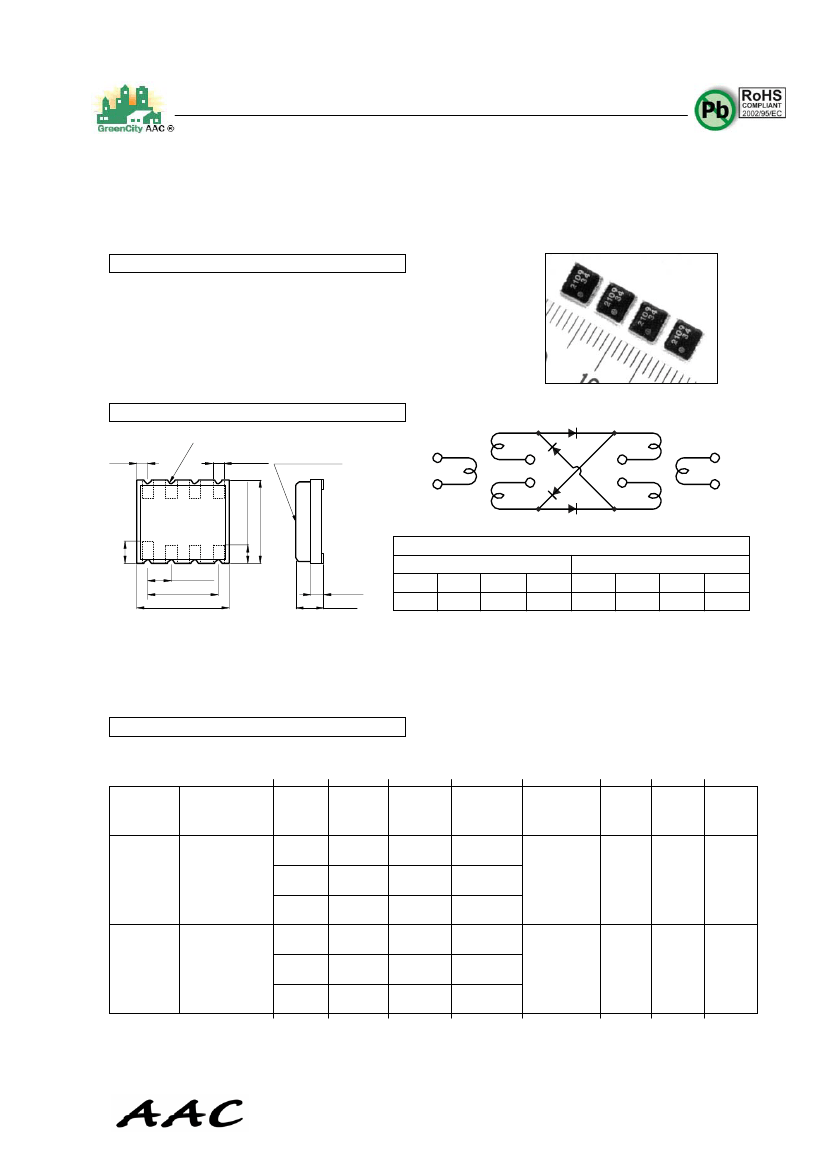

RF Mixer Double Balance SMD
The content of this specification may change without notification 09/18/08
CHIP DOUBLE BALANCED MIXERS
Double Balanced Mixers
Features
•
•
•
•
•
•
Lowest Loss and VSWR
Custom Designs Available
Surface Mounted
Low Cost
Available on Tape and Reel
Custom Designs Available
Dimensions, Schematics
(8)
0.5
0.6±0.1
1.0 max.{2)~(8)}
R8 min.(Upside)
Unit:mm
(7)
(6)
(5)
(8)
(7)
(6)
(5)
(1)
4.5 ±0.2
(2)
(3)
(4)
2109
1.2 max.{1)}
(1)
(2)
(3)
(4)
Port Position
DBM2109, DBM2115
0.7 max.
1.5 max.
1.27±0.15
3.81±0.15
4.99±0.2
DBM2219
(1) LO
(2) IF (3)GND (4) RF
(1) RF
(2) IF
(3)GND (4) LO
(8)GND (7) IF
(6)GND (5)GND (8)GND (7) IF (6)GND (5)GND
* IF po r t{ ( 2) to ( 7) } sha ll b e co nn e c ted on th e su b s tra te .
* Re comme nd a p a tte r n IF po r t {(2 ) to ( 7 ) } size d a t 0 .6 ± 0 .1 mm .
Order Information
- 860M ~ 970MHz -
Style No.
Frequency
Range
[ MHz ]
RF Input
{Port (1)} 860~970
DBM 2109-01A
(RX)
LO Input
{Port (4)} 710~1120
IF Output
{Port (7)} 40~150
IF Input
{Port (7)} 40~150
DBM 2109-01B
(TX)
LO Input
{Port (4)} 670~1120
RF Output
{Port (1)} 820~970
Lo Power
[ dBm ]
Conversion
Loss
[ dB ]
8.0 max.
9.0 max.
10.0 max.
8.5 max.
9.0 max.
10.0 max.
Intercept
Point
[ dBm ]
+8 min.
+7 min.
+6 min.
1 dB
Compression
[ dBm ]
0 min.
Isolation
[ dB ]
RF
->
IF
Impedance
[
Ω
]
Max. Input
Power
[ mW ]
Max. Input
Current
[ mA ]
+8
+3
0
+8
+3
0
8 min.
50
50
50
−
1 min.
−
2 min.
−
4 min.
−
4 min.
−
4 min.
LO
->
IF 14 min.
LO
->
RF 20 min.
I F
->
RF 20 min.
LO
->
IF 18 min.
LO
->
RF 20 min.
−
−
−
50
50
50
American Accurate Components, Inc.
188 Technology Drive, Unit H, Irvine, CA 92618
TEL: 949-453-9888 FAX: 949-453-8889
1
Surface Mount Frequency Mixer
The content of this specification may change without notification 11/08/07
CHIP DOUBLE BALANCED MIXERS
- 1460M ~ 1570MHz -
Style No.
Frequency
Range
[ MHz ]
RF Input
{Port (1)} 1460~1570
DBM 2115 - 01A
(RX)
LO Input
{Port (4)} 1510~1720
IF Output
{Port (7)} 50~150
Lo Power
[ dBm ]
+8
+3
0
Conversion
Loss
[ dB ]
8.5 max.
9.0 max.
9.5 max.
Intercept
Point
[ dBm ]
+5.0 min.
+3.5 min.
+2.0 min.
−
4.0 min.
1 dB
Compression
[ dBm ]
Isolation
[ dB ]
RF
->
IF
Impedance
[
Ω
]
Max. Input
Power
[ mW ]
Max. Input
Current
[ mA ]
8 min.
50
50
50
LO
->
IF 15 min.
LO
->
RF 12 min.
- 2110M ~ 2190MHz -
Style No.
Frequency
Range
[ MHz ]
RF Input
{Port (4)} 2110~2190
DBM 2219W - 01A
(RX)
LO Input
{Port (1)} 1865~1955
IF Output
{Port (7)} 235~245
IF Input
{Port (7)} 235~245
DBM 2219W - 01B
(TX)
LO Output
{Port (1)} 1865~1955
RF Input
{Port (4)} 2110~2190
0
8.0 max.
0
8.0 max.
+3.0 min.
−6.0
min.
Lo Power
[ dBm ]
Conversion
Loss
[ dB ]
Intercept
Point
[ dBm ]
1 dB
Compression
[ dBm ]
Isolation
[ dB ]
LO
->
RF 12 min.
LO
->
IF
8 min.
50
50
50
Impedance
[
Ω
]
Max. Input
Power
[ mW ]
Max. Input
Current
[ mA ]
RF
->
IF 15 min.
LO
->
RF 12 min.
−
−6.0
min.
LO
->
IF
8 min.
50
50
50
American Accurate Components, Inc.
188 Technology Drive, Unit H, Irvine, CA 92618
TEL: 949-453-9888 FAX: 949-453-8889
2
