DB25SFM1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> DB25SFM1

DB25SFM1: DescriptionCONNECTOR,D-SHELL,CABLE MNT,RECEPT,9 CONTACTS,PIN,0.109 PITCH,IDC TERMINAL,#4-40; CategoryThe connector; File Size194KB，2 Pages; ManufacturerAdam Tech

Download Datasheet Parametric View All

DB25SFM1 Overview

CONNECTOR,D-SHELL,CABLE MNT,RECEPT,9 CONTACTS,PIN,0.109 PITCH,IDC TERMINAL,#4-40

DB25SFM1 Parametric

Parameter Name	Attribute value
Contact materials	PHOSPHOR BRONZE
Total number of contacts	9
state	Active
width	0.4960 inch
body_depth	0.3180 inch
body_diamete	1.21 inch
Shell style	RECEPTACLE
contact_desig	PREASSEM CONN
Contact surface matching	AU ON NI
Connector male and female	MALE
contact_patte	STAGGERED
contact_resistance	20 mohm
contact_style	RND PIN-SKT
dielectric_withstanding_voltage__v_	1000VAC
insertion_force_max__n_	2.78
insulation_resistance	5.00E9 ohm
insulator_col	BLACK
insulator_material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer Series	DPF
mating_contact_pitch__inch_	0.109
mating_contact_row_spacing__inch_	0.112
Meet MIL	YES
mounting_option_1	#4-40
mounting_option_2	THREADED
Installation type	CABLE
Number of load rows	2
Minimum operating temperature	-65 Cel
erating_temperature_max__cel_	125
lating_thickness__inch_	5u
ed_current__signal_	5 A
eference_standard	UL, CSA
eliability	MIL-C-83503
Shell surface	TIN
Shell material	STEEL
sub_category	D Type Connectors
Terminal type	IDC
wire_size_mi	30 AWG
wire_size_max	28 AWG
withdrawl_force_min__n_	1.946

Preview

Download Datasheet

View All

D-SUBMINIATURE

Adam Technologies, Inc.

INTRODUCTION:

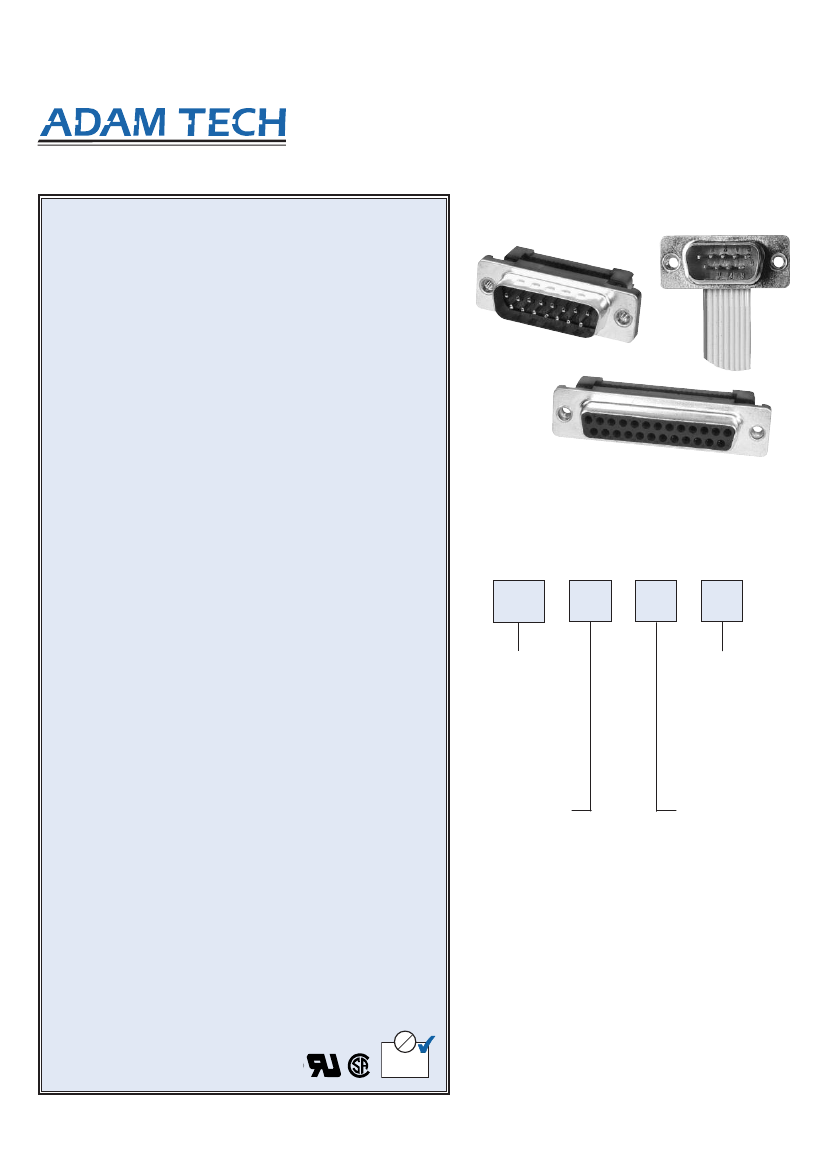

Adam Tech Flat Cable IDC D-Sub connectors are a popular interface

for many I/O and cable assembly applications. Offered in 9, 15, 25,

37 and 50 positions they are an excellent choice for a low cost

industry standard connection that terminates .050” flat cable quickly,

easily and compactly. These connectors are manufactured with

precision stamped contacts offering a choice of contact plating and a

wide selection of mating and mounting options.

FEATURES:

Quickly terminates to flat cable

Industry standard compatibility

Durable metal shell design

Integral strain relief available

Precision formed contacts

Variety of Mating and mounting options

MATING CONNECTORS:

Adam Tech D-Subminiatures and all industry standard

D-Subminiature connectors.

SPECIFICATIONS:

Material:

Insulator: PBT, 30% glass reinforced, rated UL94V-0

Insulator Colors: Black (Blue optional)

Contacts: Phosphor Bronze

Shell: Steel, Tin or Zinc plated

Hardware: Brass, Nickel plated

Contact Plating:

Gold Flash (15 and 30

µin

Optional) over Nickel underplate, Nickel

over copper underplate on IDC area

Electrical:

Operating voltage: 250V AC / DC max.

Current rating: 5 Amps max.

Contact resistance: 20 mΩ max. initial

Insulation resistance: 5000 MΩ min.

Dielectric withstanding voltage: 1000V AC for 1 minute

Mechanical:

Insertion force: 0.75 lbs max

Extraction force: 0.44 lbs min

Recommended cable size: 28 to 30 Awg.

Temperature Rating:

Operating temperature: -65°C to +125°C

PACKAGING:

Anti-ESD plastic trays

APPROVALS AND CERTIFICATIONS:

UL Recognized File No. E224053

CSA Certified File No. LR1578596

OPTIONS:

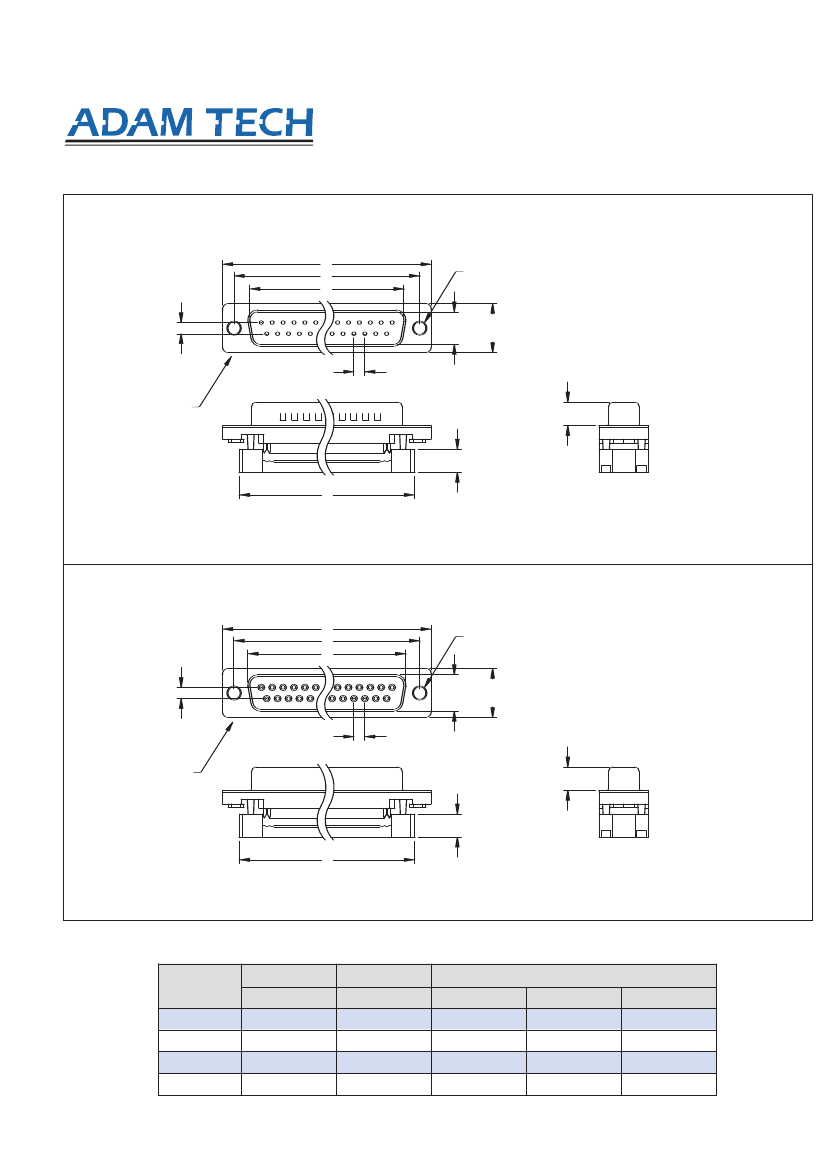

IDC FLAT CABLE TERMINATION

DPF & DSF SERIES

ORDERING INFORMATION

DB25

SHELL SIZE/

POSITIONS

DE09

= 9 Position

DA15

= 15 Position

DB25

= 25 Position

DC37

= 37 Position

DD50

= 50 Position

MOUNTING OPTIONS

1 =

.130" mounting holes

2 =

#4-40 threaded

flush inserts

(Metal Shell only)

CONTACT TYPE

= Plug, IDC

= Socket, IDC

BODY

CONSTRUCTION

= Metal shell

= All plastic body

Strain Relief

Part No.:

DSR - xx

(xx = No. of Positions)

COMPLIANT

2002

/ 95

/ EC

RoHS

Add designator(s) to end of part number

= 15 µin. gold in contact area

= 30 µin. gold in contact area

= Blue color insulator

909 Rahway Avenue

•

Union, New Jersey 07083

•

T: 908-687-5000

•

F: 908-687-5710

•

WWW.ADAM-TECH.COM

RoHS

COMPLIANT
