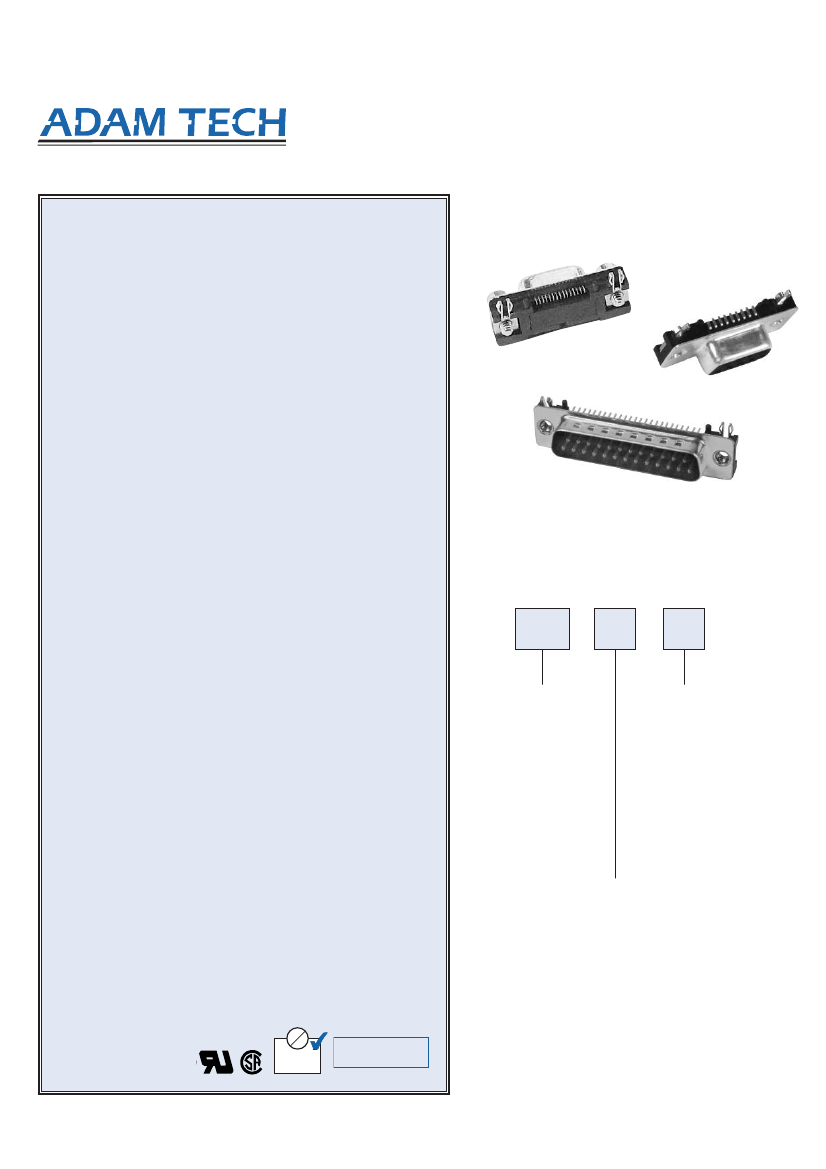

D-SUBMINIATURE
Adam Technologies, Inc.
SMT RIGHT ANGLE .118" [3.00] SLIMLINE
SMT SERIES
INTRODUCTION:
Adam Tech Right Angle slimline SMT D-Sub connectors are a
popular interface for many I/O applications. Offered in 9, 15 and 25
positions they are an excellent choice for a low cost industry standard
connection and are ideal for low profile design requirements. Adam
Tech connectors are manufactured with precision stamped contacts
offering a choice of contact plating and a wide selection of mating
and mounting options.
FEATURES:
Short profile space saving design
Industry standard compatibility
Durable metal shell design
Precision formed contacts
Variety of Mating and mounting options
MATING CONNECTORS:
Adam Tech D-Subminiatures and all industry standard
D-Subminiature connectors.
SPECIFICATIONS:
Material:
Insulator: Hi-Temperature thermoplastic, rated UL94V-0
Insulator Color: Black
Contacts: Phosphor Bronze or Brass
Shell: Steel, Tin or Zinc plated
Hardware: Brass, Nickel plated
Contact Plating:
Gold Flash (15 and 30
µin
Optional) over Nickel underplate on mating
area, Tin over Copper underplate on SMT tails.
Electrical:
Operating voltage: 250V AC / DC max.
Current rating: 1 Amp max.
Contact resistance: 20 mΩ max. initial
Insulation resistance: 5000 MΩ min.
Dielectric withstanding voltage: 1000V AC for 1 minute
Mechanical:
Insertion force: 0.75 lbs max
Extraction force: 0.44 lbs min
Temperature Rating:
Operating temperature: -65°C to +125°C
Soldering process temperature: 260°C
PACKAGING:
Anti-ESD plastic trays
APPROVALS AND CERTIFICATIONS:
UL Recognized File No. E224053
CSA Certified File No. LR1578596
OPTIONS:
Add designator(s) to end of part number
15
= 15 µin gold plating in contact area
30
= 30 µin gold plating in contact area
R
= Round jackscrews

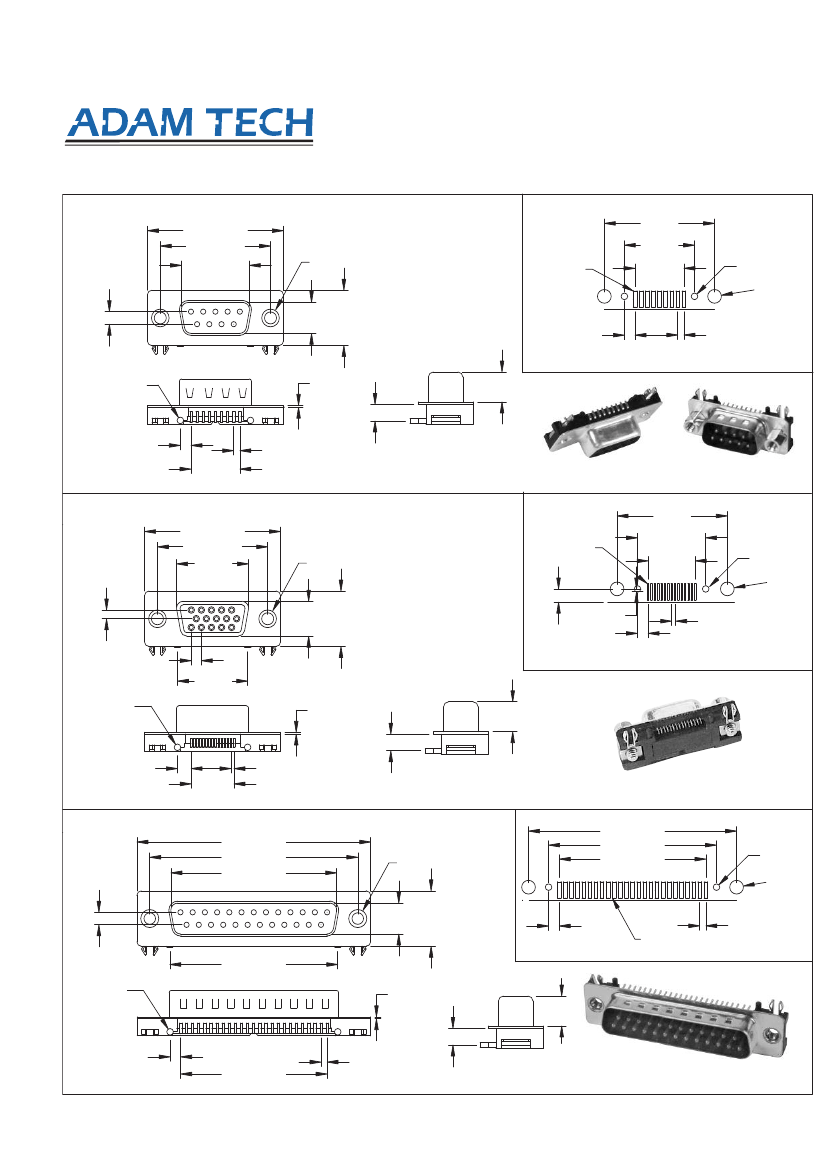

ORDERING INFORMATION
DB25
SS
24
SHELL SIZE/
POSITIONS
DE
09
= 9 Positions
DB
25
= 25 Positions
HDL15
= High Density
15P
MOUNTING OPTIONS
24
= Forked Boardlocks
for PCB Retention and
#4-40 threaded inserts
in mounting holes
25
= Forked Boardlocks
for PCB retention and
#4-40 threaded inserts
in mounting holes with
installed jackscrews
CONTACT / TYPE
PS
= Plug Surface Mount
SS
= Socket Surface Mount
Pb
UL
®
®
®
E
D
COMPLIANT
2002
/ 95
/ EC
RoHS
V
HI-TEMP
INSULATOR
AVA I L A B L E
88
909 Rahway Avenue
•
Union, New Jersey 07083
•
T: 908-687-5000
•
F: 908-687-5710
•
WWW.ADAM-TECH.COM
