Part Number

Search

51939-593

Description
Board Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Locking, Plug
CategoryThe connector    The connector
File Size248KB,4 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

51939-593 Overview

Board Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Locking, Plug

51939-593 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerAmphenol
Reach Compliance Codecompliant
Board mount optionsHOLE .086-.098
body width0.574 inch
subject depth0.93 inch
body length1.85 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact arrangementS0P4
Contact completed and terminatedTIN/LEAD OVER NICKEL
Contact point genderMALE
Contact materialCOPPER ALLOY
Contact resistance20 mΩ
Contact styleHYBRID
Dielectric withstand voltage2500VDC V
Durability200 Cycles
maximum insertion force.973 N
Insulation resistance500000000 Ω
insulator materialGLASS FILLED THERMOPLASTIC
Manufacturer's serial number51939
Mixed contactsYES
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.135 inch
Termination typeSOLDER
Total number of contacts4
Evacuation force-minimum value.1668 N
Base Number Matches1
Anson Liu
Guang, Shi
Tian-Xu Huang
Pei-Ming Zheng
2011/05/23
2011/08/08
2011/08/17
2011/08/17

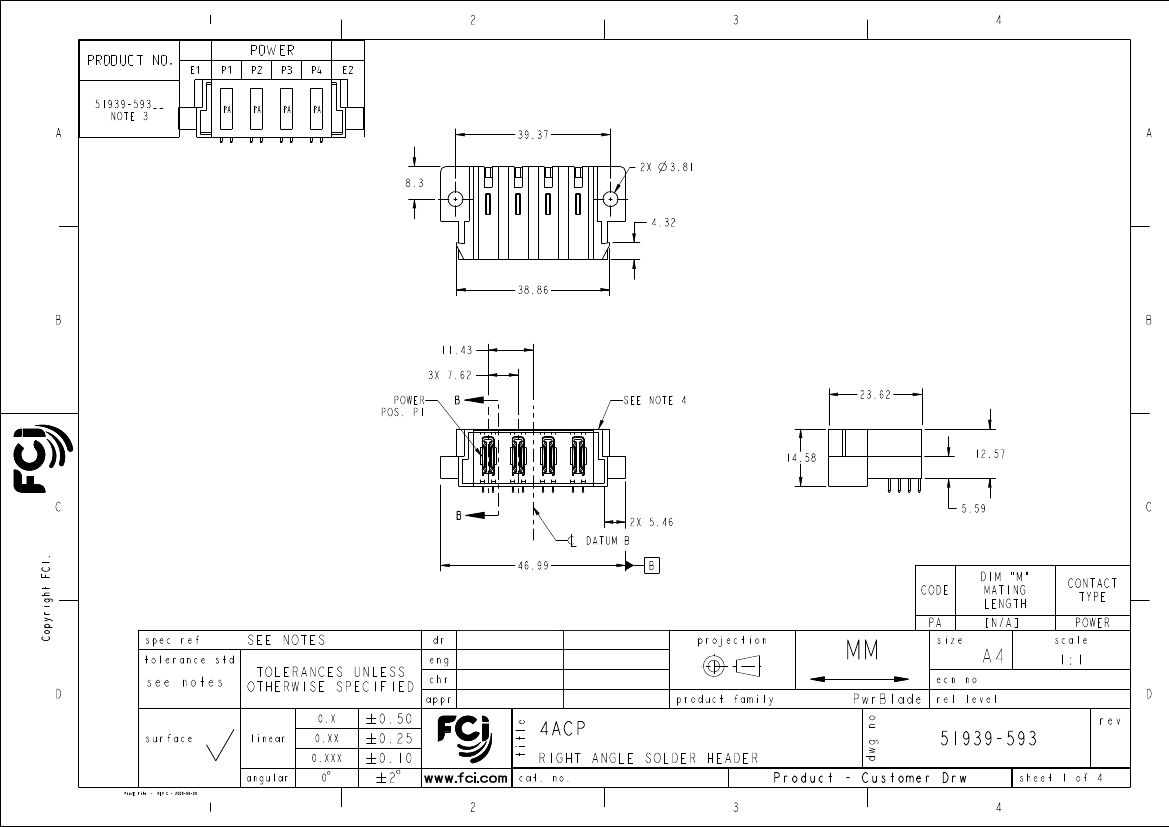

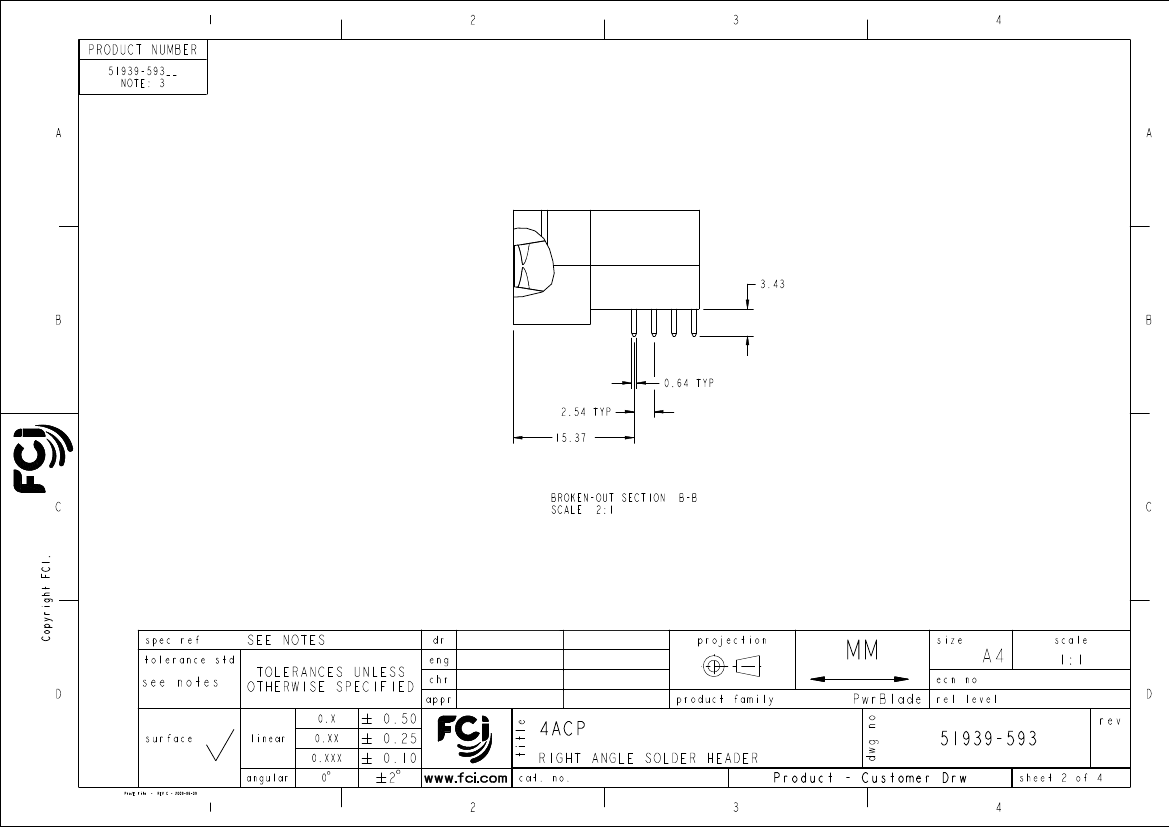

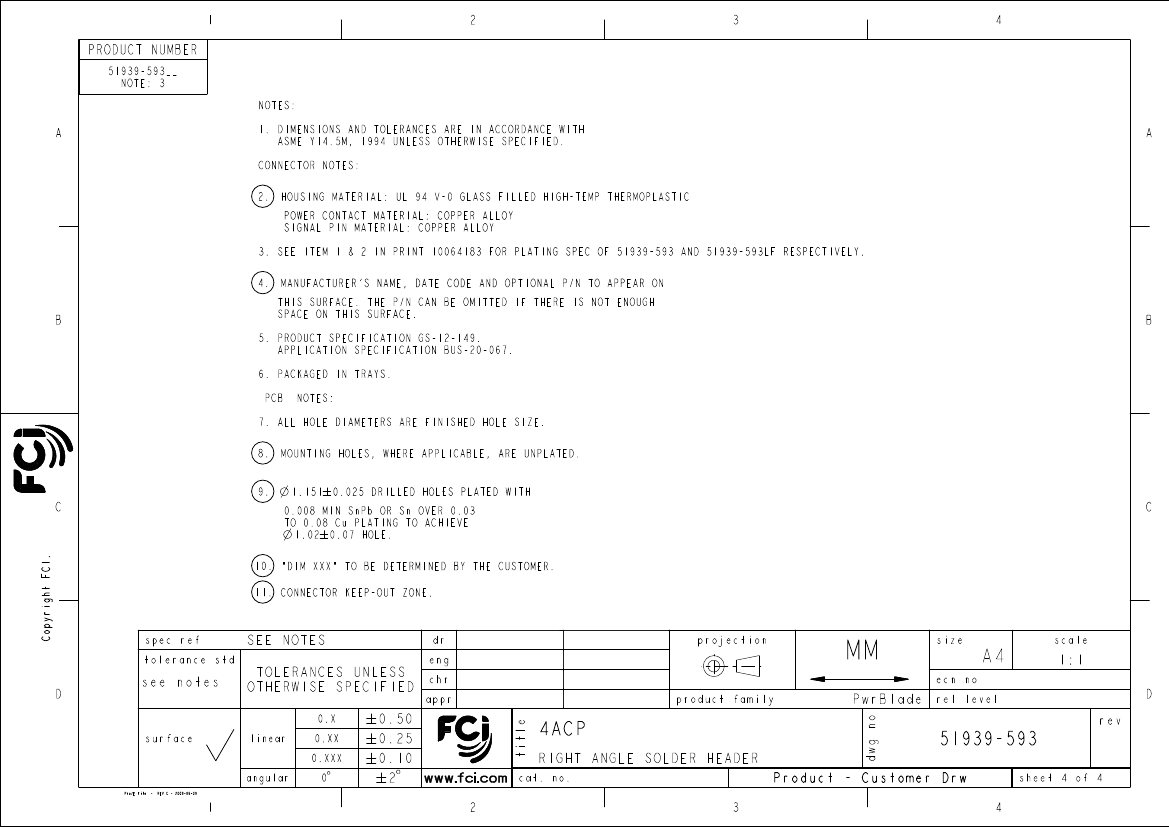

ELX-DG-004720-1
Released
B
PDS: Rev :B
STATUS:Released
Printed: Aug 17, 2011

51939-593 Related Products

51939-593 51939-593LF
Description Board Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Locking, Plug Board Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Locking, Plug
Is it Rohs certified? incompatible conform to
Maker Amphenol Amphenol
Reach Compliance Code compliant compliant
Board mount options HOLE .086-.098 HOLE .086-.098
body width 0.574 inch 0.574 inch
subject depth 0.93 inch 0.93 inch
body length 1.85 inch 1.85 inch
Body/casing type PLUG PLUG
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact arrangement S0P4 S0P4
Contact point gender MALE MALE
Contact material COPPER ALLOY COPPER ALLOY
Contact resistance 20 mΩ 20 mΩ
Contact style HYBRID HYBRID
Dielectric withstand voltage 2500VDC V 2500VDC V
Durability 200 Cycles 200 Cycles
maximum insertion force .973 N .973 N
Insulation resistance 500000000 Ω 500000000 Ω
insulator material GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC
Manufacturer's serial number 51939 51939
Mixed contacts YES YES
Installation option 1 LOCKING LOCKING
Installation method RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD
Number of connectors ONE ONE
Maximum operating temperature 105 °C 105 °C
Minimum operating temperature -55 °C -55 °C
Guideline UL UL
reliability COMMERCIAL COMMERCIAL
Terminal length 0.135 inch 0.135 inch
Termination type SOLDER SOLDER
Total number of contacts 4 4
Evacuation force-minimum value .1668 N .1668 N
