59453-051111 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 59453-051111

59453-051111: DescriptionCard Edge Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal; CategoryThe connector The connector; File Size360KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

59453-051111 Overview

Card Edge Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal

59453-051111 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Other features	LOW PROFILE
Connector type	FFC/FPC CONNECTOR
Contact completed and terminated	GOLD
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Termination type	SURFACE MOUNT
Total number of contacts	5
UL Flammability Code	94V-0
Base Number Matches	1

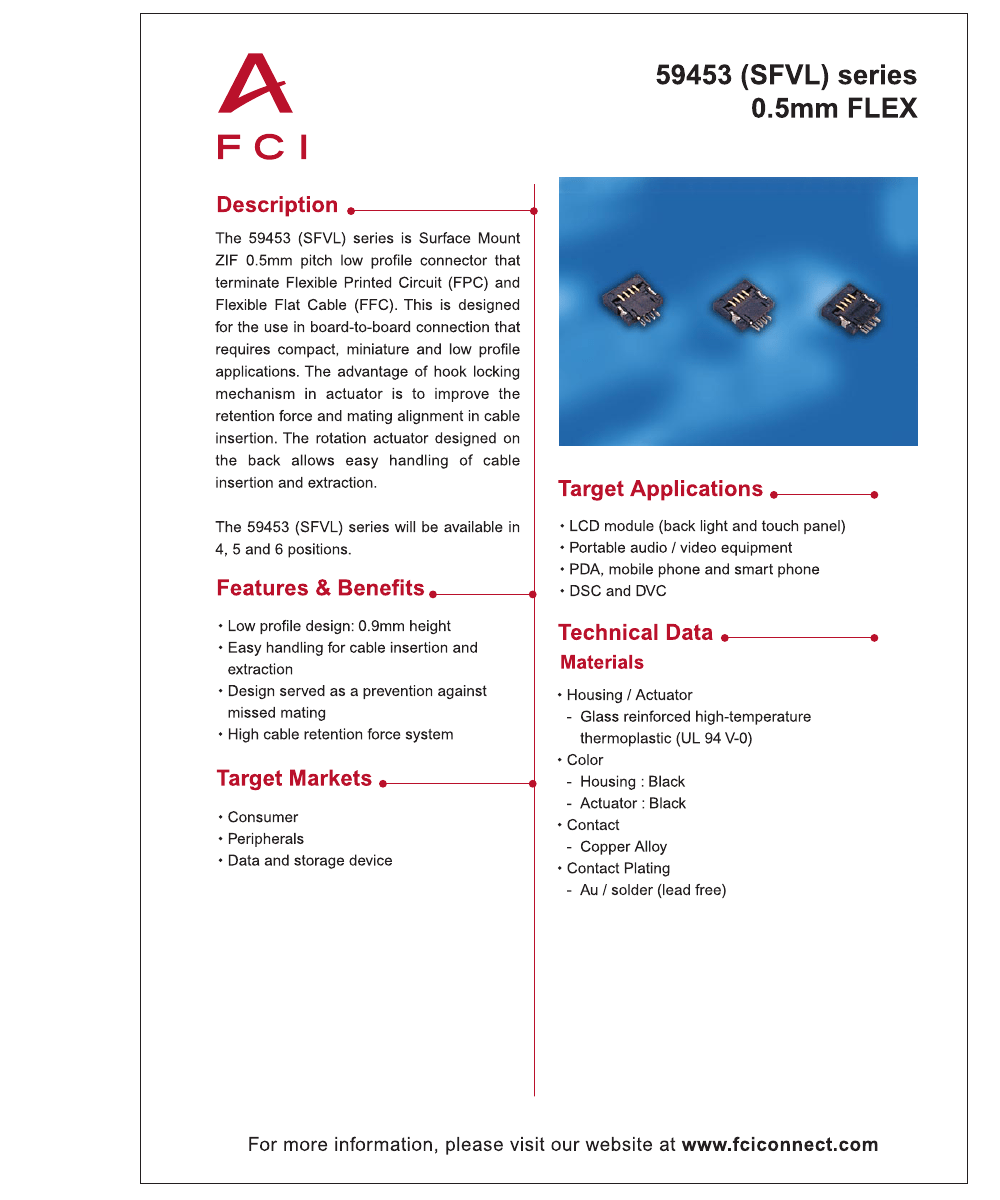

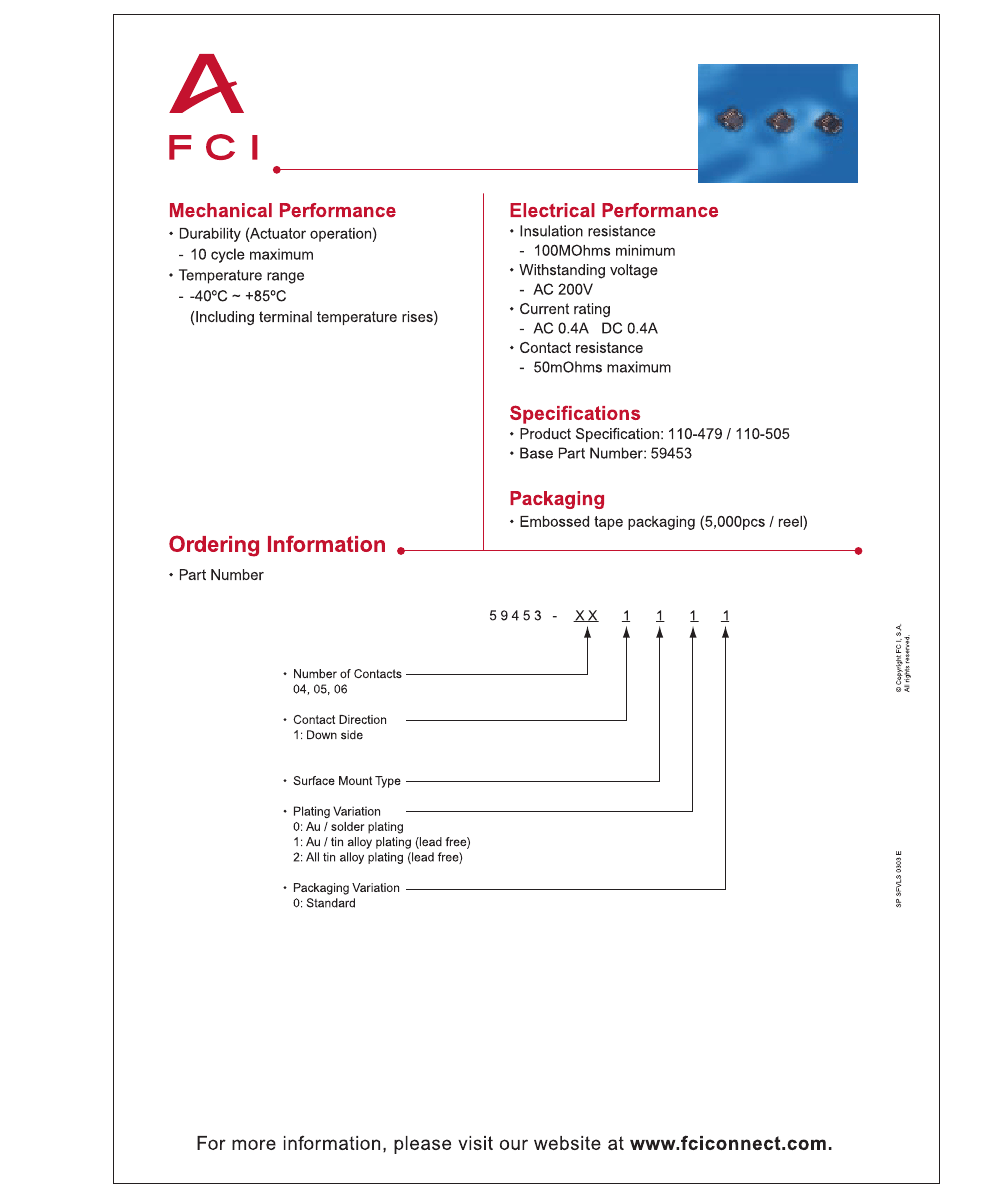

Preview

Download Datasheet

View All

59453-051111 Related Products

	59453-051111	59453-051120	59453-051121	59453-061100	59453-061101	59453-061111	59453-061120	59453-041100	59453-061121
Description	Card Edge Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal	Card Edge Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal	Card Edge Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal	Card Edge Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal	Card Edge Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal	Card Edge Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal	Card Edge Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal	Card Edge Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal	Card Edge Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	5	5	5	6	6	6	6	4	6
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
