DAC-HZ12DGC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> DAC-HZ12DGC

DAC-HZ12DGC: Description12-Bit, Industry-Standard Digital-to-Analog Converters; CategoryAnalog mixed-signal IC converter; File Size88KB，4 Pages; ManufacturerMurata; Websitehttps://www.murata.com

Download Datasheet Parametric Compare View All

DAC-HZ12DGC Overview

12-Bit, Industry-Standard Digital-to-Analog Converters

DAC-HZ12DGC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Murata
Parts packaging code	DIP
package instruction	DIP, DIP24,.6
Contacts	24
Reach Compliance Code	compli
Maximum analog output voltage	10 V
Minimum analog output voltage	-10 V
Converter type	D/A CONVERTER
Enter bit code	COMPLEMENTARY BINARY CODED DECIMAL
Input format	PARALLEL, WORD
JESD-30 code	R-CDIP-T24
JESD-609 code	e4
Maximum linear error (EL)	0.0061%
Nominal negative supply voltage	-15 V
Number of digits	12
Number of functions	1
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-15 V
Certification status	Not Qualified
Maximum seat height	5.969 mm
Nominal settling time (tstl)	3 µs
Nominal supply voltage	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	GOLD (50) OVER NICKEL (100)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm

Preview

Download Datasheet

View All

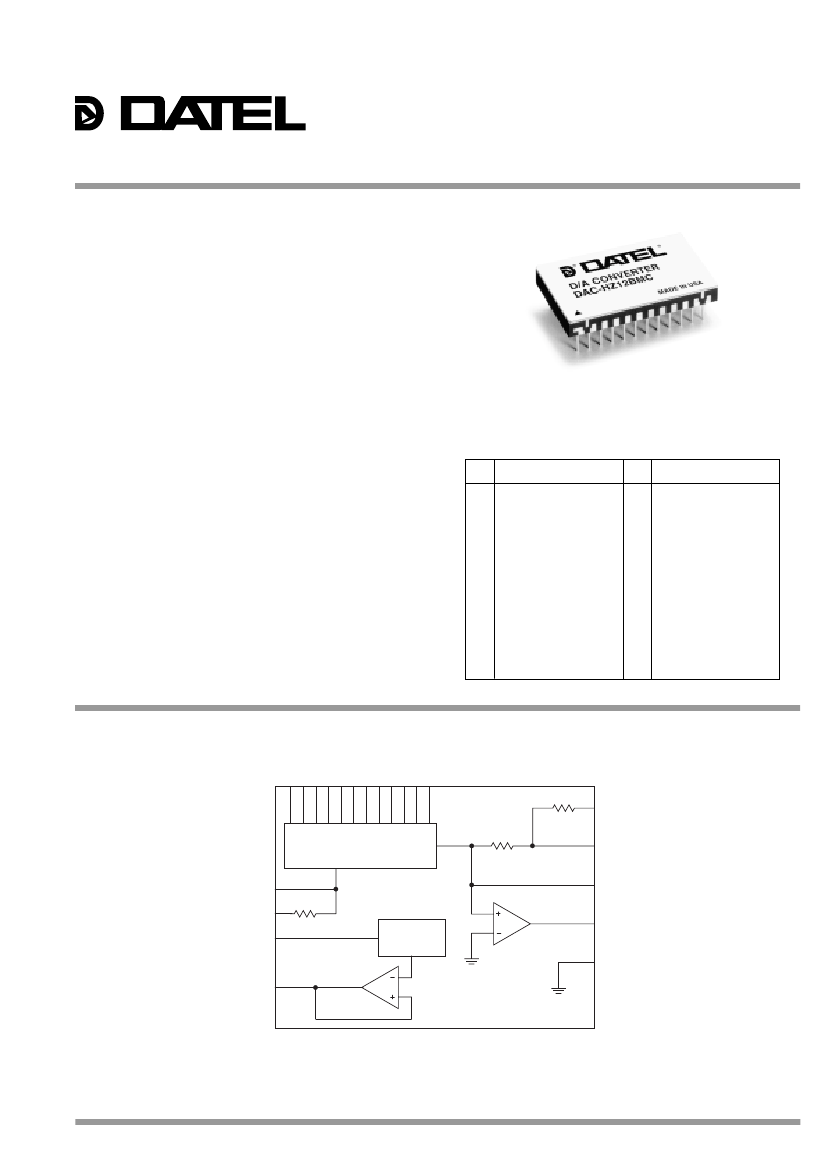

DAC-HZ Series

12-Bit, Industry-Standard

Digital-to-Analog Converters

INNOVATION and EXCELLENCE

FEATURES

•

12-Bit binary and 3-digit BCD models

•

7 Output ranges

•

3µs V

OUT

settling time

300ns I

OUT

settling time

•

Guaranteed monotonicity over full temperature range

•

Integral nonlinearity ±1/2LSB (binary) and ±1/4LSB

(BCD), maximum

•

Differential nonlinearity ±3/4LSB (binary) and ±1/4LSB

(BCD), maximum

•

High-reliability QL versions available

GENERAL DESCRIPTION

The DAC-HZ Series are high-performance, monolithic, 12-bit

binary and 3-digit BCD, digital-to-analog converters. The

DAC-HZ Series are complete and self-contained with a

precision internal reference and fast output operational

amplifier. Pin programmable output voltage and current

ranges are provided for a high degree of application flexibility;

the binary versions offer 5 output voltage ranges and two

current ranges while the BCD models offer 3 and 1 output

ranges, respectively.

The DAC-HZ Series contains a precision embedded Zener

reference circuit. This eliminates code-dependent ground

currents by routing current from the positive supply to the

internal ground node as determined by the R-2R ladder

network. The internal feedback resistors for the on-board

amplifier track the ladder network resistors, enhancing

temperature performance. The excellent tracking of the

resistors results in temperature coefficients for differential

nonlinearity, zero and gain of ±2, ±3 and ±20ppm/°C

maximum, respectively.

INPUT/OUTPUT CONNECTIONS

FUNCTION

BIT 1 (MSB)

BIT 2

BIT 3

BIT 4

BIT 5

BIT 6

BIT 7

BIT 8

BIT 9

BIT 10

BIT 11

BIT 12 (LSB)

FUNCTION

REFERENCE OUT

GAIN ADJUST

+15V SUPPLY

GROUND

CURRENT OUTPUT

20V RANGE

10V RANGE

BIPOLAR OFFSET

REFERENCE IN

VOLTAGE OUTPUT

–15V SUPPLY

NO CONNECTION

100

200

400

800

BITS BCD

BITS BINARY

MSB 1 2 3 4 5 6 7 8 9 10 11 12 LSB

1 2 3 4 5 6 7 8 9 10 11 12

5kW

19 20V RANGE

(4kW , BCD)

5kW

D/A CONVERTER

(4kW , BCD)

18 10V RANGE

REFERENCE IN 16

6.3k

BIPOLAR OFFSET 17

FOR BCD MODELS,

THIS RESISTOR IS

OPEN CIRCUIT.

20 CURRENT OUTPUT

15 VOLTAGE OUTPUT

GAIN ADJUST 23

+6.3V

REFERENCE

21 GROUND

REFERENCE OUT 24

+15V

SUPPLY

–15V

SUPPLY

NO INTERNAL

CONNECTION

Figure 1. Functional Block Diagram

DAC-HZ12DGC Related Products

	DAC-HZ12DGC	DAC-HZ12DMM	DAC-HZ12DMM-QL	DAC-HZ12DMC	DAC-HZ12BMM	DAC-HZ12BMM-QL	DAC-HZ12BGC
Description	12-Bit, Industry-Standard Digital-to-Analog Converters	12-Bit, Industry-Standard Digital-to-Analog Converters	12-Bit, Industry-Standard Digital-to-Analog Converters	12-Bit, Industry-Standard Digital-to-Analog Converters	12-Bit, Industry-Standard Digital-to-Analog Converters	12-Bit, Industry-Standard Digital-to-Analog Converters	12-Bit, Industry-Standard Digital-to-Analog Converters
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Murata	Murata	Murata	Murata	Murata	Murata	Murata
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6
Contacts	24	24	24	24	24	24	24
Reach Compliance Code	compli	compli	compli	compli	compli	compli	compli
Maximum analog output voltage	10 V	10 V	10 V	10 V	10 V	10 V	10 V
Minimum analog output voltage	-10 V	-10 V	-10 V	-10 V	-10 V	-10 V	-10 V
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	COMPLEMENTARY BINARY CODED DECIMAL	COMPLEMENTARY BINARY CODED DECIMAL	COMPLEMENTARY BINARY CODED DECIMAL	COMPLEMENTARY BINARY CODED DECIMAL	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY
Input format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
JESD-30 code	R-CDIP-T24	R-CDIP-T24	R-CDIP-T24	R-CDIP-T24	R-CDIP-T24	R-CDIP-T24	R-CDIP-T24
JESD-609 code	e4	e4	e4	e4	e4	e4	e4
Maximum linear error (EL)	0.0061%	0.0061%	0.0061%	0.0061%	0.0122%	0.0122%	0.0122%
Nominal negative supply voltage	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of digits	12	12	12	12	12	12	12
Number of functions	1	1	1	1	1	1	1
Number of terminals	24	24	24	24	24	24	24
Maximum operating temperature	70 °C	125 °C	125 °C	70 °C	125 °C	125 °C	70 °C
Minimum operating temperature	-	-55 °C	-55 °C	-	-55 °C	-55 °C	-
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-12/+-15 V	+-12/+-15 V	+-12/+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.969 mm	5.969 mm	5.969 mm	5.969 mm	5.969 mm	5.969 mm	5.969 mm
Nominal settling time (tstl)	3 µs	3 µs	3 µs	3 µs	3 µs	3 µs	3 µs
Nominal supply voltage	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL
Terminal surface	GOLD (50) OVER NICKEL (100)	GOLD (50) OVER NICKEL (100)	GOLD (50) OVER NICKEL (100)	GOLD (50) OVER NICKEL (100)	GOLD (50) OVER NICKEL (100)	GOLD (50) OVER NICKEL (100)	GOLD (50) OVER NICKEL (100)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm
ECCN code	-	3A001.A.2.C	3A001.A.2.C	-	3A001.A.2.C	3A001.A.2.C	-
