D-SUBMINIATURE
Adam Technologies, Inc.
RIGHT ANGLE MACHINED CONTACT
DPH & DSH SERIES

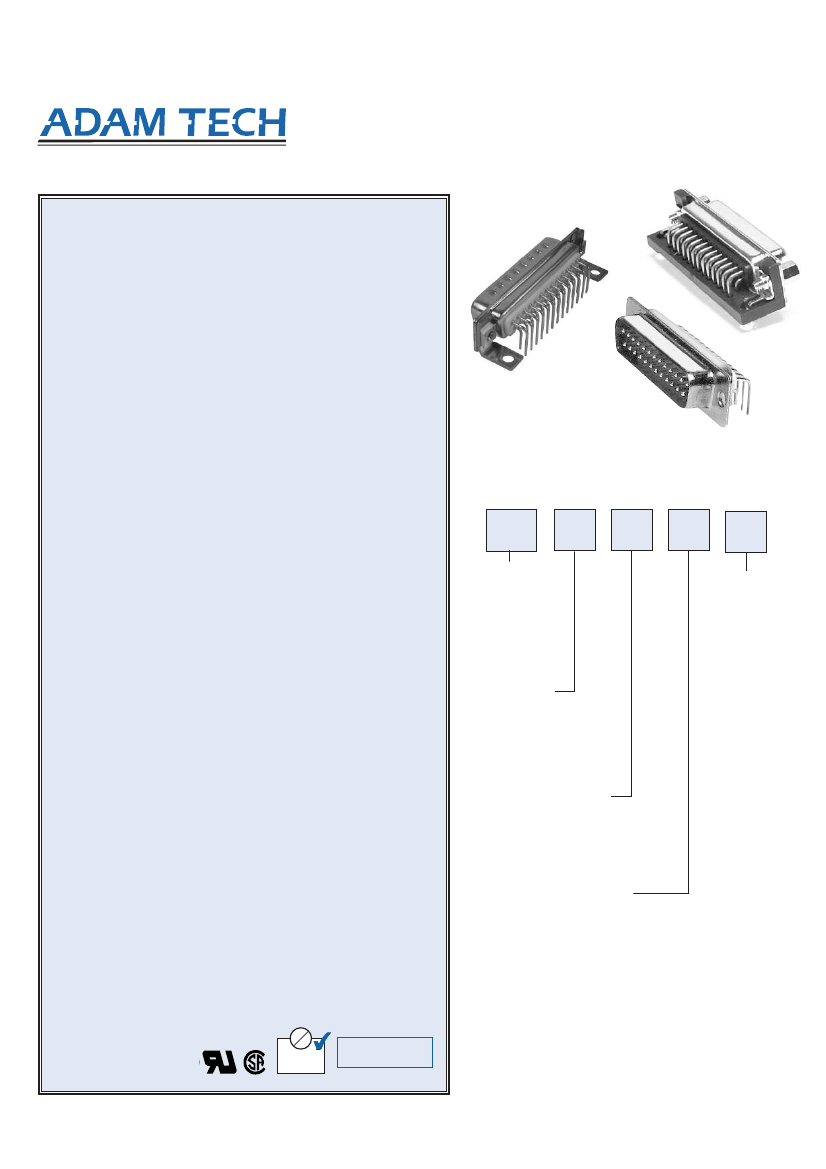

INTRODUCTION
Adam Tech Right Angle .283" footprint Machine Contact PCB D-Sub
connectors are a popular interface for many I/O applications. Offered
in 9, 15, 25 and 37 positions they are a good choice for a high
reliability industry standard connection. These connectors are
manufactured with precision machine turned contacts and offer an
exceptional high reliability connection. They are available in a choice
of contact plating and a wide selection of mating and mounting
options.
FEATURES:
Exceptional Machine Contact connection
Industry standard compatibility
Durable metal shell design
Precision turned screw machined contacts
Variety of Mating and mounting options
MATING CONNECTORS:
Adam Tech D-Subminiatures and all industry standard
D-Subminiature connectors.
SPECIFICATIONS:
Material:
Standard insulator: PBT, 30% glass reinforced, rated UL94V-0
Optional Hi-Temp insulator: Nylon 6T rated UL94V-0
Insulator Colors: White (Black optional)
Contacts: Phosphor Bronze
Shell: Steel, Tin plated
Hardware: Brass, Nickel plated
Contact Plating:
Gold Flash (15 and 30
µin
Optional) over Nickel underplate.
Electrical:
Operating voltage: 250V AC / DC max.
Current rating: 5 Amps max.
Contact resistance: 20 mΩ max. initial
Insulation resistance: 5000 MΩ min.
Dielectric withstanding voltage: 1000V AC for 1 minute
Mechanical:
Insertion force: 0.75 lbs max
Extraction force: 0.44 lbs min
Temperature Rating:
Operating temperature: -65°C to +125°C
Soldering process temperature:
Standard insulator: 235°C
Hi-Temp insulator: 260°C
PACKAGING:
Anti-ESD plastic trays
APPROVALS AND CERTIFICATIONS:
UL Recognized File No. E224053
CSA Certified File No. LR1578596
DB25-SH-C2B
DB25-PH-C3AM
DB25-PH-C1C
ORDERING INFORMATION
DB25
SHELL SIZE/
POSITIONS
DE
09
DA
15
DB
25
DC
37
DD
50
SH
C
1
C
MATING FACE
MOUNTING OPTIONS
WITH BRACKET
MOUNTING
A
= Full plastic
bracket with
#4-40 Threaded
Inserts
B
= Full plastic
bracket with
#4-40 Threaded
Inserts with
removable
Jackscrews
AM
= Metal brackets
with #4-40
Threaded
Inserts
BM
= Metal brackets
with #4-40
Threaded
Inserts with
removable
Jackscrews
=
=
=
=
=
9 Positions
15 Positions
25 Positions
37 Positions
50 Positions
CONTACT TYPE
PH
= Plug, Right
Angle Machined
Contact
SH
= Socket, Right
Angle Machined
Contact
FOOTPRINT
DIMENSION
C
= .283" Footprint
G
= .370" Footprint
F
= .545" Footprint
PCB MOUNTING
OPTION
1
= Without Bracket
2
= Bracket with forked
boardlock
3
= Bracket with .120"
PCB mounting hole
Pb
RoHS
V
2002 / 95
/ EC
HI-TEMP
INSULATOR
AVA I L A B L E
UL
®
®
®
E
D
COMPLIANT
OPTIONS:
Add designator(s) to end of part number
15
= 15 µin gold plating in contact area
30
= 30 µin gold plating in contact area
BK
= Black insulator
HT
= Hi-Temp insulator for Hi-Temp
soldering processes up to 260°C
WITHOUT BRACKET
MOUNTING
C
= .120"
Non-Threaded holes
D
= #4-40
Rear Clinch Nut
E
= #4-40 Clinch Nut
with removable
Jackscrews
90
909 Rahway Avenue
•
Union, New Jersey 07083
•
T: 908-687-5000
•
F: 908-687-5710
•
WWW.ADAM-TECH.COM
RoHS
COMPLIANT
D-SUBMINIATURE
Adam Technologies, Inc.
PLUG
C
B
A
RIGHT ANGLE MACHINED CONTACT
DPH & DSH SERIES

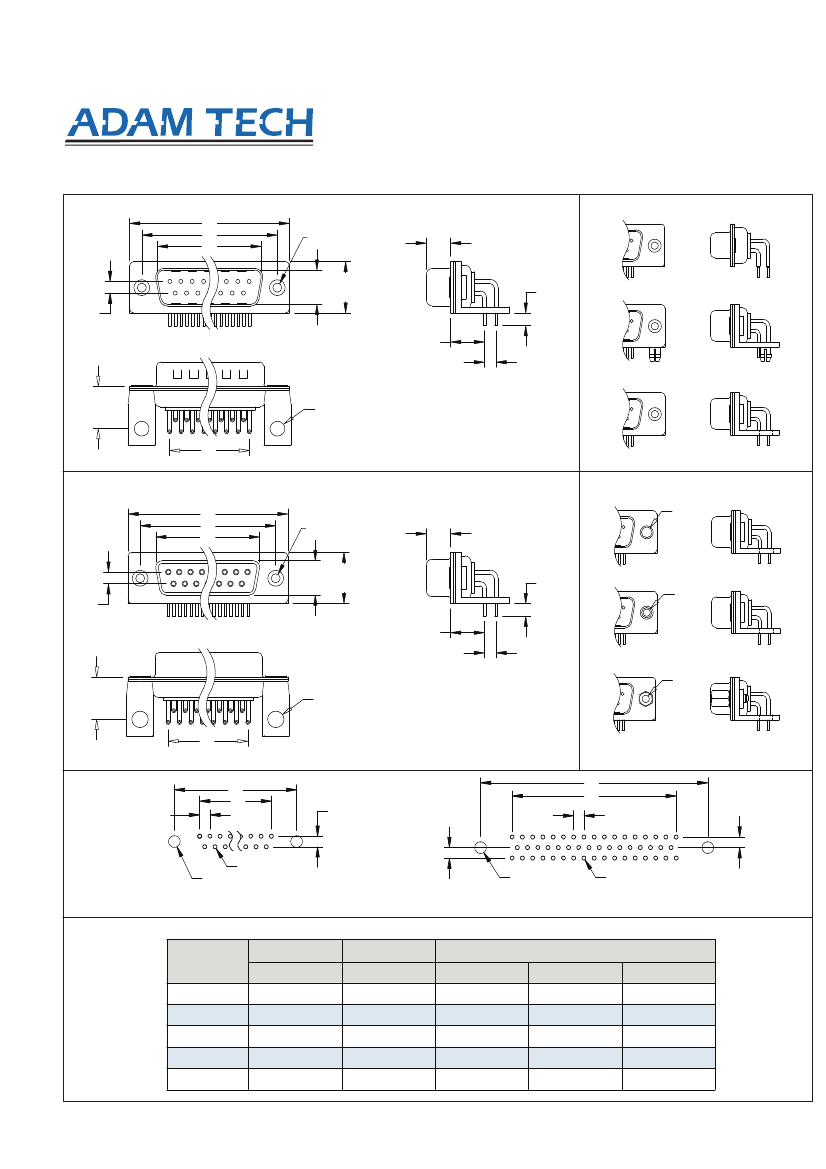

PCB MOUNTING OPTIONS
#4-40 UNC
.235
[5.97]
.329 .494
[8.36] [12.55]
.112
[2.84
]
"X"
.112 [2.84]
.
125
[3.18]
Option 1: Without Bracket
Option 2: Bracket with Board Lock
.405
[10.28]
ø.120
[3.05]
"X" = FO OTPRINT DISTANCE
C = .283 [7.20] FOOTPRINT
G = .370 [9.40] FOOTPRINT
F = .545 [13.84] FOOTPRINT
D
Choice of Plastic or Metal Bracket
Metal Bracket version shown
Option 3: Bracket with .120'' Mounting Hole
SOCKET
C
B
A
#4-40 UNC
.235
[5.97]
MATING FACE MOUNTING OPTIONS
ø.120
[3.05]
.329
.494
[8.36] [12.55]
.112
[2.84]
X
.125
[3.18]
Option C: .120'' Mounting Hole
#4-40
UNC
.112 [2.84]
Option D: #4-40 Threaded Insert
#4-40
UNC
.405
[10.28]
ø.120
[3.05]
"X" = FO OTPRINT DISTANCE
C = .283 [7.20] FOOTPRINT
G = .370 [9.40] FOOTPRINT
F = .545 [13.84] FOOTPRINT
D
Choice of Plastic or Metal Bracket
Metal Bracket version shown
B
D
B
D
.112
[2.84]
.109
[2.77]
Option E: #4-40 Threaded Insert
with removable Jack Screws
.109
[2.77]
.112 [2.84]
.112 [2.84]
ø.043 [1.09]
ø.125 [3.18]
ø.125 [3.18]
ø.043 [1.09]
Recommended PCB Layout 9, 15, 25 & 37 Position
Recommended PCB Layout 50 Position
Unit: Inch / mm
PLUG
Positions
A
9
15
25
37
50
.666 [16.92]
.994 [25.25]
1.534 [38.96]
2.182 [55.43]
2.790 [52.80]
SOCKET
A
.643 [16.33]
.971 [24.66]
1.511 [38.38]
2.159 [54.84]
2.016 [52.34]
B
.984 [24.99]
1.312 [33.32]
1.852 [47.04]
2.500 [63.50]
2.402 [61.00]
DIMENSIONS
C
1.213 [30.81]
1.541 [39.14]
2.088 [53.04]
2.729 [69.32]
2.646 [67.20]
D
.436 [11.08]
.763 [19.39]
1.310 [33.24]
1.963 [49.86]
1.744 [44.32]
909 Rahway Avenue
•
Union, New Jersey 07083
•
T: 908-687-5000
•
F: 908-687-5710
•
WWW.ADAM-TECH.COM
91
