86093488309745E1LF

Description
Board Euro Connector, 48 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, Receptacle, ROHS COMPLIANT
CategoryThe connector    The connector
File Size103KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

86093488309745E1LF Overview

Board Euro Connector, 48 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, Receptacle, ROHS COMPLIANT

86093488309745E1LF Parametric

Parameter NameAttribute value
MakerAmphenol
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresSTANDARDS : DIN 41612, IEC 603-2
Body/casing typeRECEPTACLE
Connector typeBOARD EURO CONNECTOR
Contact to complete cooperationMATTE TIN OVER NICKEL
Contact completed and terminatedGOLD OVER NICKEL
Contact point genderFEMALE
DIN complianceYES
Filter functionNO
IEC complianceYES
JESD-609 codee4
MIL complianceNO
Manufacturer's serial number8609
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded3
OptionsGENERAL PURPOSE
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts48
UL Flammability Code94V-0
Base Number Matches1

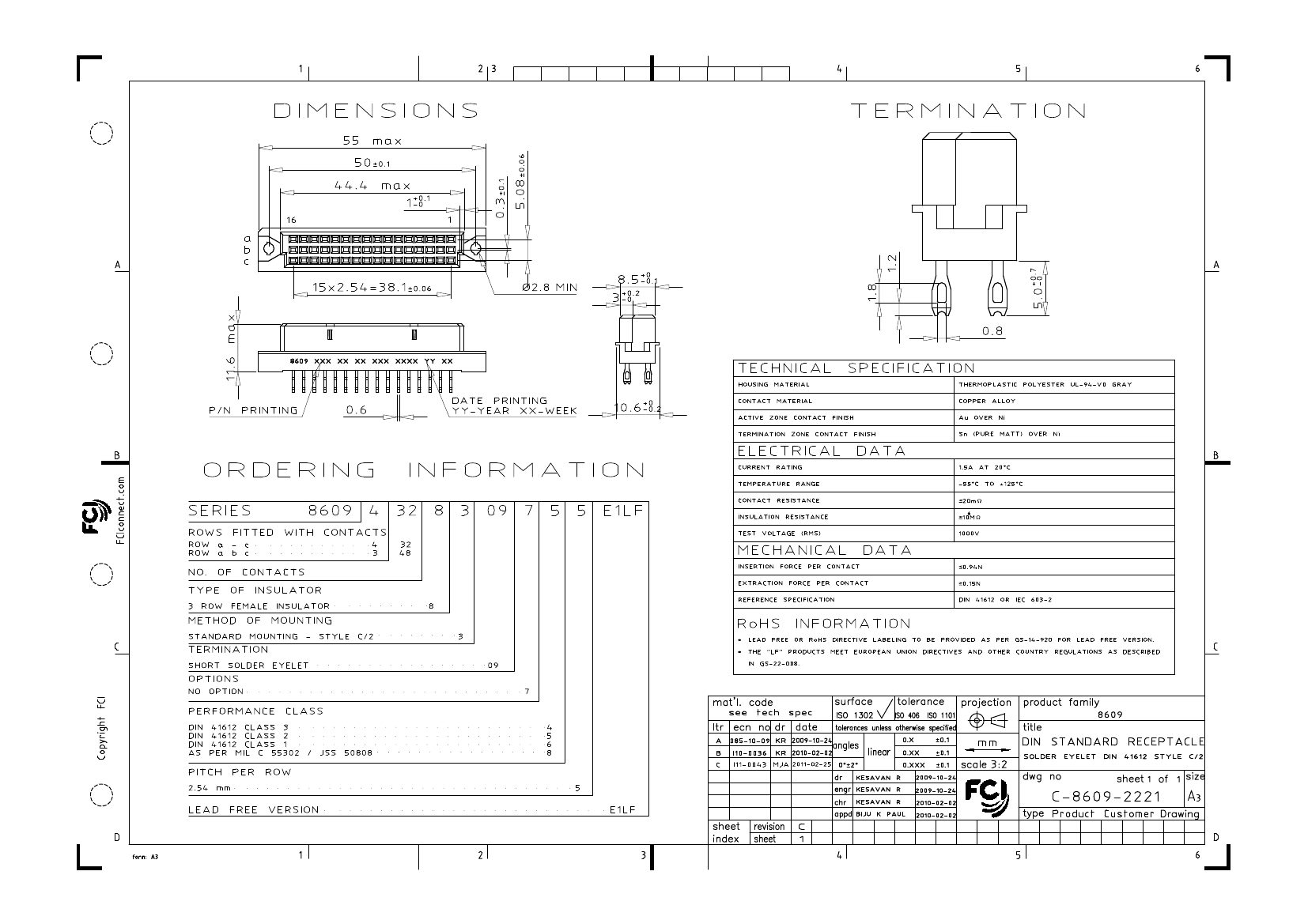

PDM: Rev:C
STATUS:
Released
Printed: May 14, 2011
.

86093488309745E1LF Related Products

86093488309745E1LF 86093967194745E1LF 86093488309785E1LF 86093967123765E1LF 86094328309755E1LF 86094328309765E1LF 86094328309745E1LF 86094328309785E1LF
Description Board Euro Connector, 48 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, Receptacle, ROHS COMPLIANT DIN RA HEADER F CONN DIN RECEPT DIN RA HEADER F Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, ROHS COMPLIANT Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, ROHS COMPLIANT Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, ROHS COMPLIANT Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, ROHS COMPLIANT
Connector type BOARD EURO CONNECTOR BOARD EURO CONNECTOR socket, female socket Connector, male pin BOARD EURO CONNECTOR BOARD EURO CONNECTOR BOARD EURO CONNECTOR BOARD EURO CONNECTOR
Installation type BOARD BOARD Through hole Through hole, right angle BOARD BOARD BOARD BOARD
package instruction ROHS COMPLIANT ROHS COMPLIANT - - ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT
Reach Compliance Code compliant compliant - - compliant compliant compliant compliant
ECCN code EAR99 EAR99 - - EAR99 EAR99 EAR99 EAR99
Other features STANDARDS : DIN 41612, IEC 603-2 STANDARD: DIN 41612 - - STANDARDS : DIN 41612, IEC 603-2 STANDARDS : DIN 41612, IEC 603-2 STANDARDS : DIN 41612, IEC 603-2 STANDARDS : IEC 603-2, MIL-C-55302
Body/casing type RECEPTACLE - - - RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE
Contact to complete cooperation MATTE TIN OVER NICKEL NOT SPECIFIED - - MATTE TIN OVER NICKEL MATTE TIN OVER NICKEL MATTE TIN OVER NICKEL MATTE TIN OVER NICKEL
Contact completed and terminated GOLD OVER NICKEL - - - GOLD OVER NICKEL GOLD OVER NICKEL GOLD OVER NICKEL GOLD OVER NICKEL
Contact point gender FEMALE MALE - - FEMALE FEMALE FEMALE FEMALE
DIN compliance YES YES - - YES YES YES NO
Filter function NO NO - - NO NO NO NO
IEC compliance YES NO - - YES YES YES YES
JESD-609 code e4 - - - e4 e4 e4 e4
MIL compliance NO NO - - NO NO NO YES
Manufacturer's serial number 8609 - - - 8609 8609 8609 8609
Mixed contacts NO NO - - NO NO NO NO
Installation method STRAIGHT RIGHT ANGLE - - STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Number of rows loaded 3 3 - - 2 2 2 2
Options GENERAL PURPOSE GENERAL PURPOSE - - GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Terminal pitch 2.54 mm 2.54 mm - - 2.54 mm 2.54 mm 2.54 mm 2.54 mm
Termination type SOLDER SOLDER - - SOLDER SOLDER SOLDER SOLDER
Total number of contacts 48 96 - - 32 32 32 32
UL Flammability Code 94V-0 94V-0 - - 94V-0 94V-0 94V-0 94V-0
Base Number Matches 1 - - - 1 1 1 1
