2BNC5W-07 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 2BNC5W-07

2BNC5W-07: DescriptionFixed Attenuator, 0MHz Min, 2500MHz Max, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size40KB，1 Pages; ManufacturerCobham PLC

Download Datasheet Parametric View All

2BNC5W-07 Overview

Fixed Attenuator, 0MHz Min, 2500MHz Max, ROHS COMPLIANT PACKAGE

2BNC5W-07 Parametric

Parameter Name	Attribute value
Maker	Cobham PLC
Reach Compliance Code	unknown
Other features	BNC-F; BNC-M
Nominal attenuation	7 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	36.99 dBm
JESD-609 code	e4
Maximum operating frequency	2500 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.25
Base Number Matches	1

Preview

Download Datasheet

View All

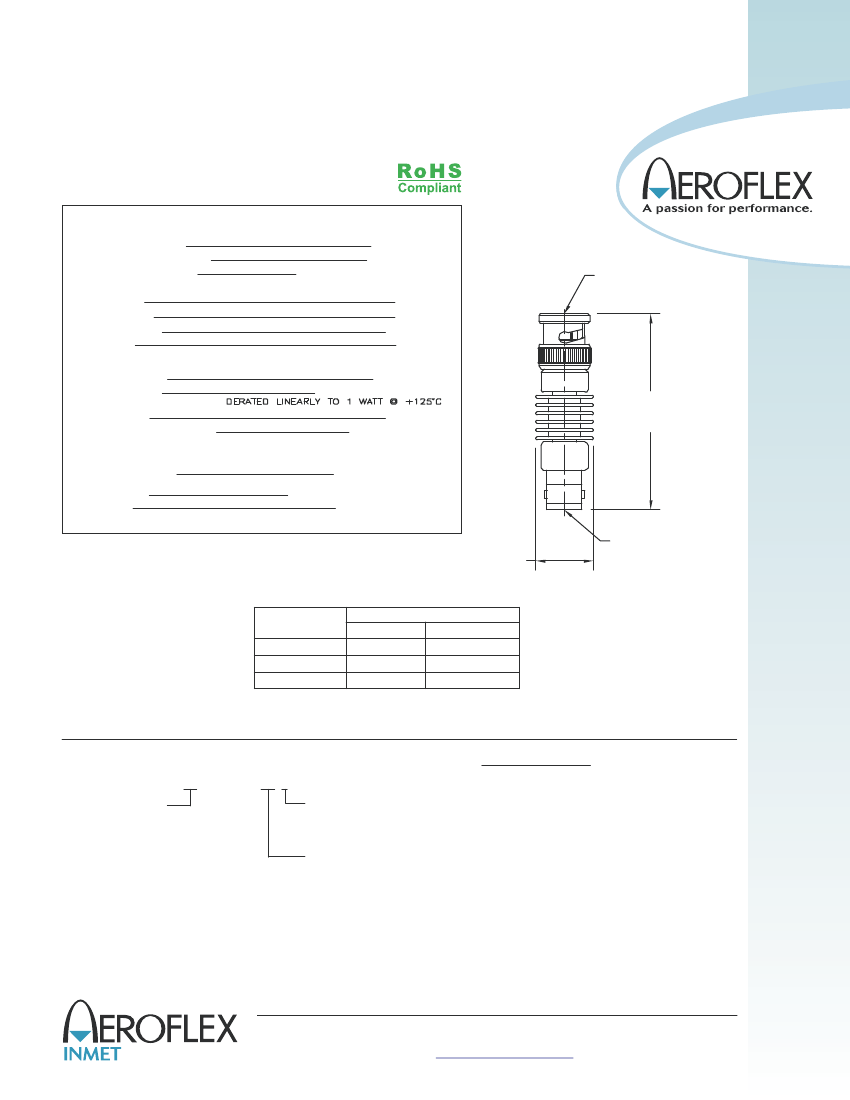

ATTENUATORS

BNC, up to 4 GHz, 5 Watts

SPECIFICATIONS:

Models: 4BNC5W-XX, 4BNC5W-XXF & 4BNC5W-XXM

Electrical:

Frequency Range

Standard Freq. Values

Standard dB Values*

Attenuation Accuracy

1 - 6 dB

7 - 20 dB

2 - 30 dB

40 dB

VSWR

DC - 4 GHz

Input Power

Impedance

Operating Temp Range

DC - 4 GHz

2.5 & 4 GHz

0 - 1 15, 20, 30 & 40 dB

In 1 dB Increments

BNC Male

±0.3 dB

±0.5 dB

±0.75 dB

±1.5 dB

1.25:1 Max.

5 Watts Avg. @ 25°C

50 Ohms

-65°C to +125°C

LENGTH

SEE TABLE

Mechanical:

BNC Connectors

Mates with MIL

-STD-348

Nickel Plated Brass

Gold Plated Beryllium Copper

Anodized Aluminum

Conductors

Housing

Ø.61±.02

[15.49±0.51]

BNC Female

Connector

Configuration

Male/Female

Male/Male

Female/Female

LENGTH

Inches

Millimeters

[53.3 ±1.3]

2. 0 ±.05

[56.4 ±1.3]

2.22 ±.05

[50.5 ±1.3]

1.99 ±.05

HOW TO ORDER:

Model Number:

XBNC5W-XXY

Freq. Range

2 = DC - 2.5 GHz

4 = DC - 4 GHz

Connector Configuration

= Male/Female

F = Fem/Fem

M = Male/Male

dB Value

Ordering Examples:

Model Number:

4BNC5W-20

DC - 4 GHz, 20 dB; BNC - Male/Fem

Model Number:

2BNC5W-06F

DC - 2.5 GHz, 6 dB; BNC - Fem/Fem

Model Number:

4BNC5W-03M

DC - 4 GHz, 3 dB; BNC - Male/Male

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

*Othe dB values are also available

4BNC5W-ATT: REV H

Aeroflex / Inmet, Inc.

300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex-inmet.com

• inmetsales@aeroflex.com
