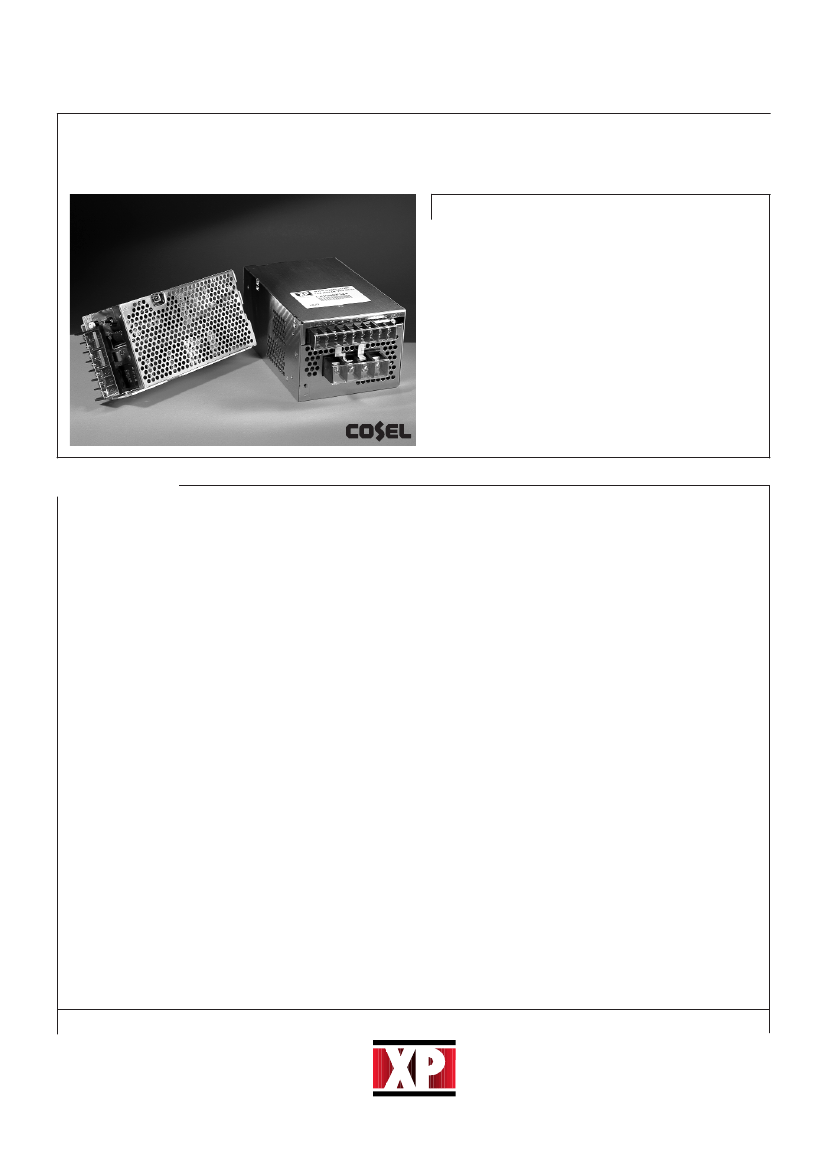

Single Output Enclosed Switchers
15-600 Watts
CPP Series
•
T
HE
XP
ERTS
I
N
P
OWER
85-264 VAC Universal Input
•
Single Outputs
•
High Reliability
•
Power Factor Corrected
•
Remote Control Available
•
Parallel Operation Available
•
Din Rail Mounting Accessories Available
Specification
Input
Input Voltage
Power Factor
Input Frequency
Inrush Current
•
•
•
•
85-264 VAC
0.95 typical (230 V) up to 0.99 at 100 V
(CPP50 & above only) at full load
47-63 Hz
40 A max
General
LED Indicator
Parallel Operation
•
•
Indicates output on
Master/Slave operation available -
300 & 600 watt models -
Contact Sales for details
Ranges 65% (3 V) to 80% (24 V) output
0.75 mA max at 60 Hz
See DIN, Wall & Panel Mounting
Accessories
Output
Hold Up Time
Output Voltage
Remote Control
Voltage Adjustment
Line Regulation
Load Regulation
Ripple & Noise
Overload Protection
•
•
•
•
•
•
•
•
20 ms typical at low line & full load
(100 ms typical at 230 V)
See Table
Standard on 300 & 600 watt models
Optional on all others add suffix ‘-R’
±10%trim min
(-5% to +20% 3 V models)
0.4% max over input range
0.8% max for 100% load change
40 mV pk-pk typical (150 mV max)
Operates at >105% of rating &
recovers automatically
(300 & 600 W constant current)
115-140%
(except 3 V units : 4.00-5.25 V )
0.02%/°C
Efficiency
Leakage Current
Mounting Options
•
•
•
Environmental
Operating
•
Temperature
Storage Temperature •
Relative Humidity
•
Vibration
•
-10 °C to +65 °C,
derate above 50 °C - Contact Office
-20 °C to +75 °C
20-90% RH
20 G, 11 ms once each X, Y & Z axis
EMC & Safety
Safety Approvals
Immunity
EMC
•
•
•
EN60950, UL1950, CSA22.2 No. 234,
VDE 0160
IEC 1000-3-2
CISPR22 Level B, FCC Level B
Overvoltage
Protection
Temperature
Coefficient
•
•
•
•
www.xpplc.com
sales@xpplc.com
AC-DC Power Supplies
OUTPUT VOLTAGE & CURRENT RATINGS
Voltage
Power
15 Watts
30 Watts
50 Watts
75 Watts
100 Watts
150 Watts
300 Watts
600 Watts
Notes
1. 300 & 600 watt models have cover and integral cooling fan as standard.
2. 50-150 watt models can have remote control, add suffix ‘-R’ to the model number.
3. DIN rail mounting brackets and mounting plates available.
-
-
CPP50PS03
3 V @ 10.00 A
CPP75PS03
3 V @ 15.00 A
CPP100PS03
3 V @ 20.00 A
CPP150PS03
3 V @ 30.00 A
CPP300PS03
3 V @ 60.00 A
CPP600PS03
3 V @ 120.00 A
CPP15US05
5 V @ 3.00 A
CPP30US05
5 V @ 6.00 A
CPP50PS05
5 V @ 10.00 A
CPP75PS05
5 V @ 15.00 A
CPP100PS05
5 V @ 20.00 A
CPP150PS05
5 V @ 30.00 A
CPP300PS05
5 V @ 60.00 A
CPP600PS05
5 V @ 120.00 A
CPP15US12
12 V @ 1.30 A
CPP30US12
12 V @ 2.50 A
CPP50PS12
12 V @ 4.30 A
CPP75PS12
12 V @ 6.30 A
CPP100PS12
12 V @ 8.50 A
CPP150PS12
12 V @ 13.00 A
CPP300PS12
12 V @ 27.00 A
CPP600PS12
12 V @ 53.00 A
CPP15US15
15 V @ 1.00 A
CPP30US15
15 V @2.00 A
CPP50PS15
15 V @ 3.50 A
CPP75PS15
15 V @ 5.00 A
CPP100PS15
15 V @ 7.00 A
CPP150PS15
15 V @ 10.00 A
CPP300PS15
15 V @ 22.00 A
CPP600PS15
15 V @ 43.00 A
CPP15US24
24 V @ 0.70 A
CPP30US24
24 V @ 1.30 A
CPP50PS24
24 V @ 2.20 A
CPP75PS24
24 V @ 3.20 A
CPP100PS24
24 V @ 4.50 A
CPP150PS24
24 V @ 6.50 A
CPP300PS24
24 V @ 14.00 A
CPP600PS24
24 V @ 27.00 A
3 Volts
5 Volts
12 Volts
15 Volts
24 Volts
CPP
48 Volts
CPP15US48
48 V @ 0.35 A
CPP30US48
48 V @ 0.63 A
CPP50PS48
48 V @ 1.10 A
CPP75PS48
48 V @ 1.60 A
CPP100PS48
48 V @ 2.10 A
CPP150PS48
48 V @ 3.30 A
CPP300PS48
48 V @ 7.00 A
CPP600PS48
48 V @ 13.00 A
Single Output Enclosed Switchers 15-600 Watts CPP Series
•

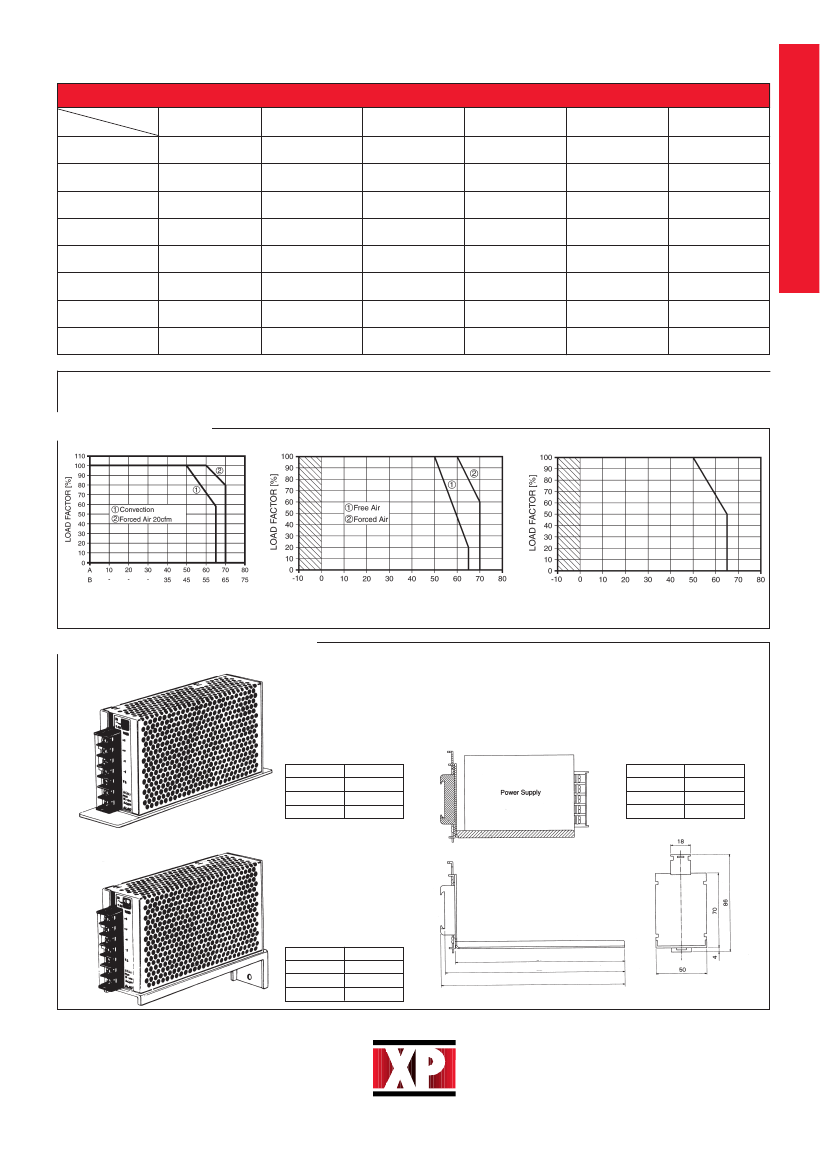

Derating Curves
15-30 Watt models
50-150 Watt models
300-600 Watt models
Ambient Temperature(°C) A : Open Frame B : Cover Attached. Derating test has not been conducted by CSA
NOTE:Curves are shown for units mounted in the normal mounting orientation with the connector strip vertical. Check with technical sales for derating
when mounted in other planes
Mounting Plates & Brackets
Base Plate Fixing for CPP50-150
DIN Rail Mounting
Suitable for 35 mm top hat style DIN rails.
DIN Rail Mounting Clips are also available.
Note: For OEM quantities a low cost clip on version is available -
call sales office
Model
CPP50
CPP100
CPP150
Part No.
F-K50-1
F-P100-1
F-P150-1
Model
CPP15
CPP30
CPP50
Part No.
F-DIN-1
F-DIN-2
F-DIN-2
Wall Fixing for CPP50-150
Model
CPP50
CPP100
CPP150
Part No.
F-K50-2
F-P100-2
F-P150-2
165
174.5
178.6
www.xpplc.com
sales@xpplc.com
Mechanical Details - 15 Watt Models
“-J” Option
Molex Connectors
DIN Rail bracket option available, order part no. F-DIN-1.
*
*
*
*
Weight: 0.3 kg.
Cover is optional.
Tolerance: ±1.
Dimensions in mm.
Molex Connector
I/O Connector
CN1 5289-4A
CN2 5277-4A
Mating Connector
(Terminal)
2390V4(5167)
5199-04(5194)
5265-04(5167)
5196-04(5194)

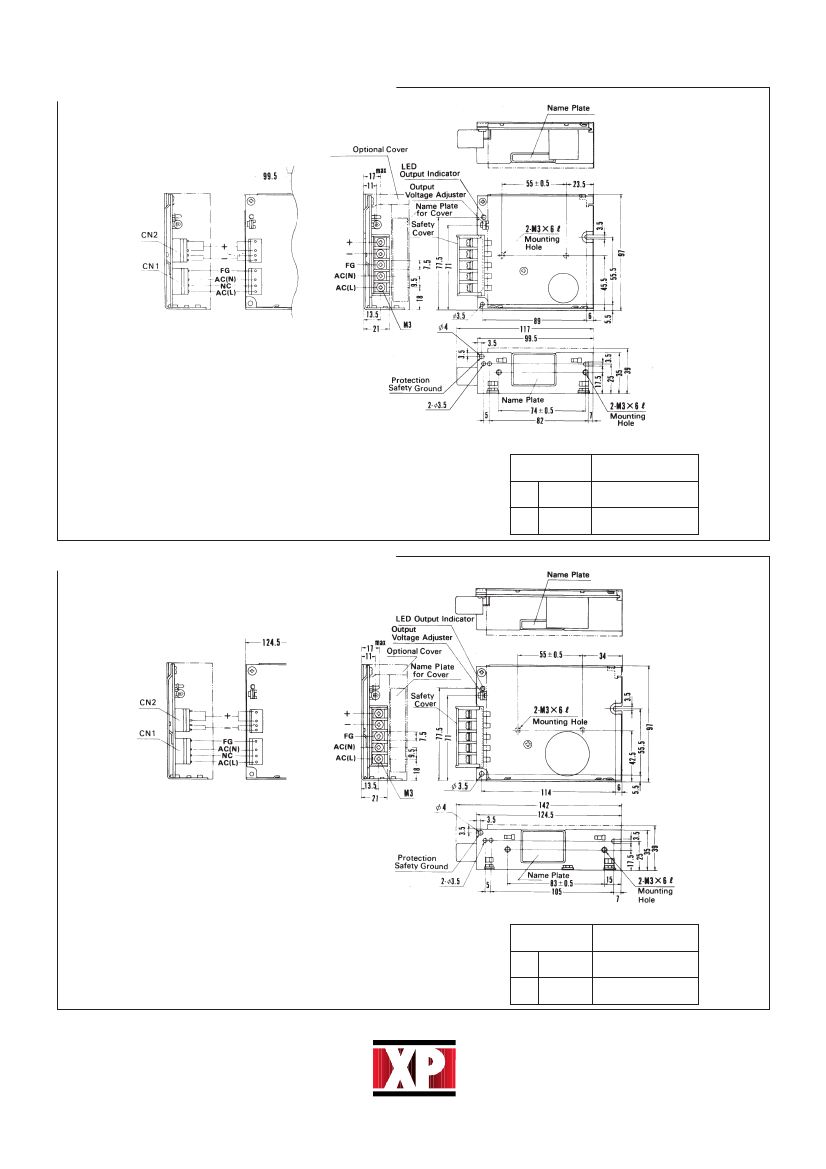

Mechanical Details - 30 Watt Models
“-J” Option
Molex Connectors
DIN Rail bracket option available, order part no. F-DIN-2.
Molex Connector
I/O Connector
Mating Connector
(Terminal)
2390V4(5167)
5199-04(5194)
5265-04(5167)
5196-04(5194)
*
*
*
*
Weight: 0.4 kg.
Cover is optional.
Tolerance: ±1.
Dimensions in mm.
CN1 5289-4A
CN2 5277-4A
www.xpplc.com
sales@xpplc.com
AC-DC Power Supplies

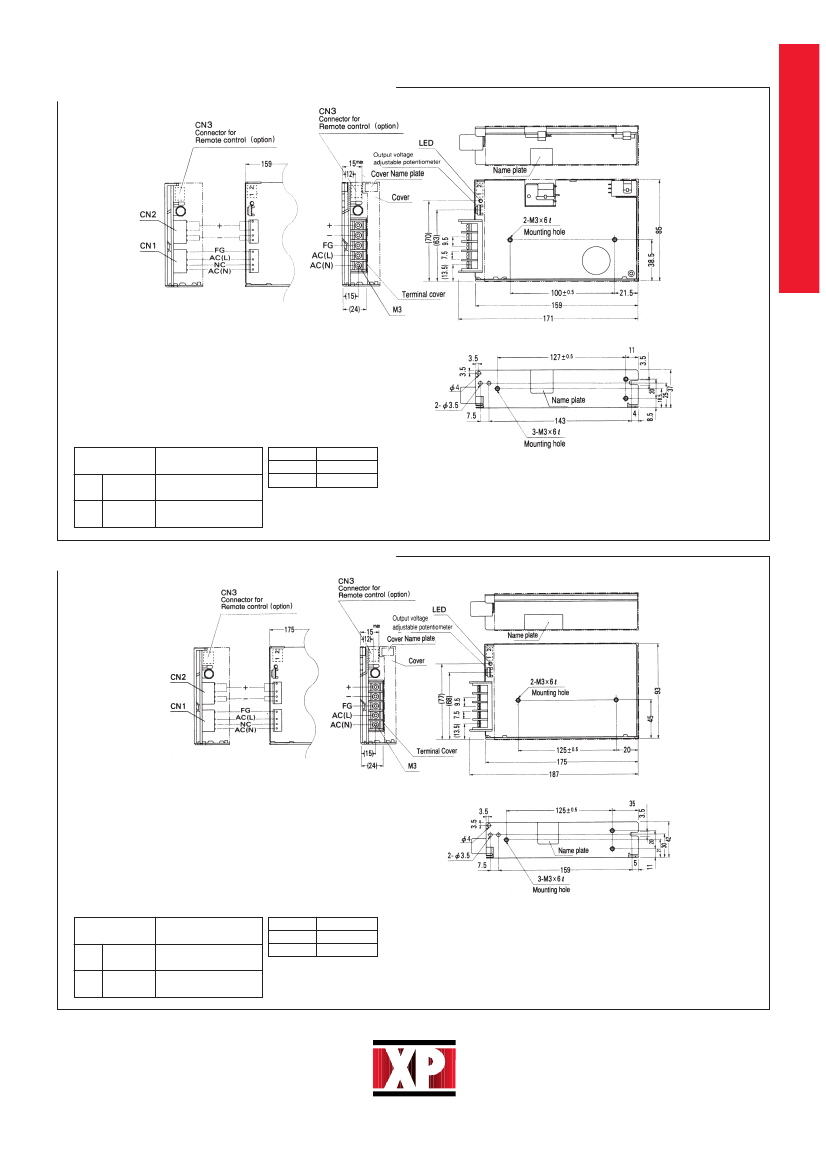

Mechanical Details - 50 Watt Models
“-J” Option
Molex Connectors
Single Output Enclosed Switchers 15-600 Watts CPP Series
CONNECTOR & TERMINAL BLOCK TYPE
CN3 option (Mfr:JST).
Model B2B-XH-A
Mating Connector (Terminal)
XHP2
(BXH-001T-P0.6 or SXH001T-P0.6)
Molex Connector
I/O Connector
CN1 5289-4A
CN2 5277-4A
Mating Connector
(Terminal)
2390V4(5167)
5199-04(5194)
5265-04(5167)
5196-04(5194)
Pin Assignment
Pin No. Function
1
RC (–)
2
RC (+)
Weight: 0.4 kg.
Cover is optional.
Tolerance: ±1.
Dimensions in mm.
DIN Rail bracket option available, order part no. F-DIN-2.
Base plate fixing option available, order part no. F-CPP50-1.
Wall fixing option available, order part no. F-CPP50-2.
Mechanical Details - 75 Watt Models
“-J” Option
Molex Connectors
CONNECTOR & TERMINAL BLOCK TYPE
CN3 option (Mfr:JST).
Model B2B-XH-A
Mating Connector (Terminal)
XHP2
(BXH-001T-P0.6 or SXH001T-P0.6)
Molex Connector
I/O Connector
CN1 5289-4A
CN2 5277-4A
Mating Connector
(Terminal)
2390V4(5167)
5199-04(5194)
5265-04(5167)
5196-04(5194)
Pin Assignment
Pin No. Function
1
RC (–)
2
RC (+)
Weight: 0.5 kg.
Cover is optional.
Tolerance: ±1.
Dimensions in mm.
Base plate fixing option available, order part no. F-CPP75-1.
Wall fixing option available, order part no. F-CPP75-2.
www.xpplc.com
sales@xpplc.com

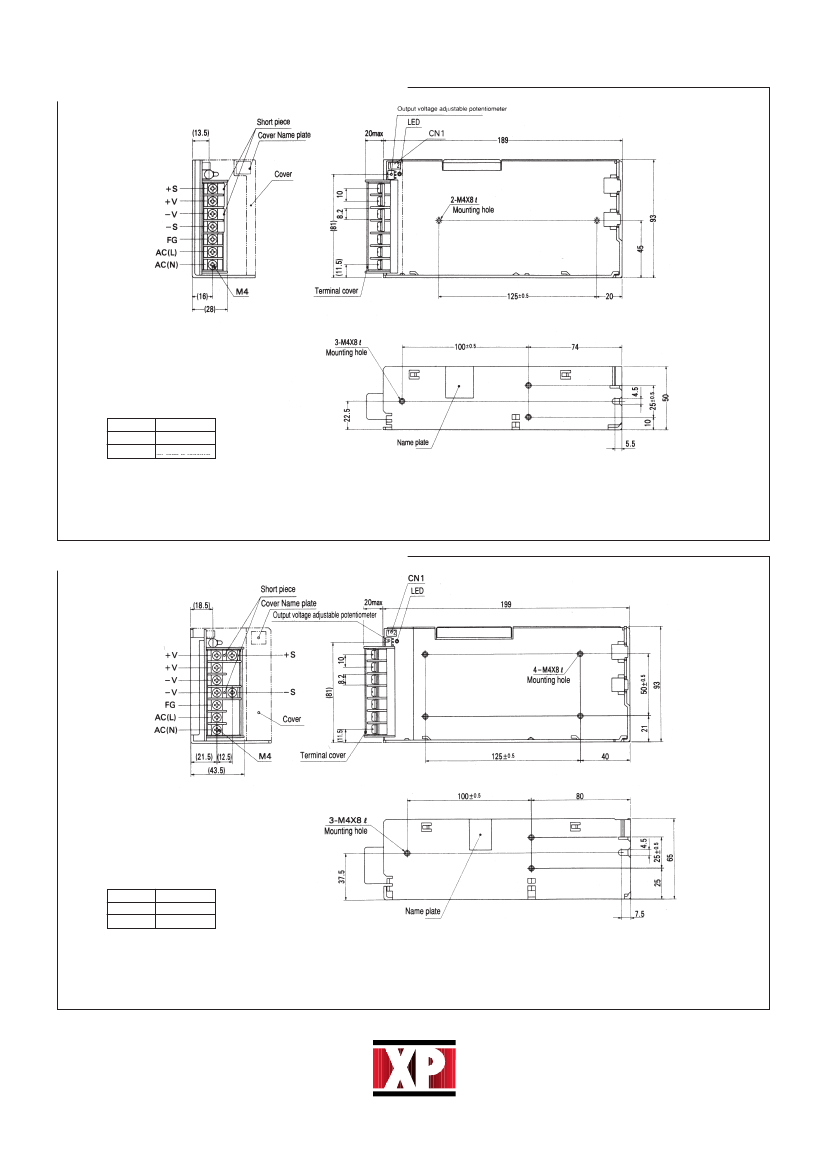

Mechanical Details - 100 Watt Models
CN1
Pin No.
1
2
Function
RC (–)
RC (+)
Weight: 0.7 kg.
Cover is optional.
Tolerance: ±1.
Dimensions in mm.
Base plate fixing option available, order part no. F-CPP100-1.
Wall fixing option available, order part no. F-CPP100-2.
CN1 (Connector for remote control)
Type: B2B-XH-A
Mating Connector (Terminal)
Mfr:JST
XHP-2
(BXH-001T-P0.6 or SXH-001T-P0.6)
Mechanical Details - 150 Watt Models
CN1
Pin No.
1
2
Function
RC (–)
RC (+)
Weight: 0.9 kg.
Cover is optional.
Tolerance: ±1.
Dimensions in mm.
Base plate fixing option available, order part no. F-CPP150-1.
Wall fixing option available, order part no. F-CPP150-2.
CN1 (Connector for remote control)
Type: B2B-XH-A
Mating Connector (Terminal)
Mfr:JST
XHP-2
(BXH-001T-P0.6 or SXH-001T-P0.6)
www.xpplc.com
sales@xpplc.com
FPGA/CPLD
