82-4460: DescriptionRF SC Connector, Female, Panel Mount, Cable Mount, Crimp Terminal, Jack; CategoryThe connector The connector; File Size223KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

82-4460 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	82-4460	-	-	View	Buy Now

82-4460 Overview

RF SC Connector, Female, Panel Mount, Cable Mount, Crimp Terminal, Jack

82-4460 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
Reach Compliance Code	unknown
Other features	STANDARD: MIL-C-39012, APPLICABLE CABLES: RG 9/U; RG 214/U, INSERTION LOSS MAX AT 9 GHZ
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF SC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.15 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	YES
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	11 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	CRIMP
voltage standing wave ratio	1.35
Base Number Matches	1

Preview

Download Datasheet

View All

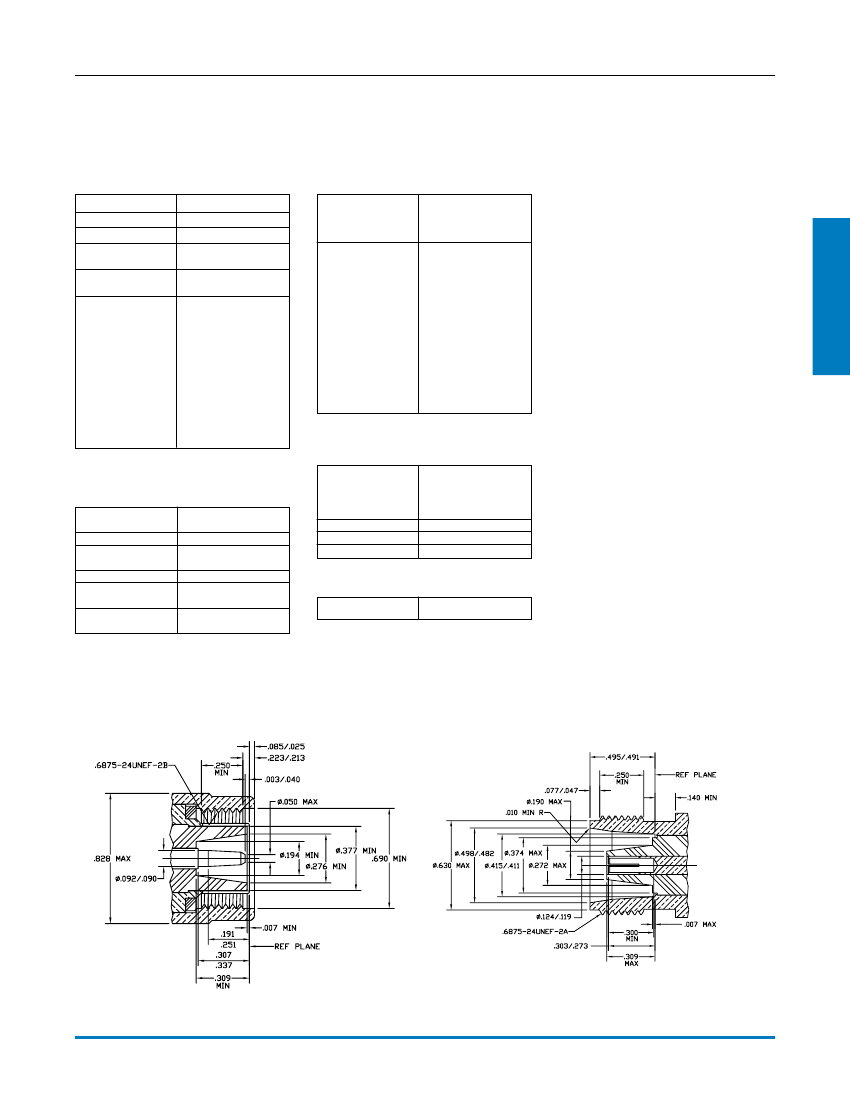

SC

Specifications

Amphenol

®

ELECTRICAL

Impedance

Frequency range

Voltage Rating

Dielectric Withstanding

Voltage

VSWR (MIL-C-39012

Cable Connectors)

Other (MIL-C-39012

Cable Connectors)

50 Ohm constant

0-11 GHz, 1500 V typ.

1000 volts peakd

3000 volts RMS

1.35 max. 0-11 GHz

Contact Resistance

Center contact 1.0

milliohm

Outer contact .15 milliohm

Braid to Body .05

milliohm

RF Leakage: — 90 dB

minimum at 3 GHz

Insertion loss: .15 dB

maximum at 9 GHz

Insulation resistance:

5000 megohms. (min.)

MECHANICAL

Mating

11/16-24 UNEF screw

threads. Plug coupling

nut has safety wire holes.

Crimp-crimp: hex-crimp

jacket, braid, center con

tact per MIL-C-39012

Category D.

Captivated

.155" to .189" dia.

cable: 50 lbs. min.

.190" to 229" dia.

cable: 60 lbs. min.

.230" to .249" dia.

cable: 75 lbs. min.

.250" dia. and larger:

90 lbs. min.

C, HN, SC

Cable Affixment

Contact

Cable Retention

NOTE: 13 lb. push required to captivate contact into

connector body.

MATERIAL

Contacts

Male: brass; female;

beryllium copper or

phosphor bronze, gold

plated

TFE

Copper

Brass

ENVIRONMENTAL

Temperature range

Shock

Vibration

Moisture Resistance

Corrosion

Temperature cycling

TFE -65˚C to +165˚C

-65˚C to +165˚C

MIL-Std-202 method 213

MIL-Std-202 method 204

(test condition B)

MIL-Std-202 method 106

MIL-Std-202 method 101

(test condition B)

MIL-Std-202 method 102

(test condition C)

Insulators

Crimp Ferrule

Other metal parts

MILITARY SPECIFICATIONS

MIL-C-39012

where applicable

NOTE: These characteristics are typical and may not

apply to all connectors.

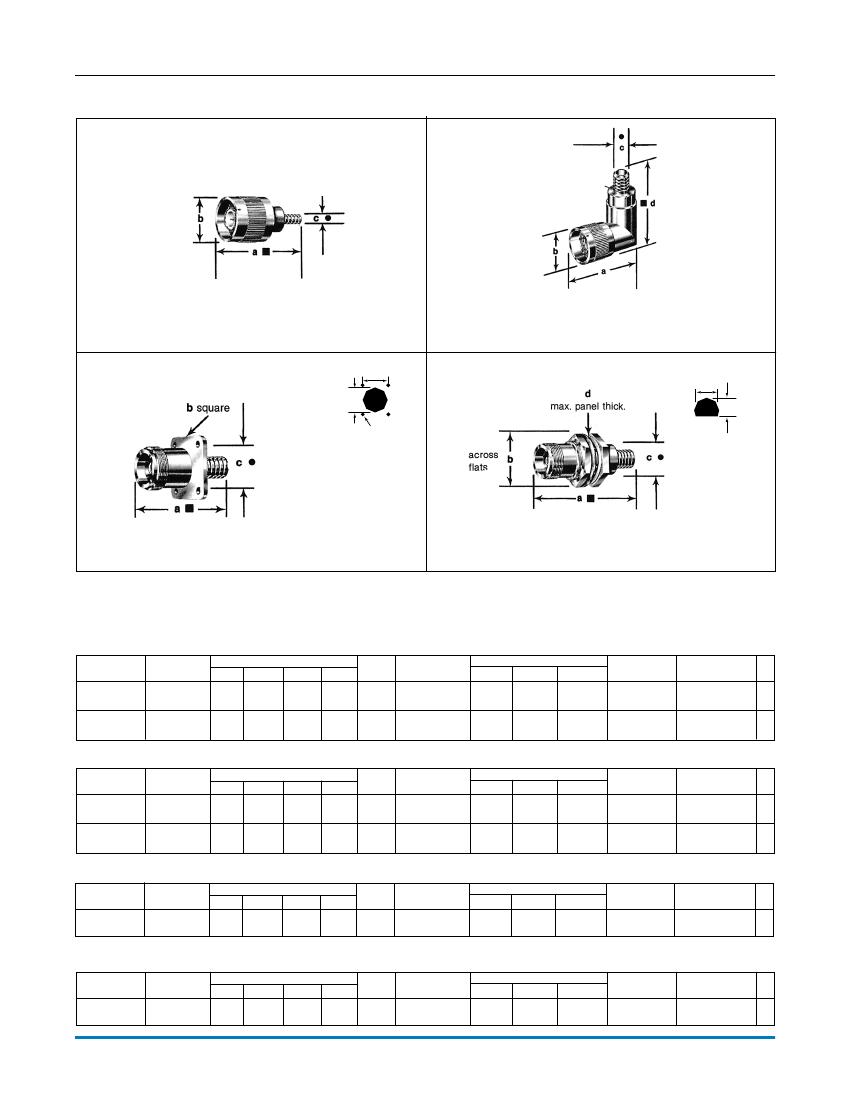

PLUG

JACK

SC

Amphenol Corporation Tel: 800-627-7100

www.amphenolrf.com

203
