2D150W-03F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 2D150W-03F

2D150W-03F: DescriptionFixed Attenuator, 0MHz Min, 2500MHz Max, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size39KB，1 Pages; ManufacturerCobham PLC; Environmental Compliance

Download Datasheet Parametric View All

2D150W-03F Overview

Fixed Attenuator, 0MHz Min, 2500MHz Max, ROHS COMPLIANT PACKAGE

2D150W-03F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Cobham PLC
Reach Compliance Code	unknown
Other features	7/16-F, I/P POWER-MAX(PEAK)=2000W
Nominal attenuation	3 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	51.76 dBm
JESD-609 code	e4
Maximum operating frequency	2500 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-54 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	GOLD/SILVER
Maximum voltage standing wave ratio	1.3
Base Number Matches	1

Preview

Download Datasheet

View All

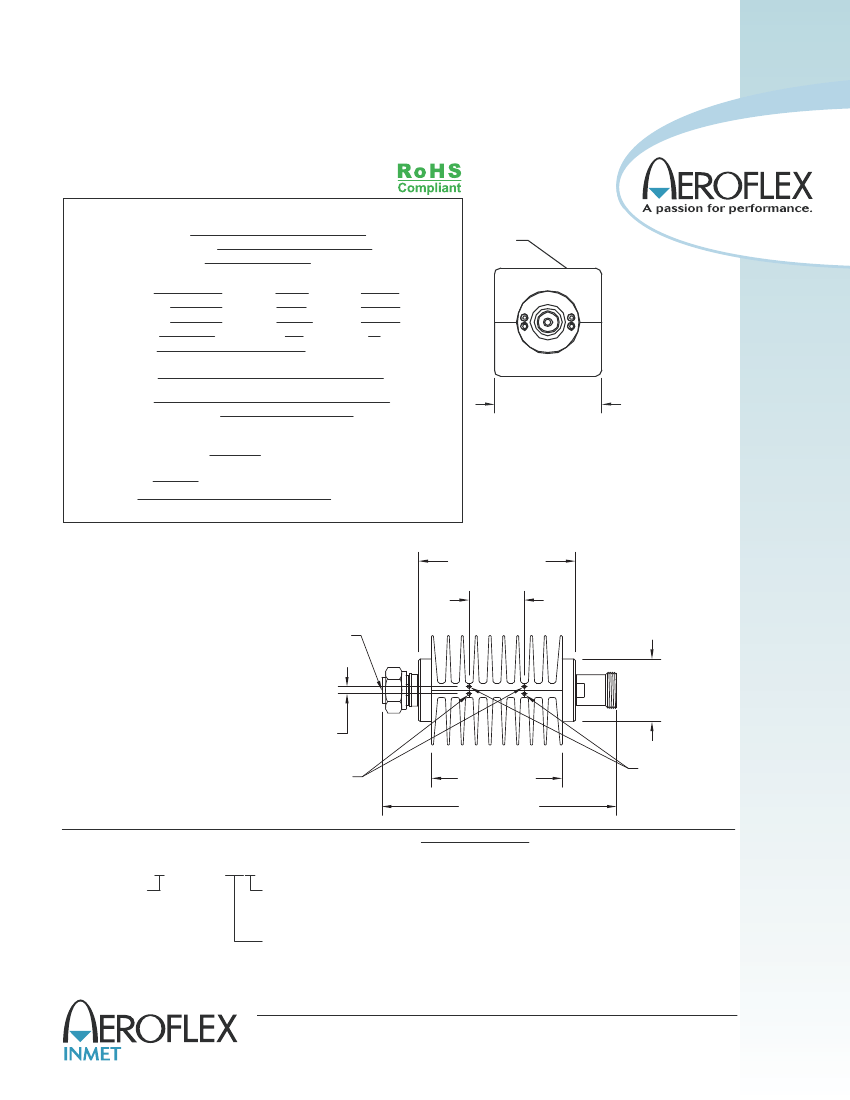

ATTENUATORS

7/16 - DIN, up to 4 GHz, 150 Watts

SPECIFICATIONS:

Models: XD150W-XX, XD150W-XXF, XD150W-XXM

Electrical:

Frequency Range

Standard Freq. Values

Standard dB Values*

Attenuation Accuracy

3 & 6 dB

10 & 20 dB

30 & 40 dB

Input VSWR

Input Power

Peak Power

Impedance

Operating Temp Range

DC - 4.0 GHz

2.5 & 4 GHz

3, 6, 10, 20, 30 & 40 dB

1.5 - 2.5 GHz 2.5 - 3 GHz

±1.5 dB

±1.0 dB

±0.75 dB

±1.0 dB

±1.5 dB

1.30:1 Max.

1.40:1 Max.

150 Watts Avg. @ +25°C

Derated Linearly to 30 Watts @ +1 C

Custom Mtg. hole Config.

may be Added to this

Surface

DC - 1.5 GHz

±0.50 dB

±0.75 dB

1. 5:1 Max.

2 kW Max.

(5uSec Pulse, .05% Duty Cycle)

50 Ohms

-54°C to +125°C

3.46 [87.9]

SQ.

Mechanical:

7/16 - DIN Connectors

Mates with DIN 47 223

Silver or White Bronze Plated Brass

END VIEW

TYPICAL

Units must be Mounted in such a way as to

Allow for Free Air Flow Around fins to Assure

Performance

Conductors

Housing

Silver or White Bronze Plated Beryllium Copper

Anodized Aluminum

Note: Units are Unidirectional, Therefore Input Connector MUST be specified & will be Indicated on Unit

4.965 ±.025

[126 .00 ±0.64]

Model Number:

XD150W-XX

Male/Female Connectors

Length: 7 1 ±.08 [188.2 ±2.0]

Pictured

1.75

[44.5]

INPUT

Model Number:

XD150W-XXF

Female/Female Connectors

Length: 7 ±.08 [191.8 ±2.0]

.55

2x Ø1.98

[50.3]

.23 [5.8]

8-32UNC-2B TAP

x .50 [12.7] DP.

Model Number:

XD150W-XXM

Male/Male Connectors

Length: 7 ±.08 [184.7 ±2.0]

.27

M4x0.7 TAP

x .50 [12.7] DP.

4.125 [105]

7.41 ±.08

[188.2 ±2.0]

HOW TO ORDER:

Model Number:

Ordering Examples:

Model Number:

4D150W-30

DC - 4 GHz, 30 dB; 7/16 - DIN, Male/Fem

Connector Configuration

= Male/Female

F = Fem/Fem

M = Male/Male

dB Value

Model Number:

2D150W-3F

DC - 2.5 GHz, 3 dB; 7/16 - DIN, Fem/Fem

Model Number:

2D150W-20M

DC - 2.5 GHz, 20 dB; 7/16 - DIN, Male/Male

XD150W-XXY

Freq. Range

2 = DC - 2.5 GHz

4 = DC - 4 GHz

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

Design, specifications are subject to change without notice. Contact factory for technical

specifications before purchasing and/or use.

XD150W-ATT: REV H

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex.com/inmet • inmetsales@aeroflex.com
