SAW Components
Low-Loss Filter for Mobile Communication
Data Sheet
B4182
1882,5 MHz
Ceramic package
DCC6C
Features
s
Low-loss RF filter for Multicarrier Basestation
s
s
s
s
s
(CDMA) , receive path
Usable passband: 65 MHz
No matching network required for operation
at 50Ω
Ceramic package for
Surface Mounted
Technology
(SMT)
Hermetically sealed ceramic package
RoHS compliant
Terminals
s
Ni, gold-plated
Dimensions in mm, approx. weight 0,037 g
Pin configuration
2
Input
5
Output
1, 3, 4, 6 To be grounded
Type
B4182
Ordering code
B39182-B4182-U410
Marking and Package
according to
C61157-A7-A67
Packing
according to
F61074-V8168-Z000
Electrostatic Sensitive Device
(ESD)
Maximum ratings
Operable temperature range
Storage temperature range
ESD voltage
Input power max.
1930,0 ... 1990,0 MHz
T
T
stg
V*
ESD
P
IN
P
IN
– 40 / + 85
– 40 / + 85
50*
12
15
˚C
˚C
V
dBm
dBm
Machine Model, 10 pulses
source and load impedance 50
Ω
continuous wave, 85 ˚C
continuous wave, 55 ˚C
* - acc. to JESD22-A115A (Machine Model), 10 negative & 10 positive pulses
2
15 June 2006
SAW Components
Low-Loss Filter for Mobile Communication
Data Sheet
B4182
1882,5 MHz
Characteristics
Operating temperature range:
Terminating source impedance:
Terminating load impedance:
T
= +25
±
2 ˚C
Z
S
= 50
Ω
Z
L
= 50
Ω
min.
typ.
1882,5
max.
MHz
Center frequency
Maximum insertion attenuation
1850,0 ...1915,0
Amplitude ripple
(p-p)
1850,0 ...1915,0
Return loss
1850,0 ...1915,0
Attenuation
800,0
1400,0
1930,0
1940,0
...1400,0
...1745,0
...1940,0
...3000,0
MHz
MHz
MHz
MHz
MHz
f
c
α
max
MHz
∆α
MHz
—
—
2,5
3,2
dB
0,8
1,4
dB
9,0
α
abs
24,0
25,0
5,0
20,0
10,0
—
dB
28,0
28,0
10,0
23,0
—
—
—
—
dB
dB
dB
dB
3
15 June 2006
SAW Components
Low-Loss Filter for Mobile Communication
Data Sheet
B4182
1882,5 MHz
Characteristics
Operating temperature range:
Terminating source impedance:
Terminating load impedance:
T
= 0 to +85˚C
Z
S
= 50
Ω
Z
L
= 50
Ω
min.
Center frequency
Maximum insertion attenuation
1850,0 ...1915,0
Amplitude ripple
(p-p)
1850,0 ...1915,0
Return loss
1850,0 ...1915,0
Attenuation
800,0
1400,0
1930,0
1940,0
...1400,0
...1746,0
...1940,0
...3000,0
MHz
MHz
MHz
MHz
MHz
α
abs
24,0
25,0
5,0
20,0
9,0
typ.
1882,5
max.
MHz
f
c
α
max
MHz
∆α
MHz
—
—
2,9
3,5
dB
1,1
1,7
dB
10,0
—
dB
28,0
28,0
7,0
23,0
—
—
—
—
dB
dB
dB
4
15 June 2006
SAW Components
Low-Loss Filter for Mobile Communication
Data Sheet

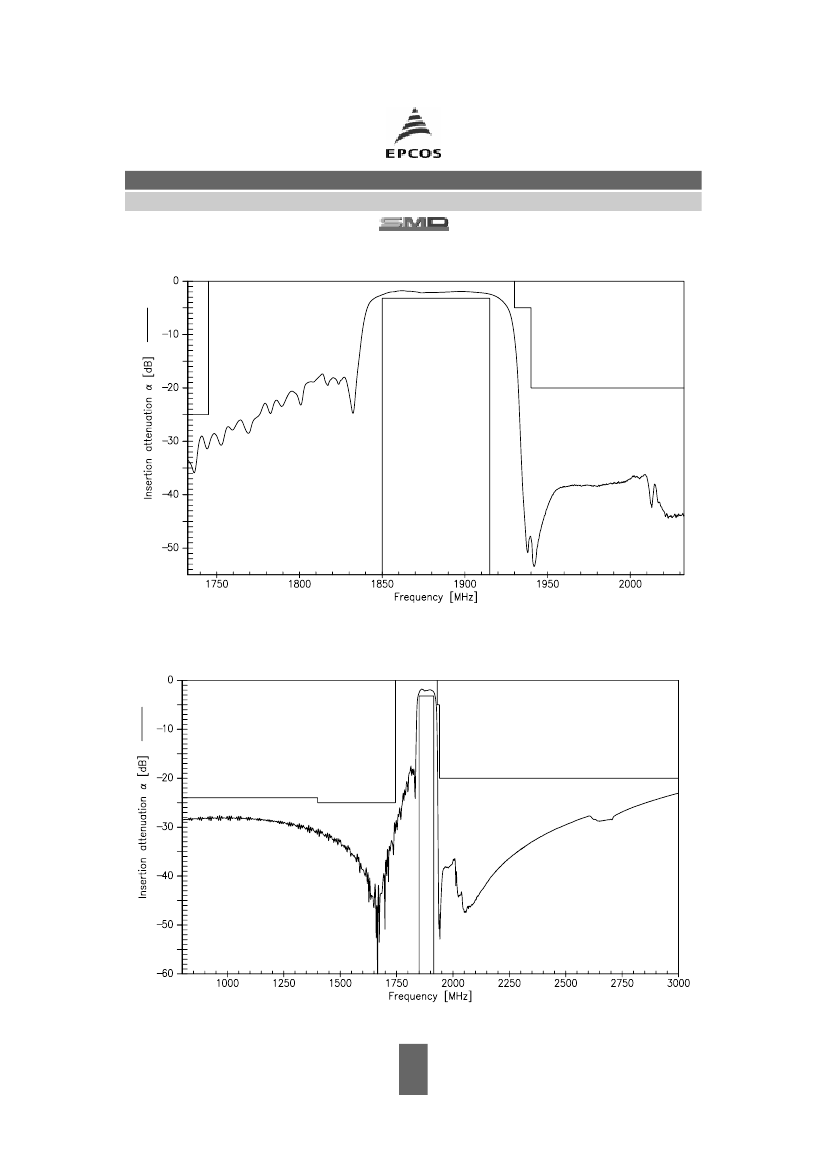

Transfer function (Narrowband measurement)
B4182
1882,5 MHz
Transfer function (Wideband measurement)
5
15 June 2006
