BL31-17U

Description
Board Connector, 17 Contact(s), 1 Row(s), Female, Right Angle, 0.05 inch Pitch, Solder Terminal, Plug
CategoryThe connector    The connector
File Size97KB,1 Pages
ManufacturerMPE-Garry GmbH
Environmental Compliance
Download Datasheet Parametric View All

BL31-17U Overview

Board Connector, 17 Contact(s), 1 Row(s), Female, Right Angle, 0.05 inch Pitch, Solder Terminal, Plug

BL31-17U Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMPE-Garry GmbH
Reach Compliance Codecompliant
Other featuresROHS COMPLIANT
body width0.087 inch
subject depth0.221 inch
body length0.866 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact completed and terminatedTin (Sn)
Contact point genderFEMALE
contact modeRECTANGULAR
Contact styleRND PIN-SKT
Dielectric withstand voltage700VAC V
insulator materialTHERMOPLASTIC
JESD-609 codee3
Manufacturer's serial numberBL31
Plug contact pitch0.05 inch
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.118 inch
Terminal pitch1.27 mm
Termination typeSOLDER
Total number of contacts17
Base Number Matches1

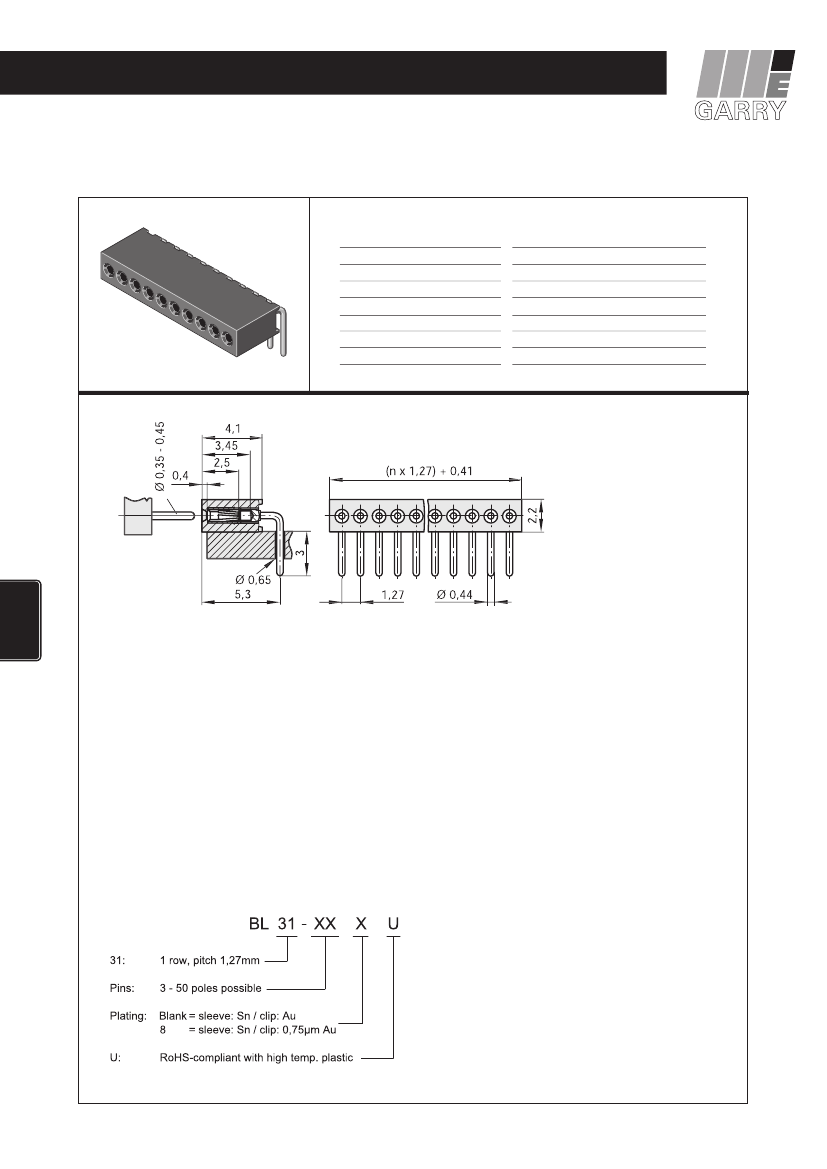

PRODUCT GROUP 8 -
MALE AND FEMALE HEADER 2,00/1,27/1,00/0,80/0,50 mm
FEMALE HEADER „PRECISION“ 1,27 mm
ID: 204
BL 31-XX
Series 531
TECHNICAL DATA
Pitch
Insulating Material
Contact Material
Rated Current
Rated Voltage
Withstanding Voltage
Operating Temperature
Maximum Soldering Temperature
1,27 mm
high temp. thermoplast UL94V-0
Brass/BeCu
1 Amp.
100 V
RMS
/150 V
DC
min. 500 V
RMS
-40°C to +105°C
260°C for 10 seconds
246
8
| 1,27 mm
All dimensions in mm.
Other dimensions upon request.
MPE-Garry GmbH · Schäfflerstraße 13 · 87629 Füssen · Germany · Tel.: +49 (0) 83 62 / 91 56-0 · Fax.: +49 (0) 83 62 / 91 56-520
e-mail: vk@mpe-connector.de · www.mpe-connector.de
