31-105: DescriptionRF BNC Connector, Female, Panel Mount, Board Mount, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size110KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

31-105 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	31-105	-	-	View	Buy Now

31-105 Overview

RF BNC Connector, Female, Panel Mount, Board Mount, Solder Terminal, Receptacle

31-105 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	INSERTION LOSS MAX AT 3 GHZ
Body/casing type	RECEPTACLE
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.2 dB
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Manufacturer's serial number	BNC
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT
Installation type	BOARD
Maximum operating frequency	4 GHz
Options	HERMETIC
Panel mounting	YES
Termination type	SOLDER
voltage standing wave ratio	1.3
Base Number Matches	1

Preview

Download Datasheet

View All

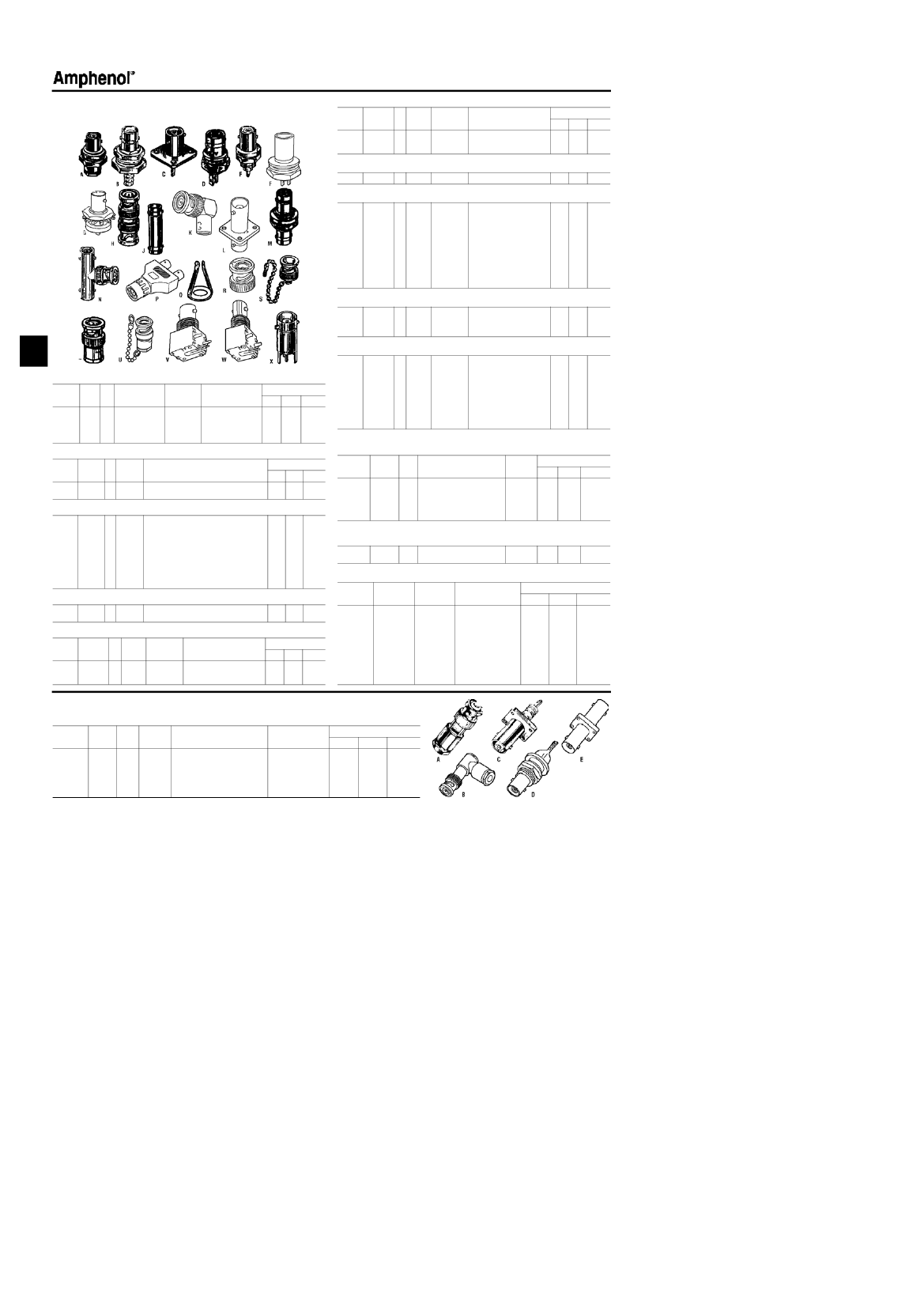

Amphenol

Coaxial Connectors

BNC Coaxial Connectors

Angle Adapters

Stock

No.

Mfr.Õs

Type

Fig.

MIL

Type

Adapter

Ends

50 ½

75 ½

50 ½

Description

EACH

1-24

25-99 100-249

7.56

8.06

8.66

11.31 8.90

11.39 9.49

12.24 10.20

713-1013

31-9

713-1015

31-9-75

713-8668

31-209

K UG-306 Jack-plug

K

Ñ

Jack-plug

K UG-306A Jack-plug

Panel Adapter

713-0100

47000

L

Ñ

Jack-jack

3-56 tapped flange holes

24.07 20.06

17.04

Bulkhead Adapters

713-1071

31-220H

713-8005

31-3220

M UG-492A Jack-jack

M UG-492D Jack-jack

Ñ

Jack-jack

Sealed, 50 PSI/

glass Ñ TFE internal lockwasher

Sealed, 50 PSI/

glass Ñ TFE external lockwasher/

thick panel

Non-pressurized version

75 ½ non-pressurized

version

Gasketed

Isolated from the panel white

molded thermoplastic insulation

75 ½ isolated from panel

75 ½ gasketed

7.85

9.93

7.56

10.20

6.49

8.21

6.11

8.41

5.51

6.96

5.20

7.14

10.22

7.67

12.60

713-1072

31-220N

M

713-1070

31-220N-75 M

713-9510

4525

713-8028

31-4803

M

14.44 12.04

10.94 9.03

17.64 14.70

713-8030

31-4803-75 M

713-8620

31-70020

M

Tee Adapters

713-1010

31-8

713-1053

31-208

713-1058

31-5693

N UG-274 Jack-plug-jack Standard

N UG-274A Jack-plug-jack Silver plt. contact

P

Ñ

Jack-plug-jack Overmolded; gold over

nickel contact

10.75

8.95

9.85

8.44

7.03

8.13

7.18

5.97

6.90

8

Rear-Mounted Bulkhead Jacks

Stock

No.

713-1048

713-1092

713-1050

713-9860

713-1088

Mfr.Õs

Fig.

Type

31-206

31-342

31-207

86350

31-318

A

B

A

B

MIL

Type

UG-909

M23329/3-15, 3-17

UG-910

Ñ

Cable

Term.

Clamp-solder

Crimp-crimp

Clamp-solder

Crimp-crimp

For RG/U

Cable

EACH

1-24

25-99 100-249

4.97

4.56

7.34

8.54

6.56

58, 141, 142, 400

7.23 5.85

58, 141

6.51 5.37

59, 62, 140, 210

10.48 8.65

174, 179, 187, 188, 316

12.07 10.06

174, 188, 316

9.36 7.73

Accessories

713-8676

31-759

713-9520

713-1008

713-8674

713-8671

5275

31-6

31-17

46650-51

Q

Ñ

R

Ñ

S CW-123

Ñ

S CW-159 Male

T **

Ñ

T

U

**

Ñ

Grounding lug, inside panel

on front mount receptacles

Male shorting cap

Standard weatherproof

Shorting constant impedance

Resistor terminated 50 ½,

1%, 1 W

Resistor terminated 75 ½,

1%, 1 W

Cap and chain, 50 ½, 5%,

1

/

2

W

Cap and chain, 75 ½, 5%,

1

/

2

W

.53

.42

.36

7.37

2.82

4.18

9.18

6.42

9.47

10.52 8.68

4.11 3.32

6.08 4.93

12.98 10.82

9.16

7.55

713-8672

46650-75

713-9767

35650-51

713-9768

35650-75

**IEEE 802.3 10 base 2.

13.38 11.15

Panel Receptacles

Stock

No.

Mfr.Õs

Type

Fig.

MIL

Type

Description

Solder cup, No. 3-56 tapped flange holes

Solder cup, 0.120" dia. flange holes

EACH

1-24 25-99 100-249

6.10 4.72

20.15 16.80

4.01

14.25

BNC PC Mount Bulkhead Receptacles (Hardware Sold Separate)

Stock

No.

713-7200

713-7202

713-7204

713-7203

713-7206

713-7207

Mfr.Õs

Type

31-5431

31-5486

31-5540

31-5640

31-5652

31-5653

Fig.

V

W

V

Ñ

Description

Isolated white valox housing

Isolated black valox housing

Metal housing

HEX nut (mounting hardware)

Lockwasher (mounting hardware)

Mounting

PIN Type

Round

Ñ

EACH

1-24

4.92

5.14

.86

.77

25-99

3.98

4.15

.69

100-249

3.38

3.53

.58

.62

713-1043

31-203

713-1040

31-105

C UG-290A

C

Ñ

Front Mount Bulkhead Receptacles Ñ Internal Tooth Lockwasher

713-1011

713-1012

713-1099

713-1073

713-1079

713-9571

713-1153

713-1078

713-1035

713-8618

713-8603

31-10-75

31-10

31-2221

31-221

31-236

5575

31-238

31-239

31-102

31-70018

31-4890-1

D

E

Ñ

E

F

Ñ

UG-1094A

UG-1094

UG-625B

UG-625

UG-912/U

UG-657A

UG-657

Ñ

Solder cup, ground tab, isolated from ground, 75 ½

6.41 5.19

Solder cup, ground tab, isolated thermoplastic insul.

4.88 3.87

Solder cup, standard type

2.76 2.23

Solder cup, thin panel

2.59 1.91

Solder cup, standard type

2.51 2.00

Solder cup, standard type

3.47 2.81

Spade, hermetic external tooth lockwasher

21.37 17.82

Solder cup, pressurized

6.75 5.57

Solder cup, pressurized

5.78 4.68

Solder cup, 75 ½

6.29 5.09

Solder cup, isolated from panel

15.06 12.55

4.40

3.29

1.90

1.52

1.70

2.39

15.12

4.73

3.98

4.32

10.65

Vertical BNC Receptacle (PCB)

713-7160

31-5329

X

0.040" diameter post terminal. 0.125" long. Zinc body, bright tin/lead over copper base finish. Gold plated contact, TFE Insulation.

3-leg vertical BNC receptacle

0.040" dia. post terminal

Ñ

5.54

4.49

3.81

Between Series Straight Adapters (Not Illustrated)

Stock

No.

713-1063

713-9082

713-4836

713-1033

713-9029

713-1065

713-9125

713-9500

713-4841

713-8007

713-4866

713-4863

Mfr.Õs

Type

31-216

31-216-RFX

79025

31-28

31-28-RFX

31-217

31-217-RFX

2900

901-164

4400

901-9033

901-9034

MIL

Type

UG-201A/U

Ñ

UG-273/U

Ñ

UG-349A/U

Ñ

UG-255/U

Ñ

UG-146/U

Ñ

Description

BNC jack-N-plug

BNC plug to TNC jack

BNC jack-UHF-plug

BNC plug-N-jack

BNC plug-UHF-jack

BNC plug to SMA plug

N plug-UHF-jack

SMA jack to SMB jack

SMA jack to SMB plug

EACH

1-24

9.89

8.35

28.14

15.45

13.30

13.23

11.74

10.46

58.05

14.34

82.82

64.77

25-99

8.17

6.90

23.45

12.88

10.97

10.93

9.79

8.63

48.39

11.95

69.02

53.97

100-249

6.93

5.85

20.10

10.95

9.32

9.28

8.29

7.32

41.49

10.14

59.16

46.26

Rear Mount Bulkhead Receptacles

713-1094

31-4237

G M39012/

24-0001

Spade terminal, hermetic

8.57

7.14

6.12

Straight Adapters

Stock

No.

Mfr.Õs

Type

Fig.

MIL

Type

Adapter

Ends

50 ½

75 ½

Description

EACH

1-24

7.91

4.65

5.18

25-99 100-249

6.52

3.77

4.19

5.54

3.20

3.56

713-1067

31-218

713-1069

31-219

713-8619

31-70019

H UG-491A Plug-plug

J UG-914 Jack-jack

J

Ñ

Jack-jack

MHV (High Voltage) Connectors

Similar to BNC, but do not intermate, weatherproof, non-constant impedance. For applications up to 5000 volts at frequencies up to 50 MHz.

Stock

No.

713-9770

713-8012

713-9625

713-8013

713-9610

713-8604

713-9615

Mfr.'s

Type

29100

28000

28100

27000

10400

27025

12650

Fig.

A

B

C

D

Ñ

E

MIL

Type

Ñ

UG-932

Ñ

UG-931

Ñ

Description

Straight plug/STD clamp

Angle plug/STD clamp

Rear mounted panel receptacle

Bulkhead receptacle, spade terminal

Bulkhead receptacle, turret terminal

Panel adapter, jack to jack

For RG/U

Cable

55, 58, 141, 142

59, 62, 71, 140, 210

59, 62, 140, 210

Ñ

EACH

1-24

10.45

11.02

30.22

9.47

39.12

18.88

63.55

25-99

8.62

9.09

25.18

7.82

32.60

15.73

52.96

100-249

7.31

7.72

23.45

6.63

27.95

13.49

49.34

450
