374924B00035G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Thermal management products> Heat resisting bracing> 374924B00035G

374924B00035G: DescriptionHeat Sink, Fin, Pin Fin Array, Omnidirect, Aluminum, Anodized, ROHS COMPLIANT; CategoryThermal management products Heat resisting bracing; File Size191KB，2 Pages; ManufacturerBoyd Corporation; Environmental Compliance

Download Datasheet Parametric Compare View All

374924B00035G Overview

Heat Sink, Fin, Pin Fin Array, Omnidirect, Aluminum, Anodized, ROHS COMPLIANT

374924B00035G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Boyd Corporation
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Main material	ALUMINUM
color	BLACK
structure	FIN
fin direction	OMNIDIRECT
Surface layer	ANODIZED
high	10 mm
length	40 mm
contour	PIN FIN ARRAY
Heat Resistant Support Device Type	HEAT SINK
width	40 mm
Base Number Matches	1

Preview

Download Datasheet

View All

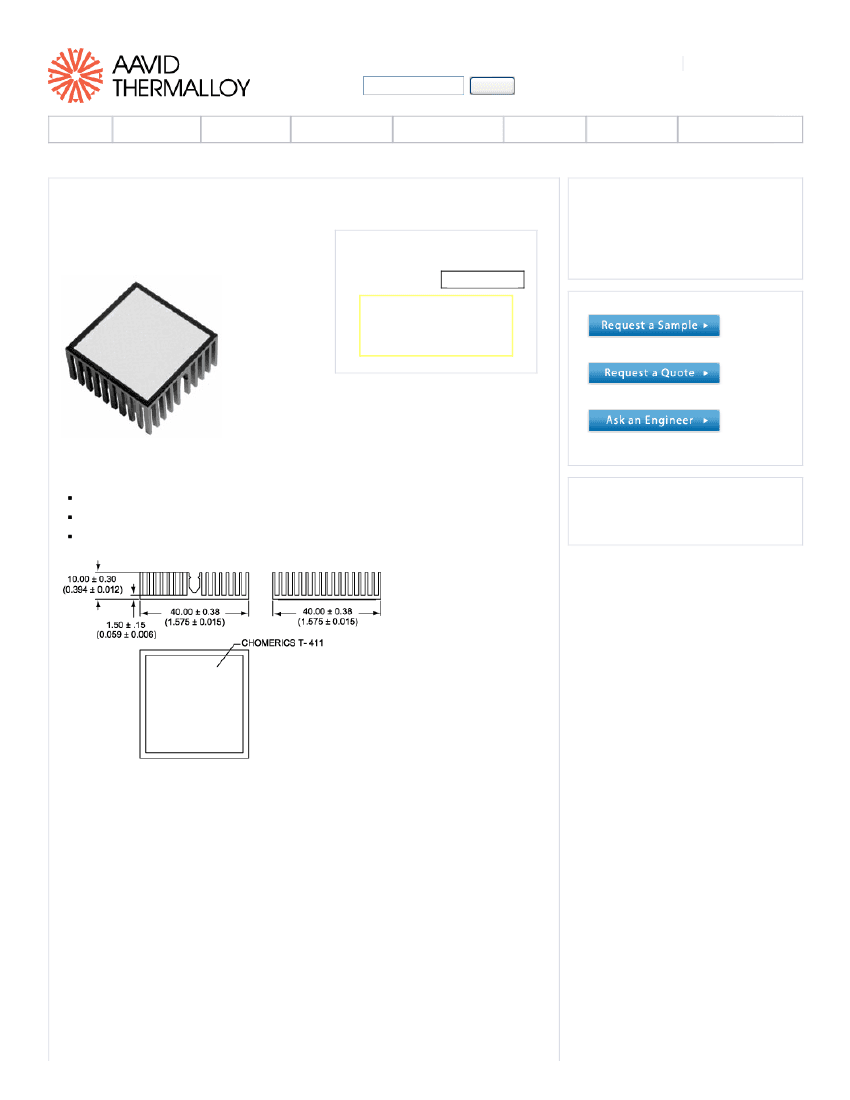

5/16/12

374924B00035G - heatsinks for BGA Devices

Tel (toll-free): +1-855-32-AAVID

Home

Products

Solutions

Aavid Design

Tools & Docs

Contact

Company

Online Store

BGA Heat Sinks

374924B00035G

Pin Fin heat sink with tape attachment

RoHS:

Download PCN

Qty in stock:

Enter QTY:

estore@aavid.com

for

availability

Need assistance?

Call us: 1-855-32-AAVID

Email:

estore@aavid.com

Help Page

Features

Tape mounting saves board space by eliminating mounting holes

Convenient peel and stick assembly is quick and clean

Pin Fin array allows omni-directional airflow to maximize heat dissipation

Product Return Policy

Terms & Conditions

Width: 40.00

Length: 40.00

Height: 10.00

Base Thickness: 1.50

Fin Thickness: Length 0.89, Width 0.90

# of Fins: Length 17, Width 16

Fin Tip to Tip: 0.00

Finish: Black Anodize

Thermal Performance

Natural Convection: 20.30

(based on a heatsink temperature rise of 75°C above ambient)

Forced convection: 6.46

based on fully ducted airflow entering at 1.0 m/s (197 LFM).

https://www.aavid.com/products/bga/374924b00035g

1/2

374924B00035G Related Products

	374924B00035G	566010B03400G
Description	Heat Sink, Fin, Pin Fin Array, Omnidirect, Aluminum, Anodized, ROHS COMPLIANT	Heat Sink, 11.5ohm, Clip, Aluminum, Anodized, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to
Maker	Boyd Corporation	Boyd Corporation
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	compliant
Main material	ALUMINUM	ALUMINUM
color	BLACK	BLACK
structure	FIN	CLIP
Surface layer	ANODIZED	ANODIZED
high	10 mm	30.99 mm
length	40 mm	25.4 mm
Heat Resistant Support Device Type	HEAT SINK	HEAT SINK
width	40 mm	12.7 mm
Base Number Matches	1	1
