31-2382: DescriptionRF TNC Connector, Male, Cable Mount, Crimp Terminal, Plug; CategoryThe connector The connector; File Size392KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

31-2382 Overview

RF TNC Connector, Male, Cable Mount, Crimp Terminal, Plug

31-2382 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Other features	APPLICABLE CABLES: RG 58/U; RG 141/U
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF TNC CONNECTOR
Contact to complete cooperation	GOLD/SILVER
Contact completed and terminated	GOLD/SILVER
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.18 dB
insulator material	TFE/DELRIN
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	TNC
Installation method	RIGHT ANGLE
Installation type	CABLE
Maximum operating frequency	11 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
voltage standing wave ratio	1.35
Base Number Matches	1

Preview

Download Datasheet

View All

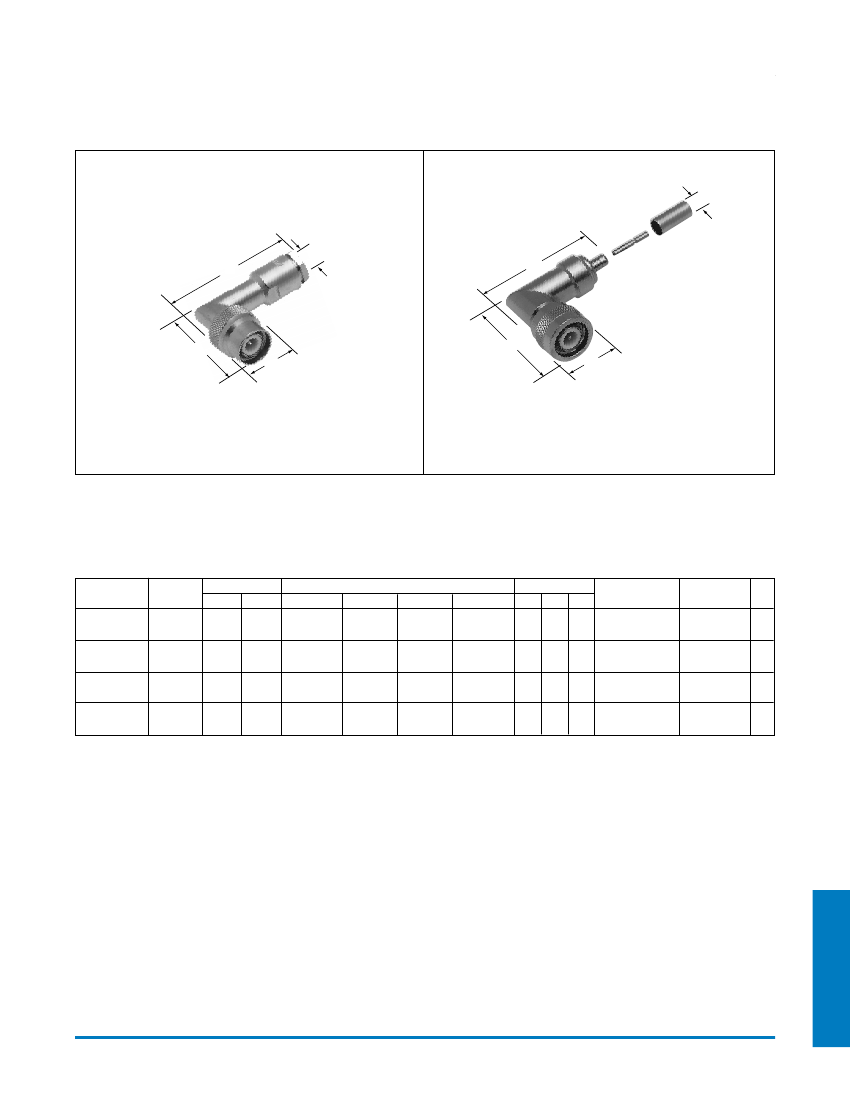

TNC

Angle Plugs

Fig. 1

Fig. 2

Amphenol

®

c•

d

a

b

a

b

TNC Clamp Type Angle Plug

79075

TNC Crimp Type Angle Plug

31-2381

31-2382

31-2383

TNC ANGLE PLUGS & JACKS

Cable

RG-/U

Conn.

Type

Cable Attachment

Outer

Inner

Clamp

Crimp

Solder

Crimp

a

Dimensions, inches (millimeters)

b

c

q

d

.610(15.5)

.562(14.3)

.224(5.7)

.220(5.6)

.206(5.2)

.261(6.6)

1.58(40.1)

s

1.58(40.1)

CAI

C34

C36

Notes

Plt. Ins.

P1

P17

D1

Military

Number

—

Amphenol

Number

79075

*

31-2381

31-2382

31-2383

Fig.

1

2

v

55, 58, 141

142, 223, 400

Angle Plug

55, 142, 223, 400

Angle Plug

58, 141

62

Angle Plug

1.12(28.6)

1.19(30.2)

P17 D1

* recognized under the component program of U.L., Inc. • accommodates cable diameter

s

includes outer ferrule

v

distributor stocked

TNC

Amphenol Corporation Tel: 800-627-7100

www.amphenolrf.com

143

31-2382 Related Products

	31-2382	31-2383
Description	RF TNC Connector, Male, Cable Mount, Crimp Terminal, Plug	RF TNC Connector, Male, Cable Mount, Crimp Terminal, Plug
Reach Compliance Code	unknown	unknown
Other features	APPLICABLE CABLES: RG 58/U; RG 141/U	APPLICABLE CABLE: RG 62/U
Body/casing type	PLUG	PLUG
Characteristic impedance	50 Ω	50 Ω
Connector type	RF TNC CONNECTOR	RF TNC CONNECTOR
Contact to complete cooperation	GOLD/SILVER	GOLD/SILVER
Contact completed and terminated	GOLD/SILVER	GOLD/SILVER
Contact point gender	MALE	MALE
Coupling type	THREADED	THREADED
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
Insertion loss	0.18 dB	0.18 dB
insulator material	TFE/DELRIN	TFE/DELRIN
JESD-609 code	e4	e4
MIL compliance	NO	NO
Manufacturer's serial number	TNC	TNC
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	CABLE	CABLE
Maximum operating frequency	11 GHz	11 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO
Termination type	CRIMP	CRIMP
voltage standing wave ratio	1.35	1.35
Base Number Matches	1	1
