GT-0218-32-10-F datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> GT-0218-32-10-F

GT-0218-32-10-F: DescriptionVariable Attenuator, 2000MHz Min, 18000MHz Max, 6.5dB Insertion Loss-Max, CASE GT; CategoryWireless rf/communication Radio frequency and microwave; File Size582KB，2 Pages; ManufacturerCobham PLC

Download Datasheet Parametric Compare View All

GT-0218-32-10-F Overview

Variable Attenuator, 2000MHz Min, 18000MHz Max, 6.5dB Insertion Loss-Max, CASE GT

GT-0218-32-10-F Parametric

Parameter Name	Attribute value
Maker	Cobham PLC
Reach Compliance Code	unknown
Other features	TTL COMPATIBLE
Nominal attenuation	32 dB
structure	COAXIAL
Maximum insertion loss	6.5 dB
JESD-609 code	e4
Maximum operating frequency	18000 MHz
Minimum operating frequency	2000 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	VARIABLE ATTENUATOR
Terminal surface	GOLD
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

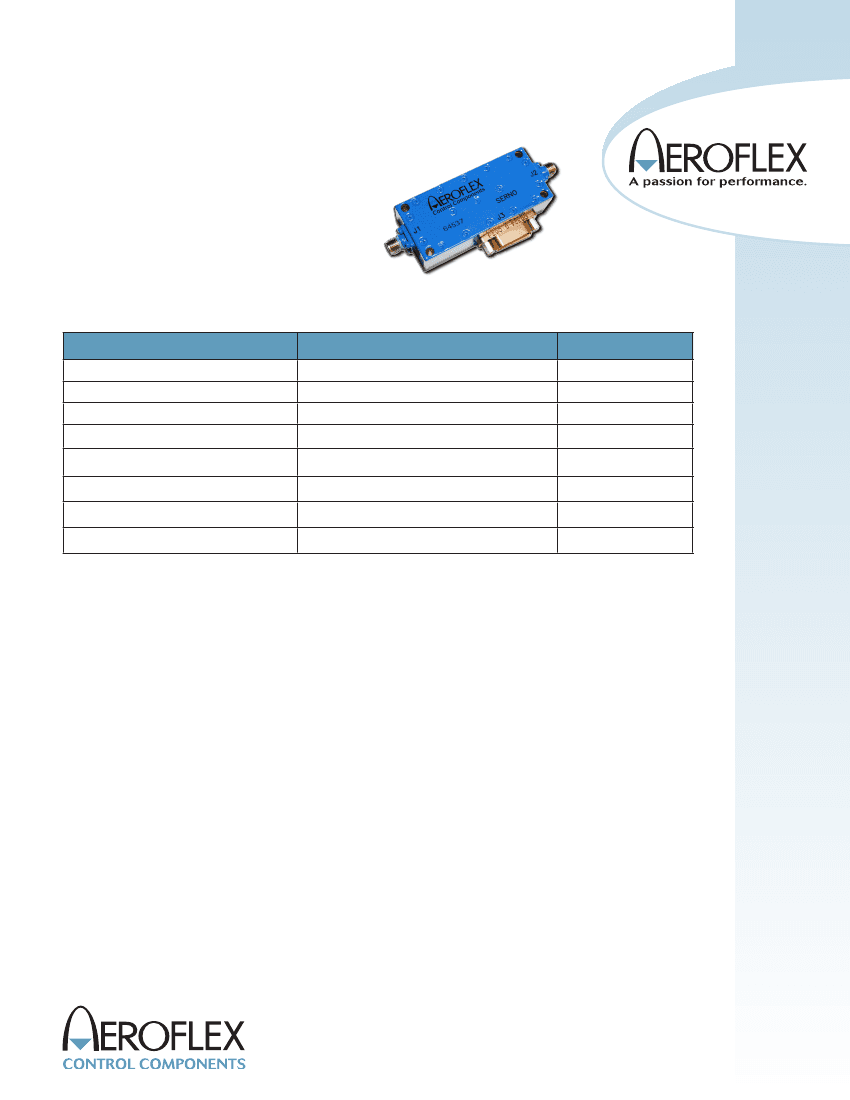

GT-0218-32

Standard Digital Attenuators

8 BIT

Applications

• Unsurpassed Attenuation Linearity over Frequency

& Temperature

• 8 or 10 bit digital control

• Smooth transition between states

• Available in 32 or 64 dB Attenuation range

• Remotely programmable parallel or serial control

interface

Specifications:

Parameter

Frequency Range (min)

Attenuation Range

Switching Speed

Attenuation Flatness

Step Size (LSB)

P1dB Compression Point (Max)

Insertion Loss (Max)

VSWR (Max)

Specification

2.0 – 18.0

0 – 32

2.5

1.5

Units

GHz

(usec)

dBm

Ratio

0.125

6.5

2.0:1

Screening:

Internal Visual per MIL-STD-883, Method 2017

Temperature Cycle: -65 °C to +100 °C, 10 cycles

Hermetically-sealed switches are fine and gross

leak checked per MIL-STD-883, Method 1014.

Optional High-Rel screening available upon

request. Contact the factory to discuss your

screening requirements.

Additional Electrical Specifications:

+5V ±0.5V @ +275mA

-5V ±0.5V @ -50mA

Control:

8 Bits command

1 Strobe line

Positive edge latched

Logic Levels:

TTL/HMOS

Attenuation Accuracy: +/-0.15 dB or +/-1.5%

whichever is greater

Attenuation Stability

over Temperature:

+/-0.025 dB/°C

DC Supply:

Environmental Specifications:

Designed to meet:

MIL-E-5400, MIL-STD-202, MIL-E-16400

Operating Temp: -55°C to +125°C

Storage Temp: -65°C to +150°C

Humidity: MIL-STD-202F, M103, Cond B

Shock: MIL-STD-202F, M213, Cond B

Altitude: MIL-STD-202F, M105, Cond B

Vibration: MIL-STD-202F, M204, Cond B

Thermal Shock: MIL-STD-202F, M107, Cond A

Temperature Cycle: MIL-STD-202F, M105C, Cond D

Mechanical Specifications:

Case Style:

Finish:

Connectors:

Weight:

Mounting:

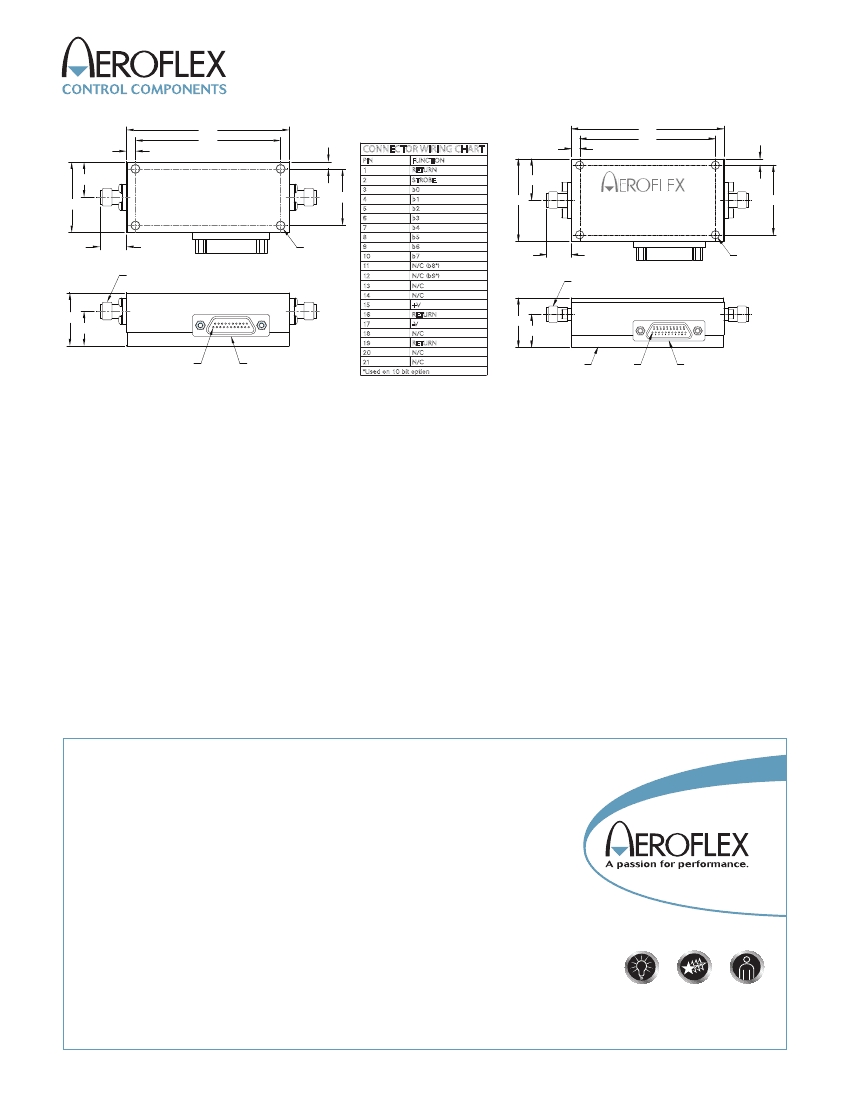

GT Outline

Gold Plate per MIL-G-45204

SMA Female per MIL-C-39012

90g max

ø0.10” through holes

(4) places

Bias & Control Pins: ø0.02” x 0.15” long

40 Industrial Way East, Eatontown , NJ 07724 [USA]

Phone: (732) 460-0212, Fax: (732) 460-0214

www.aeroflex.com/acc, email: acc-sales@aeroflex.com

Revision Date: 2/23/2011

GT-0218-32-10-F Related Products

	GT-0218-32-10-F	GT-0218-32-10-F-H
Description	Variable Attenuator, 2000MHz Min, 18000MHz Max, 6.5dB Insertion Loss-Max, CASE GT	Variable Attenuator, 2000MHz Min, 18000MHz Max, 6.5dB Insertion Loss-Max, HERMETIC SEALED, CASE GT
Maker	Cobham PLC	Cobham PLC
Reach Compliance Code	unknown	unknown
Other features	TTL COMPATIBLE	TTL COMPATIBLE
Nominal attenuation	32 dB	32 dB
structure	COAXIAL	COAXIAL
Maximum insertion loss	6.5 dB	6.5 dB
JESD-609 code	e4	e4
Maximum operating frequency	18000 MHz	18000 MHz
Minimum operating frequency	2000 MHz	2000 MHz
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	VARIABLE ATTENUATOR	VARIABLE ATTENUATOR
Terminal surface	GOLD	GOLD
Maximum voltage standing wave ratio	2	2
Base Number Matches	1	1
