8609-356-78-14-750-763-E1 datasheet, PDF

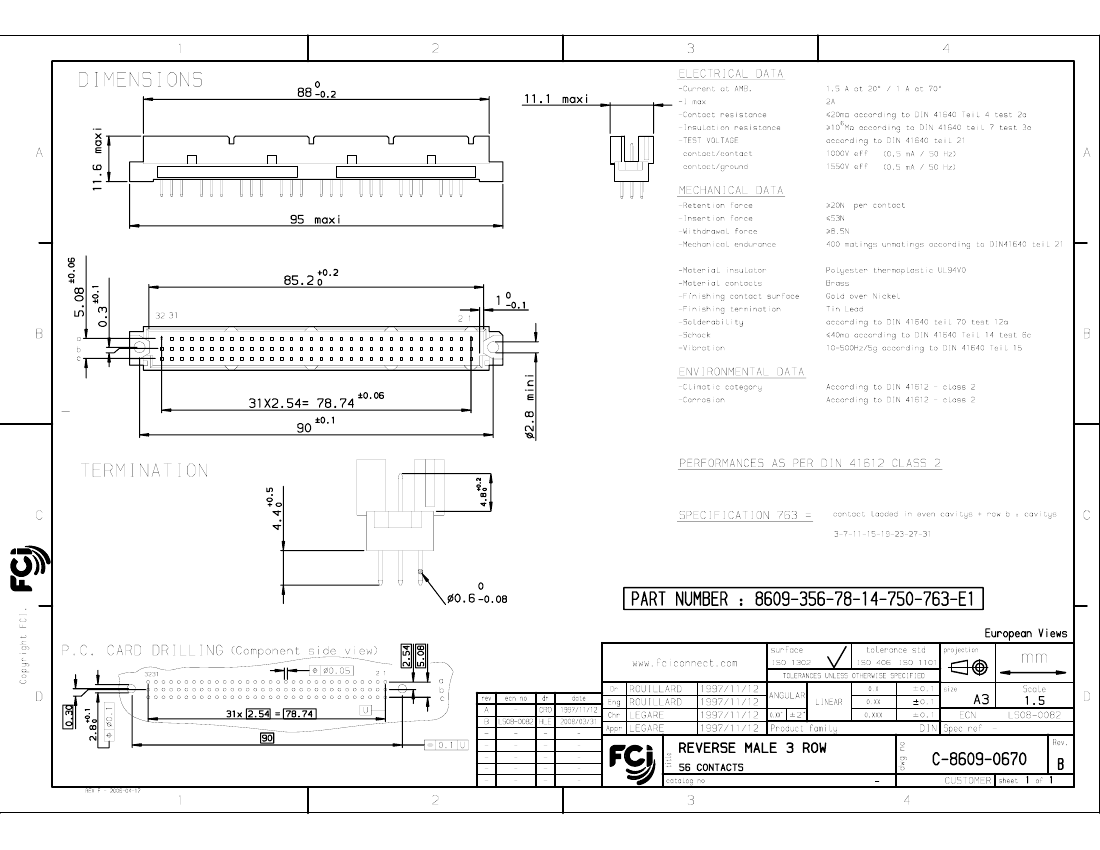

8609-356-78-14-750-763-E1: DescriptionBoard Euro Connector, 56 Contact(s), 3 Row(s), Male, Straight, Solder Terminal; CategoryThe connector The connector; File Size97KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

8609-356-78-14-750-763-E1 Overview

Board Euro Connector, 56 Contact(s), 3 Row(s), Male, Straight, Solder Terminal

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Other features	STANDARD: DIN 41612
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	TIN LEAD
Contact point gender	MALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	8609-356-78-14-750-763-E1
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	56
UL Flammability Code	94V-0
Base Number Matches	1

PDM: Rev:B

STATUS:

Released

Printed: May 14, 2011

.
