LS24103-C44 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> LS24103-C44

LS24103-C44: DescriptionTelecom and Datacom Connector, 20 Contact(s), Female, Right Angle, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size53KB，1 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/

Download Datasheet Parametric View All

LS24103-C44 Overview

Telecom and Datacom Connector, 20 Contact(s), Female, Right Angle, Solder Terminal, Receptacle

LS24103-C44 Parametric

Parameter Name	Attribute value
Maker	FOXCONN
Reach Compliance Code	unknown
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	GOLD (30)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	POLYETHYLENE
Termination type	SOLDER
Total number of contacts	20
UL Flammability Code	94V-0
Base Number Matches	1

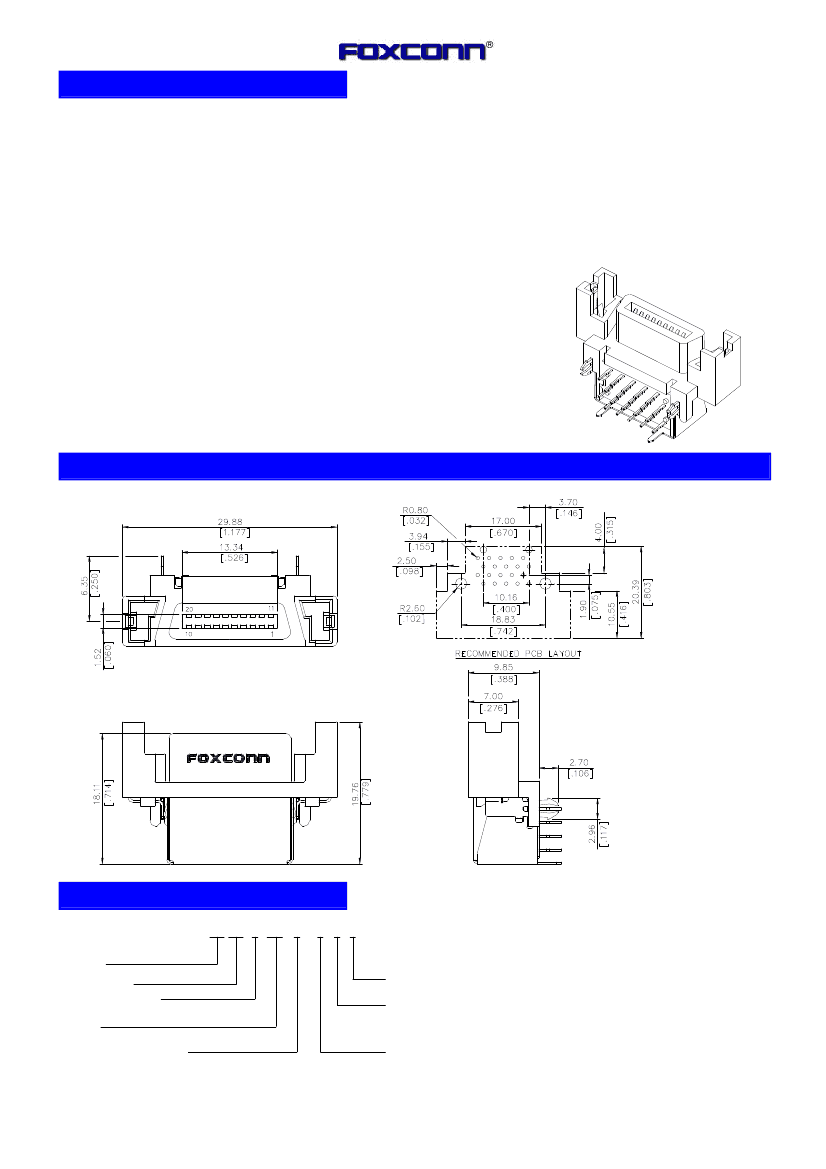

LS24103-C44 Preview

Download Datasheet

View All

SPECIFICATIONS

SCA-II Connector

LS Series

Straddle mount, SMT

Receptacle

1.27mm [.050"] Pitch

20 Pos.

Mechanical

Contact Retention Force:

0.454 kgf min.

Mating Force:

90G max Per Contact Pair.

Unmating Force:

15G min Per Contact Pair.

Durability:

500 Cycles.

Electrical

Voltage Rating:

30V.

Current Rating:

1.0A per pin max.

Contact Resistance:

30mΩ max.

Dielectric Withstanding Voltage:

500V AC.

Insulation Resistance:

1000MΩ min.

Physical

Housing:

Thermoplastic, UL 94V-0 rated in Black Color

Contact:

Copper alloy

Plating:

See “ORDERING INFORMATION”

Operating Temperature:

-40℃ to +105℃

DRAWING

ORDERING INFORMATION

PRODUCT NO.: L S 2 4 10 * - B 3 4

SCA II

Receptace

Moutig End Type

6= R/A,T/H

Termination Side

4=4 ROWS

TAIL LENGTH:

1: K =1.78 mm

3: K=3.18 mm

4: K =4.06 mm

Pos.

10 = 20 Pos

Contact Area Plating

3 = 30 u" Gold

H = 30u"Gold with RoHS COMPLIANCE

B: Extended Height

C: Standard Height

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
