B88069X8740B502 datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Telecom circuit> B88069X8740B502

B88069X8740B502: DescriptionTELECOM, SURGE PROTECTION CIRCUIT, XSS3, ROHS COMPLIANT, PACKAGE-3; CategoryWireless rf/communication Telecom circuit; File Size21KB，2 Pages; ManufacturerEPCOS (TDK); Environmental Compliance

Download Datasheet Parametric View All

B88069X8740B502 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B88069X8740B502	-	-	View	Buy Now

B88069X8740B502 Overview

TELECOM, SURGE PROTECTION CIRCUIT, XSS3, ROHS COMPLIANT, PACKAGE-3

B88069X8740B502 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	EPCOS (TDK)
Parts packaging code	MODULE
package instruction	,
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	Epcos EHV Series 230V 25kA Through Hole 3 Electrode Arrester Gas Discharge Tube (GDT)
JESD-30 code	O-XXSS-W3
Number of functions	1
Number of terminals	3
Maximum operating temperature	90 °C
Minimum operating temperature	-40 °C
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	SPECIAL SHAPE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
Telecom integrated circuit types	SURGE PROTECTION CIRCUIT
Temperature level	INDUSTRIAL
Terminal form	WIRE
Terminal location	UNSPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

Surge Arrester

3-Electrode-Arrester

T23-A230X

Ordering code:

B88069X8740B502

DC spark-over voltage

1) 2) 4)

Impulse spark-over voltage

at 100 V/µs - for 99 % of measured values

- typical values of distribution

at 1 kV/µs

- for 99 % of measured values

- typical values of distribution

230

< 400

< 350

< 500

< 450

> 10

< 1.5

< 0.2

~ 35

~ 200

-40 ... +90

40/ 90/ 21

230 YY O

230

- Nominal voltage

- Year of production

- Non radioactive

GΩ

µs

°C

Nominal impulse discharge current (wave 8/20 µs)

Single impulse discharge current

(wave 8/20 µs)

Nominal alternating discharge current (50 Hz, 1 s)

Alternating discharge current (50 Hz, 9 cycles)

Insulation resistance at 100 V

dc 4)

Capacitance at 1 MHz

Transverse delay time

Arc voltage at 1 A

Glow to arc transition current

Glow voltage

Weight

Operation and storage temperature

Climatic category (IEC 60068-1)

Marking, blue

At delivery AQL 0.65 level II, DIN ISO 2859

In ionized mode

Test according to ITU-T Rec. K.12

Tip or ring electrode to center electrode

Total current through center electrode, half value through

tip respectively ring electrode.

Terms in accordance with ITU-T Rec. K.12 and DIN 57845/VDE0845

AB E / AB PM

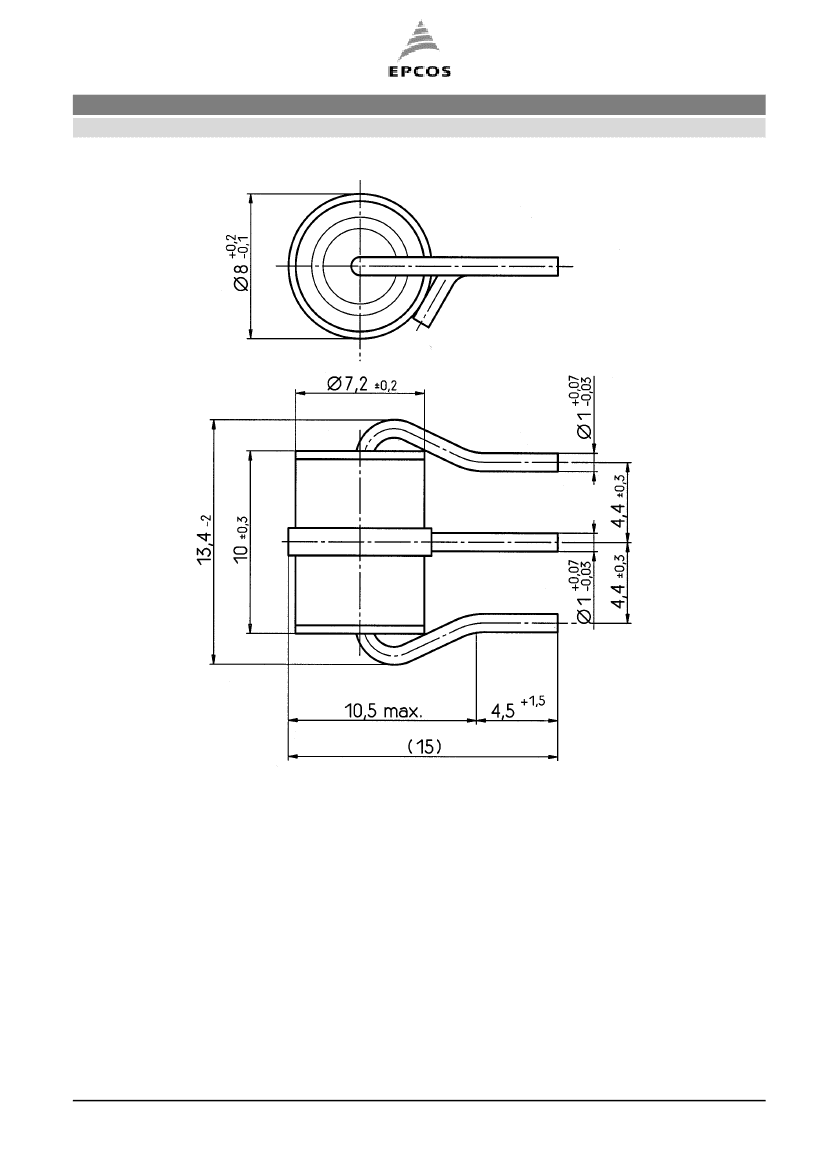

Page 1 of 2

Issue 03, 08.05.2002
