88333-440LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 88333-440LF

88333-440LF: DescriptionBoard Connector, 40 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size134KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

88333-440LF Overview

Board Connector, 40 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, LEAD FREE

88333-440LF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	0.187 inch
subject depth	0.287 inch
body length	1.606 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN OVER NICKEL
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	35 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	700VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	1.807 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	88333
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	8u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.098 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	40
UL Flammability Code	94V-0
Evacuation force-minimum value	.1946 N
Base Number Matches	1

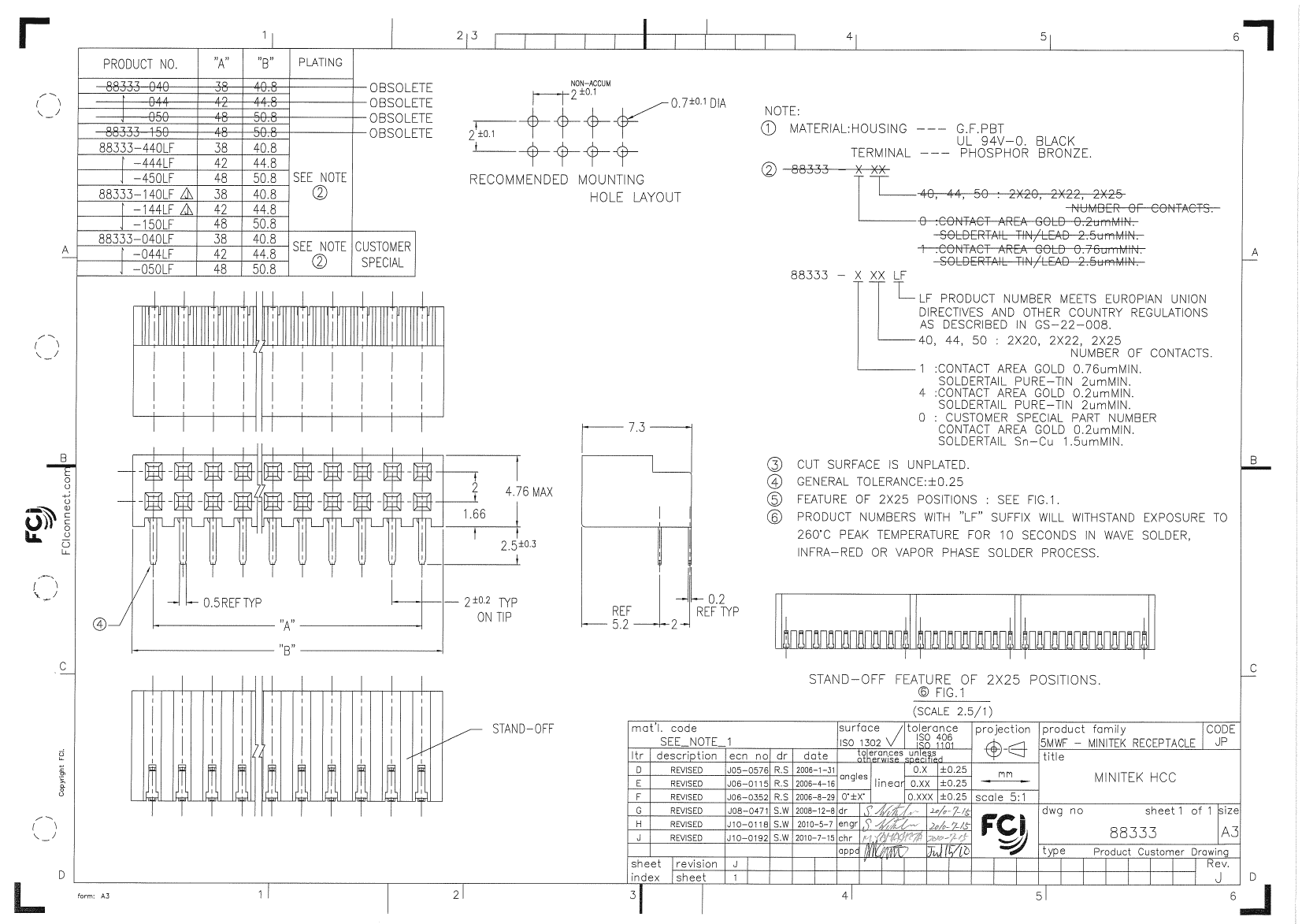

Preview

Download Datasheet

View All

PDM: Rev:J

STATUS:

Released

Printed: Aug 06, 2010

88333-440LF Related Products

	88333-440LF	88333-444LF	88333-140LF	88333-144LF	88333-044LF	88333-050LF	88333-150LF	88333-150	88333-450LF
Description	Board Connector, 40 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, LEAD FREE	Board Connector, 44 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, LEAD FREE	Board Connector, 40 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, Receptacle, LEAD FREE	Board Connector, 44 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, Receptacle, LEAD FREE	Board Connector, 44 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle, LEAD FREE	Board Connector, 50 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal, Receptacle, LEAD FREE	Board Connector, 50 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, LEAD FREE	Board Connector, 50 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle	Board Connector, 50 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, LEAD FREE
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	unknown	unknown	compliant	compliant	unknown	unknown	unknown	unknown	unknown
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL	GOLD (30)	GOLD (30)	GOLD (8)	GOLD (8)	MATTE TIN OVER NICKEL	TIN LEAD OVER NICKEL	MATTE TIN OVER NICKEL
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	TIN (79)	TIN (79)	Tin/Copper (Sn/Cu)	TIN COPPER (59)	Matte Tin (Sn) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	NOT SPECIFIED	NOT SPECIFIED	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3	e2	e2	e3	e0	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	40	44	40	44	44	50	50	50	50
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1	1	1
Is it lead-free?	Lead free	Lead free	-	-	Lead free	Lead free	Lead free	-	Lead free
Is it Rohs certified?	conform to	conform to	-	-	conform to	conform to	conform to	incompatible	conform to
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	-	LEAD FREE
body width	0.187 inch	0.187 inch	-	-	0.187 inch	-	0.187 inch	0.187 inch	0.187 inch
subject depth	0.287 inch	0.287 inch	-	-	0.287 inch	-	0.287 inch	0.287 inch	0.287 inch
body length	1.606 inch	1.764 inch	-	-	1.764 inch	-	2 inch	2 inch	2 inch
contact mode	RECTANGULAR	RECTANGULAR	-	-	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	35 mΩ	35 mΩ	-	-	35 mΩ	-	35 mΩ	35 mΩ	35 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	-	-	SQ PIN-SKT	-	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	700VAC V	700VAC V	-	-	700VAC V	-	700VAC V	700VAC V	700VAC V
maximum insertion force	1.807 N	1.807 N	-	-	1.807 N	-	1.807 N	1.807 N	1.807 N
Insulation resistance	1000000000 Ω	1000000000 Ω	-	-	100000000 Ω	-	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	-	-	BLACK	-	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	-	-	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	-	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	88333	88333	88333	88333	-	88333	88333	88333	88333
Plug contact pitch	0.079 inch	0.079 inch	-	-	0.079 inch	-	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	-	-	0.079 inch	-	0.079 inch	0.079 inch	0.079 inch
Installation option 1	LOCKING	LOCKING	-	-	LOCKING	-	LOCKING	LOCKING	LOCKING
Number of connectors	ONE	ONE	-	-	ONE	-	ONE	ONE	ONE
PCB row number	2	2	-	-	2	-	2	2	2
Maximum operating temperature	125 °C	125 °C	-	-	125 °C	-	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-	-	-50 °C	-	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	-	-	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.0066 mm	2.0066 mm	-	-	2 mm	-	2.0066 mm	2.0066 mm	2.0066 mm
Plating thickness	8u inch	8u inch	-	-	8u inch	-	30u inch	30u inch	8u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	-	-	-	-	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A	-	-	1 A	-	1 A	1 A	1 A
Guideline	UL, CSA	UL, CSA	-	-	UL, CSA	-	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	-	-	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.098 inch	0.098 inch	-	-	0.098 inch	-	0.098 inch	0.098 inch	0.098 inch
Evacuation force-minimum value	.1946 N	.1946 N	-	-	.1946 N	-	.1946 N	.1946 N	.1946 N
