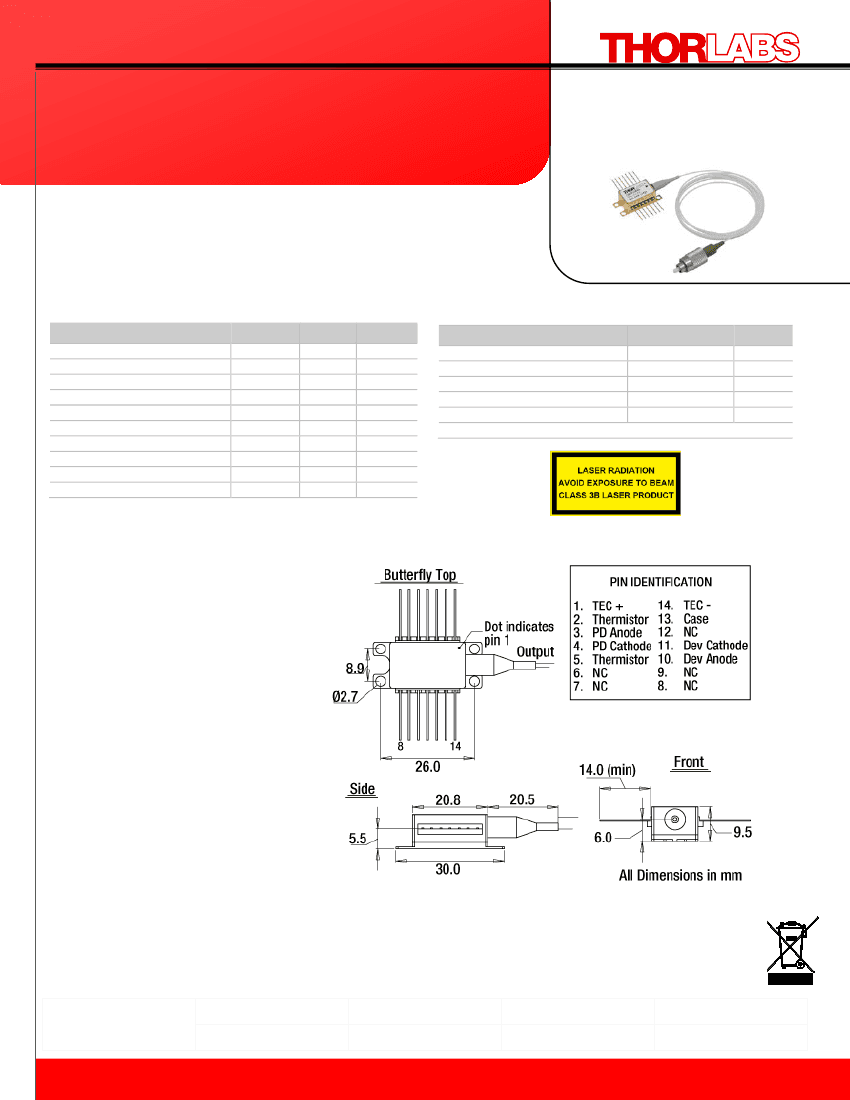

Product Data Sheet
DBR Fiber-Pigtailed Laser
with built in isolator
S/N: DBR-32676
Wavelength: 1064.2nm
Fiber Type: PM980-XP
Test Date: 9/11/2018
DBR1064P
ËDBR1064P<Î
ËDBR-32676/Î
Package:1064-2-2-Y-P-A
Connector: FC/APC
Tested By: Paya
QA: Pass
Summary of Test Data ( CW)
Absolute Maximum Ratings
Parameter
Operating Current
Operating Temperature
Fiber Output Power @ I
op
,T
op
Voltage @ I
op
,T
op
Monitor Current @ I
op
,T
op
SMSR @ I
op
,T
op
Threshold Current @ T
op
Slope Efficiency @ T
op
Current Tuning
Temperature Tuning
Symbol
I
op
T
op
P
out
V
F
I
mon
SMSR
I
th
ΔP/ΔI
Δλ/ΔI
Δλ/ΔT
Value
150.0
25.0
40.6
1.44
0.071
50.9
28.0
0.32
0.0020
0.076
Unit
mA
°C
mW
V
mA
dB
mA
W/A
nm/mA
nm/°C
Parameter
Laser Diode Current*
Optical Output Power*
LD Reverse Voltage*
Storage Temperature
Case Temperature
* CW, T
case
=25°C
Ratings
200
50
2
-10~+65
0~+50
Unit
mA
mW
V
°C
°C
CAUTION- use of controls or
adjustments or performance of
procedures other than those
specified herein may result in
hazardous radiation exposure.
There are no user serviceable
parts in this product. When
proper power is applied to this
product, Laser radiation will be
emitted from the optical fiber.
Important Notes:
1.
2.
3.
4.
T
he maximum ratings mean the limitation over which the laser should not be operated even instant time.
Do not clean the fiber connector when the diode is in operation. The laser should be off when plugging or un-plugging the connector.
To protect the laser diode from damage due to static electricity (ESD), please follow proper ESD handling precautions.
Do not pull or fold the fiber. The fiber is very fragile and easily broken. Avoid handling the fiber by the rubber “boots” of the black
housing and connector ends of the pigtail.
5. To ensure safe operation use only with a suitable power source that complies with the pertinent requirements for laser systems as
specified in IEC-60825-1 “Safety of Laser Products.”
US, Canada & South America
1-973-300-3000
Brazil
+55-16-3413 7062
France
+33 (0)970 440 844
Scandinavia
+46-31-733-30-00
Europe
+49 (0) 8131-5956-0
Japan & Asia
+81-3-5979-8889
UK & Ireland
+44 (0)1353-654440
China
+86 (0)21-60561122
Specifications subject to change without notice.
Thorlabs Inc
56 Sparta Avenue
Newton, New Jersey 07860
USA
Product Data Sheet

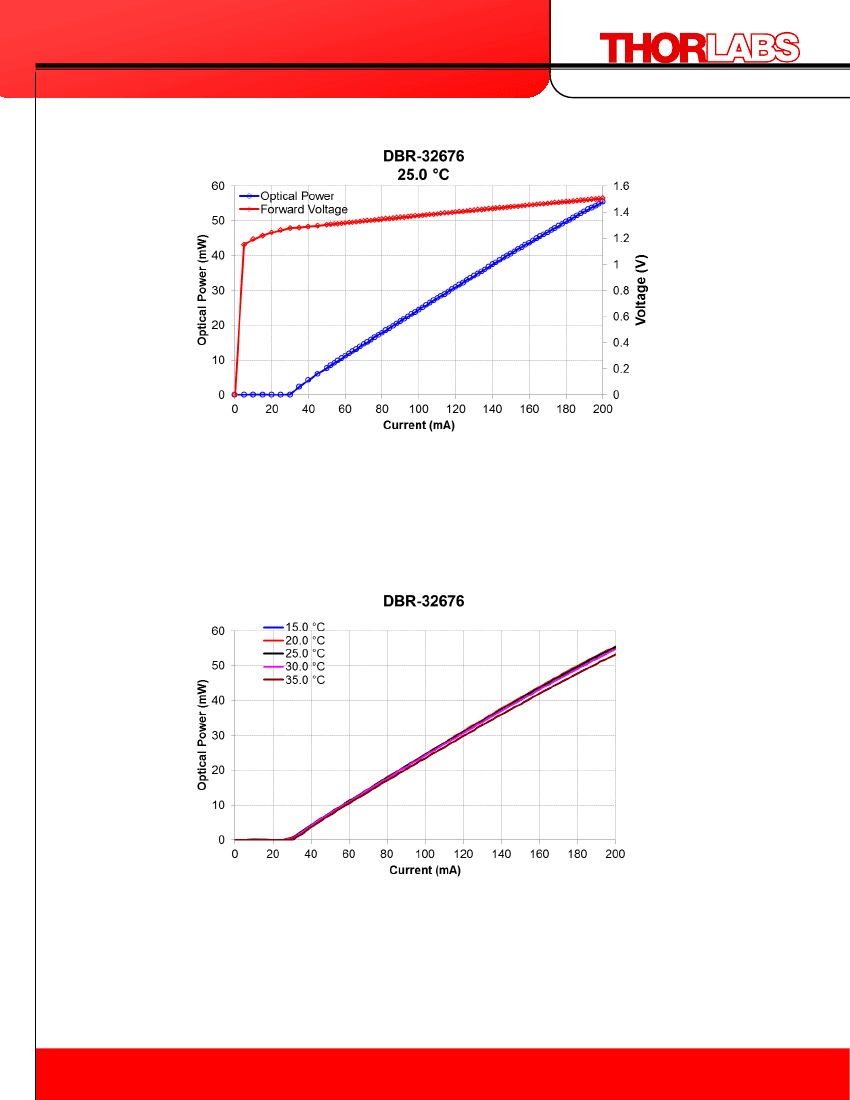

Figure 1: Output Power and Operating Voltage versus Bias Current
Figure 2: Output Power versus Bias Current
www.thorlabs.com
Specifications subject to change without notice.
Product Data Sheet

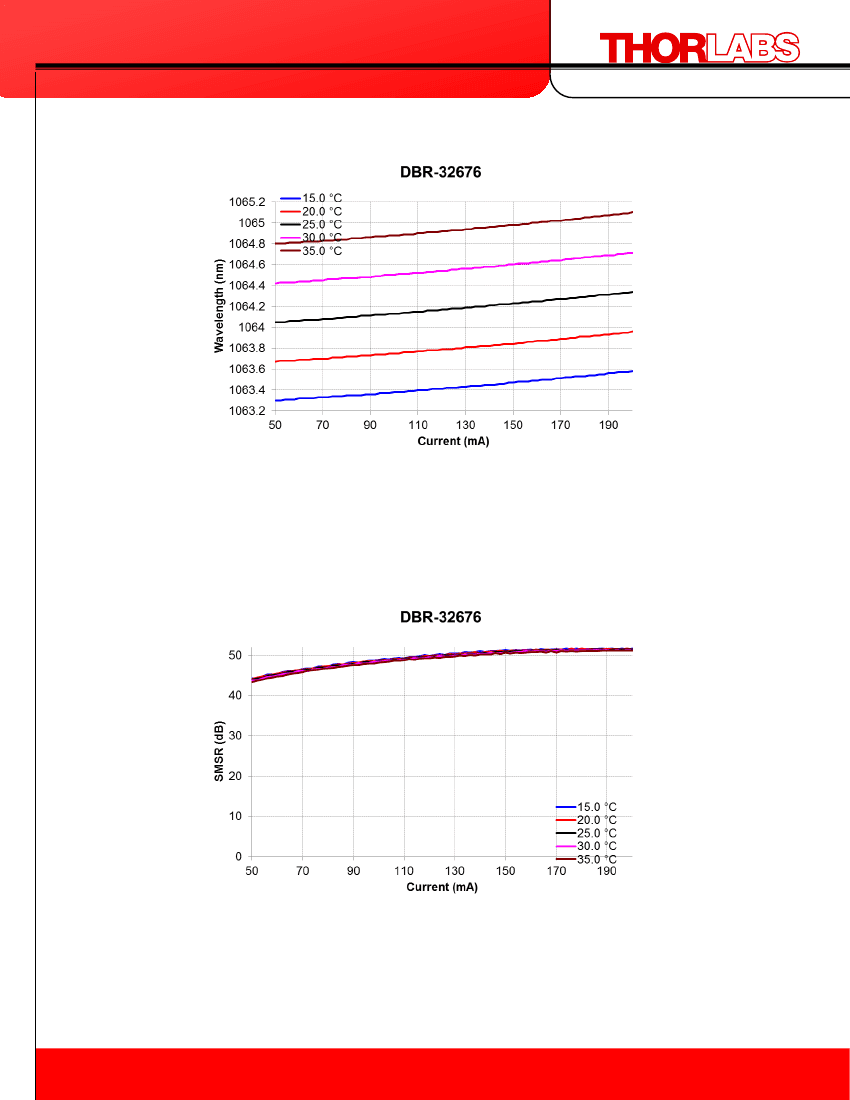

Figure 3: Wavelength versus Bias Current
Figure 4: Side Mode Suppression Ratio (SMSR) versus Bias Current
www.thorlabs.com
Specifications subject to change without notice.
Product Data Sheet

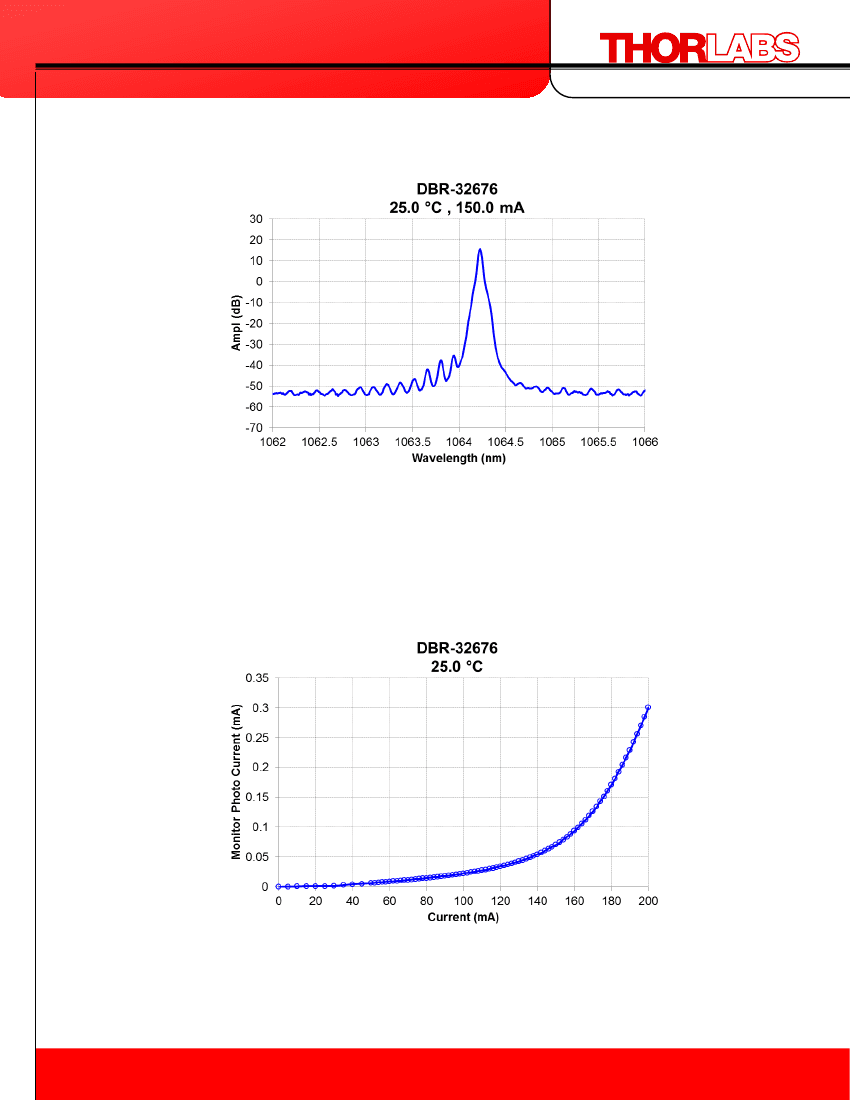

Figure 5: Optical Spectrum (RBW=0.02nm)
Figure 6: Monitor Photodiode Current versus Bias Current
www.thorlabs.com
Specifications subject to change without notice.
