NOTES:
1. MATERIALS AND FINISHES:
SMA BULKHEAD CRIMP JACK IP 67 - P/N: 132422
MICRO COAX RIGHT ANGLE PLUG USING 1.13 MM CABLE - P/N: A-1PA-113-XXXB2
2. ELECTRICAL:
A. IMPEDANCE: 50 OHM, NOMINAL
3. PACKAGING:
A. QUANTITY: SINGLE PACK
B. BAG TO BE MARKED: AMPHENOL RF, 336309-12-XXXX, AND DATE CODE
336309-12-XXXX
DRAWING NO.
THIRD ANGLE PROJ.
REVISIONS
REV
A
B
C
RELEASE TO MFG.
CORRECTED DIMENSIONING ERROR (SEE SHEET 1)
SEE SHEET 1
DESCRIPTION
09-Feb-11
08-Jul-14
07-Apr-15
DATE
ECO
50472
2751
--
APPR
KR/BG
BCG
RAK
LENGTH AND TOLERANCE (SEE TABLE)
HEAT SHRINK TUBE
1.13 MM CABLE
'D' FLAT
GASKET
LOCK WASHER
HEX NUT
SMA BULKHEAD CRIMP JACK IP 67
336309-12-0050
336309-12-0075
336309-12-0100
336309-12-0150
336309-12-0200
336309-12-0250
CONNEX NUMBER
CABLE LENGTH (IN) CABLE LENGTH (MM)
1.968 # 0.150
3.936 # 0.150
5.905 # 0.150
7.873 # 0.200
11.810 # 0.200
9.842 # 0.200
2.95 # 0.150
50 # 3.81
75 # 3.81
100 # 3.81
150 # 3.81
200 # 5.08
250 # 5.08
300 # 5.08
SCALE 1.250
DESIGN REQUIREMENTS:
X
FREQUENCY: DC TO 6 GHz
VSWR _____ : 1 MAX
INS. LOSS _____ dB MAX
336309-12-0300
X
CONTINUITY
X
HI-POT :200 VRMS
OTHER
MATERIAL
* ADDITIONAL LENGTHS CAN BE PROVIDED,
CONTACT AMPHENOL RF MARKETING FOR QUOTE
CUSTOMER OUTLINE DRAWING
ALL OTHER SHEETS ARE FOR INTERNAL USE ONLY
DRAWN
UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
NOTICE - These drawings, specificati
property of Amphenol Corp. (2) must
confidential and not to be disclosed
are given by Amphenol Corp. The fur
other data by Amphenol Corp., or to
not to be regarded by implication or
rights or permitting such holder or
product, process or design, patented
or disclosed by said drawings, speci
ons, or other data (1) are, and rema
be returned upon request; and (3) ar
to any person other than those to w
nishing of these drawings, specifica
any other person to anyone for any p
otherwise in any manner licensing,
any other person to manufacture, use
or otherwise, that may in any way b
fications, or other data.
in the
e
hom they
tions, or
urpose is
granting
or sell any
e related to
SEE NOTES
REFERENCE
ABHAYA KISHORE
ABHAYA KISHORE
B.C. GLEISSNER
09-Feb-11
09-Feb-11
08-Jul-14
DATE
DATE
DATE
TITLE
ENGINEER
APPROVED
CAD FILE

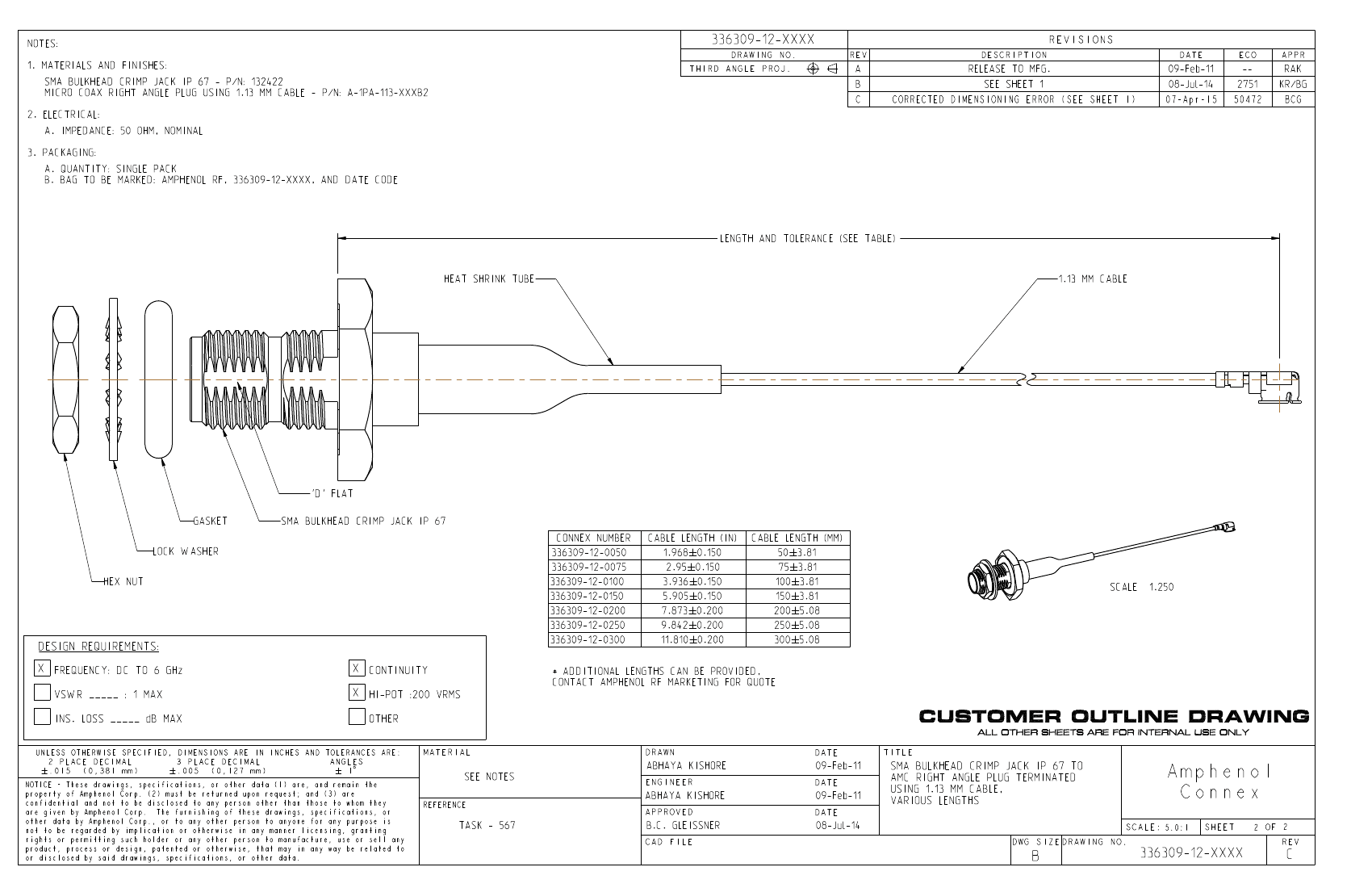

SMA BULKHEAD CRIMP JACK IP 67 TO
AMC RIGHT ANGLE PLUG TERMINATED
USING 1.13 MM CABLE,
VARIOUS LENGTHS
Amphenol
Connex
SCALE: 5.0:1
SHEET
2 OF 2
REV
TASK - 567
DWG SIZE DRAWING NO.
B
336309-12-XXXX
C
