CMD6NP-682MC: Description1 ELEMENT, 6800 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size122KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

CMD6NP-682MC Overview

1 ELEMENT, 6800 uH, GENERAL PURPOSE INDUCTOR, SMD

CMD6NP-682MC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
package instruction	2424
Reach Compliance Code	unknow
ECCN code	EAR99
uppercase and lowercase codes	2424
structure	Magnetically Shielded
core material	Ferrite
DC Resistance	42 Ω
Nominal inductance(L)	6800 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CMD-6
Number of functions	1
Number of terminals	7
Package height	6 mm
Package length	6 mm
Package form	PCB Mou
Package width	6 mm
method of packing	Tape
Minimum quality factor (at nominal inductance)	59
Maximum rated current	0.035 A
self resonant frequency	1.04 MHz
series	CMD-6
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL IN-LINE
Terminal shape	GULL WING
Test frequency	0.001 MHz
Tolerance	20%

Preview

Download Datasheet

View All

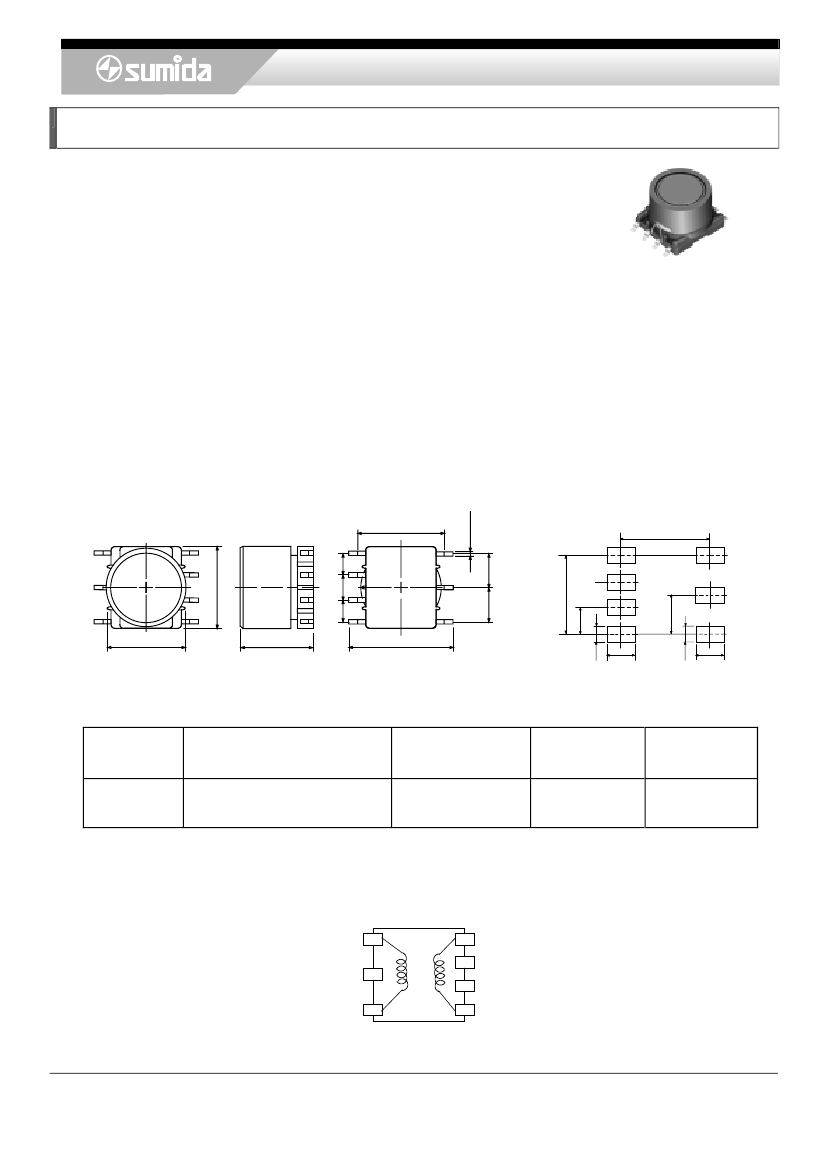

General Power Transformer <SMD Type: CMD Series>

Type: CMD-6

◆

Product Description

・6.5×6.5mm

Max.(L×W), 6.0mm Max. Height.

・Inductance

range: 22μH½10mH

・Rated

current range: 30mA½650mA

・7

Terminal pins’ type gives a flexible design as inductors or transformers.

・Custom

design is available.

◆

Feature

・Magnetically

shielded construction.

・Ideally

used in DSC/DVC,LCD TV,DVD, Game machine, STB ,Projector, Power supply module

etc as DC-DC Converter inductors or transformers.

・RoHS

Compliance

◆

Dimensions (mm)

±0.2

1.5 1.5 ±0.2

◆

Land Pattern (mm)

6.5±0.5

0.5±0.1

7.35

6.0±0.5

2.25

4.5

1.5

2.25

1.5

6.0±0.5

6.0 MAX.

※ 8.2±0.5

1.0

2.0

◆

Specification (for transformers)

Sample No.

Inductance (1-3)

1kHz/1V

460µH±25%

D.C.R.

(1-3)

4.2Ω Max.

D.C.R.

(4-7)

5.4Ω(4.5)

Rated current

(1-3)

140mA

6304-T003

※

Rated current: The DC current at which

△t=40℃,

whichever is lower(Ta=20℃).

the inductance decreases to 90 % of it’s initial value or when

※

Schematics (Bottom)

“Ｓ”is

winding start.

3

2

S 1

4 S

5

6

7

Please refer to the sales offices on our website for a representative near you

www.sumida.com

1/2
