336319-12-0075 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> 336319-12-0075

336319-12-0075: DescriptionCable Assembly; CategoryThe connector Connector bracket; File Size307KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

336319-12-0075 Overview

Cable Assembly

336319-12-0075 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
Reach Compliance Code	compliant
Connector bracket type	CABLE ASSEMBLY
Base Number Matches	1

Preview

Download Datasheet

View All

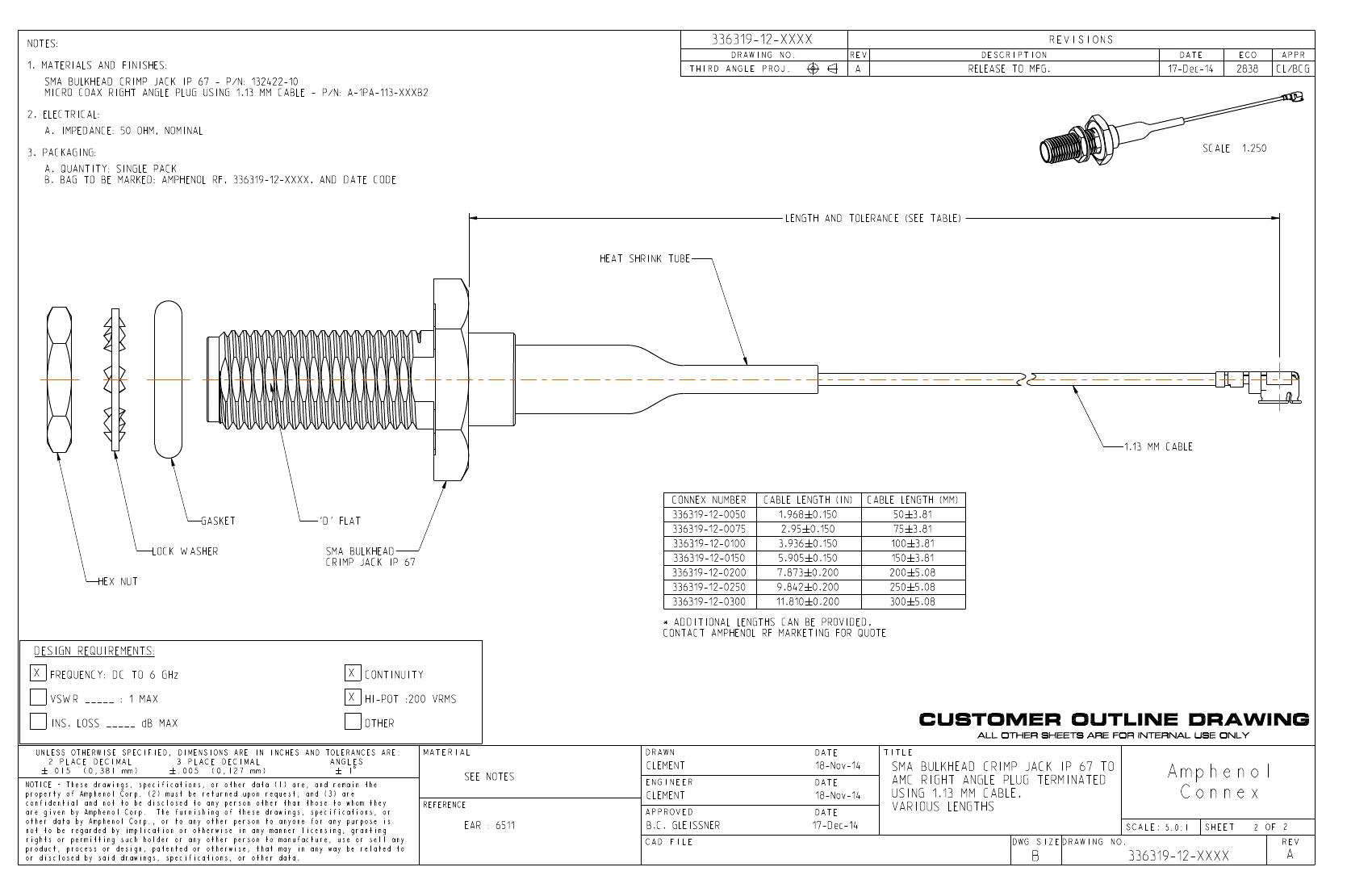

NOTES:

1. MATERIALS AND FINISHES:

SMA BULKHEAD CRIMP JACK IP 67 - P/N: 132422-10

MICRO COAX RIGHT ANGLE PLUG USING 1.13 MM CABLE - P/N: A-1PA-113-XXXB2

2. ELECTRICAL:

A. IMPEDANCE: 50 OHM, NOMINAL

3. PACKAGING:

A. QUANTITY: SINGLE PACK

B. BAG TO BE MARKED: AMPHENOL RF, 336319-12-XXXX, AND DATE CODE

336319-12-XXXX

DRAWING NO.

THIRD ANGLE PROJ.

REVISIONS

REV

RELEASE TO MFG.

DESCRIPTION

17-Dec-14

DATE

2838

ECO

CL/BCG

APPR

SCALE 1.250

LENGTH AND TOLERANCE (SEE TABLE)

HEAT SHRINK TUBE

1.13 MM CABLE

GASKET

LOCK WASHER

HEX NUT

'D' FLAT

SMA BULKHEAD

CRIMP JACK IP 67

336319-12-0050

336319-12-0075

336319-12-0100

336319-12-0150

336319-12-0200

336319-12-0250

336319-12-0300

CONNEX NUMBER

CABLE LENGTH (IN) CABLE LENGTH (MM)

1.968 # 0.150

3.936 # 0.150

5.905 # 0.150

7.873 # 0.200

11.810 # 0.200

9.842 # 0.200

2.95 # 0.150

50 # 3.81

75 # 3.81

100 # 3.81

150 # 3.81

200 # 5.08

250 # 5.08

300 # 5.08

* ADDITIONAL LENGTHS CAN BE PROVIDED,

CONTACT AMPHENOL RF MARKETING FOR QUOTE

DESIGN REQUIREMENTS:

FREQUENCY: DC TO 6 GHz

VSWR _____ : 1 MAX

INS. LOSS _____ dB MAX

CONTINUITY

HI-POT :200 VRMS

OTHER

MATERIAL

DRAWN

DATE

TITLE

CUSTOMER OUTLINE DRAWING

ALL OTHER SHEETS ARE FOR INTERNAL USE ONLY

SEE NOTES

CLEMENT

18-Nov-14

17-Dec-14

ENGINEER

APPROVED

CAD FILE

UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:

2 PLACE DECIMAL

3 PLACE DECIMAL

ANGLES

NOTICE - These drawings, specificati

property of Amphenol Corp. (2) must

confidential and not to be disclosed

are given by Amphenol Corp. The fur

other data by Amphenol Corp., or to

not to be regarded by implication or

rights or permitting such holder or

product, process or design, patented

or disclosed by said drawings, speci

ons, or other data (1) are, and rema

be returned upon request; and (3) ar

to any person other than those to w

nishing of these drawings, specifica

any other person to anyone for any p

otherwise in any manner licensing,

any other person to manufacture, use

or otherwise, that may in any way b

fications, or other data.

in the

hom they

tions, or

urpose is

granting

or sell any

e related to

REFERENCE

SMA BULKHEAD CRIMP JACK IP 67 TO

AMC RIGHT ANGLE PLUG TERMINATED

USING 1.13 MM CABLE,

VARIOUS LENGTHS

DWG SIZE DRAWING NO.

Amphenol

Connex

SCALE: 5.0:1

SHEET

2 OF 2

REV

EAR : 6511

B.C. GLEISSNER

336319-12-XXXX
