CMD6LNP-471MB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> CMD6LNP-471MB

CMD6LNP-471MB: Description1 ELEMENT, 470 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size127KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance; Related ProductsFound1parts with similar functions to CMD6LNP-471MB

Download Datasheet Parametric View All

CMD6LNP-471MB Overview

1 ELEMENT, 470 uH, GENERAL PURPOSE INDUCTOR, SMD

CMD6LNP-471MB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	2424
Reach Compliance Code	unknow
ECCN code	EAR99
uppercase and lowercase codes	2424
structure	Magnetically Shielded
core material	Ferrite
DC Resistance	3.72 Ω
Nominal inductance(L)	470 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CMD
Number of functions	1
Number of terminals	7
Package height	5 mm
Package length	6 mm
Package form	PCB Mou
Package width	6 mm
method of packing	Box
Minimum quality factor (at nominal inductance)	48
Maximum rated current	0.12 A
self resonant frequency	5.3 MHz
series	CMD-6L
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
special characteristics	Q IS MEASURED AT 100KHZ
surface mount	YES
Terminal shape	GULL WING
Test frequency	0.001 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

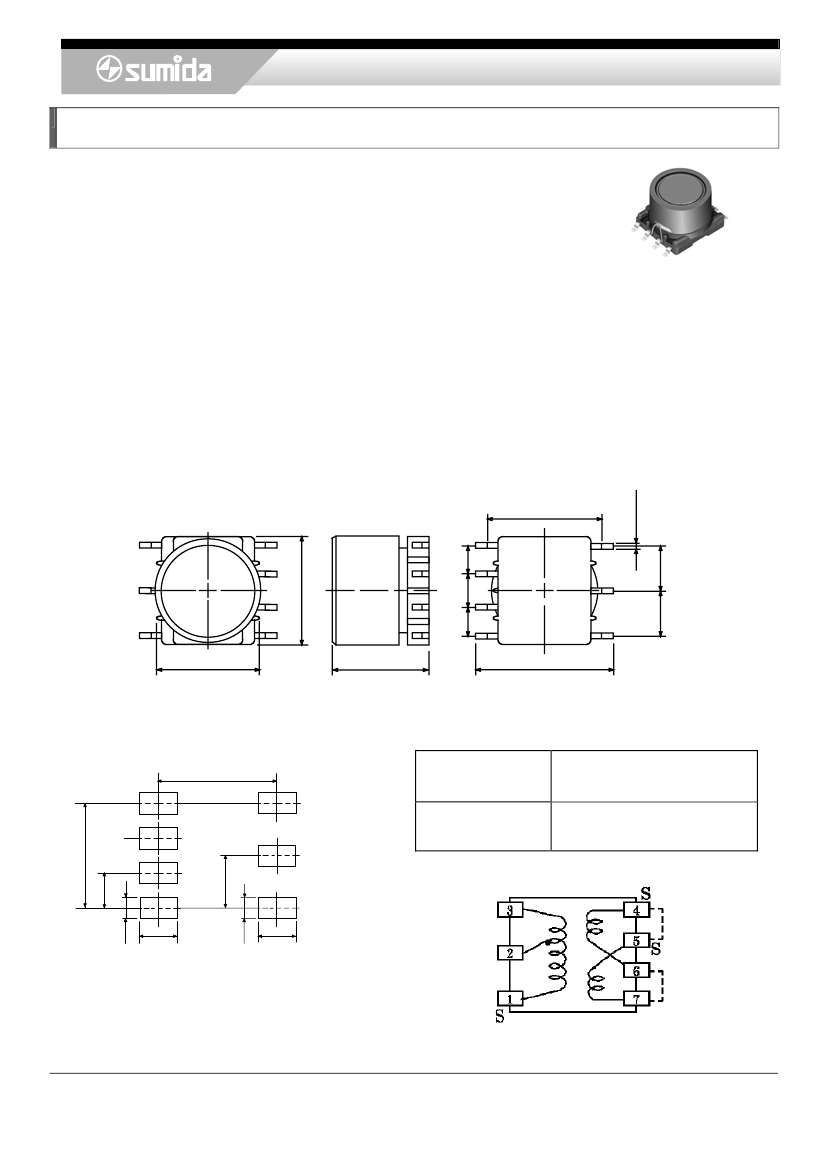

Power Inductors <SMD Type: CMD Series>

Type: CMD-6L

◆

Pr0duct Descripti0n

・6.5×6.5mm

Max.(L×W), 5.0mm Max. Height.

・Inductance

range: 22μH½1.0mH

・Rated

current range: 83mＡ½560mA

・7

Terminal pins’ type gives a flexible design as inductors or transformers.

・Custom

design is available.

◆

Feature

・Magnetically

shielded construction.

・Ideally

used in DSC/DVC,LCD TV,DVD, Game machine, STB ,Projector, Power supply module

etc as DC-DC Converter inductors or transformers.

・RoHS

Compliance

0.5±0.1

◆

Dimensions (mm)

1.5 1.5 ±0.2

6.0±0.5

5.0 MAX.

1.5

8.2±0.5

◆

Land Pattern (mm)

7.35

◆Specification

(for transformers)

Sample No.

S1673900

Inductance (1-3)

1kHz

1.25mH±35%

※Schematics

(Bottom)

2.0

“S” is winding start

Please refer to the sales offices on our website for a representative near you

www.sumida.com

2.25

±0.2

6.5±0.5

4.5

2.25

1.5

1.0

1/2
