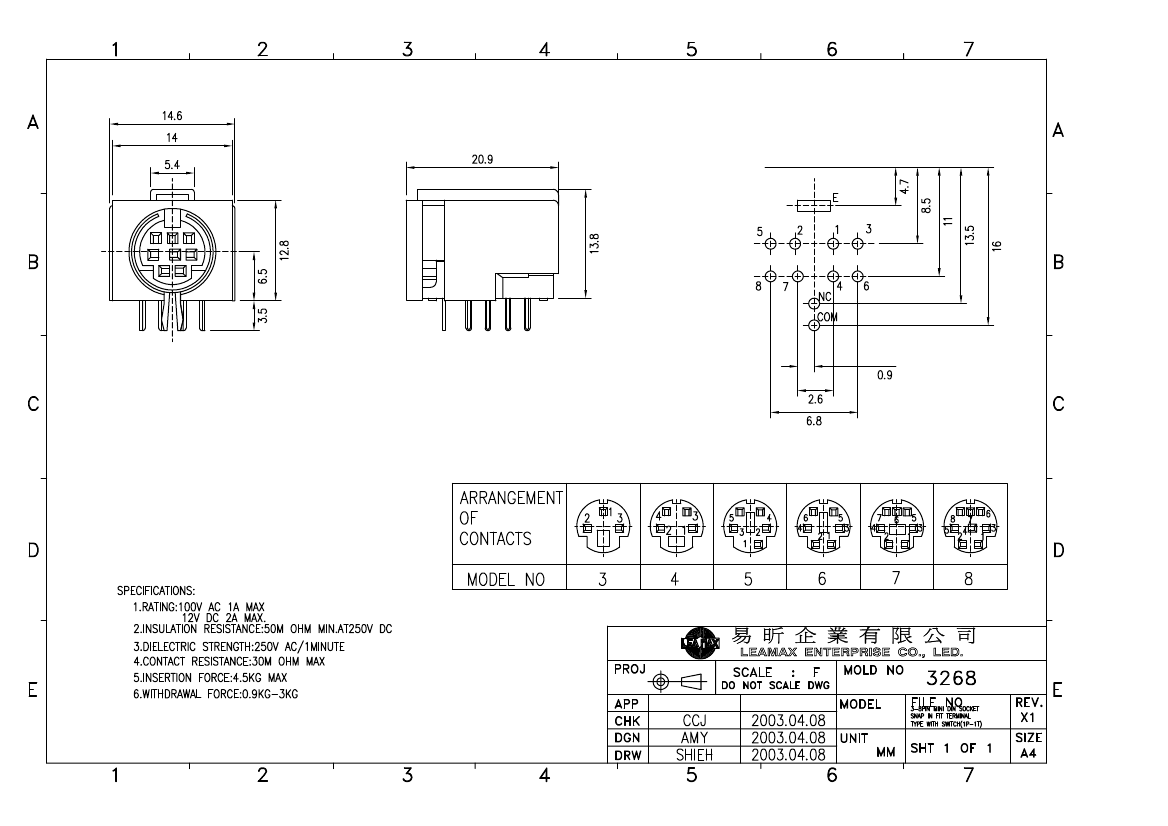

3268-8 datasheet, PDF - EEWORLD Datasheet

3268-8: DescriptionCircular DIN Connector, 8 Contact(s), Male, Board Mount, Press Fit Terminal, Guide Slot, Receptacle; CategoryThe connector The connector; File Size44KB，1 Pages; ManufacturerLeamax Enterprise Co., Ltd.

Download Datasheet Parametric Compare View All

3268-8 Overview

Circular DIN Connector, 8 Contact(s), Male, Board Mount, Press Fit Terminal, Guide Slot, Receptacle

Parameter Name	Attribute value
Maker	Leamax Enterprise Co., Ltd.
Reach Compliance Code	unknown
Other features	WITH 1P1T SWITCH
body width	0.543 inch
subject depth	0.61 inch
body length	0.575 inch
Body/casing type	RECEPTACLE
Connector type	CIRCULAR DIN CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	500VAC V
Insulation resistance	50000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	3268
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	BRASS
Terminal length	0.138 inch
Termination type	PRESS FIT
Total number of contacts	8
Evacuation force-minimum value	1.112 N
Base Number Matches	1

	3268-8	3268-5
Description	Circular DIN Connector, 8 Contact(s), Male, Board Mount, Press Fit Terminal, Guide Slot, Receptacle	Circular DIN Connector, 5 Contact(s), Male, Board Mount, Press Fit Terminal, Guide Slot, Receptacle
Maker	Leamax Enterprise Co., Ltd.	Leamax Enterprise Co., Ltd.
Reach Compliance Code	unknown	unknown
Other features	WITH 1P1T SWITCH	WITH 1P1T SWITCH
body width	0.543 inch	0.543 inch
subject depth	0.61 inch	0.61 inch
body length	0.575 inch	0.575 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI
Contact point gender	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	30 mΩ	30 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	YES	YES
Dielectric withstand voltage	500VAC V	500VAC V
Insulation resistance	50000000 Ω	50000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	3268	3268
Installation option 1	GUIDE SLOT	GUIDE SLOT
Installation option 2	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of ports	1	1
Plating thickness	FLASH inch	FLASH inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN
Shell material	BRASS	BRASS
Terminal length	0.138 inch	0.138 inch
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	8	5
Base Number Matches	1	1
