480135G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 480135G

480135G: DescriptionRotary Coded Switch, 16 Positions, Binary Coded Hexadecimal, Latched, 0.04A, 20VDC, Solder Terminal, Extended Shaft Type Actuator, Surface Mount-straight, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size305KB，2 Pages; ManufacturerEECO Switch; Environmental Compliance

Download Datasheet Parametric Compare View All

480135G Overview

Rotary Coded Switch, 16 Positions, Binary Coded Hexadecimal, Latched, 0.04A, 20VDC, Solder Terminal, Extended Shaft Type Actuator, Surface Mount-straight, ROHS COMPLIANT

480135G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	EECO Switch
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator type	EXTENDED SHAFT TYPE
Other features	ULTRA LOW PROFILE
body width	7 mm
body height	3 mm
Body length or diameter	7 mm
Maximum contact current (DC)	0.04 A
Contact (DC) maximum rated R load	.04A@20VDC
Maximum contact voltage (DC)	20 V
Electrical life	10000 Cycle(s)
JESD-609 code	e4
Manufacturer's serial number	4800
Installation features	SURFACE MOUNT-STRAIGHT
Number of positions	16
Number of switching segments	1
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
surface mount	NO
Switch action	LATCHED
switch function	BINARY CODED HEXADECIMAL
Switch type	ROTARY CODED SWITCH
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

4800 SERIES

MICRO-DIP

SMT PRINTED

CIRCUIT BOARD SWITCHES

LEAD-FREE!

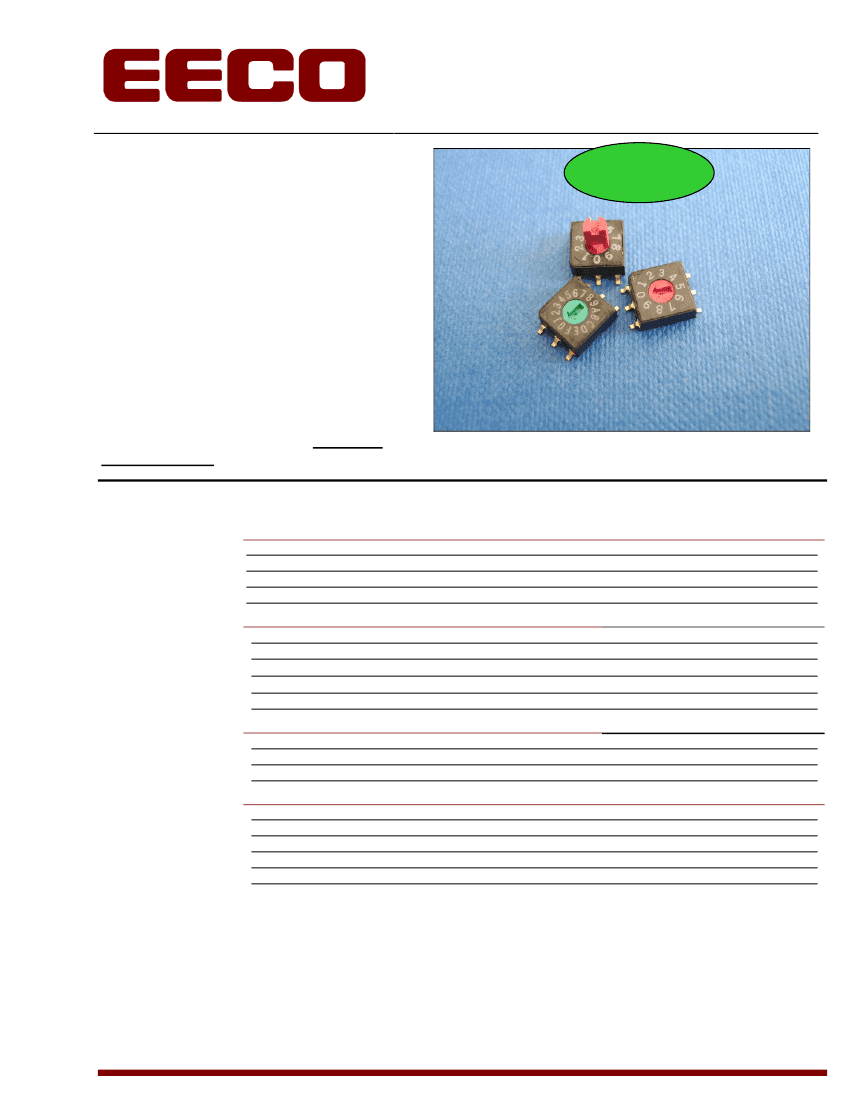

The 4800 Series MICRO-DIP® is a true

SURFACE MOUNT version of our popular

MICRO-DIP family.

Like all EECO MICRO-DIPS, the

4800 Series

permits direct setting of binary-coded values for

PROMs and other user-addressable devices. All

materials used in the

4800 Series

were carefully

selected to withstand the rigors of the surface-

mount process, then engineered into an ultra low

profile, fully sealed package. The compact

dimensions of the

4800 Series

require minimal

board space and permit closely stacked PCB

designs. The ultra low profile design allows

unrestricted heat flow during installation,

eliminating the possibility of shadowing adjacent

components. The

4800 Series

is covered by a

one year warranty.

All

4800 Series

products are

Lead-Free

and

RoHS compliant.

SPECIFICATIONS

MECHANICAL

No. of Switching Positions

Life (Electrical)

(Mechanical)

Rotational Torque (Initial)

10 16

10,000 Detents Min at Rated Load

20,000 Detents Min. At No Load

2.75 Inch/Ounce Max

1µA At 1 mV, AC/DC

40 mA at 20 VDC

100 mΩ Maximum At 10 mA, 2.0 VDC

1,000 MΩ Minimum At 250 VDC

250 VAC, 1 Minute

-30

C To +85

-45

C To +100

Full Process Seal

Polyphenylene Sulfide UL-94 V0

46 Nylon UL-94V0

Silicon Rubber

Beryllium Copper, Gold Over Nickel Plate

Stainless Steel

ELECTRICAL

Minimum Rated Load

Maximum Rated Load, Switching

Contact Resistance (Initial)

Insulation Resistance

Dielectric Withstanding Voltage

ENVIRONMENTAL

Operating Temperature

Storage Temperature

Seal

MATERIALS

Housing and Base

Rotor

O-Ring

Contact and Terminal

Detent

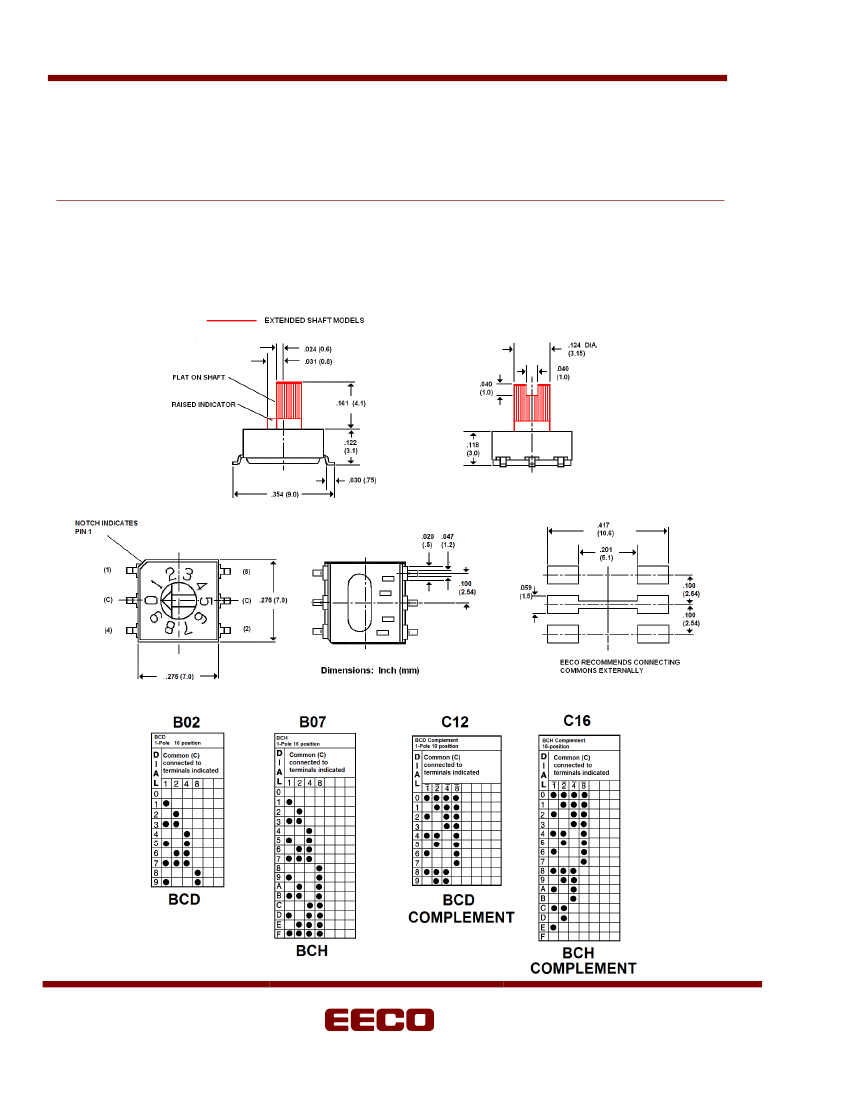

RoHS COMPLIANCE

EECO Switch is fully committed to complying with the European Lead-Free and RoHS directives. The 4800

Series is Lead-Free and RoHS compliant.

Refer to EECO Switch document “Soldering and Cleaning Specifications” for processing information

480135G Related Products

	480135G	480041G	480002G	480035G	480002GR	480041GR	480012G	480141G
Description	Rotary Coded Switch, 16 Positions, Binary Coded Hexadecimal, Latched, 0.04A, 20VDC, Solder Terminal, Extended Shaft Type Actuator, Surface Mount-straight, ROHS COMPLIANT	Rotary Coded Switch, 16 Positions, BCH Complement, Latched, 0.04A, 20VDC, Solder Terminal, Flush Shaft Type Actuator, Surface Mount-straight, ROHS COMPLIANT	Rotary Coded Switch, 10 Positions, Binary Coded Decimal, Latched, 0.04A, 20VDC, Solder Terminal, Flush Shaft Type Actuator, Surface Mount-straight, ROHS COMPLIANT	Rotary Coded Switch, 16 Positions, Binary Coded Hexadecimal, Latched, 0.04A, 20VDC, Solder Terminal, Flush Shaft Type Actuator, Surface Mount-straight, ROHS COMPLIANT	Rotary Coded Switch, 10 Positions, Binary Coded Decimal, Latched, 0.04A, 20VDC, Solder Terminal, Flush Shaft Type Actuator, Surface Mount-straight, ROHS COMPLIANT	Rotary Coded Switch, 16 Positions, BCH Complement, Latched, 0.04A, 20VDC, Solder Terminal, Flush Shaft Type Actuator, Surface Mount-straight, ROHS COMPLIANT	Rotary Coded Switch, 10 Positions, BCD Complement, Latched, 0.04A, 20VDC, Solder Terminal, Flush Shaft Type Actuator, Surface Mount-straight, ROHS COMPLIANT	Rotary Coded Switch, 16 Positions, BCH Complement, Latched, 0.04A, 20VDC, Solder Terminal, Extended Shaft Type Actuator, Surface Mount-straight, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	EECO Switch	EECO Switch	EECO Switch	EECO Switch	EECO Switch	EECO Switch	EECO Switch	EECO Switch
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator type	EXTENDED SHAFT TYPE	FLUSH SHAFT TYPE	FLUSH SHAFT TYPE	FLUSH SHAFT TYPE	FLUSH SHAFT TYPE	FLUSH SHAFT TYPE	FLUSH SHAFT TYPE	EXTENDED SHAFT TYPE
Other features	ULTRA LOW PROFILE	ULTRA LOW PROFILE	ULTRA LOW PROFILE	ULTRA LOW PROFILE	ULTRA LOW PROFILE	ULTRA LOW PROFILE	ULTRA LOW PROFILE	ULTRA LOW PROFILE
body width	7 mm	7 mm	7 mm	7 mm	7 mm	7 mm	7 mm	7 mm
body height	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm
Body length or diameter	7 mm	7 mm	7 mm	7 mm	7 mm	7 mm	7 mm	7 mm
Maximum contact current (DC)	0.04 A	0.04 A	0.04 A	0.04 A	0.04 A	0.04 A	0.04 A	0.04 A
Contact (DC) maximum rated R load	.04A@20VDC	.04A@20VDC	.04A@20VDC	.04A@20VDC	.04A@20VDC	.04A@20VDC	.04A@20VDC	.04A@20VDC
Maximum contact voltage (DC)	20 V	20 V	20 V	20 V	20 V	20 V	20 V	20 V
Electrical life	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4
Manufacturer's serial number	4800	4800	4800	4800	4800	4800	4800	4800
Installation features	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT
Number of positions	16	16	10	16	10	16	10	16
Number of switching segments	1	1	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Switch action	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED
switch function	BINARY CODED HEXADECIMAL	BCH COMPLEMENT	BINARY CODED DECIMAL	BINARY CODED HEXADECIMAL	BINARY CODED DECIMAL	BCH COMPLEMENT	BCD COMPLEMENT	BCH COMPLEMENT
Switch type	ROTARY CODED SWITCH	ROTARY CODED SWITCH	ROTARY CODED SWITCH	ROTARY CODED SWITCH	ROTARY CODED SWITCH	ROTARY CODED SWITCH	ROTARY CODED SWITCH	ROTARY CODED SWITCH
Terminal surface	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Base Number Matches	1	1	1	1	1	1	1	1
