151
Terminal blocks
to
Type 263
Type 262
page 102

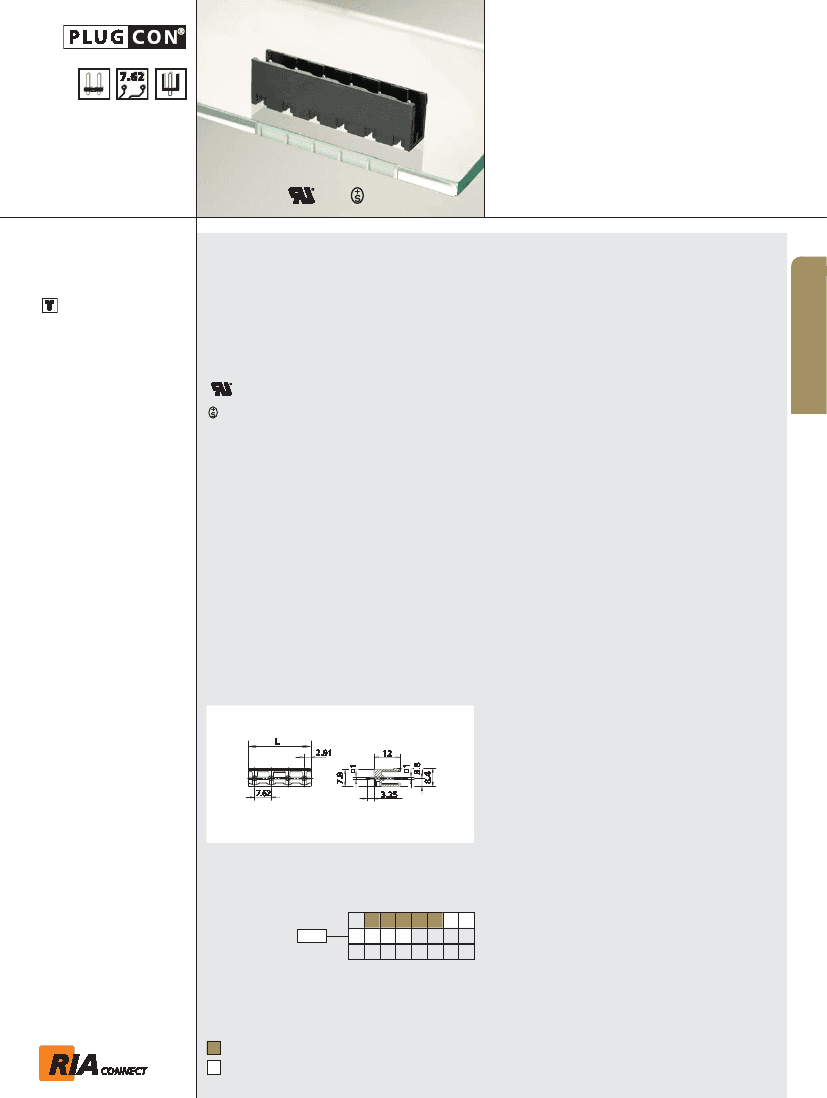

Type 263
Header, centerline 7.62 mm / 0.300 inches, vertical
mounting, square contact pins 1 mm / 0.039 inches,
open ends, codable
A
Accessories
for
Type 263
Coding set
700024
Technical Data
page 206
V/A
300 / 15
500 V / 6 kV / 10 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 6.6 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
500
1250 1250
Rated test voltage
4
8
6
Protection category according
to IEC 529
IP00
Solder pin dimension
1.0 x 1.0 mm
Recommended pc board hole
dia.
Ø 1.5 mm
Solder pin length
3.25 mm
Pole size
2 - 12
Color
black
Dimensions in mm
1 mm = 0.0394 in.
L = (pole size - 1) x centerline + 5.82 mm / 0.229 inches
Part numbers (P/N)
Type 263
centerline 7.62 mm / 0.300 inches
(information: page 110)
Complete the part number by
adding the pole size.
02 03 04 05 06 07 08
09 10 11 12
P/N
312631
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
