359-1-023-0-T-XS0-2130: DescriptionBoard Connector, 23 Contact(s), 1 Row(s), Male, Straight, 0.039 inch Pitch, Wire Wrap Terminal; CategoryThe connector The connector; File Size974KB，1 Pages; ManufacturerMPE-Garry GmbH

Download Datasheet Parametric View All

359-1-023-0-T-XS0-2130 Overview

Board Connector, 23 Contact(s), 1 Row(s), Male, Straight, 0.039 inch Pitch, Wire Wrap Terminal

359-1-023-0-T-XS0-2130 Parametric

Parameter Name	Attribute value
Maker	MPE-Garry GmbH
Reach Compliance Code	compliant
body width	0.049 inch
subject depth	0.256 inch
body length	0.906 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	350VAC V
insulator material	THERMOPLASTIC
Manufacturer's serial number	359
Plug contact pitch	0.039 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.307 inch
Terminal pitch	0.9906 mm
Termination type	WIRE WRAP
Total number of contacts	23
Base Number Matches	1

Preview

Download Datasheet

View All

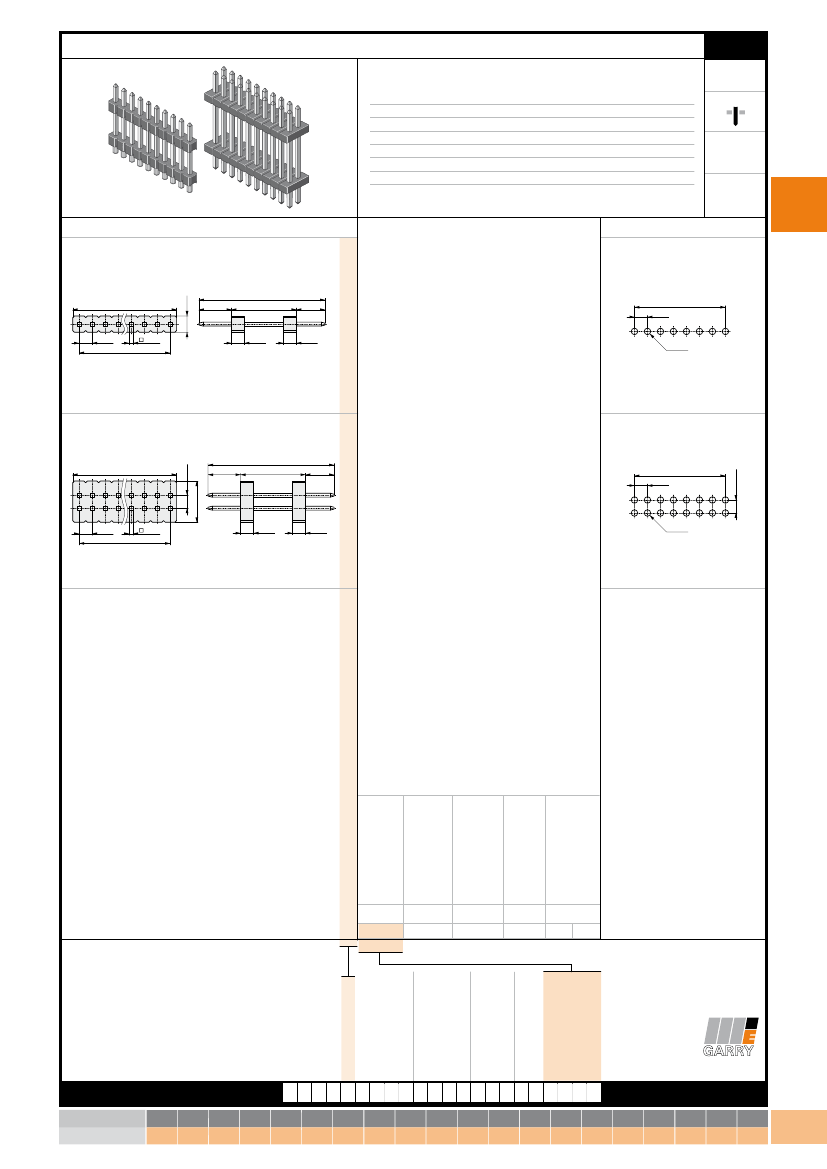

Pin Header Sandwich 1,00 mm

Rated current

1,0 A

Rated voltage

100 V

RMS

/ V

DC

Withstand voltage

250 V

RMS

for one minute

Material contact

Copper alloy

Material insulator

High temp. thermoplast UL94V-0

Operating temperature -40°C to +105°C

Max. processing temper. 260°C for 10 seconds

All dimensions in mm.

Series

359

pitch

termination

contact

size

1,00

MPE-Garry GmbH • Schäfflerstraße 13 • 87629 Füssen • Germany • Phone: +49 (0) 83 62 / 91 56-0 • Fax: +49 (0) 83 62 / 91 56-500 • Email: vk@mpe-connector.de • www.mpe-connector.de

Variation

PCB Layout

050 / 100

max.

pincount

☐

0,30

Product

group

3

n x 1,00

C

A

L

1,25

B

1

(n-1) x 1,00

1,00

0,30

(n-1) x 1,00

1,00

ø0,70

1,00

3,17

2

1,00

0,30

(n/2-1) x 1,00

ø0,70

A

21,30

Plating:

T = Sn

F = Au

Packaging:

S = Standard

No. of contacts *

(001,... - 100)

B

7,00

C

7,80

L

6,50

1

2

Plating contact (T,F)

A (1/100 mm)

Packaging

www.mpe-connector.de

Order code:

Mating series

see page

359-?-???-0-?-XS0-

????

306

4-4

CS090511_V2

* No. of contacts:

Variation 1 = 001 - 050

Variation 2 = 002 - 100

e.g. 1000 = 10,00 mm

Variation (1,2)

available in variation

see figure left

1,00

(n/2) x 1,00

C

A

L

B

(n/2-1) x 1,00

1,00

3-5
