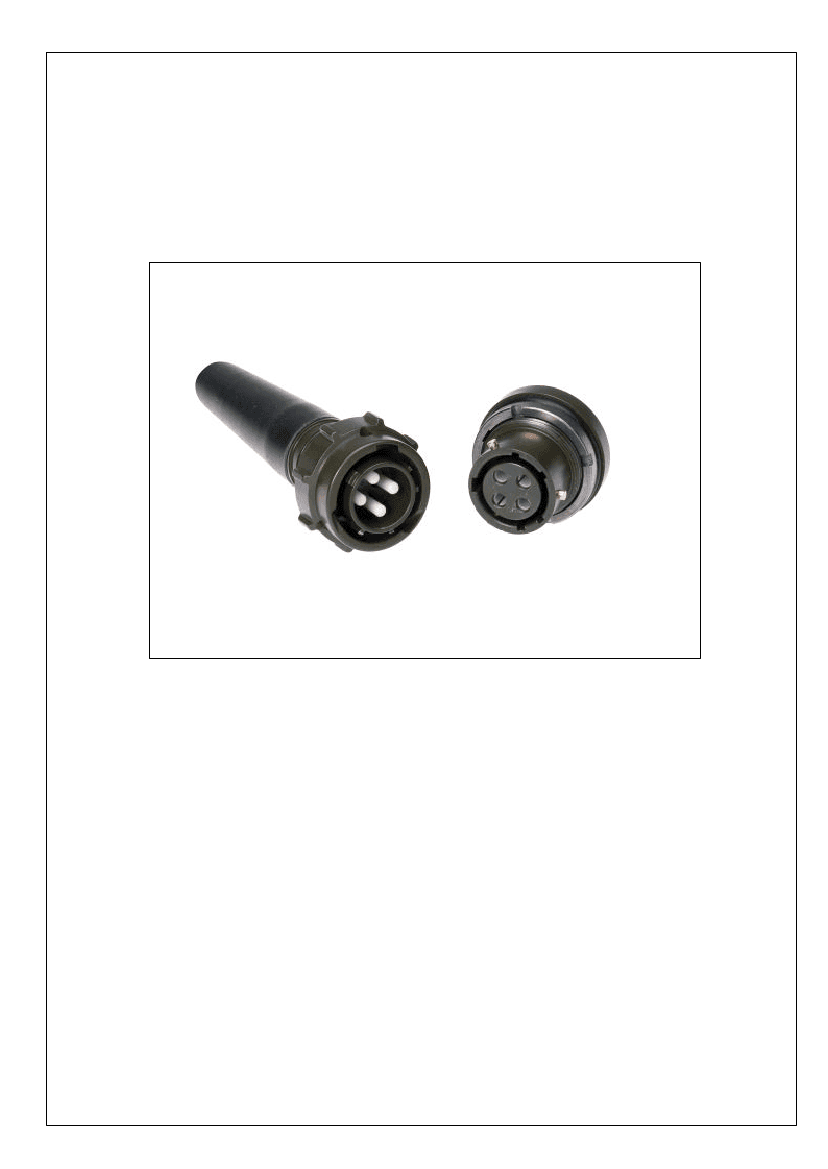

The Multiway Bayonet connector series offers the Pattern 105 series proven connector construction with
the tri-mating bayonet locking mechanism for ease and quick mate/demate.
The MBC series is designed for multimode quad cable, using a tight jacket construction. The MBC
offers a cost effective, harsh environment product that utilises standard 2.5mm zirconia PC ferrules and
alignment sleeves. The MBC free plug is fully sealed and is overmoulded to the cable jacket. The
receptacle is fully sealed to the equipment interface.
n
n
n
n
n
n
n
Free plug, jam nut and square flange receptacles, loopback version
Protective dust caps for all connector styles
Fully keyed and orientated shells
Low insertion loss
Small one-piece lightweight design
Butt joint PC ferrule technology
Factory terminated
Amphenol

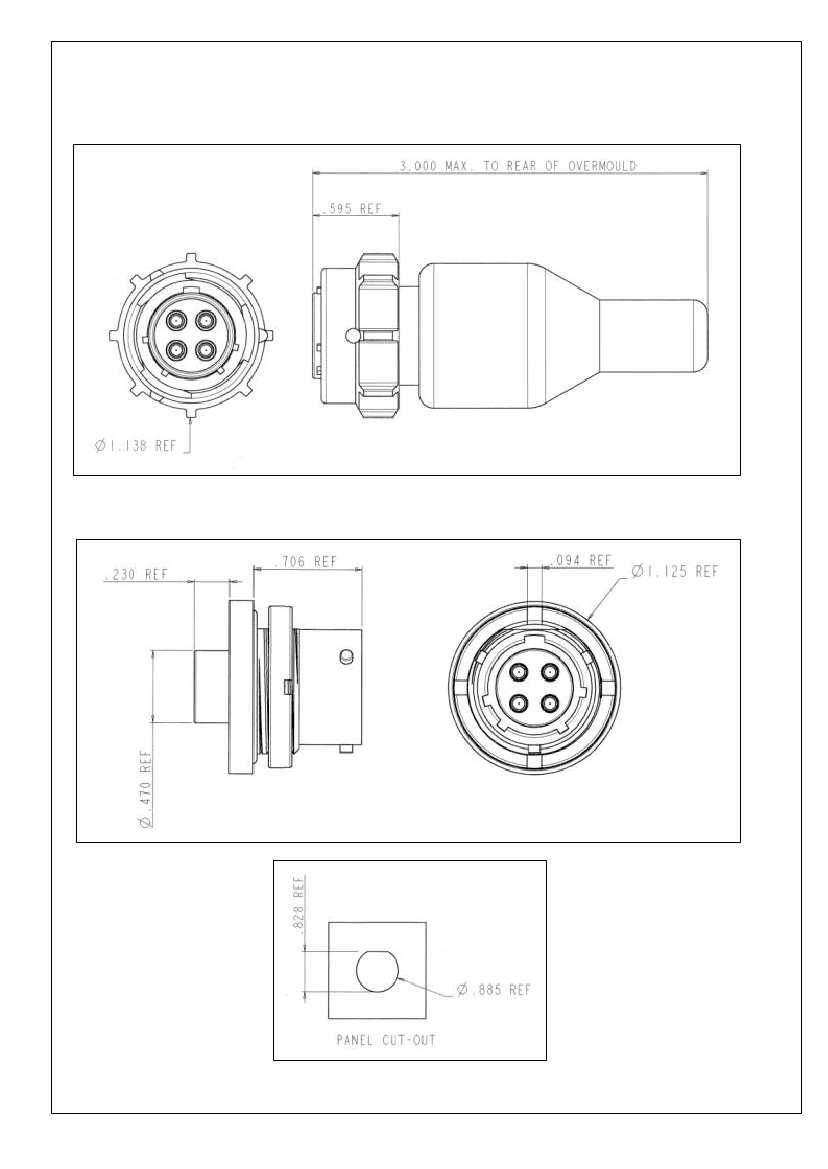

MBC Series – Multiway Bayonet Connector
Plug
Receptacle
Amphenol
Performance
Optical
Attenuation
Durability
Fibre Types
Cable Types
Orientations
MBC Series – Miniature Bayonet Connector
Typically 0.4dB with 62.5/125
µ
m cable
>500 matings
62.5/125
50/125
014 - 62.5/125 5.5mm OD Tactical
011 – 62.5/125 2.75mm OD Tight Jacketed
N A B C D E F
Environmental
-55
o
C to +125
o
C
Aluminium Alloy in:
Zinc Cobalt Olive Drab or Zinc Cobalt Black finish
Brass with Nickel plated finish
Temperature Range
Materials

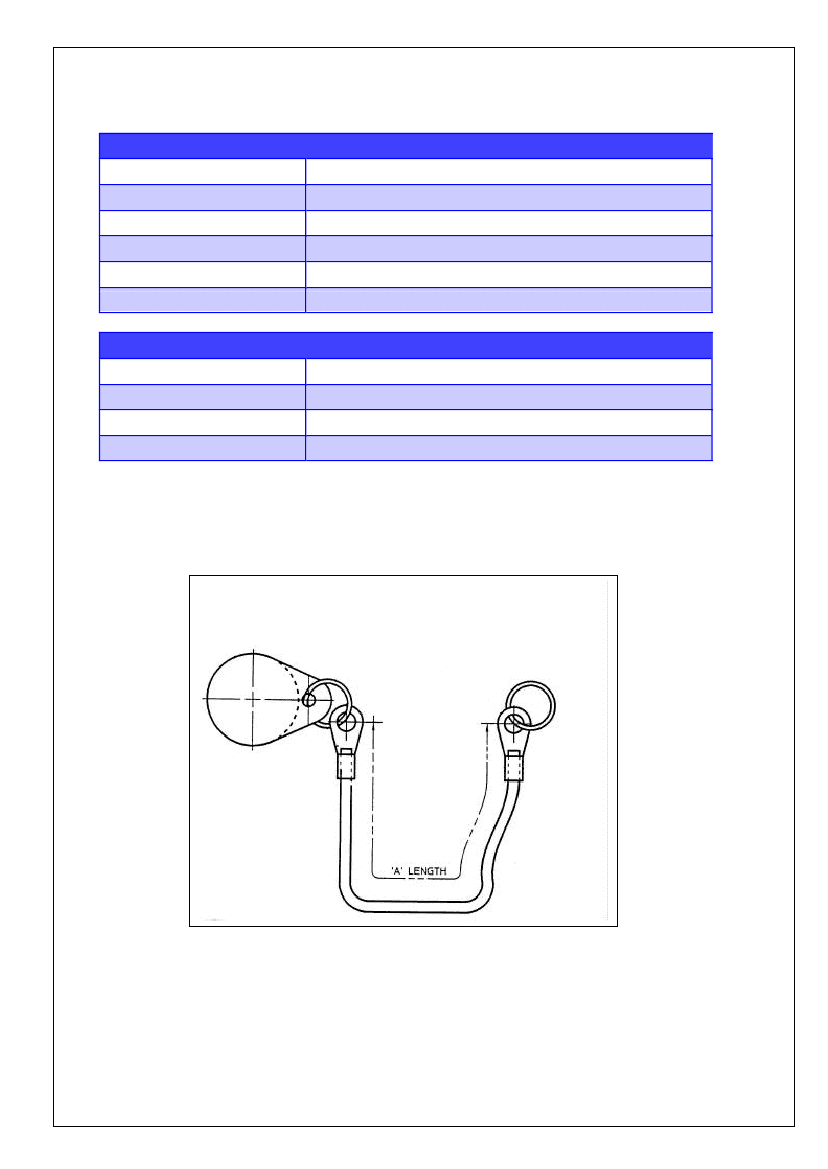

Dust Cap
Rubber Moulded Dust Cap and Nylon Cord
Part No. 62-5323-003-100
Amphenol
MBC Series –Multiway Bayonet Connector
Required Information for Cable Assembly Manufacture
Cable Type
Fibre Size
Number of Fibres
Connector Style
Cable Drum
5.5mm OD Tactical / 3.00mm ZIPcord
62.5/125
50/125
No. of Fibres in Cable required
Free Plug / Jam Nut Receptacle /
2 hole Square Flanged Receptacle / Loop Back
Is Cable Drum required for Cable assemblies 50M and
over in length
Notice:
Products are sold subject to Amphenol’s conditions of sale (“the standard conditions”). All specifications and statements contained herein
are believed to be correct at the time of printing but no representation or warranty, express or implied, is given as to any specification or statement
contained herein. Product specifications including performance characteristics are typical only and subject to deviation. Specifications are also
subject to change without notice. Users should not assume that all safety measures are indicated or that other measures may not be required. No
representation or warranty, express or implied, is given that any use of products (including any stated or suggested use) does not infringe any
patent, registered design or other third party rights and no stated or suggested use of products can be taken to recommend any such infringement.
