86092326314745E1LF datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 86092326314745E1LF

Preview

86092326314745E1LF: DescriptionBoard Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size118KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

86092326314745E1LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	86092326314745E1LF	-	-	View	Buy Now

86092326314745E1LF Overview

Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, ROHS COMPLIANT

86092326314745E1LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	9 weeks
Other features	STANDARD: DIN 41612
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	32
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

1

2 3

4

5

6

A

8609 XXX XX XX XXX XXXXX YY XX

B

FCIconnect.com

B

C

Copyright FCI

linear

NOTES:-

1. THE ''LF'' PRODUCTS MEET EUROPEAN UNION DIRECTIVES AND OTHER COUNTRY REGULATIONS AS DESCRIBED IN GS-22-008

2. THE HOUSING WILL WITHSTAND EXPOSURE TO 260°C PEAK TEMPERATURE FOR 3.5 SECONDS IN A WAVE SOLDER APPLICATION

WITH A 1.6 MM MINIMUM THICK CIRCUIT BOARD

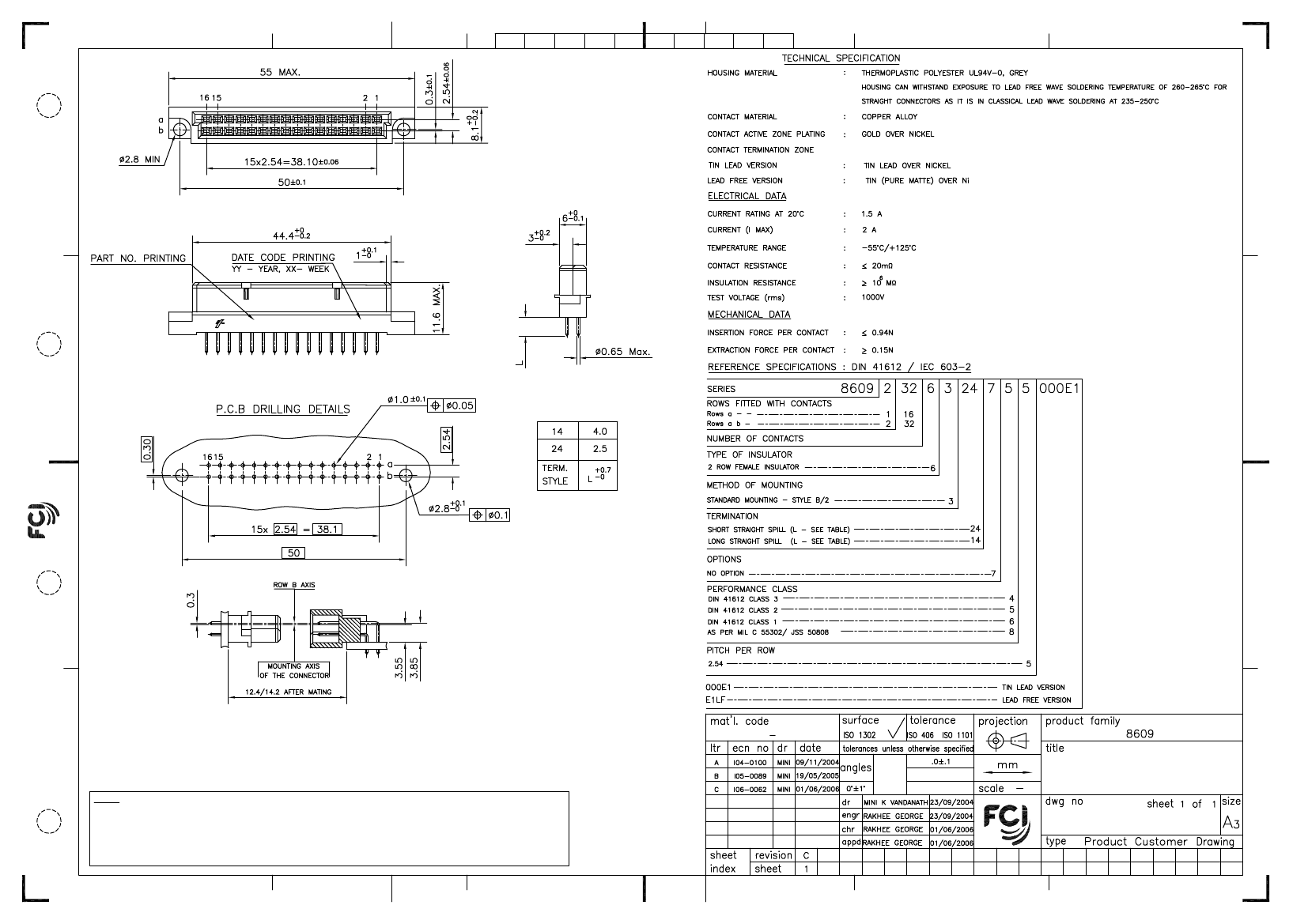

DIN STANDARD RECEPTACLE

STRAIGHT SPILL DIN 41612 STYLE-B/2

C-8609-2023

D

3

4

5

6

STATUS:

Released

Printed: May 14, 2011

.

D

3. LEAD FREE OR RoHS DIRECTIVE LABELING TO BE PROVIDED AS PER GS-14-920 FOR LEAD FREE VERSION.

form: A3

1

2

PDM: Rev:C

86092326314745E1LF Related Products

	86092326314745E1LF	86092326324755E1LF	86092326324755000E1
Description	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, ROHS COMPLIANT	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, ROHS COMPLIANT	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle
Maker	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant
Other features	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	GOLD OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE
DIN compliance	YES	YES	YES
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	32	32	32
UL Flammability Code	94V-0	94V-0	94V-0
Base Number Matches	1	1	1
Is it Rohs certified?	conform to	conform to	-
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	-
Factory Lead Time	9 weeks	6 weeks	-
Contact material	NOT SPECIFIED	NOT SPECIFIED	-
