CDP6805E2D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> CDP6805E2D

CDP6805E2D: DescriptionMicrocontroller, 8-Bit, 6805 CPU, 5MHz, CMOS, CDIP40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size892KB，28 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

CDP6805E2D Overview

Microcontroller, 8-Bit, 6805 CPU, 5MHz, CMOS, CDIP40

CDP6805E2D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP40,.6
Reach Compliance Code	unknow
Has ADC	NO
Address bus width	13
bit size	8
boundary scan	NO
CPU series	6805
maximum clock frequency	5 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-CDIP-T40
JESD-609 code	e0
low power mode	YES
Number of DMA channels
Number of external interrupt devices	1
Number of I/O lines	16
Number of serial I/Os
Number of terminals	40
Number of timers	1
On-chip data RAM width	8
On-chip program ROM width
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3/5 V
Certification status	Not Qualified
RAM (bytes)	112
RAM (number of words)	112
rom(word)	0
speed	5 MHz
Maximum slew rate	10 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	3 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

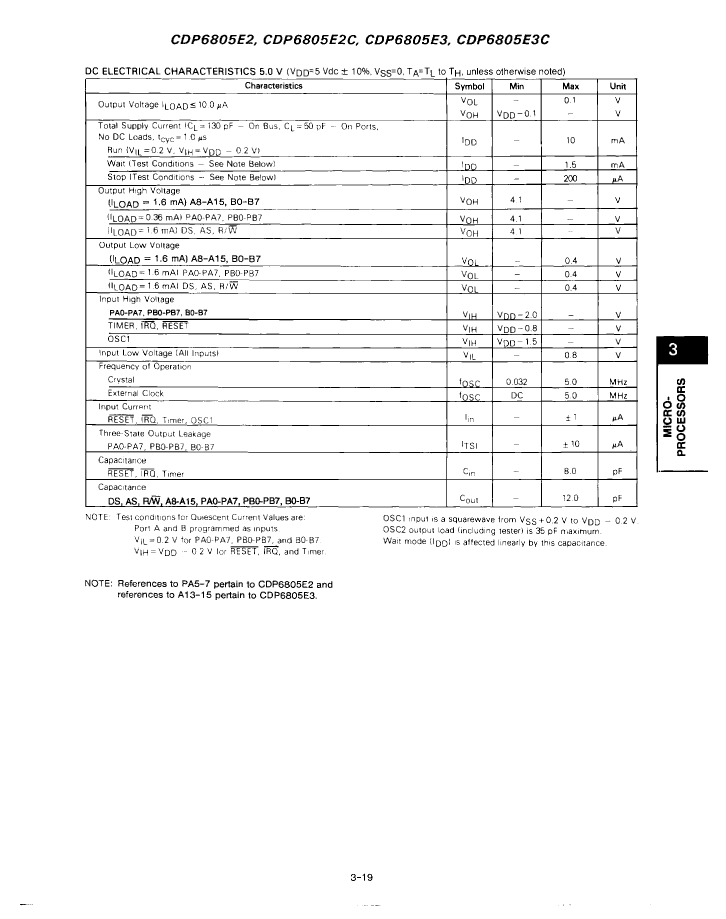

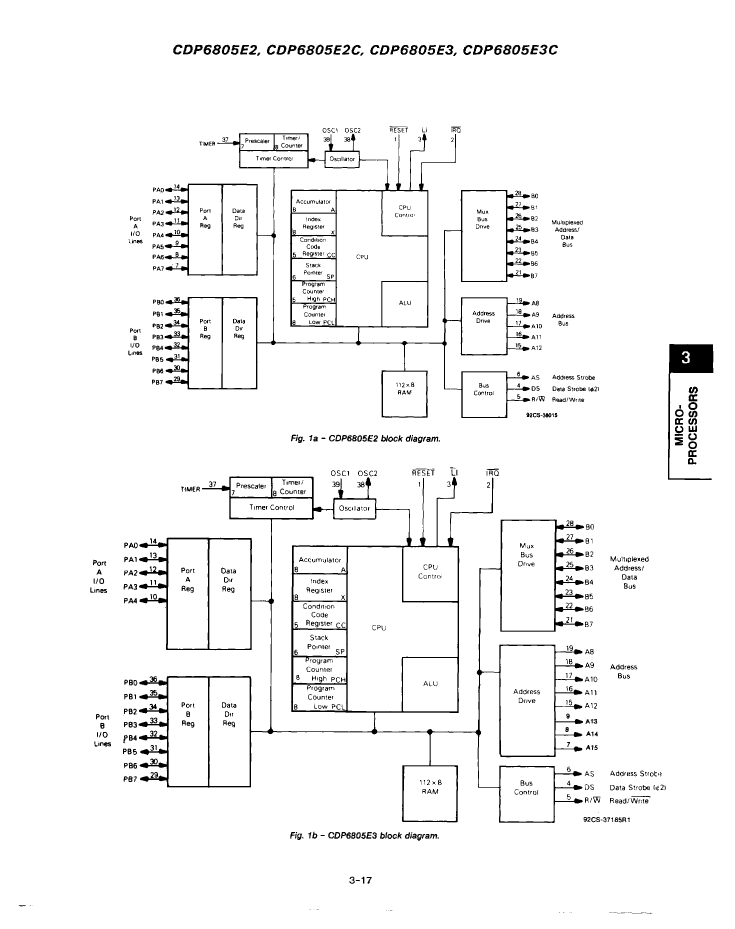

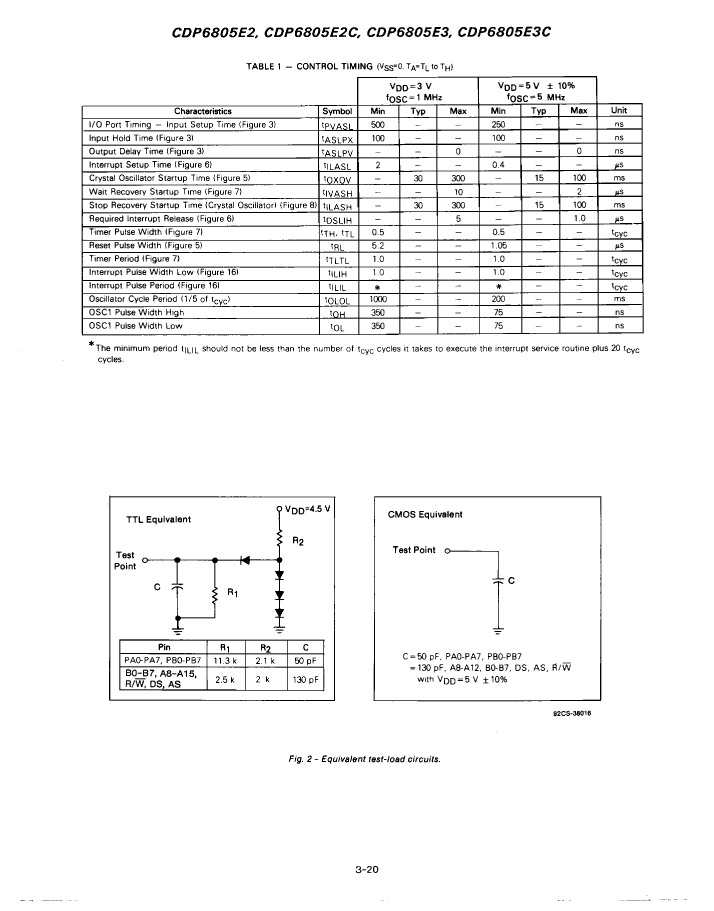

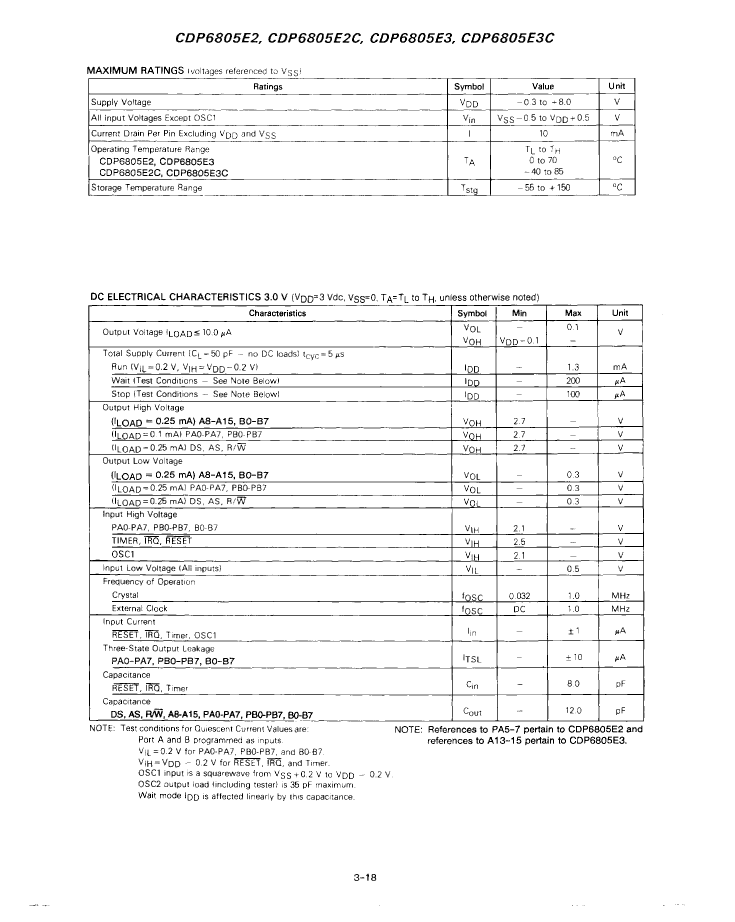

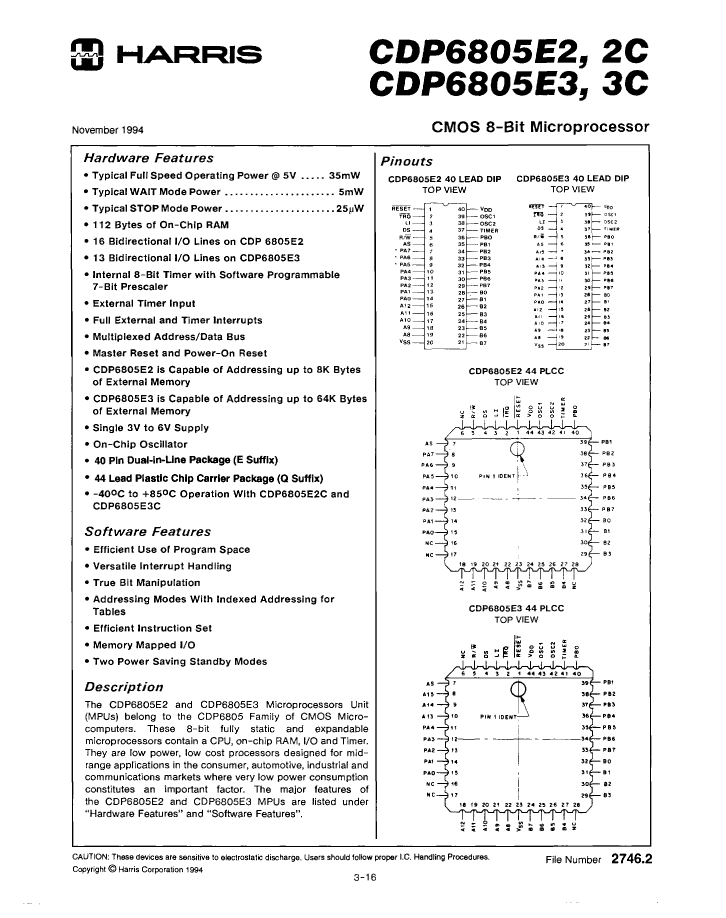

Preview

Download Datasheet

View All

CDP6805E2D Related Products

	CDP6805E2D	CDP6805E3D	CDP6805E3CD	CDP6805E2CD
Description	Microcontroller, 8-Bit, 6805 CPU, 5MHz, CMOS, CDIP40	Microcontroller, 8-Bit, 6805 CPU, 5MHz, CMOS, CDIP40	Microcontroller, 8-Bit, 6805 CPU, 5MHz, CMOS, CDIP40	Microcontroller, 8-Bit, 6805 CPU, 1MHz, CMOS, CDIP40
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknow	unknow	unknown	unknown
Has ADC	NO	NO	NO	NO
Address bus width	13	16	16	13
bit size	8	8	8	8
boundary scan	NO	NO	NO	NO
CPU series	6805	6805	6805	6805
maximum clock frequency	5 MHz	5 MHz	5 MHz	5 MHz
DAC channel	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO
External data bus width	8	8	8	8
Format	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	NO	NO
JESD-30 code	R-CDIP-T40	R-CDIP-T40	R-CDIP-T40	R-CDIP-T40
JESD-609 code	e0	e0	e0	e0
low power mode	YES	YES	YES	YES
Number of external interrupt devices	1	1	1	1
Number of I/O lines	16	13	13	16
Number of terminals	40	40	40	40
Number of timers	1	1	1	1
On-chip data RAM width	8	8	8	8
Maximum operating temperature	70 °C	70 °C	85 °C	85 °C
PWM channel	NO	NO	NO	NO
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP40,.6	DIP40,.6	DIP40,.6	DIP40,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	3/5 V	3/5 V	3/5 V	3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	112	112	112	112
RAM (number of words)	112	112	112	112
speed	5 MHz	5 MHz	5 MHz	1 MHz
Maximum slew rate	10 mA	10 mA	10 mA	10 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	3 V	3 V	3 V	3 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
package instruction	DIP, DIP40,.6	DIP, DIP40,.6	-	DIP, DIP40,.6
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Base Number Matches	1	1	1	-
